USR-N580

8 RS485 Ports Serial Ethernet Converter

8*RS485 Ports Serial Ethernet Converter is designed to realize bidirectional data transparent transmission between the serial port and the Ethernet port.





Enabling Edge-Device
Connectivity in the IoT Era

Widely supports connecting the IoT platform with standard MQTT protocol

Edge Computing

N580 actively execute data collection and internal calculate,
then transmits to cloud platform by customized Json format. Edge computing
gateways can effectively relieve the pressure on the server.

Data Transmission Encryption

Supports SSL/TLS encryption in TCP client,
HTTP client and MQTT operation modes,
supports two-way certificates authentication.

PUSR Cloud Management

Easy to achieve edge computing, pair connection,
remote operation and maintenance.

Modbus Gateway

Transfer between Modbus RTU and Modbus TCP protocol,
support Modbus multi-host polling.

Support up to 128 data points for data collection and
Modbus address mapping.

Basic Function

Bi-directional data transmission between RS485 port and Ethernet.

Block Diagram





Cascade Connection Function

Dual Ethernet port 10/100mbps It supports switch function
Other devices can be cascaded through USR-N580.

Free Choice of Multiple Working Modes

N580 supports TCP Client Server UDP Client UDP Server Httpd Client (later support
MQTT Client) and other modes; only a simple configuration, you can achieve data
pass-through function.



Arm scheme (Cortex-M7 core) to
provide a better experience

Arm Cortex-M7 Scheme,480Mhz CPU, 1M RAM +4M Flash The scheme features short transmission delay, fast data transmission speed, flexible expansion, and stable.
(MQTT/SSL/IPV6 and other major protocols will come soon, please enquire directly for more information).

Advanced Hardware Protection

EFT Protection

Avoid interference of pulse group caused
by inductive load switching in line, such as motor,
frequency converter, etc.

Pause Group: Level 3.

Surge Protection

Avoid instantaneous big electric current because of
the circuit such as lightning stroke, power switch, etc.
when cause damage to equipment hardware.

Anti Surge: Level 3.



ESD Protection

Prevent electrostatic damage to
equipment, such as human electrostatic,
dust electrostatic, electric power application
of environmental arc, etc.

Contact Level 4.

Air Level 4



Watchdog

Internal process watchdog
and external hardware
watchdog work 24 hours
without stopping steadily.



Product Details

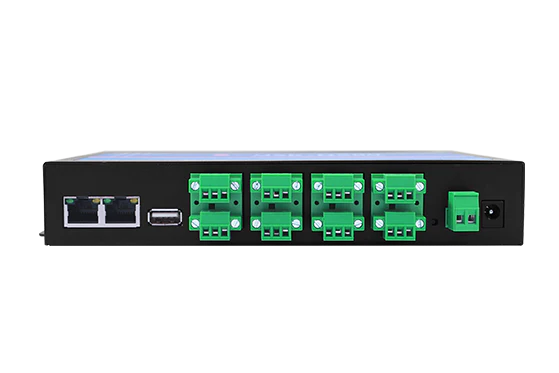

L*W*H 222*122*35（mm）
including terminals and mounting ears



Shipping List

**Power Adapter is not included in the box.

Please use this link to add it to your cart: 12V 1A (12W) Power Adapter

Application Case

Network Monitoring of Industrial Automation

Traditional network monitoring of industrial automation actually without
networking. N580, integrating optimized TCP/IP protocol stack, provides
network scheme of serial port data to TCP/IP, which can greatly improve
the level of industrial automation.



Unattended Weighing

N580 is connected with the barrier gate to facilitate the control center to control
the gate switch remotely through Ethernet. At the same time, many serial ports of
N580 can connect peripherals like weighing instruments, LED displays, RFID
readers, vehicle induction coils, ticket printers, fitting more application scenarios.



Network Alarm for Electrical Fire

N580 can communicate with the serial port of the electric fire alarm to transmit the
alarm information to the server platform quickly, and remind the staff to pay attention
to the fire information and reduce the loss of people and property.





PARAMETER

USR-N580 Specifications
Hardware Parameters
Operating Voltage	DC 9.0～36.0V
Operating Current	120mA@12V
Net Interface Format	RJ45, 10/100Mbps
Serial Baud Rate	600~921.6K (bps)
Number of Serial Ports	RS485*8
Software Parameters
Net Protocol	IPV4, TCP/UDP, HTTP
IP Mode	Static IP, DHCP
DDNS	Supports
User Configuring	Software/webpage configuring, serial/network AT commands
Operation Mode	TCP server, TCP client, UDP server, UDP client, Support two-way socket
Similar RFC2217	Support
HTTPD Client	Support
TCP Server	Support up to 8 TCP Clients (user-defined)
Net Buffer	48Kbyte
Serial Buffer	Dynamic packet buffer. Example: When the packet length is 10Byte, can buffer 200 packets (2KB). When the packet length is 1460Byte, can buffer 5 packets (7.3KB).
Average Delay	<10ms
Related Software	USR-VCOM, set-up software
485_EN Switching Speed	<100us
Flow Control	XON/XOFF
Registration Packet	User-defined, MAC, USR Cloud
Web to Serial	WebSocket function
Heartbeat Packet	UART, NET
Others
Electrostatic Protection	Electrostatic Protection ESD: Level 3 Anti-Surge: Level 3 Pulse Group: Level 3
Dimension	222 x 122 x 35 mm (L x W x H, with terminal and ears)
Operating Temperature	-40～+85°C
Storage Temperature	-40～+105°C
Operating Humidity	-40～+85°C (Industrial)
Storage Humidity	-45～+105°C, 5～95% RH (non-condensing)
Accessories	Power adaptor, Ethernet cable
Packaging	Electrostatic bubble
