TSW200 - Industrial POE+ Ethernet Switch
Description

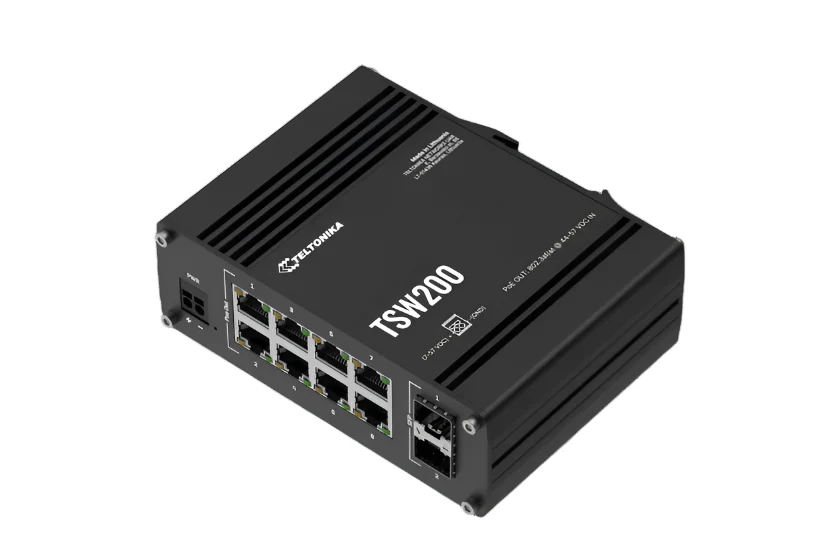

TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.
Standard package*
- TSW200
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Ethernet (ETH)
| Specification | Details |
|---|---|
| Ports | 8 x ETH ports, 10/100/1000 Mbps |
| Features | Supports auto MDI/MDIX crossover |
Fibre
| Specification | Details |
|---|---|
| Ports | 2 x SFP ports |
IEEE 802.3 Series Standards
| Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
POE OUT
| Specification | Details |
|---|---|
| PoE Ports | Port 1 - 8 |
| PoE Standards | 802.3af and 802.3at Alternative B |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 240 W |
Performance Specifications
| Specification | Details |
|---|---|
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
Power
| Specification | Details |
|---|---|
| Connector | 2-pin industrial DC power socket |
| Input Voltage Range | 7 – 57 VDC |
| PoE-out Input Voltage Range | 44 – 57 VDC |
| Power Consumption | Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W |
Physical Interfaces
| Specification | Details |
|---|---|
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports |
| Status LEDs | 1 x Power LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
Physical Specification
| Specification | Details |
|---|---|
| Casing Material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 517 g |
| Mounting Options | Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
Operating Environment
| Specification | Details |
|---|---|
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
Regulatory & Type Approvals
| Specification | Details |
|---|---|
| Regulatory | CE, UKCA, CITC, ANRT, FCC, IC, CB |
EMC Emissions & Immunity
| Specification | Details |
|---|---|
| Standards | EN 55032:2015 + A1:2020 |
| EN 55035:2017 + A11:2020 | |
| EN IEC 61000-3-2:2019 + A1:2021 | |
| EN 61000-3-3:2013 + A1:2019 | |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
Safety Standards
| Specification | Details |
|---|---|
| Standards | IEC 62368-1:2018 |
| EN IEC 62368-1:2020+A11:2020 |
Downloads
Manual & Documentation
TSW200 FLYER (EN)
TSW200 DATASHEET (EN)
Links
TSW200 QUICK START GUIDE (EN)
TSW200 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
TSW200 3D MODELS
