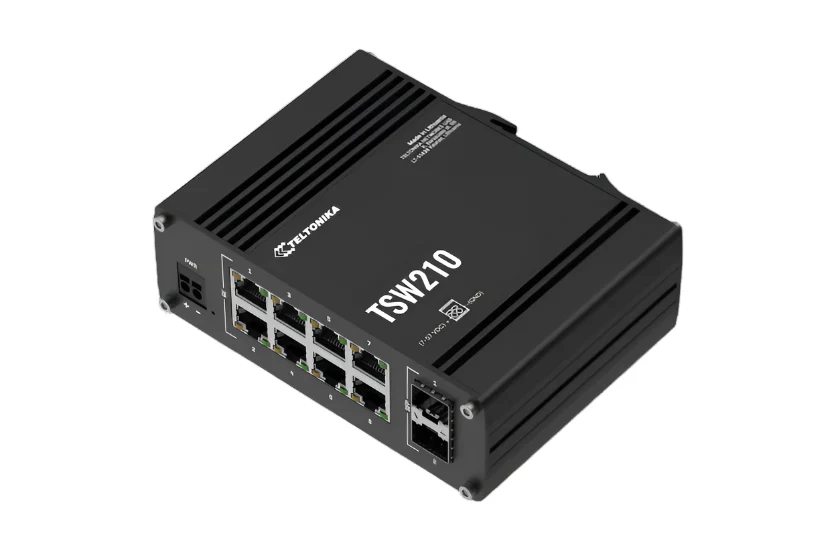

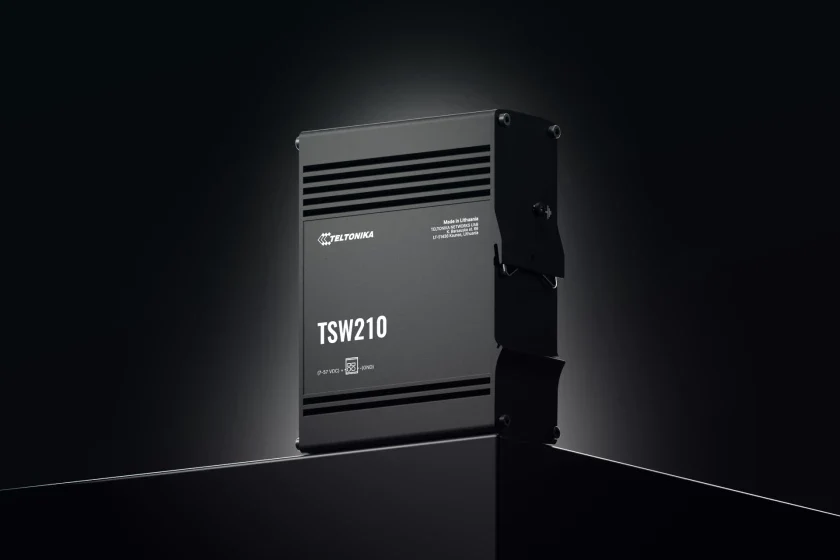

TSW210 - Industrial Ethernet Switch
Description
TSW210 is an Ethernet switch that offers a great combination of Gigabit Ethernet and SFP. Eight Ethernet ports enable connecting multiple devices to the network quickly and easily without any further configuration. SFP allows including far apart devices while maintaining high-speed rates and reliability.
Standard package*
- TSW210
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Ethernet (ETH)
| Specification | Details |
|---|---|
| Ports | 8 x ETH ports, 10/100/1000 Mbps |
| Features | Supports auto MDI/MDIX crossover |
Fibre
| Specification | Details |
|---|---|
| Ports | 2 x SFP ports |
IEEE 802.3 Series Standards
| Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
Performance Specifications
| Specification | Details |
|---|---|
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
Power
| Specification | Details |
|---|---|
| Connector | 2-pin industrial DC power socket |
| Input Voltage Range | 7 – 57 VDC |
| Power Consumption | Idle: ~1.03 W / Max: 3.71 W |
Physical Interfaces
| Specification | Details |
|---|---|
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports |
| Status LEDs | 1 x Power LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
Physical Specification
| Specification | Details |
|---|---|
| Casing Material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 500 g |
| Mounting Options | Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
Operating Environment
| Specification | Details |
|---|---|
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Regulatory & Type Approvals
| Specification | Details |
|---|---|
| Regulatory | CE, UKCA, CITC, ANRT, FCC, IC, RCM, CB, EAC, Kenya, NOM, UL/CSA, Japan, SDPPI (POSTEL) |
EMC Emissions & Immunity
| Specification | Standards |
|---|---|
| EMC Emissions | EN 55032:2015 + A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 |
| ESD | EN 61000-4-2:2009 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
Safety
| Specification | Standards |
|---|---|
| Safety | IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020 |
Safety (Hazardous Locations)
| Specification | Standards |
|---|---|
| Safety Standards | UL 62368-1, CAN/CSA C22.2 No. 62368-1-19 |
Downloads
Manual & Documentation
TSW210 FLYER (EN)
TSW210 DATASHEET (EN)
Links
TSW210 QUICK START GUIDE (EN)
TSW210 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
TSW210 3D MODELS
