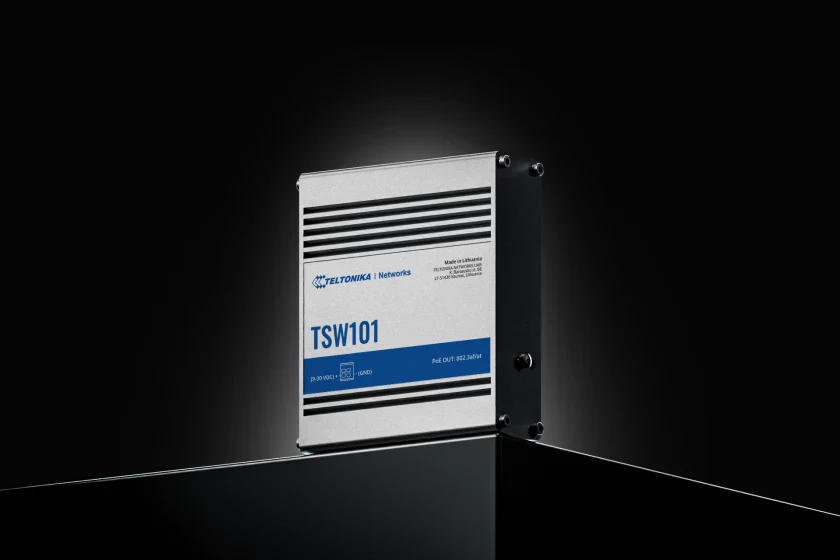

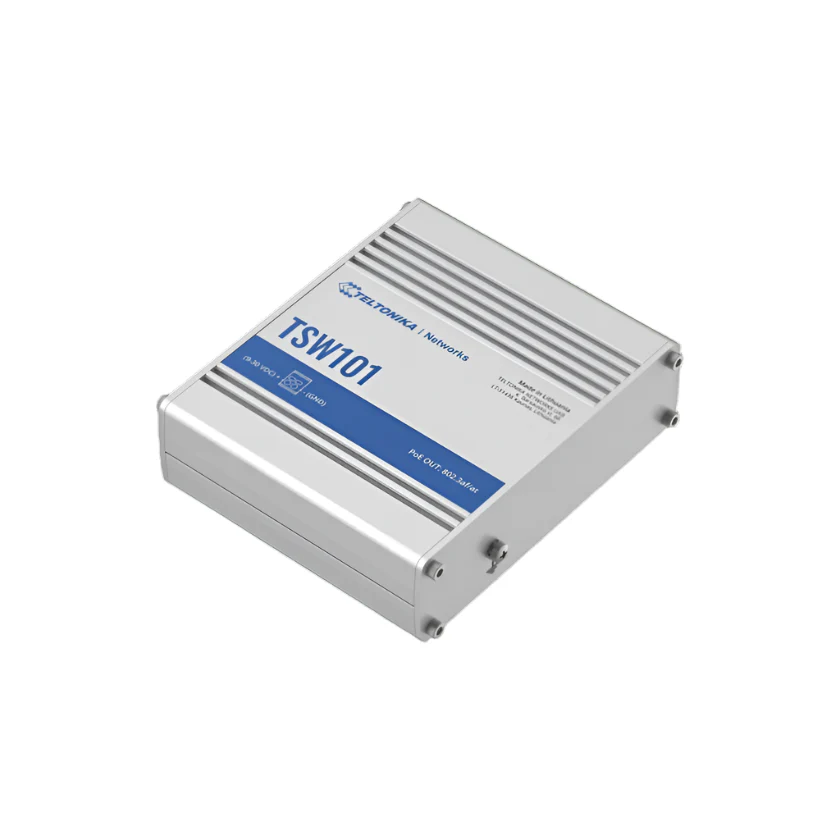

TSW101 - Automotive POE+ Switch
Description
The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.
Standard package*
- TSW101
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Ethernet Specifications
| Specification | Details |
|---|---|
| Ethernet Ports | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 Series Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Maximum Ethernet Cable Length | 100 m |
PoE OUT Specifications
| Specification | Details |
|---|---|
| PoE Ports | Port 1-4 |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 60 W |
| PoE Standards | 802.3af and 802.3at Alternative A |
Performance Specifications
| Specification | Details |
|---|---|
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
Power Specifications
| Specification | Details |
|---|---|
| Connector | 2-pin industrial DC power socket |
| Input Voltage Range | 9 – 30 VDC |
| PoE-out Input Voltage Range | 9 – 30 VDC |
| Power Consumption | Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W |
| PSU | 12 V or 24 V car battery-powered. No additional PSU required. |
Physical Interfaces
| Interface | Details |
|---|---|
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
Physical Specification
| Specification | Details |
|---|---|
| Casing Material | Aluminium housing |
| Dimensions (W x H x D) | 115 x 32 x 95 mm |
| Weight | 384 g |
| Mounting Options | DIN rail, wall mount, flat surface (requires additional kit) |
Operating Environment
| Specification | Details |
|---|---|
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
Regulatory & Type Approvals
| Regulation/Approval | Details |
|---|---|
| Regulatory Standards | CE, REACH, RoHS, WEEE |
| Certifications | TSW101 CE, TSW101 UKCA, TSW101 FCC, |
| TSW101 IC, TSW101 CB, TSW101 RCM, | |
| E-Mark |
EMC Emissions & Immunity
| Specification | Standard |
|---|---|
| EMC Emission Standards | EN 55032:2015 + A11:2020 + A1:2020 |
| EN 55035:2017 + A11:2020 | |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Power) | EN 61000-4-5:2014 + A1:2017 |
| Conducted Susceptibility (CS) | EN 61000-4-6:2014 |
Safety Standards
| Certification Body | Standard |
|---|---|
| CE | EN IEC 62368-1:2020 + A11:2020 |
| EN IEC 62311:2020 | |
| EN 50665:2017 | |
| RCM | AS/NZS 62368.1:2022 |
| CB | IEC 62368-1:2018 |
Downloads
Manual & Documentation
TSW101 FLYER (EN)
TSW101 DATASHEET (EN)
Links
TSW101 QUICK START GUIDE (EN)
TSW101 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
TSW101 3D MODELS
$142.87
