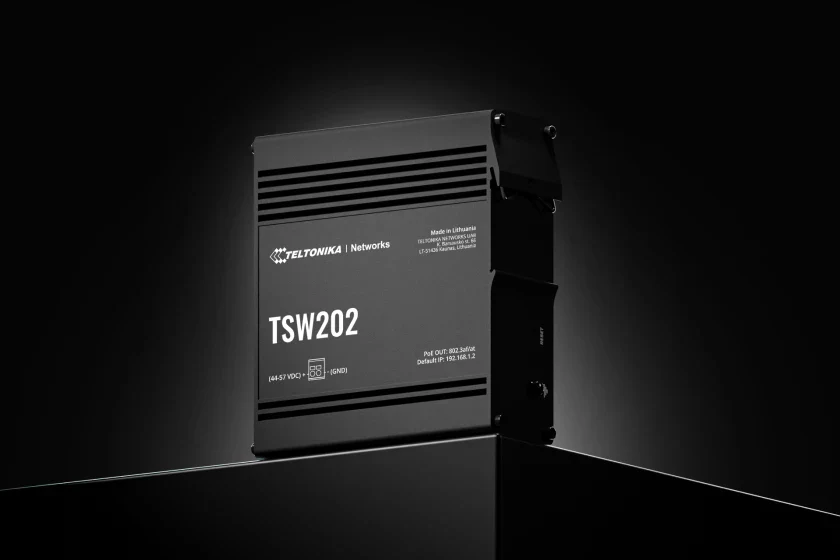

TSW202 - Managed POE+ Ethernet Switch
Description
TSW202 is a managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralising power distribution. This PoE+ switch enables flexibility over management and power supply and supports protocols, including EtherNet/IP, PROFINET, and MRP. The TSW202 has 2 SFP ports and 8 Gigabit Ethernet ports providing 30 W of power each.
Standard package*
- TSW202
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Ethernet (ETH)
| Feature | Specification |
|---|---|
| Type | Multi-layer managed |
| Ports | 8 x ETH ports, 10/100/1000 Mbps |
| Features | Supports auto MDI/MDIX crossover |
| Fibre Ports | 2 x SFP ports |
| Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z |
PoE OUT
| Feature | Specification |
|---|---|
| PoE Ports | Ports 1 - 8 |
| PoE Standards | 802.3af and 802.3at Alternative B |
| Max Power per Port | 30 W |
| Total PoE Power Budget | 240 W |
| Max Ethernet Cable Length | 100 m |
Services
| Service | Supported |
|---|---|
| EtherNet/IP | Yes |
| PROFINET (Class B) | Yes |
| SNMP (V2, V3) | Yes |
| LLDP | Yes |
Network Management
| Feature | Specification |
|---|---|
| Traffic Prioritization | 802.1p Class of Service |
| Access Control | 802.1x Port-Based Network Access Control |
| VLAN | 802.1Q VLAN |
Network Features
| Feature | Description |
|---|---|
| MRP | MRP client role, MRP manager role |
| L2 Features | Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP | DHCP server, DHCP client, DHCP static leases (with MAC wildcards support) |
| Port Settings | Enable/disable, link speed control, port isolation, PoE management, EEE (802.3az), Port Mirroring |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
Security
| Feature | Description |
|---|---|
| Authentication | PAM (Pre-shared key), RADIUS, TACACS+, IP & login attempts blocking |
Quality of Service (QoS)
| Feature | Description |
|---|---|
| QOS Features | Port priority, DSCP priority, 802.1p priority, TOS |
| Scheduling Methods | SP (Strict Priority), WFQ (Weighted Fair Queue), WRR (Weighted Round Robin) |
| Bandwidth Control | Rate limiting, storm control |
| Traffic Shaper | Port-based shaping |
Diagnostics
| Tool | Description |
|---|---|
| Diagnostics Tools | Cable diagnostic, ping, traceroute, nslookup |
| Ping Reboot | Capability to restart PoE on a specific port |
API
| Feature | Description |
|---|---|
| Teltonika Networks Web API | Configurable API endpoints to retrieve or change data (Beta). Documentation available at Teltonika API Documentation |
Physical Interfaces
| Attribute | Specification |
|---|---|
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports |
| Status LEDs | 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Reset | Software reset button |
| Other | 1 x Grounding screw |
Physical Specifications
| Attribute | Specification |
|---|---|
| Casing Material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 132 x 44.2 x 122.2 mm |
| Weight | 610 g |
| Mounting Options | Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
Operating Environment
| Attribute | Specification |
|---|---|
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
Regulatory & Type Approvals
| Category | Approvals |
|---|
| Regulatory | CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki |
EMC Emissions & Immunity Standards
| Standard | Description |
|---|---|
| EN 55032:2015 | + A11:2020 + A1:2020 |
| EN 55035:2017 | + A11:2020 |
| EN IEC 61000-3-2 | 2019 + A1:2021 |
| EN 61000-3-3 | 2013 + A1:2019 + A2:2021 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN 61000-4-11:2020 |
Safety Standards
| Standard | Description |
|---|---|
| CE | EN IEC 62368-1:2020 + A11:2020 |
| RCM | AS/NZS 62368.1:2022 |
| CB | IEC 62368-1:2018 |
