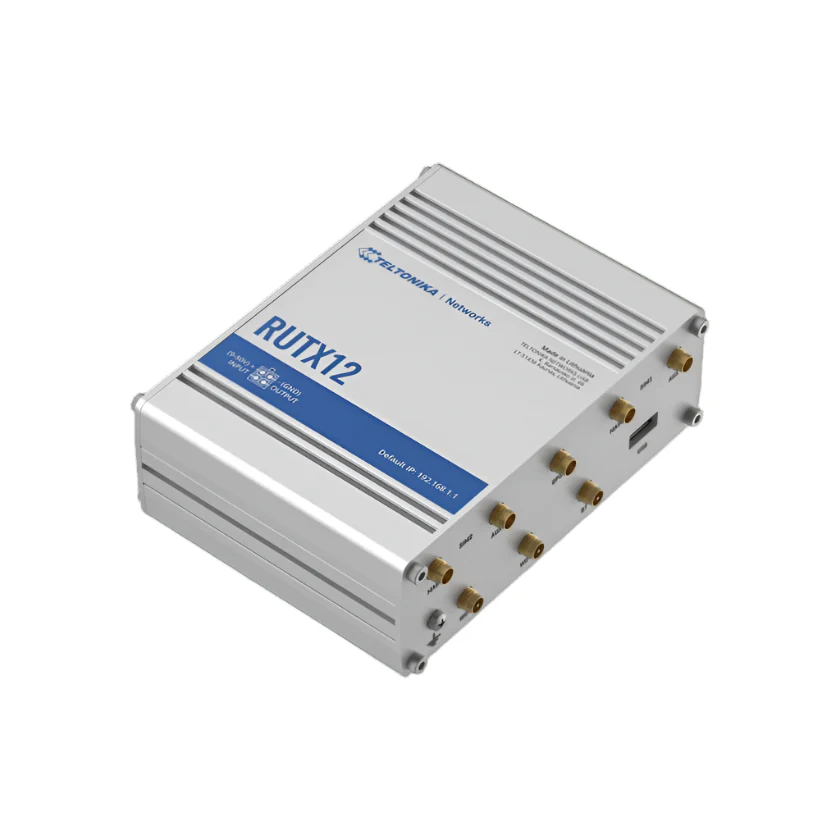

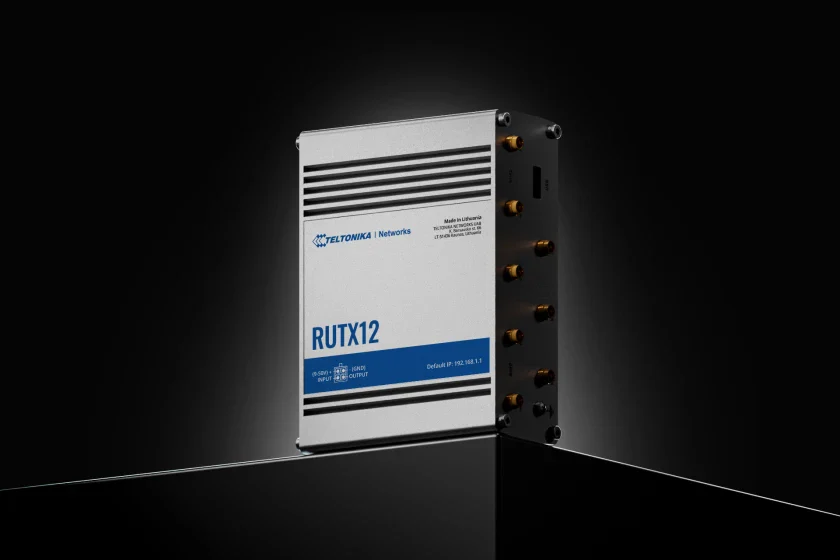

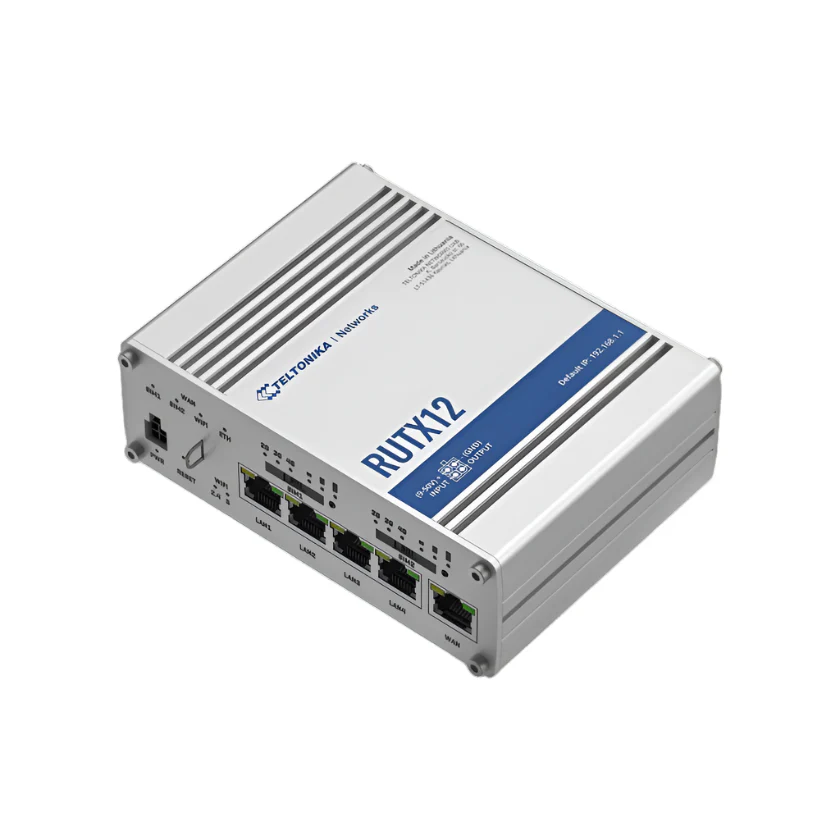

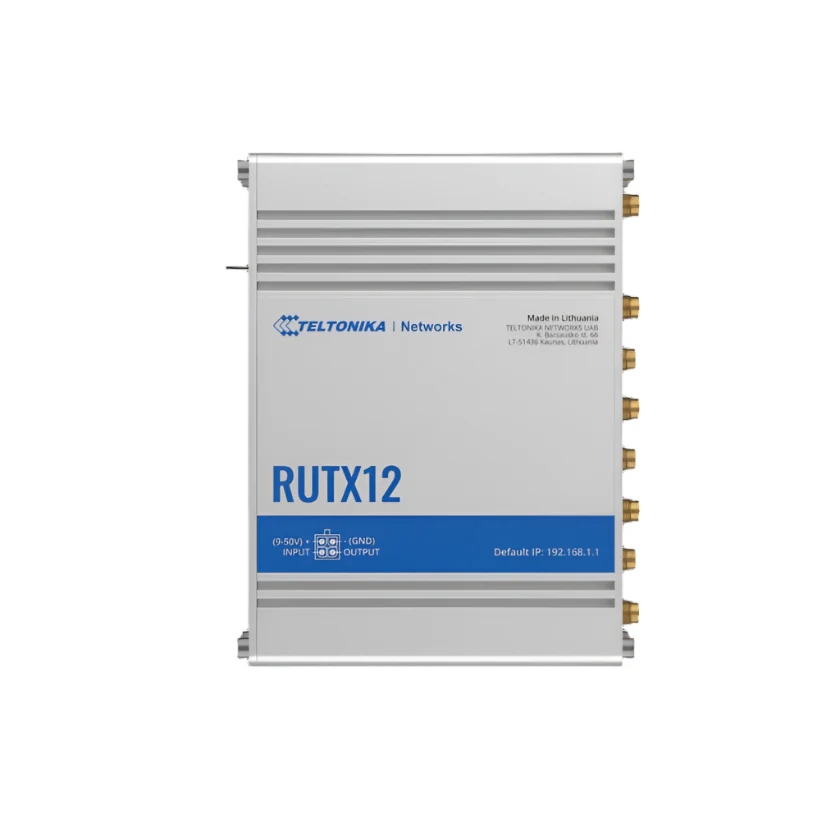

RUTX12 - Dual Lte Cat 6 Industrial Cellular Router

Mobile

Component	Specification
Mobile Module	2 x 4G LTE Cat 6 (up to 300 Mbps DL / 50 Mbps UL), 3G up to 42 Mbps DL / 5.76 Mbps UL
3GPP Release	Release 12
Status Information	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS Features	SMS status, configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Support	Send and read Unstructured Supplementary Service Data (USSD) messages
Black/White List	Operator black/white list by country or individual operators
Multiple PDN	Support for using multiple PDNs for various network services
Band Management	Band lock, used band status display
SIM Idle Protection	SIM not in use remains idle until switched, saving data
SIM PIN Management	Set, change, or disable the SIM PIN
APN Management	Auto APN detection
Bridge Mode	Direct connection between mobile ISP and device on LAN
Passthrough Mode	Assign mobile WAN IP to another device on LAN



Wireless

Component	Specification
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with speeds up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi Security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, 802.11w PMF
SSID/ESSID Features	ESSID stealth mode
Wi-Fi Connections	Support for up to 150 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filtering	Allowlist, blocklist
QR Code Generator	Generates QR code for seamless Wi-Fi login
TravelMate Feature	Forward Wi-Fi hotspot landing page to subsequent devices



Bluetooth

Feature	Details
Version	Bluetooth 4.0
Mode	Bluetooth Low Energy (LE) for short-range communication

---

Ethernet Specifications

Component	Details
WAN	1 x WAN port (10/100/1000 Mbps), compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN	4 x LAN ports (10/100/1000 Mbps), compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover



Network

Feature	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN
VoIP Passthrough	H.323 and SIP-ALG protocol NAT helpers for proper VoIP packet routing
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forwarding, traffic rules, custom rules, TTL target customization
Firewall Status Page	View firewall statistics, rules, and counters
Ports Management	Manage device ports (enable/disable, configure transmission speed, etc.)
Network Topology	Visual representation of your network
Hotspot	Captive portal, RADIUS server support, SMS authorization, SSO authentication, landing page options, walled garden, user and group management, custom hotspot themes
DHCP	Static/dynamic IP allocation, DHCP relay, server configuration, static leases
QoS / SQM	Traffic prioritization by source/destination, protocol, or port; WMM; 802.11e
DDNS	Supports >25 service providers, manual configuration available
DNS Over HTTPS	Secure DNS resolution via HTTPS proxy
Network Backup	Failover options: Wi-Fi WAN, Mobile, VRRP, Wired
Load Balancing	Distribute Internet traffic over multiple WAN connections
SSHFS	Mount remote file system via SSH protocol
VRF Support	Initial virtual routing and forwarding (VRF) support
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history



Security

Feature	Details
802.1x	Port-based network access control client
Authentication	- Pre-shared key, digital certificates, X.509 certificates - TACACS+ - Internal & External RADIUS users authentication - IP & login attempts blocking - Time-based login blocking - Built-in random password generator
Firewall	- Preconfigured firewall rules via WebUI - Unlimited configuration via CLI - DMZ, NAT, NAT-T, NAT64
Attack Prevention	- DDoS prevention: SYN flood, SSH, HTTP/HTTPS attack prevention - Port scan prevention: SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks
VLAN	Port-based and tag-based VLAN separation
Mobile Quota Control	Mobile data limit with customizable period, start time, warning limit, phone number settings
WEB Filter	Blacklist and Whitelist for website blocking or access
Access Control	Flexible access to SSH, Web interface, CLI, and Telnet
SSL Certificate Generation	Let's Encrypt and SCEP certificate generation methods



VPN

VPN Type	Details
OpenVPN	Supports multiple clients and servers simultaneously, with 27 encryption methods
OpenVPN Encryption	Various methods including AES-256-GCM, AES-128-CBC, DES-CBC, and more
IPsec	XFRM, IKEv1, IKEv2 with 14 encryption methods including AES256-GCM16 and 3DES
GRE	GRE tunnels and GRE over IPsec support
PPTP, L2TP	Simultaneous client/server instances, L2TPv3, and L2TP over IPsec support
Stunnel	Adds TLS encryption functionality to existing applications without modifying their code
DMVPN	Supports scalable IPsec VPNs with Phase 2, Phase 3, and Dual Hub
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support for secure networking
WireGuard	WireGuard VPN client and server support
Tinc	Offers encryption, authentication, and compression in its tunnels (Client/Server support)
Tailscale	Encrypted, point-to-point connections using the open-source WireGuard protocol



OPC UA

Feature	Details
Supported Modes	Client, Server
Connections	TCP

MODBUS

Feature	Details
Supported Modes	Server, Client
Connections	TCP, USB
Custom Registers	MODBUS TCP custom register block requests for reading/writing files inside the router. Extends MODBUS TCP Client functionality.
Data Formats	8-bit: INT, UINT 16-bit: INT, UINT (MSB or LSB first) 32-bit: Float, INT, UINT (ABCD, DCBA, CDAB, BADC) HEX, ASCII

Data to Server

Feature	Details
Protocols	HTTP(S), MQTT, Azure MQTT, Kinesis
Data Handling	Extract parameters from multiple sources and send to a single server. Custom LUA scripting support.

MQTT Gateway

Feature	Details
Modbus MQTT Gateway	Enables command and data exchange between MODBUS Server and MQTT broker.

DNP3

Feature	Details
Supported Modes	Station, Outstation
Connections	TCP, USB

DLMS

Feature	Details
Supported Modes	Client
Connections	TCP, USB
COSEM Support	Automatically scans and configures meter COSEM objects.



API

Feature	Description
Teltonika Networks Web API (beta)	Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation.

Monitoring & Management

Feature	Description
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status.
FOTA	Firmware update from server with automatic notifications.
SSH	SSH (v1, v2) support.
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET.
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off.
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.
MQTT	MQTT Broker, MQTT publisher.
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection.
JSON-RPC	Management API over HTTP/HTTPS.
RMS	Teltonika Remote Management System (RMS).

IoT Platforms

Platform	Description
ThingWorx	Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type.
Cumulocity	Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.
Azure IoT Hub	Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs.
AWS IoT Core	Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality



System Characteristics

Attribute	Details
CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB, DDR3
FLASH storage	256 MB, SPI Flash

Firmware / Configuration

Attribute	Details
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep settings	Update FW without losing current configuration
Factory settings reset	A full factory reset restores all system settings, including IP address, PIN, and user data

Firmware Customization

Attribute	Details
Operating system	RutOS (OpenWrt based Linux OS)
Supported languages	Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools	SDK package with build environment provided
GPL customization	Create your own custom, branded firmware and web page application by changing colors, logos, and other elements
Package Manager	A service to install additional software on the device



Location Tracking

Feature	Details
GNSS	GPS, GLONASS, BeiDou, Galileo, and QZSS
Coordinates	GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA	NMEA 0183
NTRIP	NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software	Supported server software: TAVL, RMS
Geofencing	Configurable multiple geofence zones

USB

Feature	Details
Data rate	USB 2.0
Applications	Samba share, USB-to-serial
External devices	Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Feature	Details
Input	1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output	1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events	Email, RMS, SMS
I/O juggler	Allows to set certain I/O conditions to initiate event

Power

Feature	Details
Connector	4-pin industrial DC power socket
Input voltage range	9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)	Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption	Idle: < 4 W, Max: < 22 W

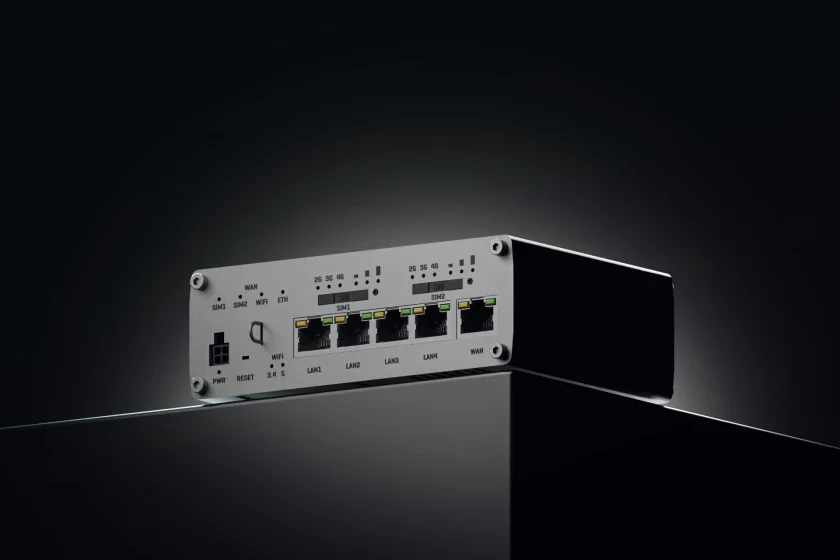

Physical Interfaces

Interface	Details
Ethernet	5 x RJ45 ports, 10/100/1000 Mbps
I/O’s	1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs	4 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
SIM	2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power	1 x 4-pin power connector
Antennas	4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS
USB	1 x USB A port for external devices
Reset	Reboot/User default reset/Factory reset button
Other	1 x Grounding screw



Physical Specification

Specification	Details
Casing Material	Full aluminium housing
Dimensions (W x H x D)	132 x 44.2 x 95.1 mm
Weight	540 g
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)



Operating Environment

Environment	Details
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

Regulatory & Type Approvals

Regulatory Approval	Details
Regulatory	CE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, Anatel, RCM, SIRIM, NTC, NBTC, CB, E-mark



EMC Emissions & Immunity

Standard	Details
Standards	EN 55032:2015, EN 55035:2017, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 301 489-1:V2.2.3, EN 301 489-3 V2.1.1, EN 301 489-17:V3.2.4, EN 301 489-19 V2.1.1, Draft EN 301 489-52:V1.1.0
ESD	EN 61000-4-2:2009
Radiated Immunity	EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT	EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017
CS	EN 61000-4-6:2014
DIP	EN 61000-4-11:2004 + A1:2017

RF Standards

Standard	Details
Standards	EN 300 328:V2.2.2, EN 300 440:V2.2.1, EN 301 893 V2.1.1, EN 301 908-1:V13.1.1, EN 301 908-2:V13.1.1, EN 301 908-13:V13.1.1, EN 303 413 V1.1.1

Safety Standards

Standard	Details
CE	EN IEC 62368-1:2020 + A11:2020
RCM	AS/NZS 62368.1:2018
CB	IEC 62368-1:2018
