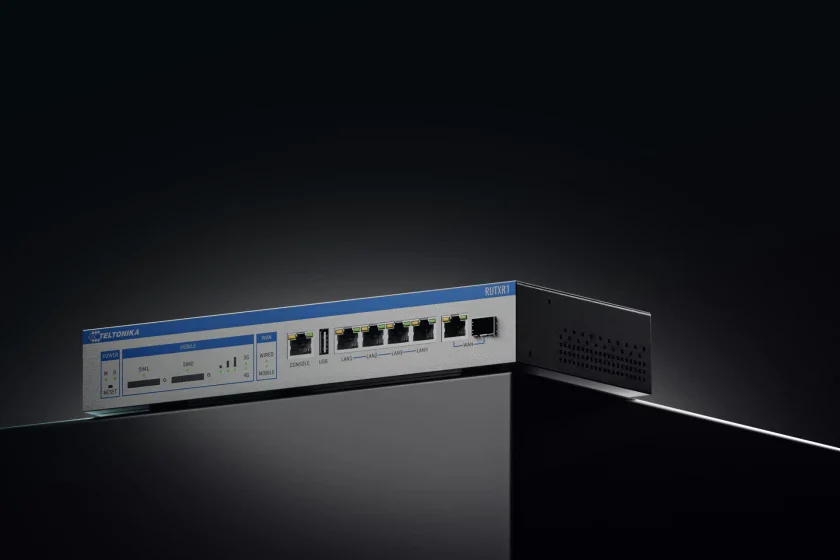

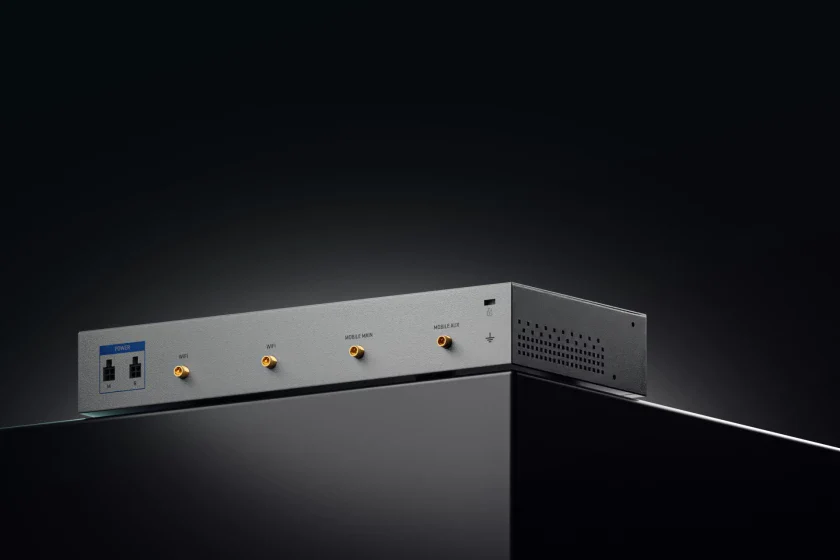

RUTXR1 - Enterprise Rack-Mountable SFP/LTE Router
Description
The first rack-mountable LTE Cat 6 router in the Teltonika Networks portfolio comes with redundant power supplies, WAN failover, dual-SIM, SFP, USB, and dedicated console ports. This feature-rich device with highly customizable and powerful RutOS is perfect where a fast and ultra-reliable connection is needed.
Standard package*
- RUTXR1
- 18 W PSU
- 2x Mobile antennas (magnetic mount, SMA male, 3 m cable)
- 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
- Rack - mounting kit
- SIM Adapter kit
- Ethernet cable (1.5 m)
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Mobile
| Feature | Details |
|---|---|
| Mobile module | 4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps |
| 3GPP Release | Release 11 |
| SIM switch | Supports 2 SIM cards, auto-switch for weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | SMS status, configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White list | Operator black/white list (by country or separate operators) |
| Multiple PDN | Use different PDNs for multiple network access and services |
| Band management | Band lock, used band status display |
| SIM idle protection service | No data usage on idle SIM until device switches to it |
| SIM PIN code management | Manage SIM PIN (set, change, disable) |
| APN | Auto APN configuration |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns mobile WAN IP address to device on LAN |
Wireless
| Feature | Details |
|---|---|
| Wireless mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5), data rates up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition, Access Point (AP), Station (STA) |
| Wi-Fi security | WPA2-Enterprise, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, 802.11w PMF |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi users | Supports up to 150 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC filter | Allowlist, blocklist |
| Wireless QR code generator | Allows users to join network by scanning QR code without inputting login info |
| TravelMate | Forward Wi-Fi hotspot landing page to connected devices |
Ethernet
| Feature | Details |
|---|---|
| WAN | 1 x WAN port 10/100/1000 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover |
| Fibre | 1 x SFP port (cannot work simultaneously with Ethernet WAN port) |
| LAN | 4 x LAN ports 10/100/1000 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover |
Network
| Feature | Details |
|---|---|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers for VoIP packet routing |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forwarding, traffic rules, custom rules, TTL target customisation |
| Firewall status page | View all Firewall statistics, rules, and rule counters |
| Ports management | View, enable/disable ports, manage auto-configuration, change transmission speed |
| Network topology | Visual representation of the network, device connections |
| Hotspot | Captive portal, internal/external Radius server, Radius MAC authentication, SMS, SSO, and more authentication options, user management, customizable themes |
| DHCP | Static/dynamic IP allocation, DHCP relay, server configuration, static leases |
| QoS / Smart Queue Management (SQM) | Traffic priority by source/destination, service, protocol, or port, WMM, 802.11e |
| DDNS | Support for over 25 service providers, manual configuration for others |
| DNS over HTTPS | Secure DNS resolution by routing DNS queries over HTTPS |
| Network backup | Wi-Fi WAN, Mobile, Fiber, VRRP, Wired options, automatic Failover |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS | Mount remote file system via SSH protocol |
| VRF support | Virtual routing and forwarding (VRF) support |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
Security
| Feature | Details |
|---|---|
| 802.1x | Port-based network access control client |
| Authentication | Pre-shared key, digital certificates, TACACS+, RADIUS, IP/login block, time-based blocking, random password generator |
| Firewall | Preconfigured rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack prevention | DDOS (SYN flood protection), SSH, HTTP/HTTPS, port scan (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan) |
| VLAN | Port and tag-based VLAN separation |
| Mobile quota control | Mobile data limit, customizable period, start time, phone number |
| WEB filter | Block unwanted websites with blacklist, allow only specified sites with whitelist |
| Access control | Flexible access control for SSH, Web UI, CLI, and Telnet |
| SSL certificate generation | Let's Encrypt and SCEP certificate generation methods |
VPN
| Feature | Details |
|---|---|
| OpenVPN | Multiple clients and server, 27 encryption methods |
| OpenVPN Encryption | Encryption methods: DES, RC2, AES128, AES192, AES256, and others |
| IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods (AES128GCM, AES256GCM, etc.) |
| GRE | GRE tunnel and support for GRE tunnel over IPsec |
| PPTP, L2TP | Client/Server instances, L2TPv3, L2TP over IPsec support |
| Stunnel | Adds TLS encryption functionality without program code changes |
| DMVPN | Scalable IPsec VPNs, Phase 2 & Phase 3, Dual Hub support |
| SSTP | SSTP client support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Encryption, authentication, and compression in tunnels |
| Tailscale | Speed, stability, simplicity, encrypted point-to-point connections using WireGuard protocol |
OPC UA
| Feature | Details |
|---|---|
| Supported modes | Client, Server |
| Supported connection types | TCP |
MODBUS
| Feature | Details |
|---|---|
| Supported modes | Server, Client |
| Supported connection types | TCP, USB |
| Custom registers | MODBUS TCP custom register block requests, which read/write to a file inside the router, extending MODBUS TCP Client functionality |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII |
Data To Server
| Feature | Details |
|---|---|
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| Data to server | Extract parameters from multiple sources and protocols, send to a single server; Custom LUA scripting for utilizing Data to Server features |
MQTT Gateway
| Feature | Details |
|---|---|
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
DNP3
| Feature | Details |
|---|---|
| Supported modes | Station, Outstation |
| Supported connection types | TCP, USB |
DLMS
| Feature | Details |
|---|---|
| DLMS Support | Standard protocol for utility meter data exchange |
| Supported modes | Client |
| Supported connection types | TCP, USB |
COSEM
| Feature | Details |
|---|---|
| COSEM | Allows scanning of meter COSEM objects for automatic detection and configuration |
API
| Feature | Details |
|---|---|
| Teltonika Networks Web API (beta) support | Expand device possibilities with configurable API endpoints to retrieve or change data. Documentation |
