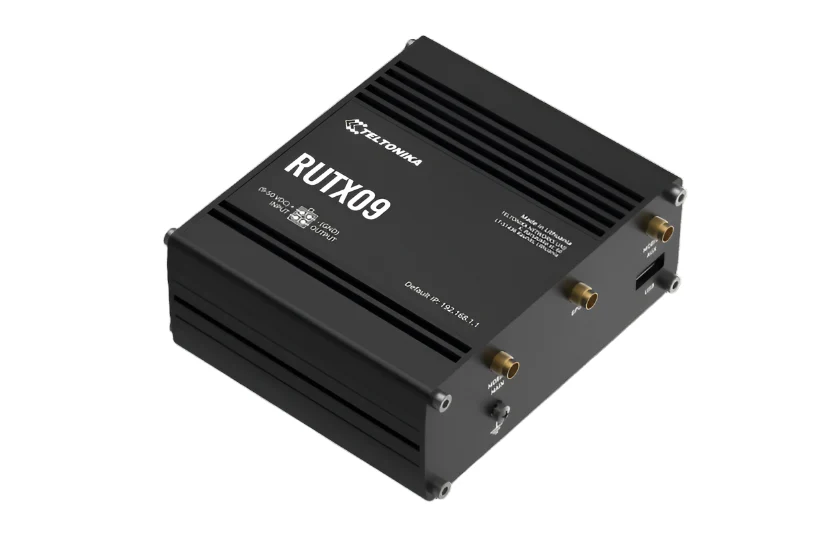

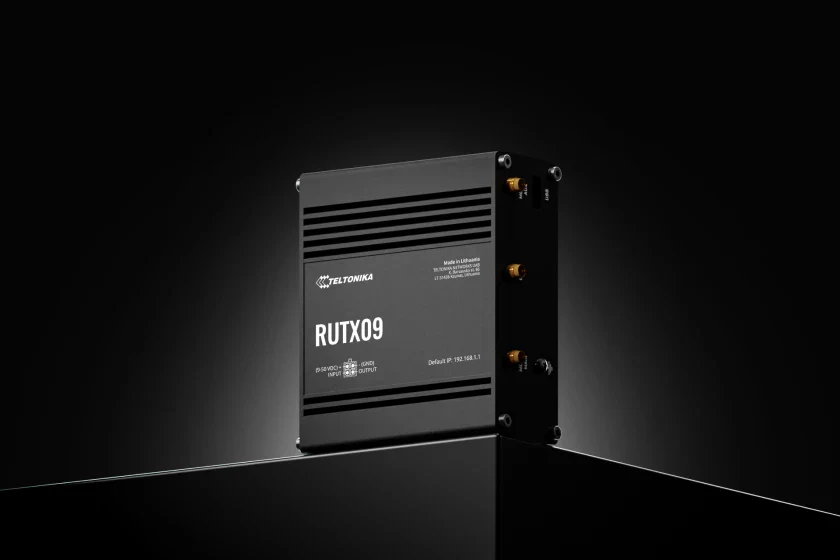

RUTX09 - Industrial Cellular Router

Description

RUTX09 is an LTE-A Cat 6 cellular IoT router with dual-SIM, Carrier Aggregation, and four Gigabit Ethernet interfaces. Designed as a primary or backup internet source, it can offer up to 300 Mbps cellular speeds with high data throughput.

Standard package*

Router RUTX09
18 W PSU
2x Mobile antennas (swivel, SMA male)
1x GNSS antenna (adhesive, SMA male, 3 m cable)
SIM Adapter kit
Ethernet cable (1.5 m)
QSG (Quick Start Guide)
Packaging box

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature	Details
Mobile Module	4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps
3GPP Release	Release 12
SIM Switch	2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List	Operator black/white list (by country or separate operators)
Multiple PDN	Possibility to use different PDNs for multiple network access and services
Band Management	Band lock, Used band status display
SIM Idle Protection Service	When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
SIM PIN Code Management	Enables setting, changing, or disabling the SIM card's PIN
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN

Ethernet

Feature	Details
WAN	1 x WAN port, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards, supports auto MDI/MDIX crossover
LAN	3 x LAN ports, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards, supports auto MDI/MDIX crossover

Network

Feature	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page	View Firewall statistics, rules, and rule counters
Ports Management	Enable/disable device ports, auto-configuration, transmission speed
Network Topology	Visual representation of network connections
Hotspot	Captive portal, Radius authentication, user management, customisable themes
DHCP	Static/dynamic IP allocation, DHCP relay, DHCP server configuration
QoS / Smart Queue Management (SQM)	Traffic prioritization by source/destination, protocol, port
DDNS	>25 supported service providers
DNS over HTTPS	Proxy for secure DNS resolution
Network Backup	Wi-Fi WAN, Mobile, VRRP, Wired options for automatic failover
Load Balancing	Balance traffic over multiple WAN connections
SSHFS	Remote file system mount via SSH protocol
VRF Support	Initial Virtual Routing and Forwarding (VRF) support
Traffic Management	Real-time monitoring, wireless signal charts

Security

Feature	Details
802.1x	Port-based network access control
Authentication	Pre-shared key, digital certificates, TACACS+, Internal & External RADIUS
Firewall	Preconfigured firewall rules, DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDOS prevention, port scan prevention
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Mobile data limit, customizable period
WEB Filter	Block unwanted websites, whitelist for allowed sites
Access Control	SSH, Web, CLI, Telnet access control
SSL Certificate Generation	Let's Encrypt, SCEP

VPN

Feature	Details
OpenVPN	Multiple clients and a server, 27 encryption methods
IPsec	XFRM, IKEv1, IKEv2, 14 encryption methods
GRE	GRE tunnel, GRE over IPsec support
PPTP, L2TP	Client/Server instances, L2TPv3, L2TP over IPsec
Stunnel	Proxy adding TLS encryption to existing clients and servers
DMVPN	Scalable IPsec VPNs, Phase 2/3, Dual Hub
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Encryption, authentication, and compression in tunnels
Tailscale	Encrypted point-to-point connections with WireGuard

OPC UA

Feature	Details
Supported Modes	Client, Server
Supported Connection Types	TCP

MODBUS

Feature	Details
Supported Modes	Server, Client
Supported Connection Types	TCP, USB
Custom Registers	MODBUS TCP custom register block requests that read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported Data Formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server

Feature	Details
Protocol	HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server	Extract parameters from multiple sources and protocols and send them to a single server; Custom LUA scripting for extended functionality

MQTT Gateway

Feature	Details
Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through an MQTT broker

DNP3

Feature	Details
Supported Modes	Station, Outstation
Supported Connection Types	TCP, USB

DLMS

Feature	Details
DLMS Support	Standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	TCP, USB

COSEM

Feature	Details
COSEM	Scans meter COSEM objects for automatic detection and configuration

API

Feature	Details
Teltonika Networks Web API (Beta)	Expand device possibilities by using configurable API endpoints to retrieve or change data. For more information, visit: Teltonika Networks API Documentation

Monitoring & Management

Feature	Details
WEB UI	HTTP/HTTPS access for status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, event log, system log, kernel log, Internet status.
FOTA	Firmware update from server with automatic notifications.
SSH	SSH (v1, v2) for remote access.
SMS	SMS status, configuration, send/read SMS via HTTP POST/GET.
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off.
TR-069	Supports OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.
MQTT	MQTT Broker, MQTT publisher for communication.
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection.
JSON-RPC	Management API over HTTP/HTTPS.
RMS	Teltonika Remote Management System (RMS).

IoT Platforms Integration

Platform	Monitoring Details
ThingWorx	Monitors WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type.
Cumulocity - Cloud of Things	Monitors Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.
Azure IoT Hub	Configured with Data to Server to send parameters to the cloud. Direct method support for RutOS API calls. Plug and Play integration with Device Provisioning Service.
AWS IoT Core	Supports AWS Jobs to call device API using AWS Jobs functionality.

System Characteristics

Component	Details
CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB, DDR3
FLASH storage	256 MB, SPI Flash

Firmware / Configuration

Feature	Details
WEB UI	Update firmware from file, check firmware on server, configuration profiles, configuration backup.
FOTA	Update firmware automatically.
RMS	Update firmware/configuration for multiple devices at once.
Keep settings	Update firmware without losing current configuration.
Factory settings reset	Full factory reset restores all system settings to the default manufacturer's configuration.

Firmware Customization

Feature	Details
Operating System	RutOS (OpenWrt-based Linux OS).
Supported Languages	Busybox shell, Lua, C, C++.
Development Tools	SDK package with build environment provided.
GPL Customization	Ability to create custom, branded firmware and web page applications by changing colors, logos, and other elements.
Package Manager	Service used to install additional software on the device.

Location Tracking

Feature	Details
GNSS	Supports GPS, GLONASS, BeiDou, Galileo, and QZSS.
Coordinates	GNSS coordinates available via WebUI, SMS, TAVL, RMS.
NMEA	NMEA 0183 support for communication.
NTRIP	NTRIP protocol for networked RTCM via Internet Protocol.
Server Software	Supported software: TAVL, RMS.
Geofencing	Configurable multiple geofence zones for location tracking.

USB

Feature	Details
Data Rate	USB 2.0
Applications	Samba share, USB-to-serial.
External Devices	Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter.
Storage Formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4.

Input / Output Features

Feature	Details
Input	1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high.
Output	1 x Digital Output, Open collector output, max output 30 V, 300 mA.
Events	Email, RMS, SMS notifications for event handling.
I/O Juggler	Allows to set certain I/O conditions to initiate events.

Power Features

Feature	Details
Connector	4-pin industrial DC power socket.
Input Voltage Range	9 - 50 VDC, reverse polarity protection, voltage surge/transient protection.
PoE (Passive)	Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 - 50 VDC.
Power Consumption	9 W Max.

Physical Interfaces

Feature	Details
Ethernet	4 x RJ45 ports, 10/100/1000 Mbps.
I/O’s	1 x Digital Input, 1 x Digital Output on 4-pin power connector.
Status LEDs	3 x WAN type, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 3 x WAN status, 1 x Power LED.
SIM	2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders.
Power	1 x 4-pin power connector.
Antennas	2 x SMA for LTE, 1 x SMA for GNSS.
USB	1 x USB A port for external devices.
Reset	Reboot/User default reset/Factory reset button.
Other	1 x Grounding screw.

Physical Specification

Feature	Details
Casing Material	Aluminium housing.
Dimensions (W x H x D)	115 x 44.2 x 95.1 mm.
Weight	455 g.
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit).

Operating Environment

Feature	Details
Operating Temperature	-40 °C to 75 °C.
Operating Humidity	10% to 90% non-condensing.
Ingress Protection Rating	IP30.

Regulatory & Type Approvals

Feature	Details
Regulatory Approvals	CE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, RCM, IMDA, NTC, E-mark, UL/CSA Safety, CB, RoHS, REACH.
Operator	Deutsche Telekom AG.

EMC Emissions & Immunity Standards

Standards	Details
EN 55032:2015 + A11:2020
EN 55035:2017 + A11:2020
EN 301 489-1 V2.2.3
Draft EN 301 489-19 V2.2.0
EN 301 489-52 V1.2.1
ESD	EN 61000-4-2:2009
Radiated Immunity	EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT	EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017
CS	EN 61000-4-6:2014
DIP	EN 61000-4-11:2004

RF Standards

Standards	Details
EN 303 413 V1.2.1
EN 301 908-1 V15.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1

Safety Standards

Standards	Details
CE	EN 62368-1:2014 + A11:2017, EN IEC 62311:2020, EN 50665:2017
RCM	AS/NZS 60950.1: 2015
CB	IEC 62368-1:2018
UL/CSA Safety	UL 62368-1 (3rd Ed., Rev. December 13, 2019), CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Manual & Documentation

RUTX09 Flyer (EN)
RUTX09 Datasheet (EN)
