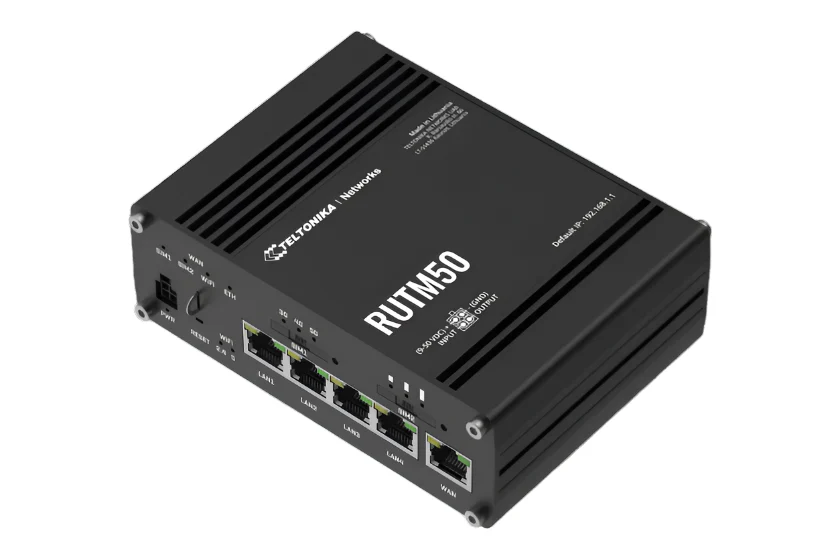

RUTM50 - Cellular 5G Router
Description
RUTM50 is an FCC-certified Teltonika Networks cellular 5G router for North America, with ultra-high cellular speeds of up to 3.4 Gbps. This dual SIM router has auto-failover and backup WAN and supports both SA and NSA 5G architectures. It is also backward compatible with 4G (LTE Cat 19/18), making it perfect for future-proofing your industrial networking solutions.
Standard package*
- RUTM50 Router
- 18 W PSU
- 4 x Mobile antennas (swivel, SMA male)
- 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
- 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Mobile
| Feature | Details |
|---|---|
| Mobile Module | 5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO), 900, 550Mbps UL (2x2 MIMO); 4G LTE: DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps |
| 3GPP Release | Release 16 |
| SIM Switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White List | Operator black/white list (by country or separate operators) |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Band Management | Band lock, Used band status display |
| SIM Idle Protection | When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then |
| SIM PIN Code Management | SIM PIN code management enables setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Framed Routing | Support an IP network behind 5G UE |
Wireless
| Feature | Details |
|---|---|
| Wireless Mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO) |
| Wi-Fi Security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi Users | Up to 150 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC Filter | Allowlist, blocklist |
| Wireless QR Code Generator | Once scanned, a user will automatically enter your network without needing to input login information |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
Ethernet
| Port | Description |
|---|---|
| WAN | 1 x WAN (10/100/1000 Mbps), compliance with IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover |
| LAN | 4 x LAN (10/100/1000 Mbps), compliance with IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover |
Network
| Feature | Description |
|---|---|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN |
| VoIP Passthrough Support | H.323 and SIP-ALG protocol NAT helpers for proper routing of VoIP packets |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customization |
| Firewall Status Page | View all Firewall statistics, rules, and rule counters |
| Ports Management | View and manage device ports, enable/disable ports, configure auto-configuration, change transmission speed, etc. |
| Network Topology | Visual representation of the network, showing which devices are connected to each other |
| Hotspot | Captive portal, internal/external Radius server, MAC authentication, SMS authorization, SSO authentication, landing page, custom themes |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases with MAC wildcards |
| QoS / Smart Queue Management | Traffic priority by source/destination, service, protocol, or port, WMM, 802.11e |
| DDNS | Supported >25 service providers, other providers can be manually configured |
| DNS over HTTPS | Secure DNS resolution by routing DNS queries over HTTPS |
| Network Backup | Wi-Fi WAN, Mobile, VRRP, Wired options for automatic failover |
| Load Balancing | Balances internet traffic over multiple WAN connections |
| SSHFS | Ability to mount remote file system via SSH protocol |
| VRF Support | Initial support for Virtual Routing and Forwarding (VRF) |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
Security
| Feature | Description |
|---|---|
| 802.1x | Port-based network access control client |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack Prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Mobile Quota Control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB Filter | Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites only |
| Access Control | Flexible access control of SSH, Web interface, CLI, and Telnet |
| SSL Certificate Generation | Let's Encrypt and SCEP certificate generation methods |
VPN
| Feature | Description |
|---|---|
| OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| DMVPN | Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Tinc offers encryption, authentication and compression in its tunnels. Client and server support |
| Tailscale | Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol |
OPC UA
| Feature | Description |
|---|---|
| Supported modes | Client, Server |
| Supported connection types | TCP |
MODBUS
| Feature | Description |
|---|---|
| Supported modes | Server, Client |
| Supported connection types | TCP, USB |
| Custom registers | MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
DATA TO SERVER
| Feature | Description |
|---|---|
| Protocol | HTTP(S), MQTT, Azure MQTT |
| Data to server | Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature |
MQTT Gateway
| Feature | Description |
|---|---|
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
DNP3
| Feature | Description |
|---|---|
| Supported modes | Station, Outstation |
| Supported connection | TCP, USB |
DLMS
| Feature | Description |
|---|---|
| DLMS Support | DLMS - standard protocol for utility meter data exchange |
| Supported modes | Client |
| Supported connection types | TCP |
| COSEM | Allows to scan meter COSEM objects for automatic detection and configuration |
Monitoring & Management
| Feature | Description |
|---|---|
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
IoT Platforms
| Platform | Description |
|---|---|
| ThingWorx | Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity - Cloud of Things | Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions |
| Azure IoT Hub | Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs |
| AWS IoT Core | Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality |
System Characteristics
| Feature | Description |
|---|---|
| CPU | MediaTek, Dual-Core, 880 MHz, MIPS1004Kc |
| RAM | 256 MB, DDR3 |
| FLASH storage | 16 MB serial NOR flash, 256 MB serial NAND flash |
Firmware Customisation
| Feature | Description |
|---|---|
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++, and Python, Java in Package manager |
| Development tools | SDK package with build environment provided |
| GPL customization | Create custom, branded firmware and web page applications by changing colours, logos, and other elements |
| Package Manager | Service used to install additional software on the device |
Location Tracking
| Feature | Description |
|---|---|
| GNSS | GPS, GLONASS, BeiDou, Galileo, and QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| Server software | Supported server software TAVL, RMS |
| Geofencing | Configurable multiple geofence zones |
USB
| Feature | Description |
|---|---|
| Data rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External devices | Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter |
| Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
Input / Output
| Feature | Description |
|---|---|
| Input | 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high |
| Output | 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA |
| Events | Email, RMS, SMS |
| I/O Juggler | Allows to set certain I/O conditions to initiate event |
Power
| Feature | Description |
|---|---|
| Connector | 4-pin industrial DC power socket |
| Input Voltage Range | 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max |
| PoE (Passive) | Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC |
| Power Consumption | Idle: <5 W, Max: <18 W |

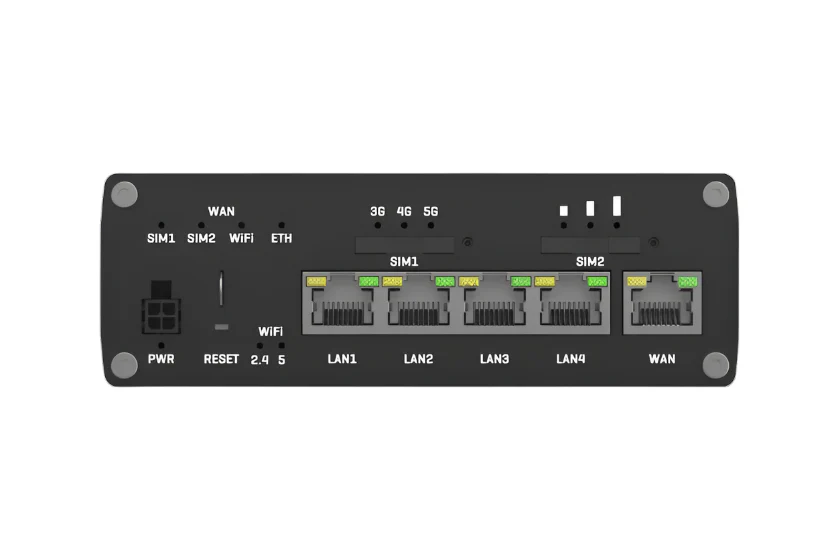

Physical Interfaces
| Feature | Description |
|---|---|
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| I/O's | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V |
| Power | 1 x 4-pin power connector |

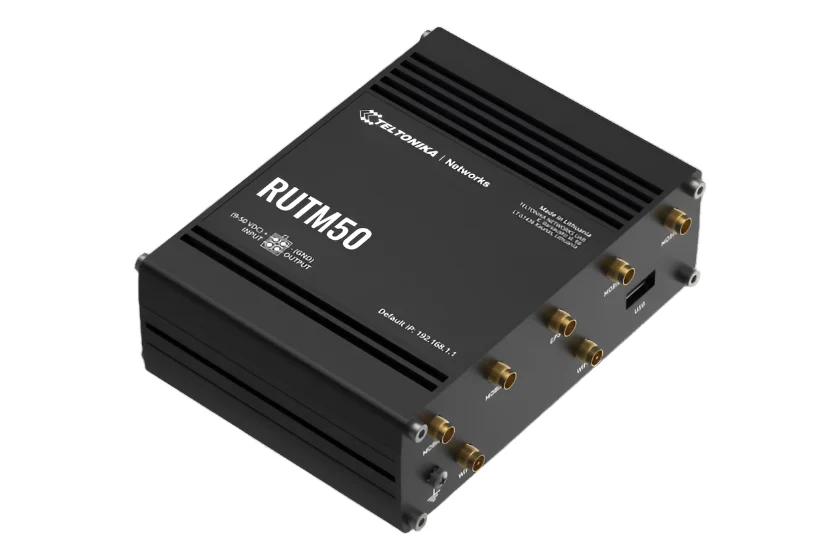

| Antennas | 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Other | 1 x Grounding screw |
Physical Specification
| Feature | Description |
|---|---|
| Casing Material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 519 g |
| Mounting Options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating Environment
| Feature | Description |
|---|---|
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Regulatory & Type Approvals
| Category | Description |
|---|---|
| Regulatory | FCC, IC, PTCRB, UL/CSA Safety, NOM, Giteki |
| Operator | T-Mobile, AT&T (FirstNet), Verizon |
EMC Emissions & Immunity
| Category | Description |
|---|---|
| Standards | 47 CFR Part 15 Subpart B, ICES-003: Issue 7 (October 2020) |
RF Standards (Wi-Fi 2.4 GHz, 5 GHz)
| Standard/Regulation | Description |
|---|---|
| 47 CFR Part 15 Subpart C - § 15.247 | Wireless communication standards for 2.4 GHz and 5 GHz bands |
| 47 CFR Part 15 Subpart E - § 15.407 | Standards for UNII (Ultra High Frequency) bands for 5 GHz |
| RSS-247 Issue 2 (February 2017) | Canadian radio standards for Wi-Fi operation in the 2.4 GHz and 5 GHz bands |
| RSS-Gen Issue 5 (April 2018) Amendment 2 (February 2021) | General standards for the operation of RF devices in Canada |
| KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 | Compliance procedures for Dynamic Frequency Selection (DFS) in 5 GHz bands |
| KDB 905462 D04 Operational Modes for DFS Testing New Rules v01 | Operational modes for DFS testing in compliance with new rules |
RF Standards (4G, 5G)
| Standard/Regulation | Description |
|---|---|
| 47 CFR Part 2, Part 22 Subpart H, Part 24 Subpart E, Part 27 Subpart C, Part 90 Subpart R/S, Part 96 | US Federal Communications Commission standards for 4G and 5G cellular communications |
| RSS-130 Issue 2 (February 2019) | Canadian radio standards for 4G LTE operations |
| RSS-132 Issue 3 (January 2013) | Standards for 3G and 4G networks in Canada |
| RSS-133 Issue 6 (January 2018) Amendment | Standards for 4G LTE Advanced in Canada |
| RSS-139 Issue 3 (July 2015) | Standards for LTE, LTE-Advanced systems in Canada |
| RSS-140 Issue 1 (April 2018) | Standards for 5G NR (New Radio) systems in Canada |
| RSS-192 Issue 4 (May 2020) | Standards for the 3.5 GHz band used by 5G in Canada |
| RSS-195 Issue 2 (April 2014) | Standards for mobile stations in the 5G NR bands in Canada |
| RSS-197 Issue 1 (February 2010) | Standards for equipment using 5G and 4G networks in Canada |
| RSS-199 Issue 3 (December 2016) | Standards for low-power LTE in Canada |
| RSS-Gen Issue 5 (April 2018) Amendment 2 | General standards for 4G and 5G communications |
| SRSP-503 Issue 7 (September 2008) | Standards for 4G and 5G spectrum planning |
| SRSP-510 Issue 5 (February 2009) | Specific planning standards for 5G deployment |
| SRSP-513 Issue 3 (July 2015) | Standards for 5G mobile spectrum requirements |
| SRSP-516 Issue 1 (April 2014) | Specific requirements for 5G cellular communications |
| SRSP-517 Issue 1 (July 2014) | Spectrum requirements for 5G technologies |
| SRSP-518 Issue 2 (February 2019) | Planning and implementation of 5G in Canada |
| SRSP-520 Issue 2 (November 2021) | Updated guidelines for 5G network deployment |
RF Exposure
| Standard/Regulation | Description |
|---|---|
| 47 CFR - § 2.1091 | US Federal Communications Commission standards for RF exposure limits |
| KDB 447498 D04 Interim General RF Exposure Guidance v01 | Guidance for compliance with RF exposure limits during device operation |
| RSS-102 Issue 5 (March 2015) Amendment 1 | Canadian safety standards for RF exposure limits for radio communications devices |
Safety
| Standard/Regulation | Description |
|---|---|
| UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019) | Safety standard for audio/video, information, and communication technology equipment |
| C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019) | Canadian standard for safety in audio/video, information, and communication technology equipment |
Downloads
Manual & Documentation
RUTM50 FLYER (EN)
RUTM50 DATASHEET (EN)
Links
RUTM50 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
RUTM50 USER MANUAL
CERTIFICATIONS & APPROVALS
SDK DOWNLOADS
GPL DOWNLOADS
RUTM50 3D MODELS
$294.95
Original: $983.16
-70%RUTM50 - Cellular 5G Router—
$983.16
$294.95
Description
Description
RUTM50 is an FCC-certified Teltonika Networks cellular 5G router for North America, with ultra-high cellular speeds of up to 3.4 Gbps. This dual SIM router has auto-failover and backup WAN and supports both SA and NSA 5G architectures. It is also backward compatible with 4G (LTE Cat 19/18), making it perfect for future-proofing your industrial networking solutions.
Standard package*
- RUTM50 Router
- 18 W PSU
- 4 x Mobile antennas (swivel, SMA male)
- 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
- 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Mobile
| Feature | Details |
|---|---|
| Mobile Module | 5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO), 900, 550Mbps UL (2x2 MIMO); 4G LTE: DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps |
| 3GPP Release | Release 16 |
| SIM Switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White List | Operator black/white list (by country or separate operators) |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Band Management | Band lock, Used band status display |
| SIM Idle Protection | When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then |
| SIM PIN Code Management | SIM PIN code management enables setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Framed Routing | Support an IP network behind 5G UE |
Wireless
| Feature | Details |
|---|---|
| Wireless Mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO) |
| Wi-Fi Security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi Users | Up to 150 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC Filter | Allowlist, blocklist |
| Wireless QR Code Generator | Once scanned, a user will automatically enter your network without needing to input login information |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
Ethernet
| Port | Description |
|---|---|
| WAN | 1 x WAN (10/100/1000 Mbps), compliance with IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover |
| LAN | 4 x LAN (10/100/1000 Mbps), compliance with IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover |
Network
| Feature | Description |
|---|---|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN |
| VoIP Passthrough Support | H.323 and SIP-ALG protocol NAT helpers for proper routing of VoIP packets |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customization |
| Firewall Status Page | View all Firewall statistics, rules, and rule counters |
| Ports Management | View and manage device ports, enable/disable ports, configure auto-configuration, change transmission speed, etc. |
| Network Topology | Visual representation of the network, showing which devices are connected to each other |
| Hotspot | Captive portal, internal/external Radius server, MAC authentication, SMS authorization, SSO authentication, landing page, custom themes |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases with MAC wildcards |
| QoS / Smart Queue Management | Traffic priority by source/destination, service, protocol, or port, WMM, 802.11e |
| DDNS | Supported >25 service providers, other providers can be manually configured |
| DNS over HTTPS | Secure DNS resolution by routing DNS queries over HTTPS |
| Network Backup | Wi-Fi WAN, Mobile, VRRP, Wired options for automatic failover |
| Load Balancing | Balances internet traffic over multiple WAN connections |
| SSHFS | Ability to mount remote file system via SSH protocol |
| VRF Support | Initial support for Virtual Routing and Forwarding (VRF) |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
Security
| Feature | Description |
|---|---|
| 802.1x | Port-based network access control client |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack Prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Mobile Quota Control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB Filter | Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites only |
| Access Control | Flexible access control of SSH, Web interface, CLI, and Telnet |
| SSL Certificate Generation | Let's Encrypt and SCEP certificate generation methods |
VPN
| Feature | Description |
|---|---|
| OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| DMVPN | Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Tinc offers encryption, authentication and compression in its tunnels. Client and server support |
| Tailscale | Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol |
OPC UA
| Feature | Description |
|---|---|
| Supported modes | Client, Server |
| Supported connection types | TCP |
MODBUS
| Feature | Description |
|---|---|
| Supported modes | Server, Client |
| Supported connection types | TCP, USB |
| Custom registers | MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
DATA TO SERVER
| Feature | Description |
|---|---|
| Protocol | HTTP(S), MQTT, Azure MQTT |
| Data to server | Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature |
MQTT Gateway
| Feature | Description |
|---|---|
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
DNP3
| Feature | Description |
|---|---|
| Supported modes | Station, Outstation |
| Supported connection | TCP, USB |
DLMS
| Feature | Description |
|---|---|
| DLMS Support | DLMS - standard protocol for utility meter data exchange |
| Supported modes | Client |
| Supported connection types | TCP |
| COSEM | Allows to scan meter COSEM objects for automatic detection and configuration |
Monitoring & Management
| Feature | Description |
|---|---|
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
IoT Platforms
| Platform | Description |
|---|---|
| ThingWorx | Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity - Cloud of Things | Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions |
| Azure IoT Hub | Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs |
| AWS IoT Core | Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality |
System Characteristics
| Feature | Description |
|---|---|
| CPU | MediaTek, Dual-Core, 880 MHz, MIPS1004Kc |
| RAM | 256 MB, DDR3 |
| FLASH storage | 16 MB serial NOR flash, 256 MB serial NAND flash |
Firmware Customisation
| Feature | Description |
|---|---|
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++, and Python, Java in Package manager |
| Development tools | SDK package with build environment provided |
| GPL customization | Create custom, branded firmware and web page applications by changing colours, logos, and other elements |
| Package Manager | Service used to install additional software on the device |
Location Tracking
| Feature | Description |
|---|---|
| GNSS | GPS, GLONASS, BeiDou, Galileo, and QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| Server software | Supported server software TAVL, RMS |
| Geofencing | Configurable multiple geofence zones |
USB
| Feature | Description |
|---|---|
| Data rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External devices | Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter |
| Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
Input / Output
| Feature | Description |
|---|---|
| Input | 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high |
| Output | 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA |
| Events | Email, RMS, SMS |
| I/O Juggler | Allows to set certain I/O conditions to initiate event |
Power
| Feature | Description |
|---|---|
| Connector | 4-pin industrial DC power socket |
| Input Voltage Range | 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max |
| PoE (Passive) | Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC |
| Power Consumption | Idle: <5 W, Max: <18 W |
Physical Interfaces
| Feature | Description |
|---|---|
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| I/O's | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V |
| Power | 1 x 4-pin power connector |
| Antennas | 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Other | 1 x Grounding screw |
Physical Specification
| Feature | Description |
|---|---|
| Casing Material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 519 g |
| Mounting Options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating Environment
| Feature | Description |
|---|---|
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Regulatory & Type Approvals
| Category | Description |
|---|---|
| Regulatory | FCC, IC, PTCRB, UL/CSA Safety, NOM, Giteki |
| Operator | T-Mobile, AT&T (FirstNet), Verizon |
EMC Emissions & Immunity
| Category | Description |
|---|---|
| Standards | 47 CFR Part 15 Subpart B, ICES-003: Issue 7 (October 2020) |
RF Standards (Wi-Fi 2.4 GHz, 5 GHz)
| Standard/Regulation | Description |
|---|---|
| 47 CFR Part 15 Subpart C - § 15.247 | Wireless communication standards for 2.4 GHz and 5 GHz bands |
| 47 CFR Part 15 Subpart E - § 15.407 | Standards for UNII (Ultra High Frequency) bands for 5 GHz |
| RSS-247 Issue 2 (February 2017) | Canadian radio standards for Wi-Fi operation in the 2.4 GHz and 5 GHz bands |
| RSS-Gen Issue 5 (April 2018) Amendment 2 (February 2021) | General standards for the operation of RF devices in Canada |
| KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 | Compliance procedures for Dynamic Frequency Selection (DFS) in 5 GHz bands |
| KDB 905462 D04 Operational Modes for DFS Testing New Rules v01 | Operational modes for DFS testing in compliance with new rules |
RF Standards (4G, 5G)
| Standard/Regulation | Description |
|---|---|
| 47 CFR Part 2, Part 22 Subpart H, Part 24 Subpart E, Part 27 Subpart C, Part 90 Subpart R/S, Part 96 | US Federal Communications Commission standards for 4G and 5G cellular communications |
| RSS-130 Issue 2 (February 2019) | Canadian radio standards for 4G LTE operations |
| RSS-132 Issue 3 (January 2013) | Standards for 3G and 4G networks in Canada |
| RSS-133 Issue 6 (January 2018) Amendment | Standards for 4G LTE Advanced in Canada |
| RSS-139 Issue 3 (July 2015) | Standards for LTE, LTE-Advanced systems in Canada |
| RSS-140 Issue 1 (April 2018) | Standards for 5G NR (New Radio) systems in Canada |
| RSS-192 Issue 4 (May 2020) | Standards for the 3.5 GHz band used by 5G in Canada |
| RSS-195 Issue 2 (April 2014) | Standards for mobile stations in the 5G NR bands in Canada |
| RSS-197 Issue 1 (February 2010) | Standards for equipment using 5G and 4G networks in Canada |
| RSS-199 Issue 3 (December 2016) | Standards for low-power LTE in Canada |
| RSS-Gen Issue 5 (April 2018) Amendment 2 | General standards for 4G and 5G communications |
| SRSP-503 Issue 7 (September 2008) | Standards for 4G and 5G spectrum planning |
| SRSP-510 Issue 5 (February 2009) | Specific planning standards for 5G deployment |
| SRSP-513 Issue 3 (July 2015) | Standards for 5G mobile spectrum requirements |
| SRSP-516 Issue 1 (April 2014) | Specific requirements for 5G cellular communications |
| SRSP-517 Issue 1 (July 2014) | Spectrum requirements for 5G technologies |
| SRSP-518 Issue 2 (February 2019) | Planning and implementation of 5G in Canada |
| SRSP-520 Issue 2 (November 2021) | Updated guidelines for 5G network deployment |
RF Exposure
| Standard/Regulation | Description |
|---|---|
| 47 CFR - § 2.1091 | US Federal Communications Commission standards for RF exposure limits |
| KDB 447498 D04 Interim General RF Exposure Guidance v01 | Guidance for compliance with RF exposure limits during device operation |
| RSS-102 Issue 5 (March 2015) Amendment 1 | Canadian safety standards for RF exposure limits for radio communications devices |
Safety
| Standard/Regulation | Description |
|---|---|
| UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019) | Safety standard for audio/video, information, and communication technology equipment |
| C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019) | Canadian standard for safety in audio/video, information, and communication technology equipment |
Downloads
Manual & Documentation
RUTM50 FLYER (EN)
RUTM50 DATASHEET (EN)
Links
RUTM50 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
RUTM50 USER MANUAL
CERTIFICATIONS & APPROVALS
SDK DOWNLOADS
GPL DOWNLOADS
RUTM50 3D MODELS
