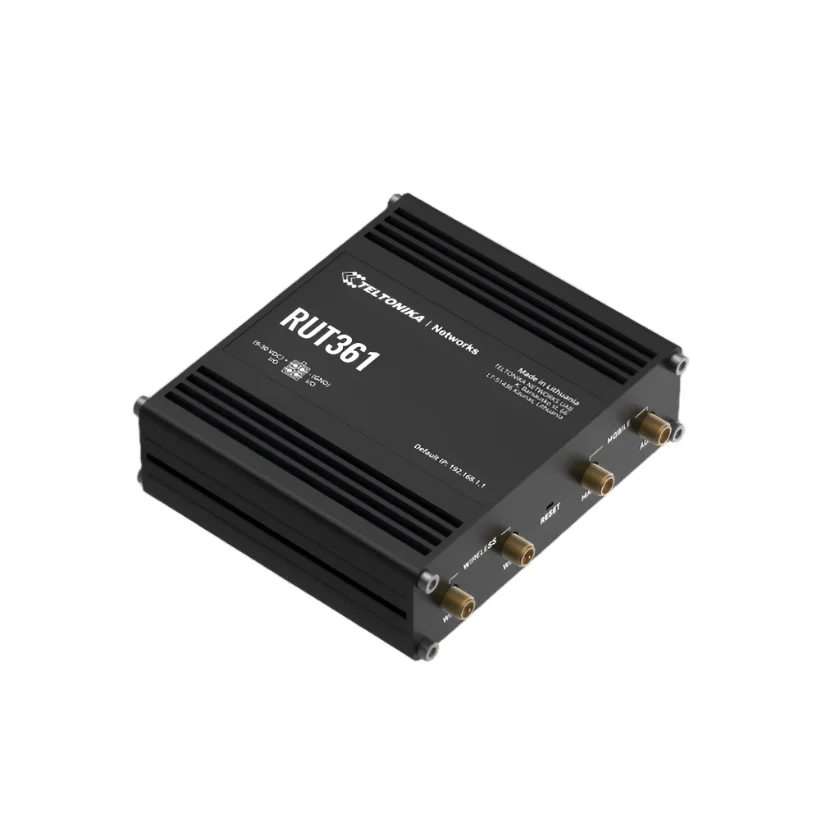

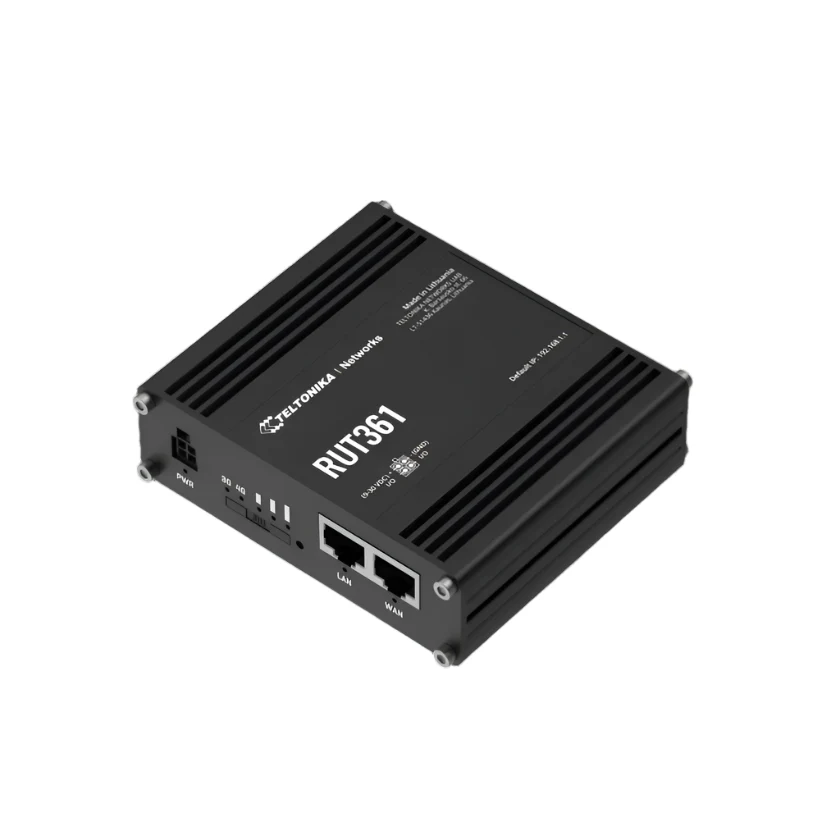

RUT361 - Industrial Cellular Router
Description
The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.
Standard package*
- Router RUT361
- 18 W PSU
- 2x Mobile antennas (swivel, SMA male)
- 2x Wi-Fi antennas (swivel, RP-SMA male)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Mobile
| Feature | Details |
|---|---|
| Mobile Module | 4G LTE Cat 6 (up to 300 DL / 50 UL Mbps), 3G (up to 42 DL / 5.76 UL Mbps) |
| 3GPP Release | Release 12 |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ, etc.) |
| SMS | SMS status, configuration, send/read SMS via HTTP POST/GET, email to SMS, SMS to email, scheduled SMS, autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White List | Operator black/white list (by country or individual operators) |
| Multiple PDN | Support for different PDNs for multiple network access and services |
| Band Management | Band lock and used band status display |
| SIM PIN Code Management | Allows setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
Wireless
| Feature | Details |
|---|---|
| Wireless Mode | 802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA) |
| Wi-Fi Security | WPA2-Enterprise, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi Users | Up to 50 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC Filter | Allowlist, blocklist |
| Wireless QR Code Generator | Users connect to the network automatically upon scanning the QR code |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
Ethernet
| Feature | Details |
|---|---|
| WAN | 1 x WAN port (10/100 Mbps), compliance with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX |
| LAN | 1 x LAN port (10/100 Mbps), compliance with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX |
Network
| Feature | Details |
|---|---|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN |
| VoIP Passthrough Support | H.323 and SIP-alg protocol NAT helpers |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forwarding, traffic rules, custom rules, TTL target customization |
| Firewall Status Page | View all firewall statistics, rules, and rule counters |
| Ports Management | Enable/disable ports, auto-configuration, transmission speed customization |
| Network Topology | Visual representation of the network, showing connected devices |
| DHCP | Static/dynamic IP allocation, DHCP relay, server configuration, static leases (MAC with wildcards) |
| QoS / Smart Queue Management | Traffic prioritization by source/destination, service, protocol, port, WMM, 802.11e |
| DDNS | Supports >25 service providers, custom configurations available |
| DNS over HTTPS | Secure DNS resolution via HTTPS |
| Network Backup | VRRP, wired options, Wi-Fi WAN, mobile failover |
| Load Balancing | Balance traffic over multiple WAN connections |
| Hotspot | Captive portal, RADIUS server, SSO authentication, walled garden, user groups, customizable themes, user management |
| SSHFS | Mount remote file system via SSH protocol |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
Security
| Feature | Details |
|---|---|
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, internal & external RADIUS users authentication, IP & login attempt blocking, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured rules enabled via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack Prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Mobile Quota Control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB Filter | Blacklist for blocking unwanted websites, whitelist for specifying allowed sites |
| Access Control | Flexible control of SSH, Web interface, CLI, and Telnet access |
| SSL Certificate Generation | Let's Encrypt and SCEP certificate generation |
| 802.1x | Port-based network access control server |
VPN
| Feature | Details |
|---|---|
| OpenVPN | Multiple clients and server instances, 27 encryption methods |
| OpenVPN Encryption | DES-CBC, RC2-CBC, BF-CBC, AES (128, 192, 256-bit variants), AES-GCM, and other encryption methods |
| IPsec | XFRM, IKEv1, IKEv2 with multiple encryption methods (e.g., AES128, AES256, AES-GCM) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP / L2TP | Client/Server instances, L2TPv3, L2TP over IPsec support |
| Stunnel | Adds TLS encryption to existing clients and servers |
| DMVPN | Scalable IPsec VPNs, Phase 2/3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Encryption, authentication, and compression with client and server support |
| Tailscale | Encrypted point-to-point connections using the WireGuard protocol |
OPC UA
| Feature | Details |
|---|---|
| Supported Modes | Client, Server |
| Connection Types | TCP |
MODBUS
| Feature | Details |
|---|---|
| Supported Modes | Server, Client |
| Connection Types | TCP |
| Custom Registers | MODBUS TCP custom register block requests that read/write to a file inside the router, extending MODBUS TCP Client functionality |
| Supported Data Formats | 8-bit (INT, UINT), 16-bit (INT, UINT - MSB/LSB first), 32-bit (float, INT, UINT - big-endian, little-endian, etc.), HEX, ASCII |
Data to Server
| Feature | Details |
|---|---|
| Protocol | HTTP(S), MQTT, Azure MQTT |
| Data to Server | Extract parameters from multiple sources and protocols, send to a single server; Custom LUA scripting for enhanced functionality |
MQTT Gateway
| Feature | Details |
|---|---|
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
DNP3
| Feature | Details |
|---|---|
| Supported Modes | Station, Outstation |
| Connection | TCP |
DLMS
| Feature | Details |
|---|---|
| DLMS Support | DLMS - standard protocol for utility meter data exchange |
| Supported Modes | Client |
| Supported Connection Types | TCP |
API
| Feature | Details |
|---|---|
| Teltonika Networks Web API | Expand device possibilities using configurable API endpoints for retrieving/changing data. More info: https://developers.teltonika-networks.com |
Monitoring & Management
| Feature | Details |
|---|---|
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event/system/kernel log, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, configuration, send/read SMS via HTTP POST/GET |
| Call | Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer, Wi-Fi on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| MODBUS | MODBUS TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
IoT Platforms
| Feature | Details |
|---|---|
| ThingWorx | Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity - Cloud of Things | Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Includes reboot and firmware upgrade actions |
| Azure IoT Hub | Configurable with Data to Server to send parameters to the cloud. Direct method support enables execution of RutOS API calls. Plug and Play integration with Device Provisioning Service allows zero-touch device provisioning. |
| AWS IoT Core | Utility for interacting with AWS cloud platform. Includes Jobs support for calling the device's API using AWS Jobs functionality |
System Characteristics
| Feature | Details |
|---|---|
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH Storage | 16 MB serial NOR flash |
Firmware / Configuration
| Feature | Details |
|---|---|
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep Settings | Update FW without losing current configuration |
| Factory Settings Reset | Restores all system settings, including IP address, PIN, and user data to default manufacturer's configuration |
Firmware Customization
| Feature | Details |
|---|---|
| Operating System | RutOS (OpenWrt based Linux OS) |
| Supported Languages | Busybox shell, Lua, C, C++ |
| Development Tools | SDK package with build environment provided |
| GPL Customization | Create custom, branded firmware and web application by changing colors, logos, and other elements |
| Package Manager | Service for installing additional software on the device |
Input / Output
| Feature | Details |
|---|---|
| Input | Up to 2 configurable digital Inputs (0-6 V: logic low, 8-30 V: logic high) |
| Output | Up to 2 configurable digital Outputs (30 V, 300 mA max) |
| Events | Email, RMS, SMS |
| I/O Juggler | Enables specific I/O conditions to initiate events |
Power
| Feature | Details |
|---|---|
| Connector | 4-pin industrial DC power socket |
| Input Voltage Range | 9-30 VDC, reverse polarity and voltage surge/transient protection |
| PoE (Passive) | Optional; requires different hardware (contact sales manager) |
| Power Consumption | Idle: <2.4 W, Max: <4.7 W |
Physical Interfaces
| Feature | Details |
|---|---|
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| I/O | 2 x Configurable I/O pins on a 4-pin power connector |
| Status LEDs | Mobile connection type/strength, Ethernet status, power indicators |
| SIM | 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder |
| Power | 1 x 4-pin power connector |
| Antennas | 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi |
| Reset | Reboot/User default reset/Factory reset button |
Physical Specification
| Feature | Details |
|---|---|
| Casing Material | Aluminium housing |
| Dimensions | 100 x 30 x 85 mm |
| Weight | 243 g |
| Mounting Options | DIN rail, wall mount, flat surface (additional kit required) |
Operating Environment
| Feature | Details |
|---|---|
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection | IP30 |
Regulatory & Type Approvals
| Feature | Details |
|---|---|
| Regulatory | CE, UKCA, FCC, IC, RCM, CB, WEEE, RoHS, REACH |
EMC Emissions & Immunity
| Feature | Standards |
|---|---|
| General Standards | EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020 |
| Power Standards | EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021 |
| EMC Standards | EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity | EN 61000-4-5:2014 + A1:2017 |
| Conducted Susceptibility (CS) | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
RF
| Feature | Standards |
|---|---|
| RF Standards | EN 300 328 V2.2.2, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1 |
Safety
| Feature | Standards |
|---|---|
| CE Standards | EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017 |
| RCM Standards | AS/NZS 62368.1:2018 |
| CB Standards | IEC 62368-1:2018 |
Safety
| Feature | Standards |
|---|---|
| CE Standards | EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017 |
| RCM Standards | AS/NZS 62368.1:2022 |
| CB Standards | IEC 62368-1:2018 |
Downloads
Manual & Documentation
RUT361 FLYER (EN)
RUT361 DATASHEET (EN)
Links
RUT361 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
RUT361 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
RUT361 3D MODELS
$355.59
RUT361 - Industrial Cellular Router—
$355.59
Description
Description
The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.
Standard package*
- Router RUT361
- 18 W PSU
- 2x Mobile antennas (swivel, SMA male)
- 2x Wi-Fi antennas (swivel, RP-SMA male)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Mobile
| Feature | Details |
|---|---|
| Mobile Module | 4G LTE Cat 6 (up to 300 DL / 50 UL Mbps), 3G (up to 42 DL / 5.76 UL Mbps) |
| 3GPP Release | Release 12 |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ, etc.) |
| SMS | SMS status, configuration, send/read SMS via HTTP POST/GET, email to SMS, SMS to email, scheduled SMS, autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White List | Operator black/white list (by country or individual operators) |
| Multiple PDN | Support for different PDNs for multiple network access and services |
| Band Management | Band lock and used band status display |
| SIM PIN Code Management | Allows setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
Wireless
| Feature | Details |
|---|---|
| Wireless Mode | 802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA) |
| Wi-Fi Security | WPA2-Enterprise, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi Users | Up to 50 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC Filter | Allowlist, blocklist |
| Wireless QR Code Generator | Users connect to the network automatically upon scanning the QR code |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
Ethernet
| Feature | Details |
|---|---|
| WAN | 1 x WAN port (10/100 Mbps), compliance with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX |
| LAN | 1 x LAN port (10/100 Mbps), compliance with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX |
Network
| Feature | Details |
|---|---|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN |
| VoIP Passthrough Support | H.323 and SIP-alg protocol NAT helpers |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forwarding, traffic rules, custom rules, TTL target customization |
| Firewall Status Page | View all firewall statistics, rules, and rule counters |
| Ports Management | Enable/disable ports, auto-configuration, transmission speed customization |
| Network Topology | Visual representation of the network, showing connected devices |
| DHCP | Static/dynamic IP allocation, DHCP relay, server configuration, static leases (MAC with wildcards) |
| QoS / Smart Queue Management | Traffic prioritization by source/destination, service, protocol, port, WMM, 802.11e |
| DDNS | Supports >25 service providers, custom configurations available |
| DNS over HTTPS | Secure DNS resolution via HTTPS |
| Network Backup | VRRP, wired options, Wi-Fi WAN, mobile failover |
| Load Balancing | Balance traffic over multiple WAN connections |
| Hotspot | Captive portal, RADIUS server, SSO authentication, walled garden, user groups, customizable themes, user management |
| SSHFS | Mount remote file system via SSH protocol |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
Security
| Feature | Details |
|---|---|
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, internal & external RADIUS users authentication, IP & login attempt blocking, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured rules enabled via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack Prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Mobile Quota Control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB Filter | Blacklist for blocking unwanted websites, whitelist for specifying allowed sites |
| Access Control | Flexible control of SSH, Web interface, CLI, and Telnet access |
| SSL Certificate Generation | Let's Encrypt and SCEP certificate generation |
| 802.1x | Port-based network access control server |
VPN
| Feature | Details |
|---|---|
| OpenVPN | Multiple clients and server instances, 27 encryption methods |
| OpenVPN Encryption | DES-CBC, RC2-CBC, BF-CBC, AES (128, 192, 256-bit variants), AES-GCM, and other encryption methods |
| IPsec | XFRM, IKEv1, IKEv2 with multiple encryption methods (e.g., AES128, AES256, AES-GCM) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP / L2TP | Client/Server instances, L2TPv3, L2TP over IPsec support |
| Stunnel | Adds TLS encryption to existing clients and servers |
| DMVPN | Scalable IPsec VPNs, Phase 2/3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Encryption, authentication, and compression with client and server support |
| Tailscale | Encrypted point-to-point connections using the WireGuard protocol |
OPC UA
| Feature | Details |
|---|---|
| Supported Modes | Client, Server |
| Connection Types | TCP |
MODBUS
| Feature | Details |
|---|---|
| Supported Modes | Server, Client |
| Connection Types | TCP |
| Custom Registers | MODBUS TCP custom register block requests that read/write to a file inside the router, extending MODBUS TCP Client functionality |
| Supported Data Formats | 8-bit (INT, UINT), 16-bit (INT, UINT - MSB/LSB first), 32-bit (float, INT, UINT - big-endian, little-endian, etc.), HEX, ASCII |
Data to Server
| Feature | Details |
|---|---|
| Protocol | HTTP(S), MQTT, Azure MQTT |
| Data to Server | Extract parameters from multiple sources and protocols, send to a single server; Custom LUA scripting for enhanced functionality |
MQTT Gateway
| Feature | Details |
|---|---|
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
DNP3
| Feature | Details |
|---|---|
| Supported Modes | Station, Outstation |
| Connection | TCP |
DLMS
| Feature | Details |
|---|---|
| DLMS Support | DLMS - standard protocol for utility meter data exchange |
| Supported Modes | Client |
| Supported Connection Types | TCP |
API
| Feature | Details |
|---|---|
| Teltonika Networks Web API | Expand device possibilities using configurable API endpoints for retrieving/changing data. More info: https://developers.teltonika-networks.com |
Monitoring & Management
| Feature | Details |
|---|---|
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event/system/kernel log, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, configuration, send/read SMS via HTTP POST/GET |
| Call | Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer, Wi-Fi on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| MODBUS | MODBUS TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
IoT Platforms
| Feature | Details |
|---|---|
| ThingWorx | Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity - Cloud of Things | Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Includes reboot and firmware upgrade actions |
| Azure IoT Hub | Configurable with Data to Server to send parameters to the cloud. Direct method support enables execution of RutOS API calls. Plug and Play integration with Device Provisioning Service allows zero-touch device provisioning. |
| AWS IoT Core | Utility for interacting with AWS cloud platform. Includes Jobs support for calling the device's API using AWS Jobs functionality |
System Characteristics
| Feature | Details |
|---|---|
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH Storage | 16 MB serial NOR flash |
Firmware / Configuration
| Feature | Details |
|---|---|
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep Settings | Update FW without losing current configuration |
| Factory Settings Reset | Restores all system settings, including IP address, PIN, and user data to default manufacturer's configuration |
Firmware Customization
| Feature | Details |
|---|---|
| Operating System | RutOS (OpenWrt based Linux OS) |
| Supported Languages | Busybox shell, Lua, C, C++ |
| Development Tools | SDK package with build environment provided |
| GPL Customization | Create custom, branded firmware and web application by changing colors, logos, and other elements |
| Package Manager | Service for installing additional software on the device |
Input / Output
| Feature | Details |
|---|---|
| Input | Up to 2 configurable digital Inputs (0-6 V: logic low, 8-30 V: logic high) |
| Output | Up to 2 configurable digital Outputs (30 V, 300 mA max) |
| Events | Email, RMS, SMS |
| I/O Juggler | Enables specific I/O conditions to initiate events |
Power
| Feature | Details |
|---|---|
| Connector | 4-pin industrial DC power socket |
| Input Voltage Range | 9-30 VDC, reverse polarity and voltage surge/transient protection |
| PoE (Passive) | Optional; requires different hardware (contact sales manager) |
| Power Consumption | Idle: <2.4 W, Max: <4.7 W |
Physical Interfaces
| Feature | Details |
|---|---|
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| I/O | 2 x Configurable I/O pins on a 4-pin power connector |
| Status LEDs | Mobile connection type/strength, Ethernet status, power indicators |
| SIM | 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder |
| Power | 1 x 4-pin power connector |
| Antennas | 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi |
| Reset | Reboot/User default reset/Factory reset button |
Physical Specification
| Feature | Details |
|---|---|
| Casing Material | Aluminium housing |
| Dimensions | 100 x 30 x 85 mm |
| Weight | 243 g |
| Mounting Options | DIN rail, wall mount, flat surface (additional kit required) |
Operating Environment
| Feature | Details |
|---|---|
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection | IP30 |
Regulatory & Type Approvals
| Feature | Details |
|---|---|
| Regulatory | CE, UKCA, FCC, IC, RCM, CB, WEEE, RoHS, REACH |
EMC Emissions & Immunity
| Feature | Standards |
|---|---|
| General Standards | EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020 |
| Power Standards | EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021 |
| EMC Standards | EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity | EN 61000-4-5:2014 + A1:2017 |
| Conducted Susceptibility (CS) | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
RF
| Feature | Standards |
|---|---|
| RF Standards | EN 300 328 V2.2.2, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1 |
Safety
| Feature | Standards |
|---|---|
| CE Standards | EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017 |
| RCM Standards | AS/NZS 62368.1:2018 |
| CB Standards | IEC 62368-1:2018 |
Safety
| Feature | Standards |
|---|---|
| CE Standards | EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017 |
| RCM Standards | AS/NZS 62368.1:2022 |
| CB Standards | IEC 62368-1:2018 |
Downloads
Manual & Documentation
RUT361 FLYER (EN)
RUT361 DATASHEET (EN)
Links
RUT361 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
RUT361 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
RUT361 3D MODELS
