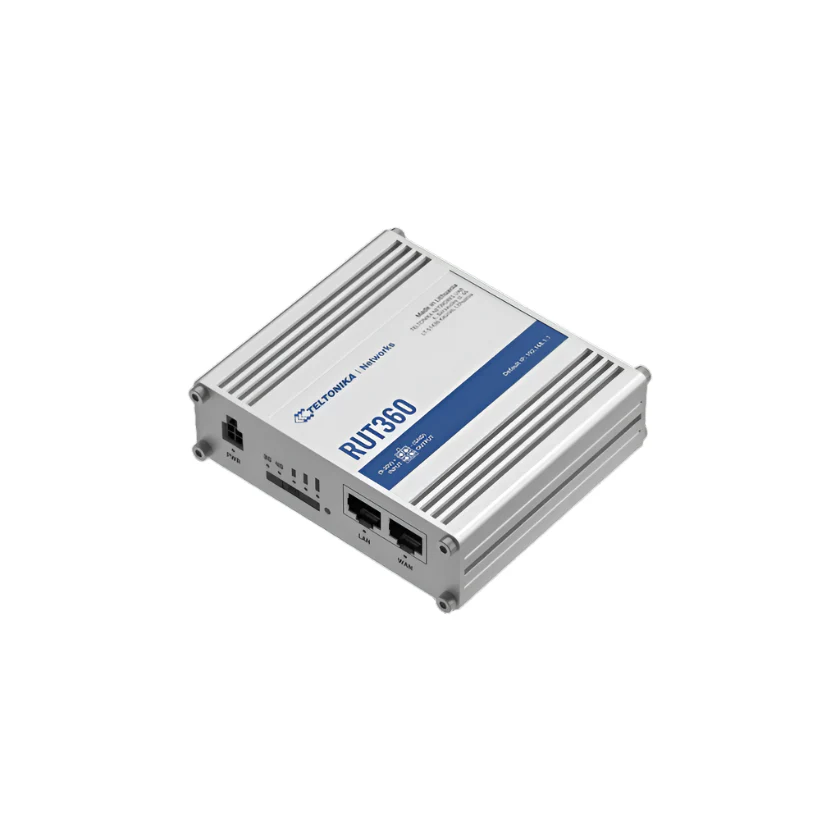

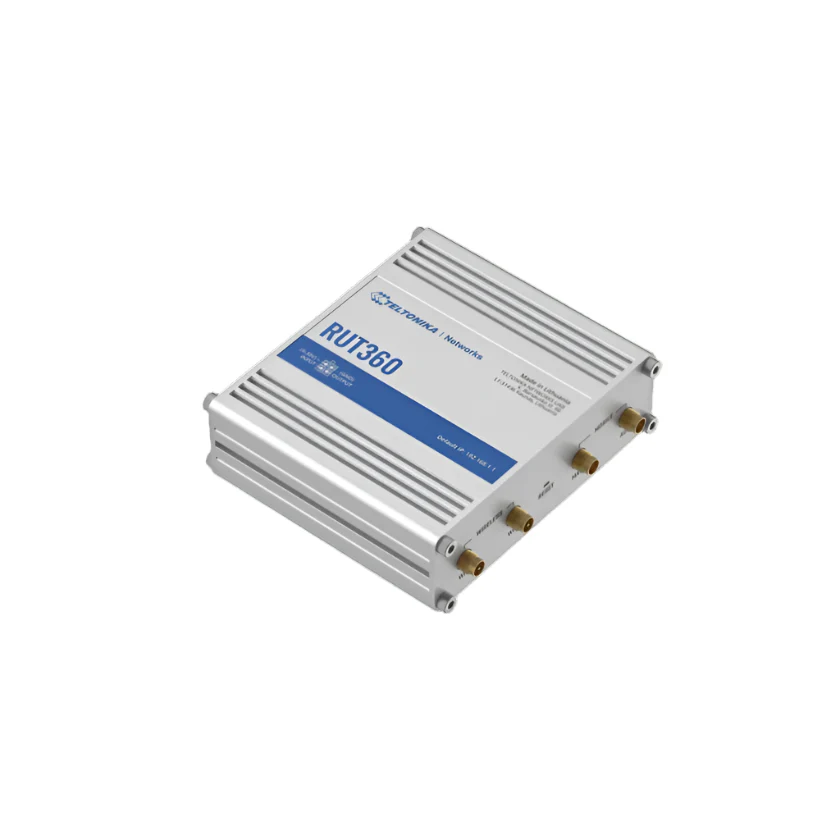

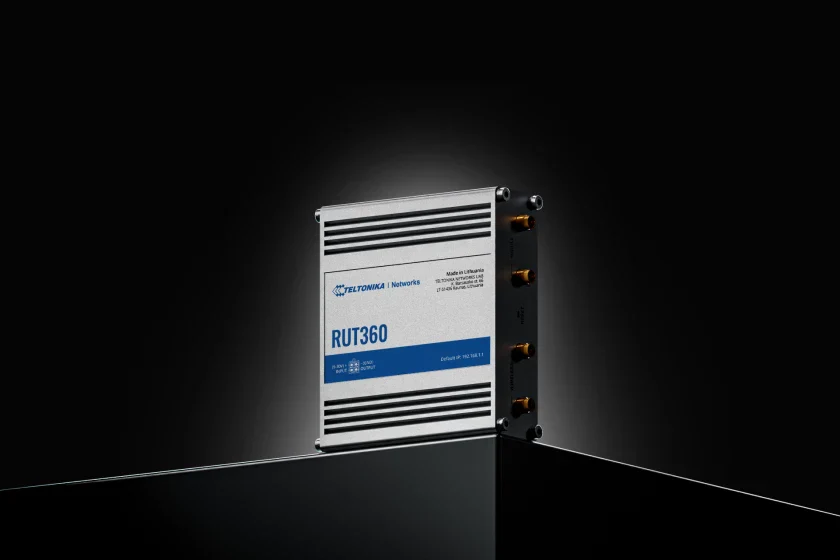

RUT360 - LTE Cat6 Industrial Cellular Router
Description
End of ordering: 2024 September 13
End of production: 2025 March 13
End of support: 2030 June 13
Replacement: RUT361
Standard package*
- Router RUT360
- 18 W PSU
- 2x Mobile antennas (swivel, SMA male)
- 2x Wi-Fi antennas (swivel, RP-SMA male)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- RMS Flyer
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Mobile
| Feature | Details |
|---|---|
| Mobile Module | 4G LTE Cat 6 (up to 300 Mbps DL / 50 Mbps UL), 3G (up to 42 Mbps DL / 5.76 Mbps UL) |
| 3GPP Release | Release 11 |
| Status | IMSI, ICCID, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ), EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | SMS status/configuration, HTTP POST/GET, EMAIL-to-SMS, SMS-to-EMAIL, SMS-to-HTTP, SMS autoreply, scheduled SMS, SMPP |
| USSD | Supports sending and reading USSD messages |
| Black/White List | Operator black/white list (by country or individual operators) |
| Multiple PDN | Enables use of different PDNs for various network access/services |
| Band Management | Band lock and display of used band status |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and LAN devices |
| Passthrough | Assigns the mobile WAN IP address to another LAN device |
Wireless
| Feature | Details |
|---|---|
| Wireless Mode | 802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA) |
| Wi-Fi Security | WPA2-Enterprise (PEAP, PSK, EAP), WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, 802.11w PMF |
| SSID/ESSID | ESSID stealth mode |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition (802.11v), radio resource measurement (802.11k) |
| Wireless MAC Filter | Allowlist and blocklist |
Ethernet
| Port | Details |
|---|---|
| WAN | 1 x WAN port, 10/100 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards. Supports auto MDI/MDIX for automatic crossover detection. |
| LAN | 1 x LAN port, 10/100 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards. Supports auto MDI/MDIX crossover for flexible connectivity. |
Network
| Feature | Details |
|---|---|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing. |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN. |
| VoIP Passthrough | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets. |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP, and ICMP for link inspection. |
| Firewall | Port forward, traffic rules, custom rules, TTL target customization. |
| Firewall Status Page | View firewall statistics, rules, and rule counters. |
| Ports Management | Enable/disable ports, auto-configuration, transmission speed adjustment. |
| Network Topology | Visual representation of network connections. |
| Hotspot | Captive portal, RADIUS server, MAC authentication, SSO authentication, customizable themes. |
| DHCP | Static/dynamic IP allocation, DHCP relay, server configuration, status, and static leases. |
| QoS / SQM | Traffic priority queuing by source/destination, protocol, or port. |
| DDNS | Supports >25 service providers with manual configuration options. |
| Network Backup | Wi-Fi WAN, Mobile, VRRP, Wired options with automatic failover. |
| Load Balancing | Balance internet traffic across multiple WAN connections. |
| SSHFS | Mount remote file systems via SSH protocol. |
Security
| Feature | Details |
|---|---|
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, RADIUS authentication, IP blocking. |
| Firewall | Preconfigured rules via WebUI, CLI unlimited configurations, DMZ, NAT, NAT-T, NAT64. |
| Attack Prevention | DDOS prevention, port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks). |
| VLAN | Port and tag-based VLAN separation. |
| Mobile Quota Control | Customizable data limits, warning limits, period, and start time. |
| Web Filter | Blacklist and whitelist options for website blocking. |
| Access Control | Flexible access to SSH, WebUI, CLI, and Telnet. |
VPN
| Feature | Details |
|---|---|
| OpenVPN | Multiple clients/servers, 27 encryption methods including AES-256-GCM, AES-256-CBC. |
| IPsec | XFRM, IKEv1, IKEv2, 14 encryption methods including AES256GCM16, AES192, AES128. |
| GRE | GRE tunnel, GRE over IPsec support. |
| PPTP/L2TP | Client/server instances, L2TPv3, L2TP over IPsec support. |
| Stunnel | TLS encryption for clients/servers without program code changes. |
| DMVPN | Scalable IPsec VPNs with Phase 2/3 and Dual Hub support. |
| SSTP | Client instance support. |
| ZeroTier | ZeroTier VPN client support. |
| WireGuard | WireGuard VPN client and server support. |
| Tinc | Encryption, authentication, compression in tunnels, client and server support. |
OPC UA
| Feature | Details |
|---|---|
| Supported Modes | Client, Server. |
| Supported Connections | TCP. |
MODBUS
| Feature | Details |
|---|---|
| Supported Modes | Server, Client. |
| Supported Connection Types | TCP. |
| Custom Registers | MODBUS TCP custom register block requests to read/write files inside the router, extending functionality. |
| Supported Data Formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII. |
Data to Server
| Feature | Details |
|---|---|
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis. |
| Data to Server | Extract parameters from multiple sources and protocols; send them to a single server. Includes custom LUA scripting for enhanced functionality. |
MQTT Gateway
| Feature | Details |
|---|---|
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through an MQTT broker. |
DNP3
| Feature | Details |
|---|---|
| Supported Modes | TCP Master, DNP3 Outstation. |
DLMS
| Feature | Details |
|---|---|
| DLMS Support | DLMS - Standard protocol for utility meter data exchange. |
| Supported Modes | Client. |
| Supported Connection Types | TCP. |
| COSEM | Allows scanning of meter COSEM objects for automatic detection and configuration. |
API
| Feature | Details |
|---|---|
| Teltonika Networks Web API (Beta) | Expand device capabilities with configurable API endpoints for data retrieval and changes. Documentation: Teltonika Developers. |
Monitoring & Management
| Feature | Details |
|---|---|
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event/system/kernel log, Internet status. |
| FOTA | Firmware update from server, automatic notification. |
| SSH | SSH (v1, v2). |
| SMS | SMS status, configuration, send/read SMS via HTTP POST/GET. |
| Call | Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer, Wi-Fi on/off. |
| TR-069 | Compatible with OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem. |
| MQTT | MQTT Broker, MQTT Publisher. |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, brute force protection. |
| JSON-RPC | Management API over HTTP/HTTPS. |
| RMS | Teltonika Remote Management System. |
IoT Platform Integration
| Platform | Details |
|---|---|
| Cloud of Things | Monitoring device data, mobile data, network info, availability. |
| ThingWorx | Monitoring WAN type, WAN IP, mobile operator, signal strength, network type. |
| Cumulocity | Monitor device model, revision, serial number, WAN type, IP, signal strength, reboot and firmware upgrades. |
| Azure IoT Hub | Supports "Data to Server," direct method execution, Plug and Play integration for zero-touch provisioning. |
| AWS IoT Core | Interaction with AWS Cloud Platform. Supports Jobs API calls via AWS Jobs functionality. |
System Characteristics
| Component | Details |
|---|---|
| CPU | Qualcomm MIPS 24kc, 650 MHz. |
| RAM | 128 MB, DDR2. |
| FLASH Storage | 16 MB, SPI Flash. |
Firmware and Configuration
| Feature | Details |
|---|---|
| WEB UI | Update FW from file or server, configuration profiles, backup. |
| FOTA | Update FW. |
| RMS | Update FW/configuration for multiple devices. |
| Keep Settings | Update FW without losing current configuration. |
| Factory Settings Reset | Restores all system settings, including IP address, PIN, and user data to defaults. |
Firmware Customization
| Feature | Details |
|---|---|
| Operating System | RutOS (OpenWrt-based Linux OS). |
| Supported Languages | Busybox shell, Lua, C, C++. |
| Development Tools | SDK package with build environment provided. |
| GPL Customization | Create custom branded firmware and web applications by modifying colors, logos, and other elements. |
Input / Output
| Feature | Details |
|---|---|
| Input | 1 x Digital Input: 0–6 V detected as logic low; 8–30 V detected as logic high. |
| Output | 1 x Digital Output: Open collector, max output 30 V, 300 mA. |
| Events | Trigger options: Email, RMS, SMS. |
| I/O Juggler | Configurable I/O conditions to initiate specific events. |
Power
| Feature | Details |
|---|---|
| Connector | 4-pin industrial DC power socket. |
| Input Voltage Range | 9–30 VDC, reverse polarity protection, surge protection >31 VDC 10 µs max. |
| Power Consumption | 10.5 W max. |
Physical Interfaces
| Interface | Details |
|---|---|
| Ethernet | 2 x RJ45 ports, 10/100 Mbps. |
| I/O's | 1 x Digital Input, 1 x Digital Output on 4-pin power connector. |
| Status LEDs | 2 x Mobile connection type, 3 x Mobile signal strength, 2 x Ethernet status, 1 x Power. |
| SIM | 1 x Mini SIM slot (2FF), external SIM holder, supports 1.8 V/3 V. |
| Power | 1 x 4-pin power connector. |
| Antennas | 2 x SMA connectors for LTE, 2 x RP-SMA connectors for Wi-Fi. |
| Reset | Reboot/User default reset/Factory reset button. |
Physical Specifications
| Specification | Details |
|---|---|
| Casing Material | Aluminium housing. |
| Dimensions | 100 x 30 x 85 mm (W x H x D). |
| Weight | 247 g. |
| Mounting Options | DIN rail, wall mount, flat surface (additional kits required |
Operating Environment
| Feature | Details |
|---|---|
| Operating Temperature | -40 °C to 75 °C. |
| Operating Humidity | 10% to 90% non-condensing. |
| Ingress Protection Rating | IP30. |
Regulatory & Type Approvals
| Category | Details |
|---|---|
| Regulatory | CE, UKCA, UCRF, ANRT, ICASA, FCC, IC, PTCRB, RCM, NTC, CB. |
| Operator | Certified for AT&T, Verizon, T-Mobile, and U.S. Cellular. |
EMC Emissions & Immunity
| Standard | Details |
|---|---|
| Emissions | EN 55032:2015 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019. |
| Immunity | EN 55035:2017. |
| Specific EMC Standards | EN 301 489-1:V2.2.3, EN 301 489-17:V3.2.4, Draft EN 301 489-52:V1.1.0. |
| ESD | EN 61000-4-2:2009. |
| Radiated Immunity | EN IEC 61000-4-3:2006 + A1:2008 + A2:2010. |
| EFT | EN 61000-4-4:2012. |
| Surge Immunity (AC Mains) | EN 61000-4-5:2014 + A1:2017. |
| Conducted Susceptibility (CS) | EN 61000-4-6:2014. |
| DIP | EN 61000-4-11:2004 + A1:2017. |
RF Standards
| Standard | Details |
|---|---|
| Standards | EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1. |
Safety Standards
| Standard | Details |
|---|---|
| CE | EN IEC 62368-1:2020 + A11:2020. |
| RCM | AS/NZS 62368.1:2018. |
| CB | IEC 62368-1:2018. |
