RUT300 - Industrial Ethernet Router

RUT300 - Industrial Ethernet Router

Description

End of ordering: 2024 September 13
End of production: 2025 March 13
End of support: 2030 June 13
Replacement: RUT301

Standard package*

  • Router RUT300
  • 9 W PSU
  • Ethernet cable (1.5 m)
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

Feature

Ethernet

Category Details
WAN 1 x WAN port 10/100 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az compliant, supports auto MDI/MDIX
LAN 4 x LAN ports, 10/100 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az compliant, supports auto MDI/MDIX


Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, etc.
VoIP Passthrough H.323 and SIP-alg protocol NAT helpers for proper VoIP packet routing
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation, firewall status page
Ports Management View, enable, disable, auto-configure, or modify transmission speed of ports
Network Topology Visual representation of connected devices
Hotspot Captive portal, internal/external Radius server, SMS/SSO authentication, user/group limitations, custom themes
DHCP Static and dynamic IP allocation, DHCP relay, server configuration, static leases
QoS/SQM Traffic prioritisation by source/destination, service, protocol, or port; WMM and 802.11e support
DDNS Supports >25 providers, manual configuration
Network Backup VRRP, wired options, automatic failover
Load Balancing Distribute traffic over multiple WAN connections
SSHFS Mount remote file systems via SSH protocol


Security

Feature Details
Authentication Pre-shared keys, X.509 certificates, TACACS+, Radius authentication, IP blocking, random passwords
Firewall Preconfigured rules via WebUI, unlimited custom rules via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS (SYN flood, SSH, HTTP/HTTPS attack prevention), port scan protection (SYN-FIN, NULL, etc.)
VLAN Port and tag-based VLAN separation
Web Filter Blacklist/whitelist for website control
Access Control SSH, Web interface, CLI, and Telnet access control
SSL Certificate Generation Let's Encrypt and SCEP methods
802.1x Port-based network access control



VPN

Feature Details
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-GCM 128, AES-256-GCM 256, etc.
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES256, AES256GCM16, etc.)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without changing the program’s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3, Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication, and compression in its tunnels; Client and server support

OPC UA

Supported Modes Details
Modes Client, Server
Connection Types TCP


MODBUS

Feature Details
Supported Modes Server, Client
Connection Types TCP, USB
Custom Registers MODBUS TCP custom register block requests, read/write to a file inside the router, used to extend MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT; 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII



Data to Server

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server Extract parameters from multiple sources and protocols, send to a single server; Custom LUA scripting enables scripts to utilize the router's Data to server feature



MQTT Gateway

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker


DNP3

Feature Details
Supported Modes TCP Master, DNP3 Outstation


DLMS

Feature Details
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection Types TCP
COSEM Allows scanning meter COSEM objects for automatic detection and configuration


API

Feature Details
Teltonika Networks Web API Expand your device's possibilities by using configurable API endpoints to retrieve or change data.
For more information, refer to: Teltonika API Documentation



Monitoring and Management

Category Features
Web UI - HTTP/HTTPS
- Status and Configuration
- FW (Firmware) Update
- CLI
- Troubleshooting
- Multiple Event Log Servers
- Firmware Update Notifications
- Event, System, and Kernel Logs
- Internet Status Monitoring
FOTA - Firmware Update from Server
- Automatic Notification for Updates
SSH - SSH v1 and v2
TR-069 - Compatible with OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem
MQTT - MQTT Broker
- MQTT Publisher
SNMP - SNMP (v1, v2, v3)
- SNMP Trap
- Brute Force Protection
JSON-RPC - Management API over HTTP/HTTPS
RMS - Teltonika Remote Management System (RMS)


IoT Platforms Support

Platform Features
Cloud of Things - Monitoring Device Data
- Mobile Data
- Network Info
- Availability
ThingWorx - Monitoring WAN Type and WAN IP
Cumulocity - Monitoring Device Model, Revision, Serial Number
- WAN Type and IP
- Reboot and Firmware Upgrade Actions
Azure IoT Hub - Sends Device IP, Bytes Sent/Received, Temperature, and PIN Count to Azure IoT Hub Server


System Characteristics

Component Details
CPU - Qualcomm MIPS 24kc, 650 MHz
RAM - 64 MB, DDR2
Flash Storage - 16 MB, SPI Flash


Firmware / Configuration

Category Features
Web UI - Firmware Update from File
- Check Firmware on Server
- Configuration Profiles
- Configuration Backup
FOTA - Firmware Updates
RMS - Updates Firmware/Configuration for Multiple Devices at Once
Keep Settings - Update Firmware Without Losing Current Configuration
Factory Reset - Restores All Settings to Default Manufacturer's Configuration, Including IP, PIN, and User Data



Firmware Customization

Category Features
Operating System - RutOS (OpenWrt-based Linux OS)
Supported Languages - Busybox Shell
- Lua
- C
- C++
Development Tools - SDK Package with Build Environment Provided
GPL Customization - Create Custom/Branded Firmware and Web Applications
- Customize Colors, Logos, and UI Elements


Location Tracking

Feature Details
NTRIP - Supports NTRIP Protocol (Networked Transport of RTCM via Internet Protocol)


USB

Category Features
Data Rate - USB 2.0
Applications - Samba Share
- USB-to-Serial
External Devices - Supports External HDD, Flash Drives, Additional Modem, Printer, USB-Serial Adapter
Storage Formats - FAT
- FAT32
- exFAT
- NTFS (Read-Only)
- ext2
- ext3
- ext4


Input / Output

Category Features
Input - 2 x Configurable Digital Inputs
- 0 - 5 V detected as logic low
- 8 - 30 V detected as logic high
Output - 2 x Configurable Digital Outputs
- Open Collector Output
- Max Output: 30 V, 300 mA
Events - Trigger Event via Email or RMS
I/O Juggler - Set I/O Conditions to Initiate Specific Events



Power

Category Details
Connector 4-pin industrial DC power socket
Input Voltage Range 7 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (Passive) Passive PoE over spare pairs, powered through LAN1 port, not compatible with IEEE802.3 standards, Mode B, 9 - 30 VDC
Power Consumption Idle: 1.3 W
Max: 3 W


Physical Interfaces

Interface Details
Ethernet 5 x RJ45 ports, 10/100 Mbps
I/Os 2 x Configurable I/O pins on 4-pin power connector
Status LEDs 5 x ETH status, 1 x Power
Power 1 x 4-pin power connector
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button


Physical Specifications

Category Details
Casing Material Aluminium housing
Dimensions (W x H x D) 100 x 30 x 85 mm
Weight 229 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)


Operating Environment

Category Details
Operating Temperature -40 °C to 75 °C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30


Regulatory & Type Approvals

Category Details
Regulatory CE, UKCA, UCRF, CITC, ANRT, FCC, IC, RCM, BSMI, KC, CB


EMC Emissions & Immunity

Standard Details
General EN 55032:2015 + A11:2020, EN 61000-3-3:2013 + A1:2019, EN IEC 61000-3-2:2019, EN 55035:2017
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge Immunity EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020


Safety Standards

Standard Details
CE EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
RCM AS/NZS 62368.1:2022
CB IEC 62368-1:2018



Downloads

Manual & Documentation

  • RUT300 Flyer (EN)
  • RUT300 Datasheet (EN)

Links

  • RUT300 Quick Start Guide (EN)
  • Firmware Downloads
  • RUT300 User Manual
  • Certifications & Approvals
  • Product Change Notifications
  • SDK Downloads
  • GPL Downloads
  • RUT300 3D Models
$40.16

Original: $133.87

-70%
RUT300 - Industrial Ethernet Router—

$133.87

$40.16
Product image 1

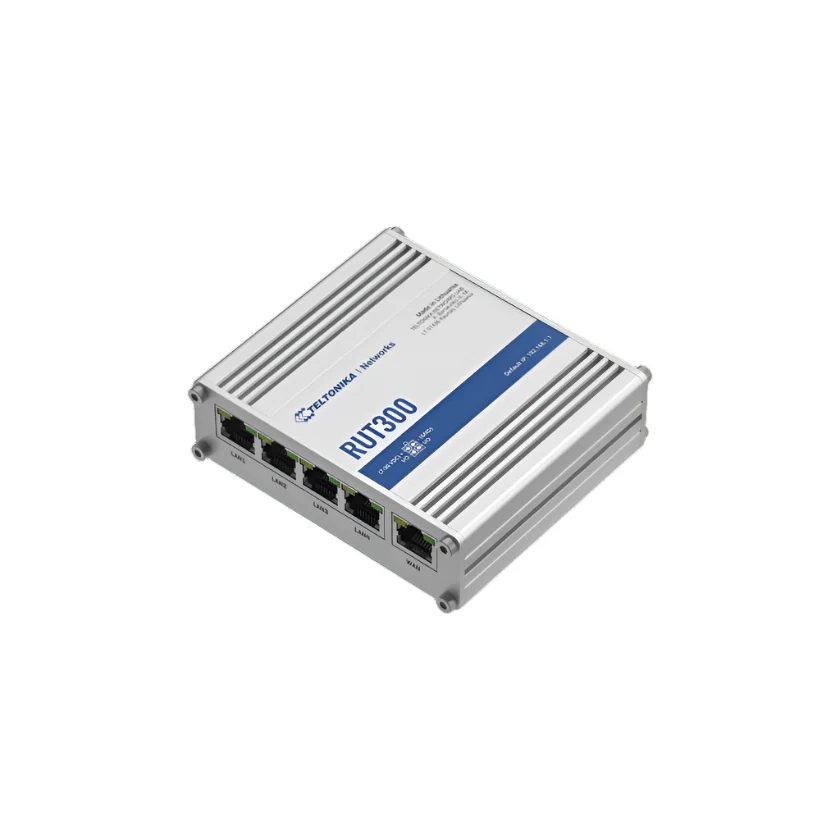

Product image 2

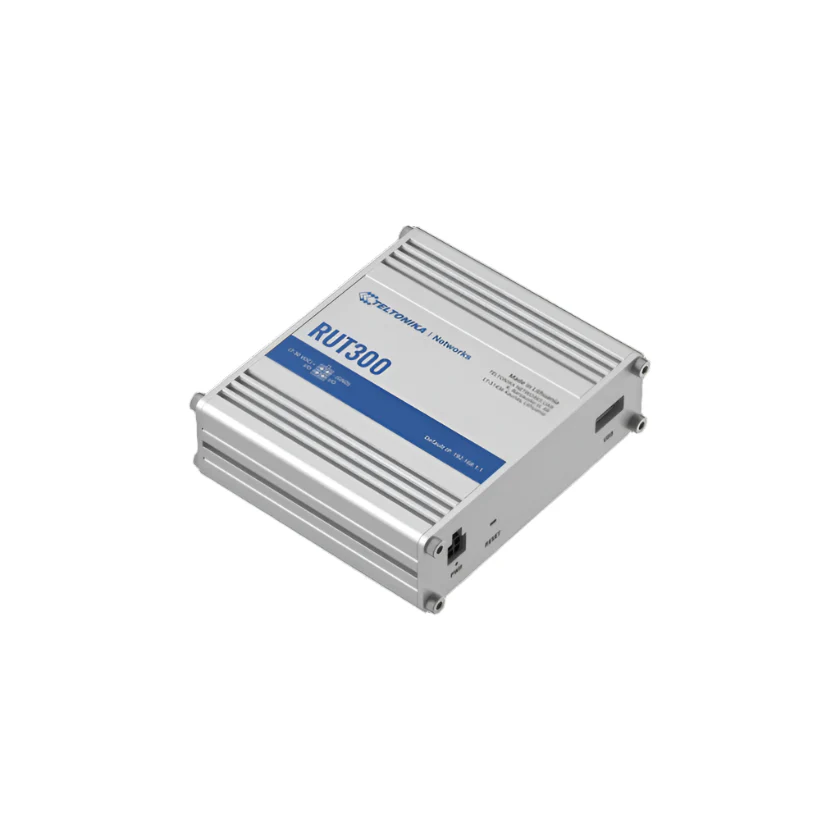

Product image 3
Product image 4
Product image 5

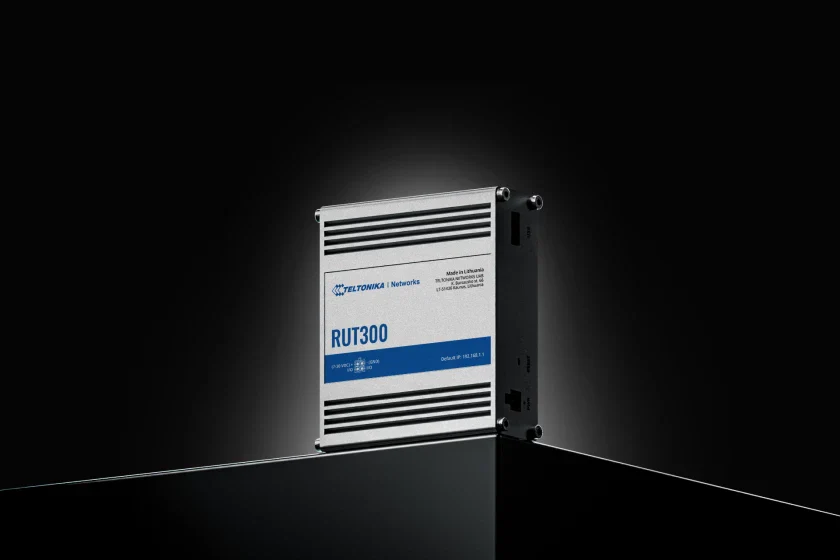

Product image 6
