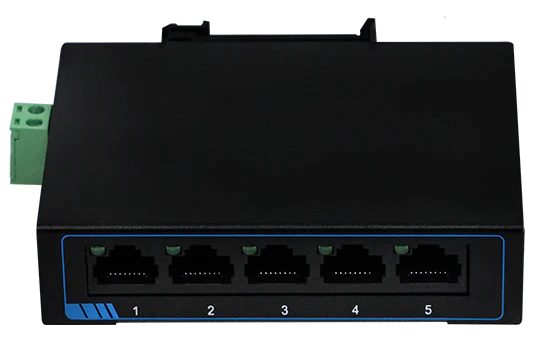

USR-SF1005

5-port 100M Ethernet switch

SF1005 is a 5-port 10/100Mbps unmanaged ethernet switch. The product combines store-and-forward technology and dynamic memory allocation together to ensure effective allocation to each port.



SF1005 | 5-port 100M Ethernet switch

Multi-scenario layer 2 switch, Industrial switch, Phoenix type connector

SF1005 is a 5-port 10/100Mbps unmanaged ethernet switch. The product combines store-and-forward technology and dynamic memory allocation together to ensure effective allocation to each port. Flow control ensures that nodes can avoid packet loss as much as possible when transmitting & receiving. The product is compatible with both 10Base-T and 100Base-TX standards, the port rate automatically adapts to 10 or 100Mbps. The product shell is made of frosted iron which makes it pressure-resistant, wear-resistant and explosion-proof, also meets the requirement of wide-temperature range operating. Featured with highly integrated and compact design, lightweight, easy to use, plug-and-play and supporting desktop/wall-mounted and DIN rail installation, the product is suitable for small & medium-sized offices, home and quasi-industrial uses.



Plug and play

Plug and play, no configuration required

Supports Auto MDI/MDIX

All Eth ports support Auto MDI/MDIX and rate Auto-negotiation, simplifying network setup and maintenance.



Complies with IEEE802.3az standard

Supports IEEE 802.3az Energy-efficient Ethernet to reduce energy consumption at both ends of the network when internet or ethernet activities are idle.



Iron shell

Iron shell shields electromagnetic interference and dissipates heat better than the plastic casing



Product details

The device supports DC-jack and terminal block connector for power supply. DC-jack power supply is faster while terminal block connector is more robust for specific scenarios. And the indicator light can directly tell the user the operating status of the equipment, making it easier for users to locate problems.



Dimensions

USR-SF1005: 100*31*77mm



Quasi-industrial design

Exquisite industrial structure design supports various installation methods such as desktop, wall-mounted and DIN rail for different installation conditions





PARAMETER

Model	USR-SF1005	USR-SF1008	USR-SG1005	USR-SG1008
Data Transfer Rate	10/100M Auto Negotiation and Auto MDI/MDIX RJ45	10/100M Auto Negotiation and Auto MDI/MDIX RJ45	10/100/1000M Auto Negotiation and Auto MDI/MDIX RJ45	10/100/1000M Auto Negotiation and Auto MDI/MDIX RJ45
Number of Ports	5	8	5	8
Switching Modes	Store and Forward	Store and Forward	Store and Forward	Store and Forward
Switching Capacity	1.0G	1.6G	10G	16G
Packet Forwarding Rate	10Mbps: 14880pps 100Mbps: 148800pps	10Mbps: 14880pps 100Mbps: 148800pps	10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps	10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps
MAC Address Table	2K	2K	2K	2K
Network Media (Cable)	10Base-T: UTP Category 3, 5 cable 100Base-TX: UTP Category 5 cable	10Base-T: UTP Category 3, 5 cable 100Base-TX: UTP Category 5 cable	10Base-T: UTP Category 3, 5 cable 100Base-TX: UTP Category 5 cable	10Base-T: UTP Category 3, 5 cable 100Base-TX: UTP Category 5 cable
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ab	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ab
LED	Port: Link/Act Indicator 100M Link/ACT: Green POWER: Red	Port: Link/Act Indicator 100M Link/ACT: Green POWER: Red	Port: Link/Act Indicator 1000M Link/ACT: Green POWER: Red	Port: Link/Act Indicator 1000M Link/ACT: Green POWER: Red
Mounting	35mm DIN Rail Mounting	35mm DIN Rail Mounting	35mm DIN Rail Mounting	35mm DIN Rail Mounting
Dimensions	100*77*31mm	140*90*31mm	100*77*31mm	140*90*31mm
Certifications	CE, ROHS, FCC, WEEE	CE, ROHS, FCC, WEEE	CE, ROHS, FCC, WEEE	CE, ROHS, FCC, WEEE
Operating environment	Operating temperature: -5℃~45℃ Storage temperature: -10℃~70℃ Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing	Operating temperature: -5℃~45℃ Storage temperature: -10℃~70℃ Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing	Operating temperature: -5℃~45℃ Storage temperature: -10℃~70℃ Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing	Operating temperature: -5℃~45℃ Storage temperature: -10℃~70℃ Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
Power & Consumption	Input: DC12V /0.5A, Consumption: <3W	Input: DC12V /0.5A, Consumption: <3W	Input: DC12V /0.5A, Consumption: <4W	Input: DC12V /0.5A, Consumption: <4W
Accessories	Power adapter (Optional), Terminal Block, Quick Start Guide	Power adapter (Optional), Terminal Block, Quick Start Guide	Power adapter (Optional), Terminal Block, Quick Start Guide	Power adapter (Optional), Terminal Block, Quick Start Guide

DOWNLOAD

[Specification] 5/8 port commercial switch-spec-en-V1.0.0

Download >>



Shipping List

1x USR-SF1005

**Power Adapter is not included in the box.

Please use this link to add it to your cart: 12V 1A (12W) Power Adapter
