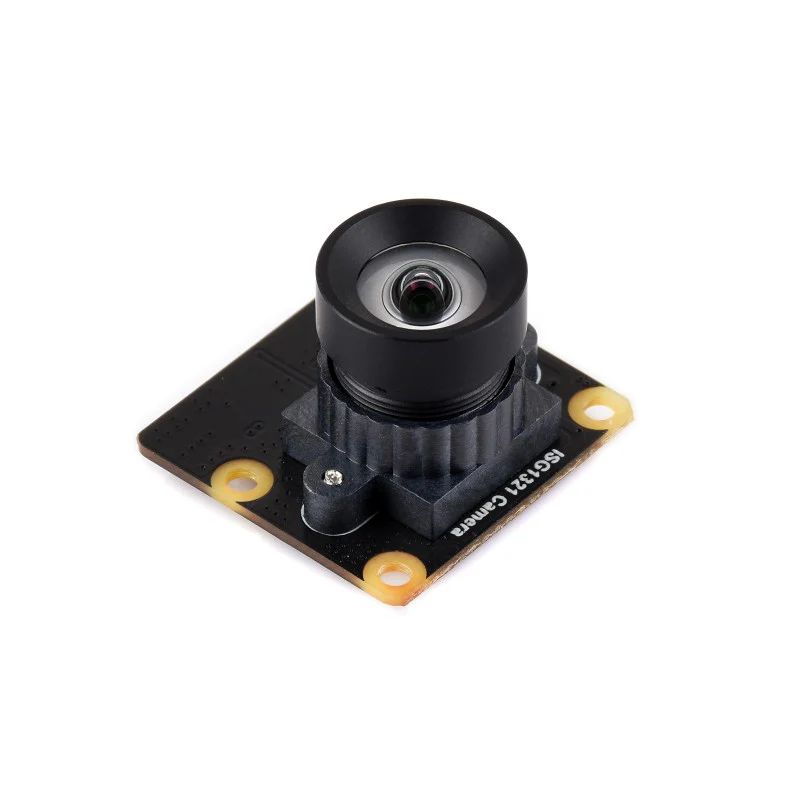

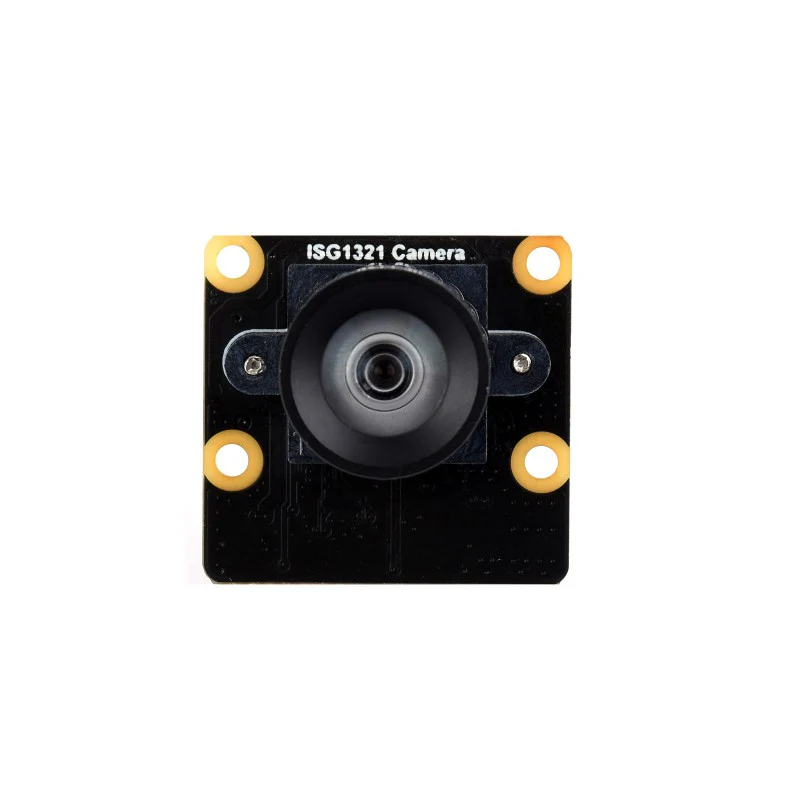

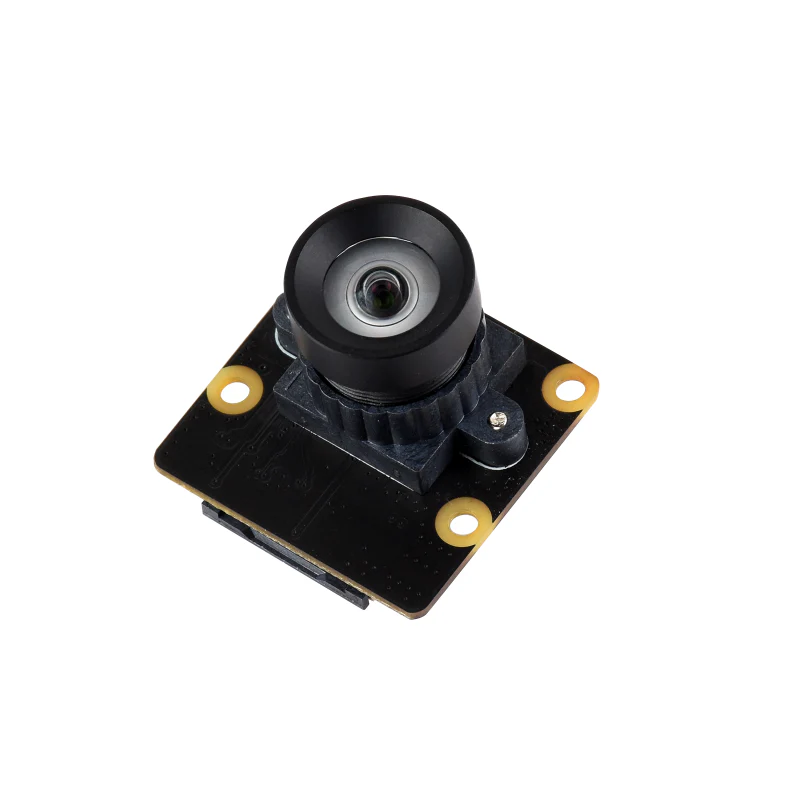

ISG1321 1.38MP Mono Camera Module, Global Shutter, 95.5° FOV Wide Angle Lens

ISG1321 1.38MP Mono Global Shutter Camera Module

Equipped with a 95.5° FOV Wide Angle Distortion-Free Lens



Specifications

Sensor	ISG1321	CMOS Size	1/4 inch
Camera Type	Mono	Pixels	1.38 MP (1280 × 1080)
Shutter	Global Shutter	Output	120 FPS (Max)
Interface	MIPI-CSI (2-lane)	Aperture	F2.4
Distortion	< 1%	Field of View (FOV)	95.5°
Focal Length	2.88 mm	Focusing	Manual Focus



Wide Field of View

Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle



Global Shutter

All pixels are exposed simultaneously, capturing images without distortion



High Frame Rate

Supports up to 1280×1080@120fps, enabling precise capture of fast-moving objects



Connects to Luckfox Pico Zero

* for reference only, the Luckfox Pico Zero is NOT included.



Outline Dimensions



Resources & Services

Wiki: www.waveshare.com/wiki/ISG1321_Camera



Package Content

Weight: 0.006 kg

ISG1321 Camera x1
22PIN FFC cable ~200mm x1
