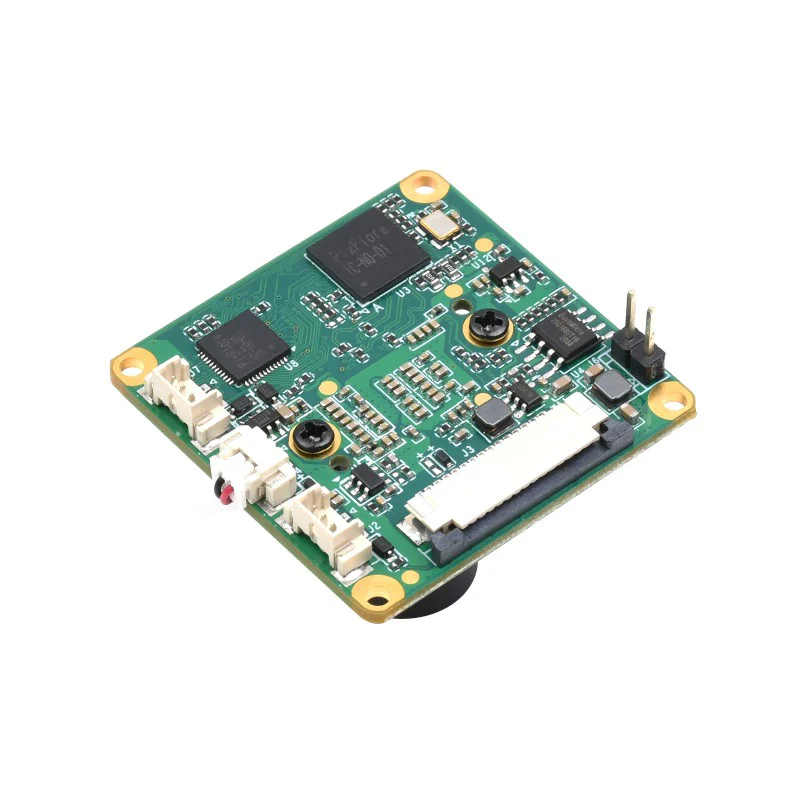

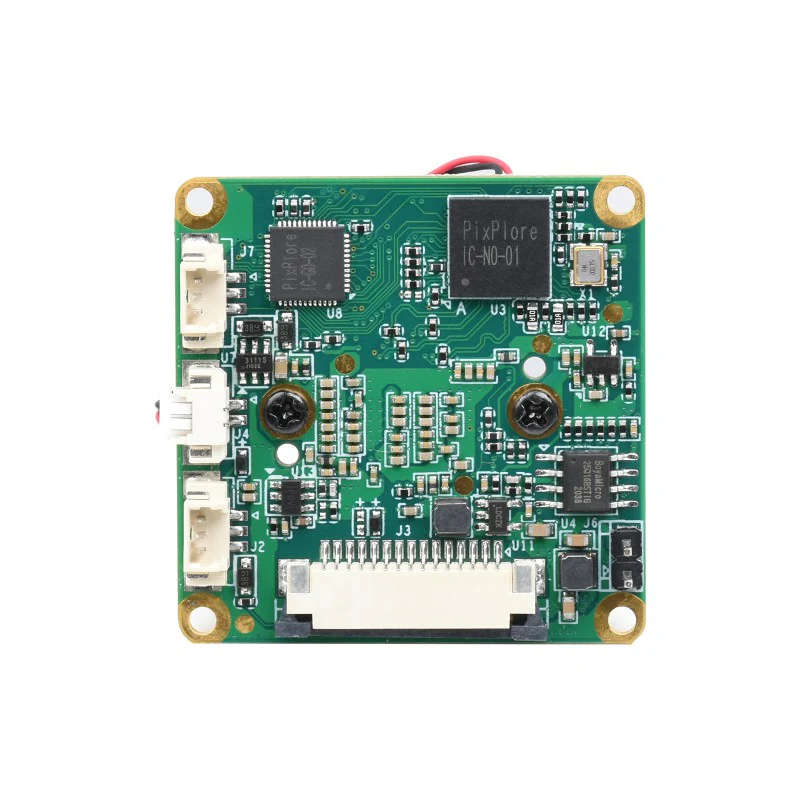

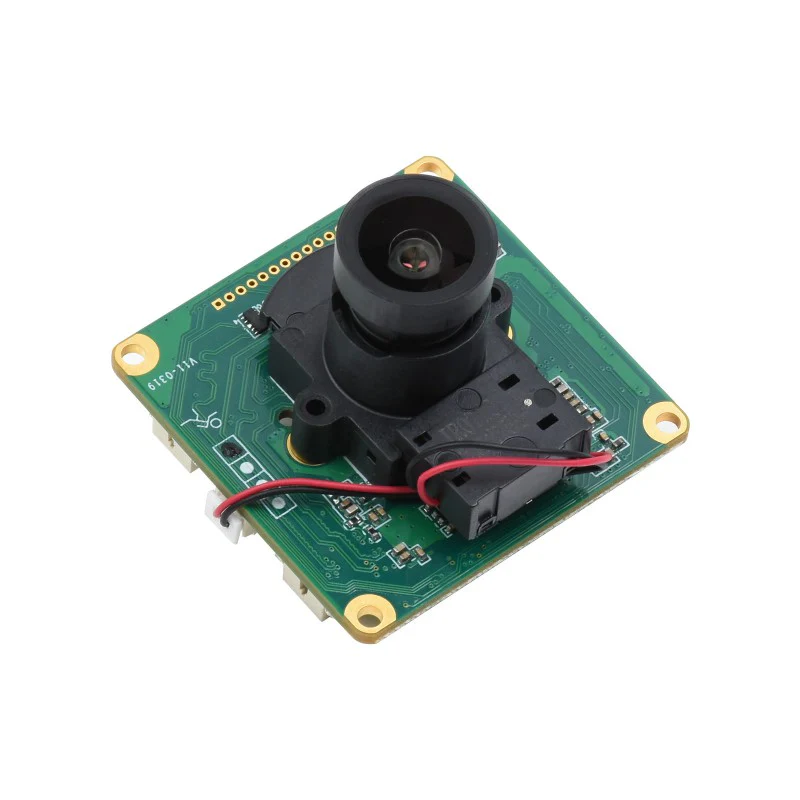

IMX462-127 IR-CUT Camera, Starlight Camera Sensor, Onboard ISP, Fixed-Focus, 2MP
IMX462 Starlight Camera
2MP | IR-CUT | ISP
Compatible with Raspberry Pi series boards and Jetson Nano
Device Support
-
Raspberry Pi series
Supports 4B / 3B+ / 3A+ / Zero / Zero 2 W, and CM3/3+/4 (extra adapter board required) - Jetson Nano
Specifications
| SENSOR | IMX462-127 | IMX462-99 |
|---|---|---|
| CMOS SIZE | 1/2.8 inch | |
| PIXELS | 2MP (1920 × 1080) | |
| CAMERA TYPE | Color | |
| FOCUSING | Fixed focus | |
| SHUTTER | Rolling Shutter | |
| APERTURE | F1.61 | F1.0 |
| FOCAL LENGTH | 3.18mm | 4.0mm |
| FIELD OF VIEW | 127.9° | 99.1° |
| DISTORTION | < -51% | < -33.8% |
Starlight Camera
Clear Imaging Even In Low Light Conditions
Built-In IR-CUT
Correct Color Deviation Of Infrared Camera During The Daytime, Better Imaging Effect
Onboard ISP
Integrated Image Signal Processing Circuit, Clearer Imaging Effect
Working With Raspberry Pi
Direct Connect To Raspberry Pi Different Variants Including 4B/3B+/3A+/3B/2B/B+/A+,
Extra FPC Cable Is Required For Zero / Zero 2 W Series
- for reference only, Raspberry Pi 4B and 2W are NOT included.
- Specific driver is required for Raspberry Pi to use the IMX462 camera.
Working With Jetson Nano
Direct Connect To Jetson Nano Developer Kit
for reference only, Jetson Nano Developer Kit is NOT included.
Dimensions
Resources
Wiki: www.waveshare.com/wiki/IMX462_2MP_Starlight_Camera
Package Contains:
- Weight: 35 gram
- 1x IMX462-127 2MP Starlight Camera
$27.94
Original: $93.13
-70%IMX462-127 IR-CUT Camera, Starlight Camera Sensor, Onboard ISP, Fixed-Focus, 2MP—
$93.13
$27.94
