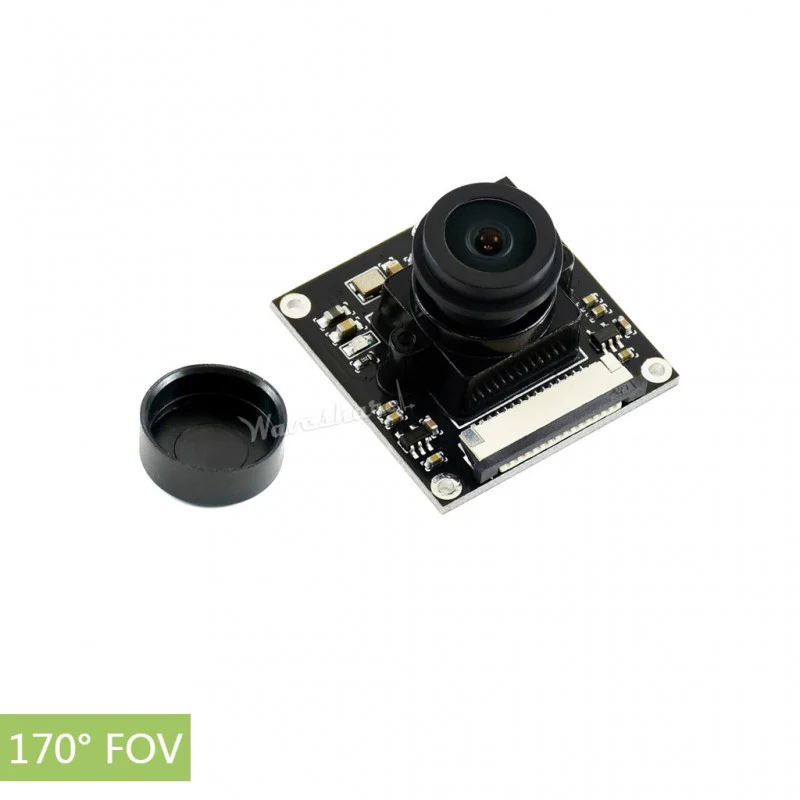

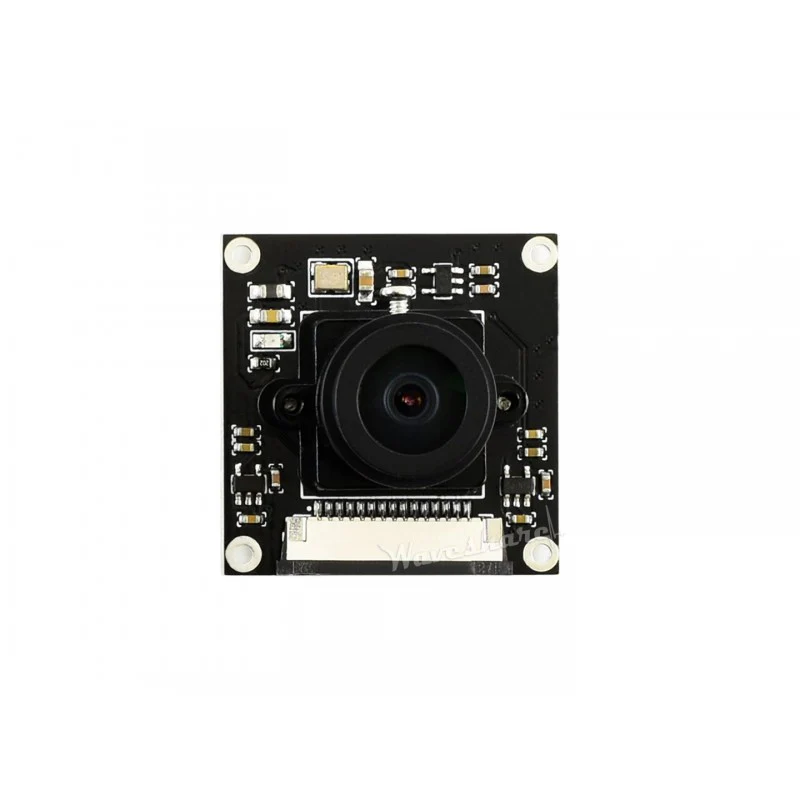

IMX219-170 Camera, 170° FOV

IMX219-170 Camera, Applicable For Jetson Nano, 8 Megapixels, 170° FOV

Features

• Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
• 8 Megapixels
• Sensor: IMX219
• Resolution: 3280 × 2464
• Lens specifications:
  • CMOS size: 1/4inch
  • Aperture (F): 2.4
  • Focal Length: 2.2mm
  • Angle of View (diagonal): 170 degree
  • Distortion: <22%
• 4 screw holes
  • Used for attachment
  • Provides 3.3V power output
• Dimension: 32mm × 32mm

Package Contains:

1. 1x IMX219-170 Camera
2. 1x 15-pin FFC (opposite sides contact)

Applications

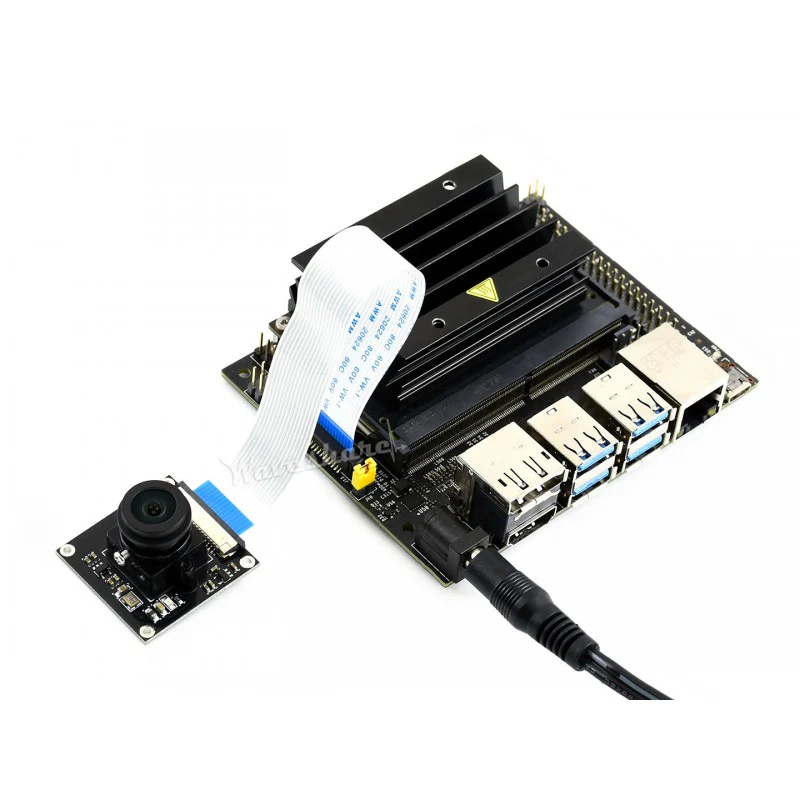

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:

• Face recognition
• Road mark detection
• License plate recognition

Resources

Wiki: www.waveshare.com/wiki/IMX219-170_Camera
