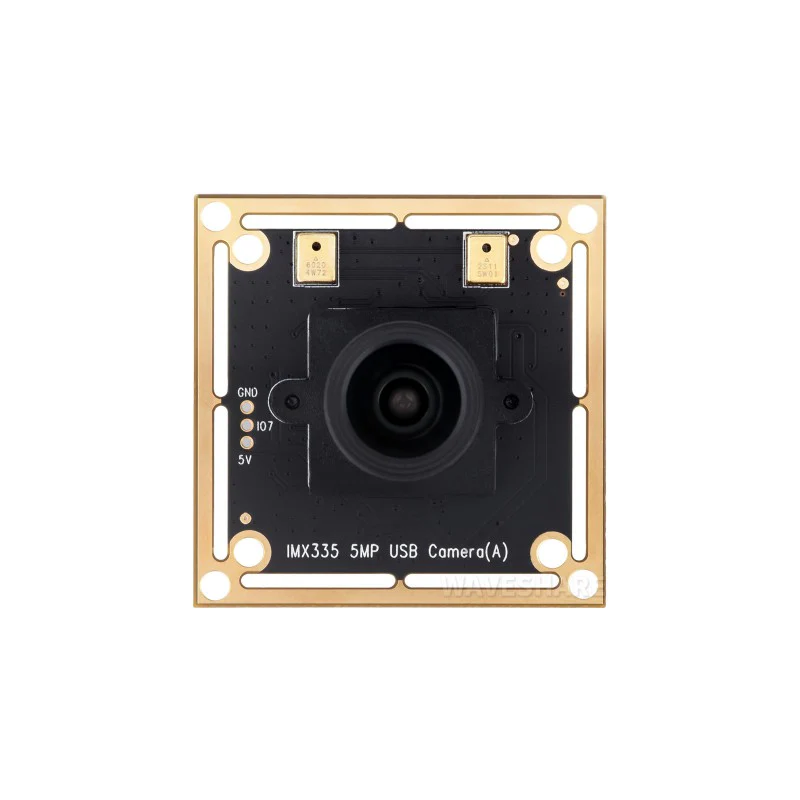

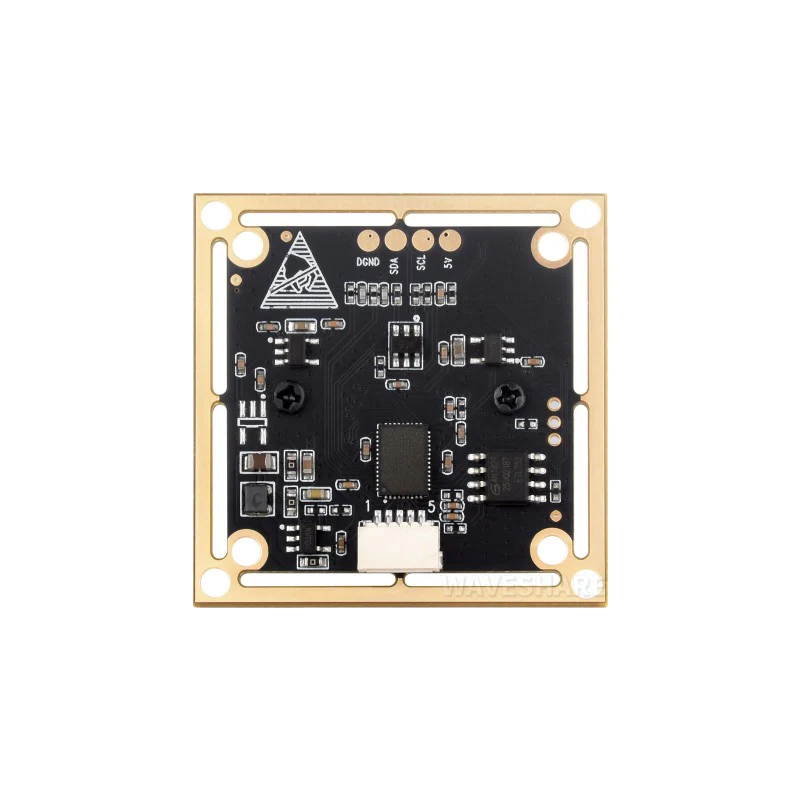

IMX335 5MP USB Camera, Large Aperture, 2K Video Recording
IMX335 5MP USB Camera, Large Aperture F1.08, 30FPS 2K Video Recording, Plug-And-Play, Driver Free
USB Camera, IMX335 sensor. 5 megapixel. Supports UVC protocol.
Specifications
| PIXELS | 5MP | |
|---|---|---|
| SENSOR | IMX335 | |
| INTERFACE | USB (UVC 1.0 compliant) | |
| CAMERA | Sensor size | 1/2.8 inch |
| Aperture (F) | 1.08 | |
| Focal length (EFL) | 3.91 mm | |
| Field of view (FOV) | 106°(D) 92.6°(H) 48.6°(V) | |
| Focusing | manually focusing | |
| IMAGE | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 20 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
| OPERATING VOLTAGE | 5V ± 5% | |
| CAMERA SIZE | 23.50 × 19.50 × 36.94 mm | |
| MODULE SIZE | 38.00 × 38.00 mm | |
Connecting With USB Cable
Dimensions
Resources
