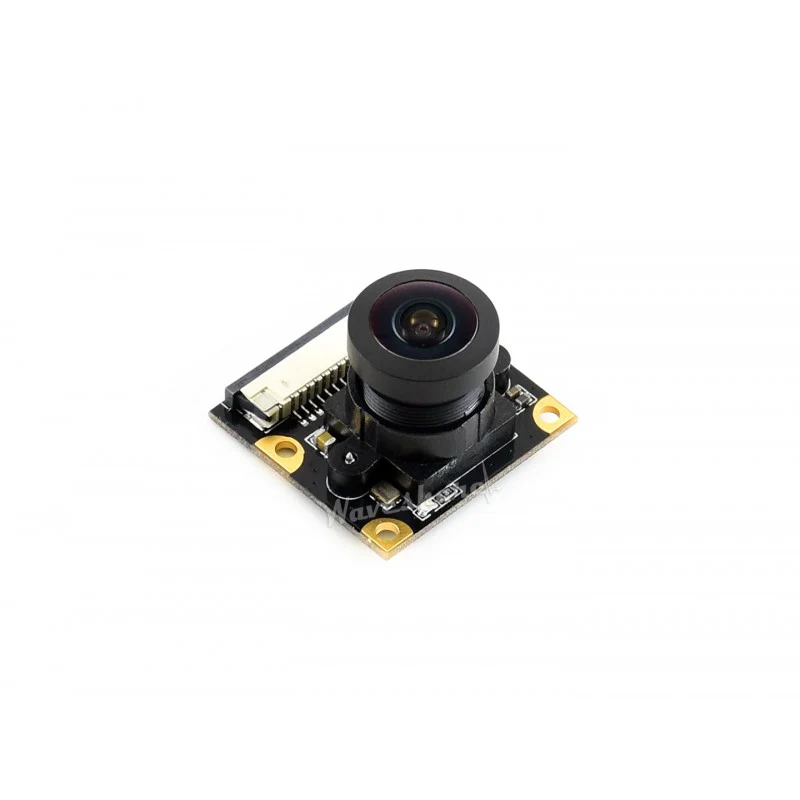

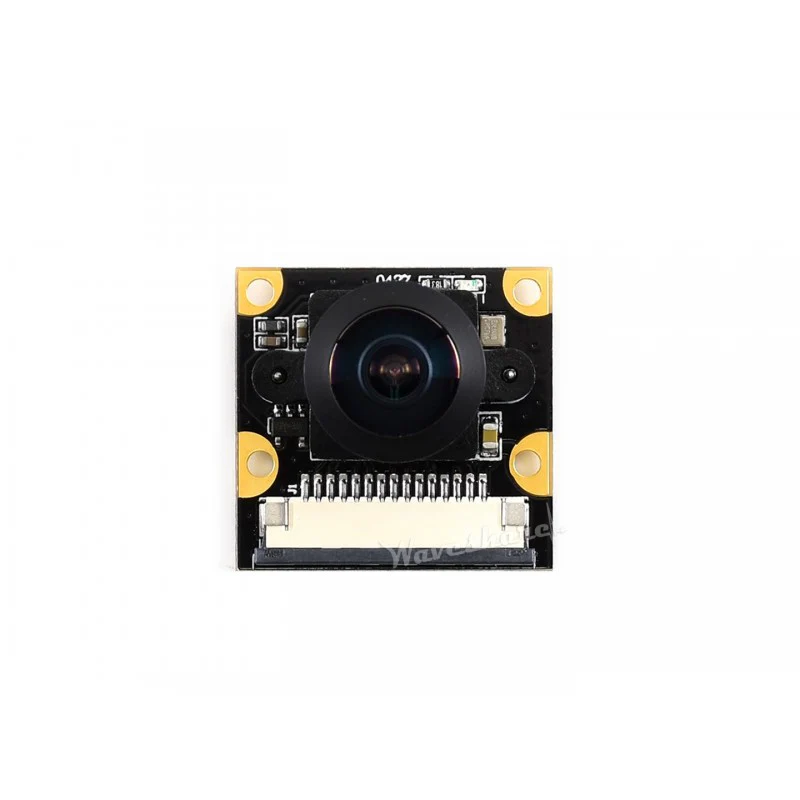

IMX219-160 Camera, 160° FOV

IMX219-160 Camera, Applicable For Jetson Nano, 8 Megapixels, 160° FOV

Features

• Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
• 8 Megapixels
• Sensor: IMX219
• Resolution: 3280 × 2464
• Lens specifications:
  • CMOS size: 1/4inch
  • Aperture (F): 2.35
  • Focal Length: 3.15mm
  • Angle of View (diagonal): 160 degree
  • Distortion: <14.3%

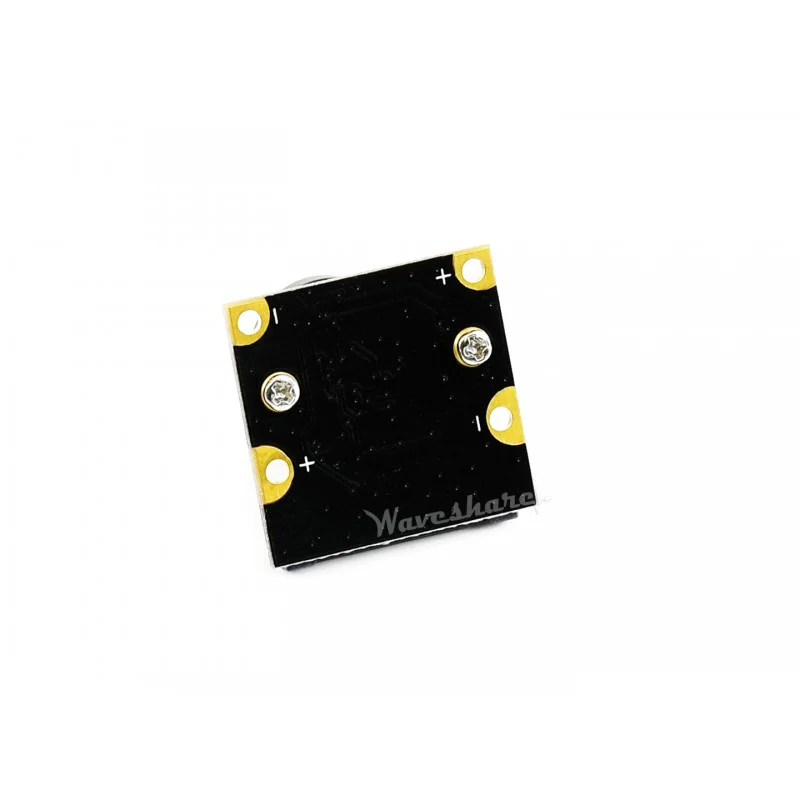

• 4 screw holes
  • Used for attachment
  • Provides 3.3V power output
• Dimension: 25mm × 24mm

Package Contains:

1. 1x IMX219-160 Camera
2. 1x 15-pin FFC (opposite sides contact)

Applications

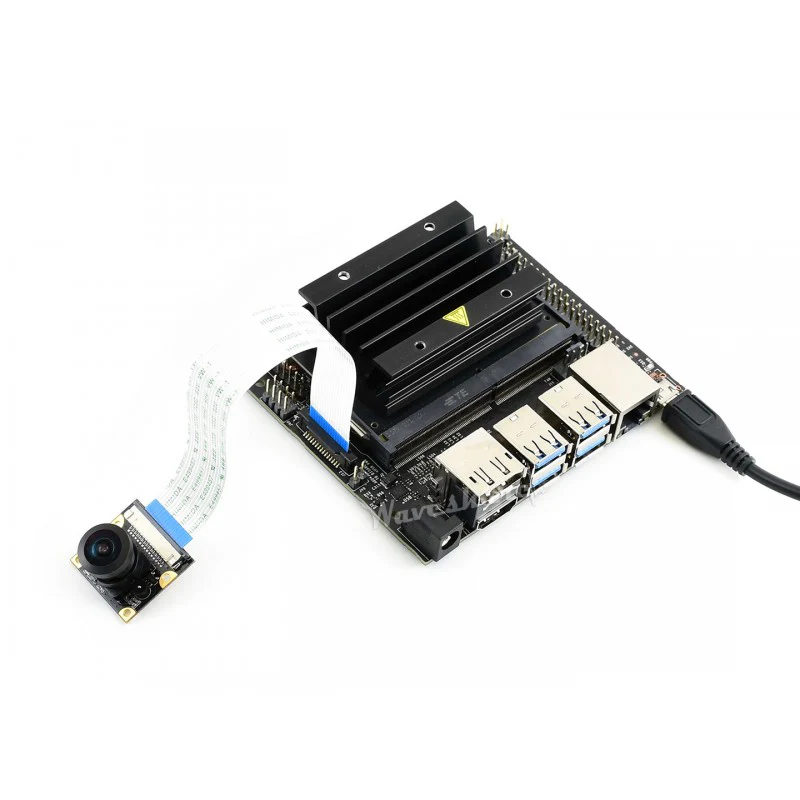

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:

• Face recognition
• Road mark detection
• License plate recognition

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-160_Camera
