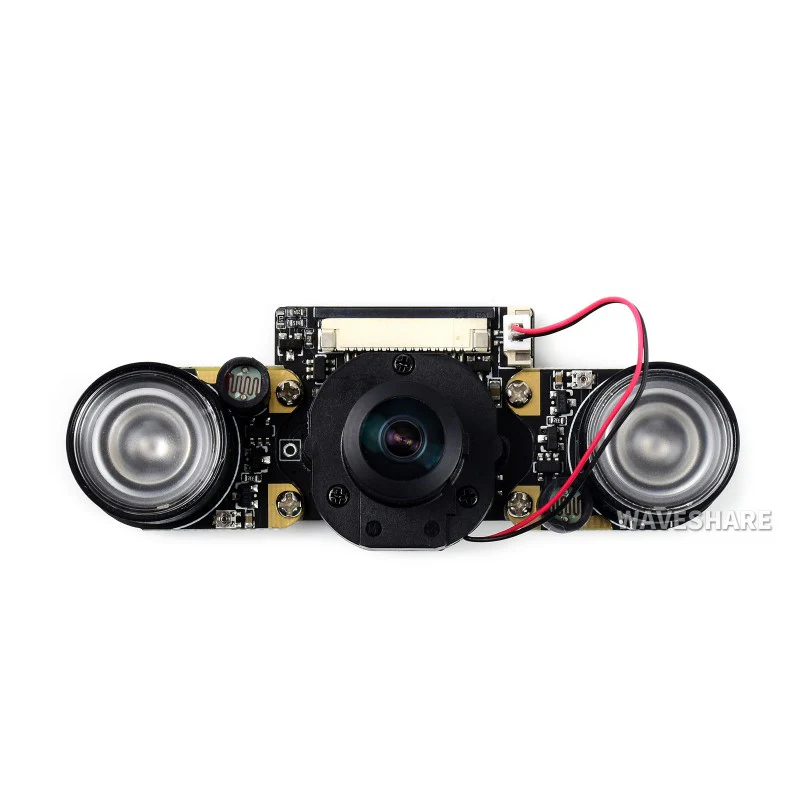

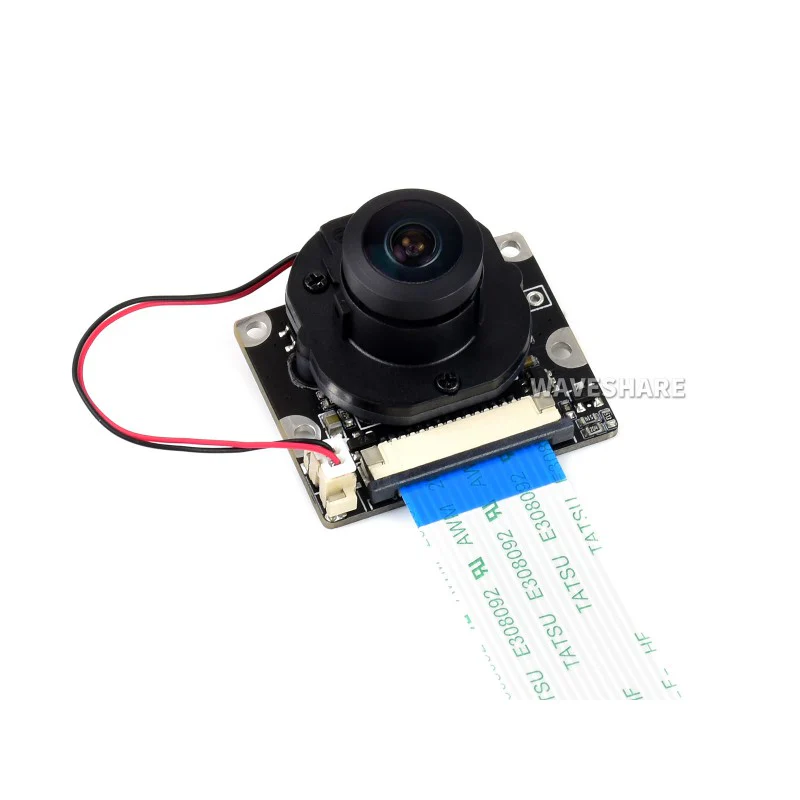

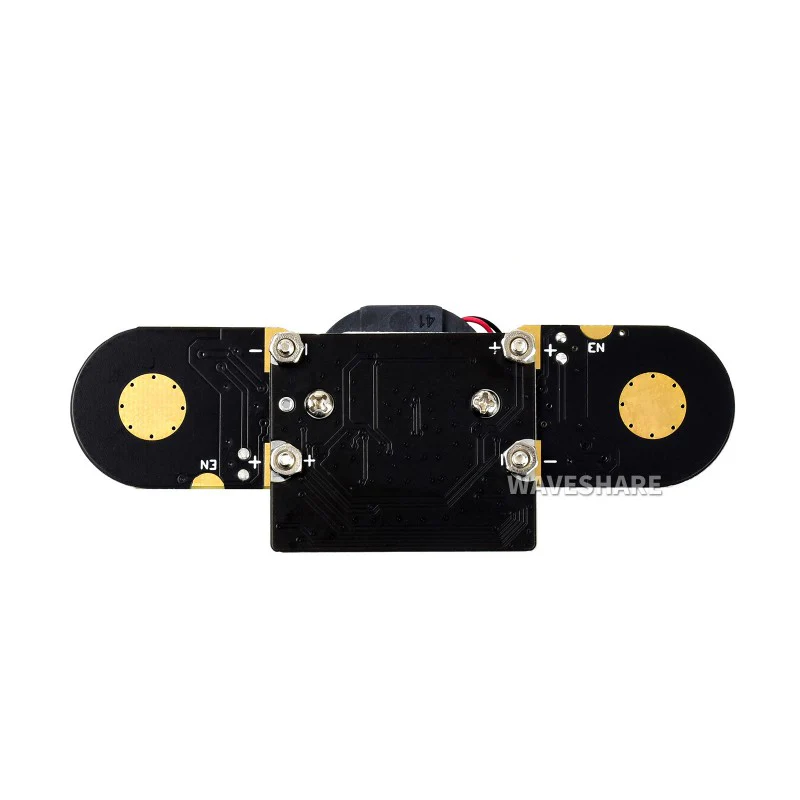

IMX219-160 8MP IR-CUT Camera, 162° FOV
IMX219-160 8MP IR-CUT Camera, IR-CUT Infrared Night Vision, 162° FOV, For Compute Module / Jetson Nano / Jetson Xavier NX
Eliminating The Reddish Issue Of Normal IR Cameras On Daylight
Specifications
| PIXELS | 8MP | |
|---|---|---|
| SENSOR | IMX219 | |
| CAMERA | Sensor size | 1/4 inch |
| Aperture (F) | 2.7 | |
| Resolution | 3280 × 2464 | |
| Focal length (BFL) | 1.75 | |
| Field of view (FOV) | 162.4°(D) 124°(H) 91°(V) | |
| Distortion | <-22.7% | |
| 4X MOUNTING HOLES | used for attachment provides 3.3V power output supports connecting infrared LED and/or fill flash LED |
|
| OPERATING VOLTAGE | 3.3V | |
| APPLICATIONS | suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on. | |
Working With Jetson Nano
Jetson Nano Developer Kit B01 (Left) And Jetson Nano 2GB Developer Kit (Right)
Working With Raspberry Pi Compute Module
Compatible With Raspberry Pi Compute Module CM3 / CM3+ / CM4
Dimensions
Resources
Wiki: IMX219-160_IR-CUT_Camera
$9.53
Original: $31.75
-70%IMX219-160 8MP IR-CUT Camera, 162° FOV—
$31.75
$9.53
Description
IMX219-160 8MP IR-CUT Camera, IR-CUT Infrared Night Vision, 162° FOV, For Compute Module / Jetson Nano / Jetson Xavier NX
Eliminating The Reddish Issue Of Normal IR Cameras On Daylight
Specifications
| PIXELS | 8MP | |
|---|---|---|
| SENSOR | IMX219 | |
| CAMERA | Sensor size | 1/4 inch |
| Aperture (F) | 2.7 | |
| Resolution | 3280 × 2464 | |
| Focal length (BFL) | 1.75 | |
| Field of view (FOV) | 162.4°(D) 124°(H) 91°(V) | |
| Distortion | <-22.7% | |
| 4X MOUNTING HOLES | used for attachment provides 3.3V power output supports connecting infrared LED and/or fill flash LED |
|
| OPERATING VOLTAGE | 3.3V | |
| APPLICATIONS | suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on. | |
Working With Jetson Nano
Jetson Nano Developer Kit B01 (Left) And Jetson Nano 2GB Developer Kit (Right)
Working With Raspberry Pi Compute Module
Compatible With Raspberry Pi Compute Module CM3 / CM3+ / CM4
Dimensions
Resources
Wiki: IMX219-160_IR-CUT_Camera
