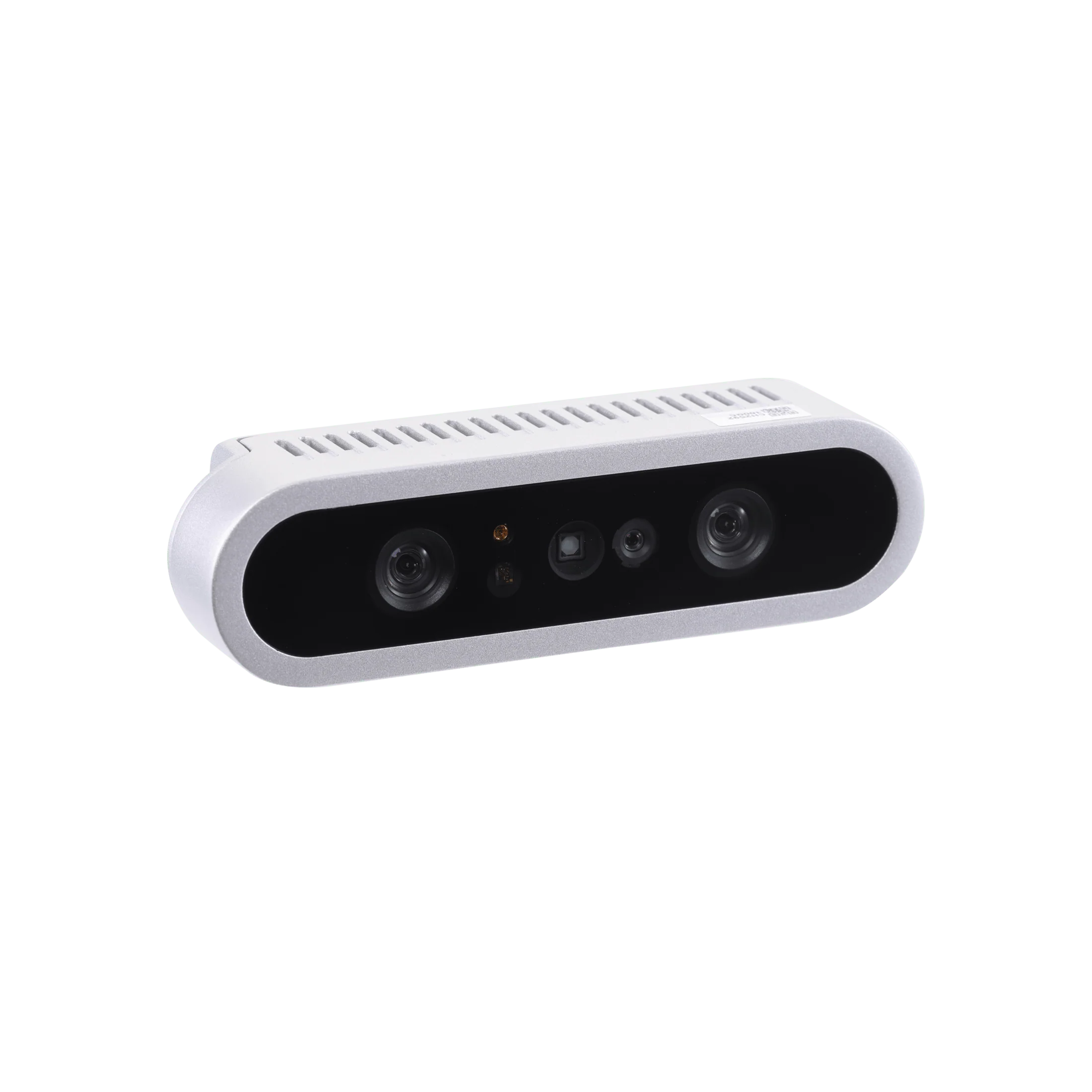

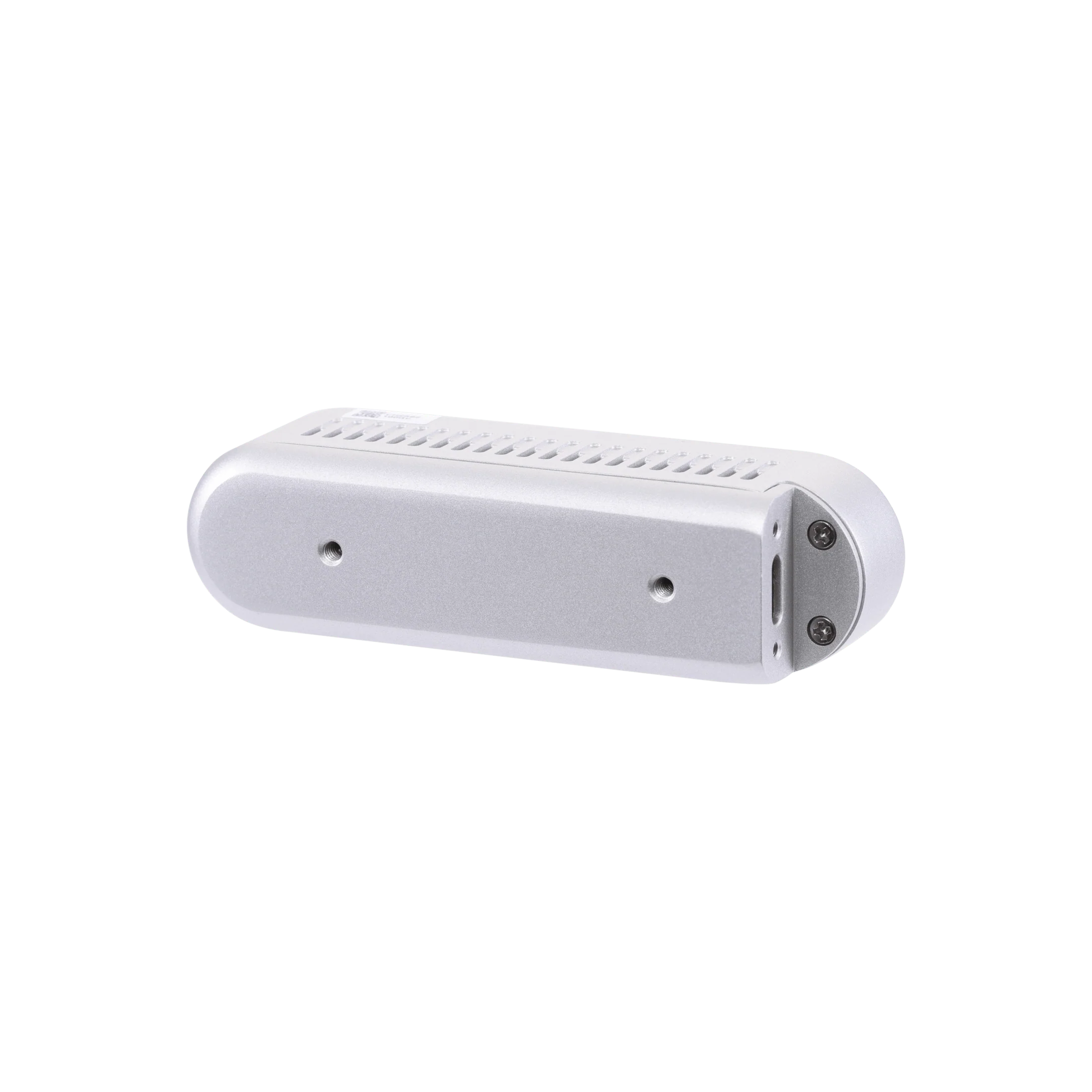

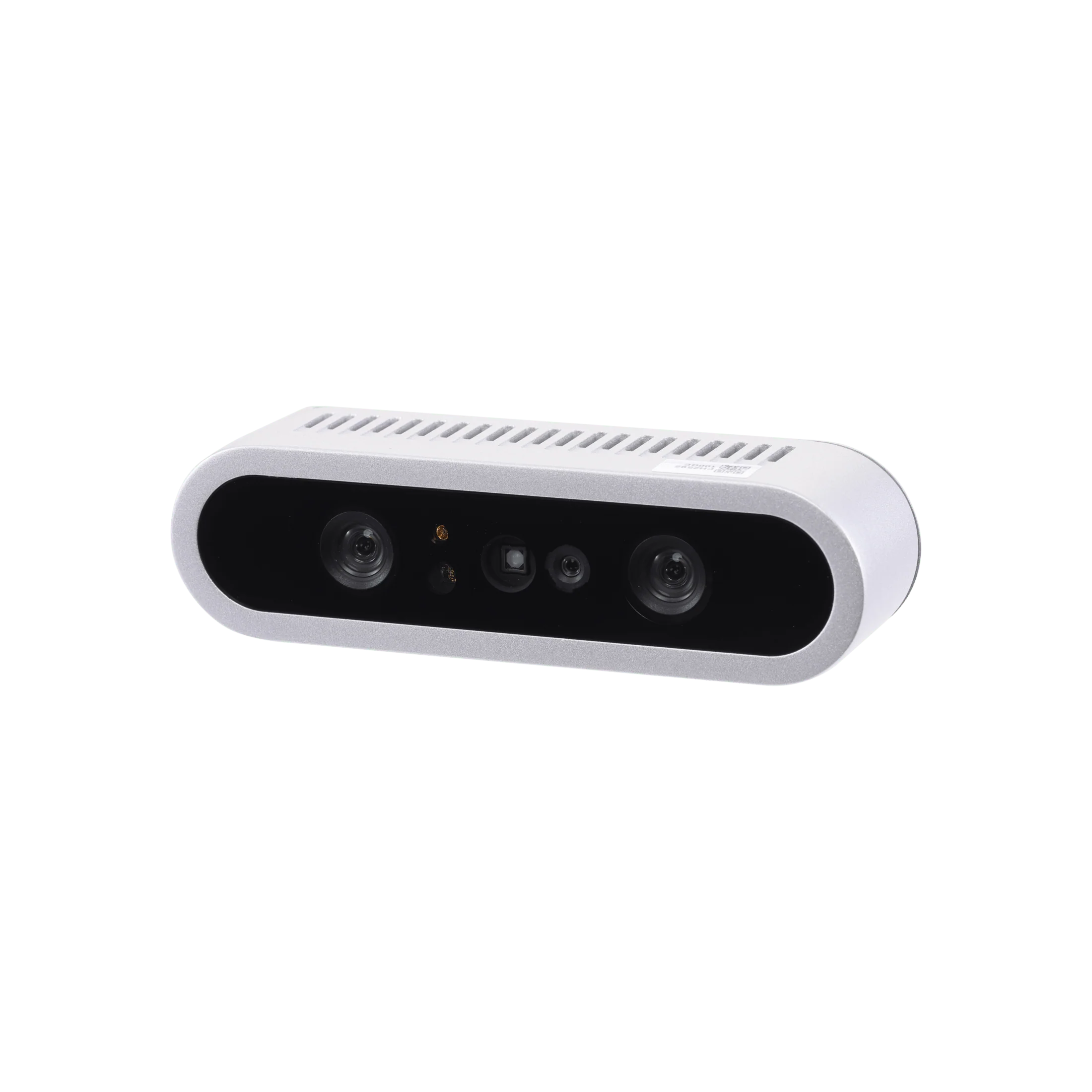

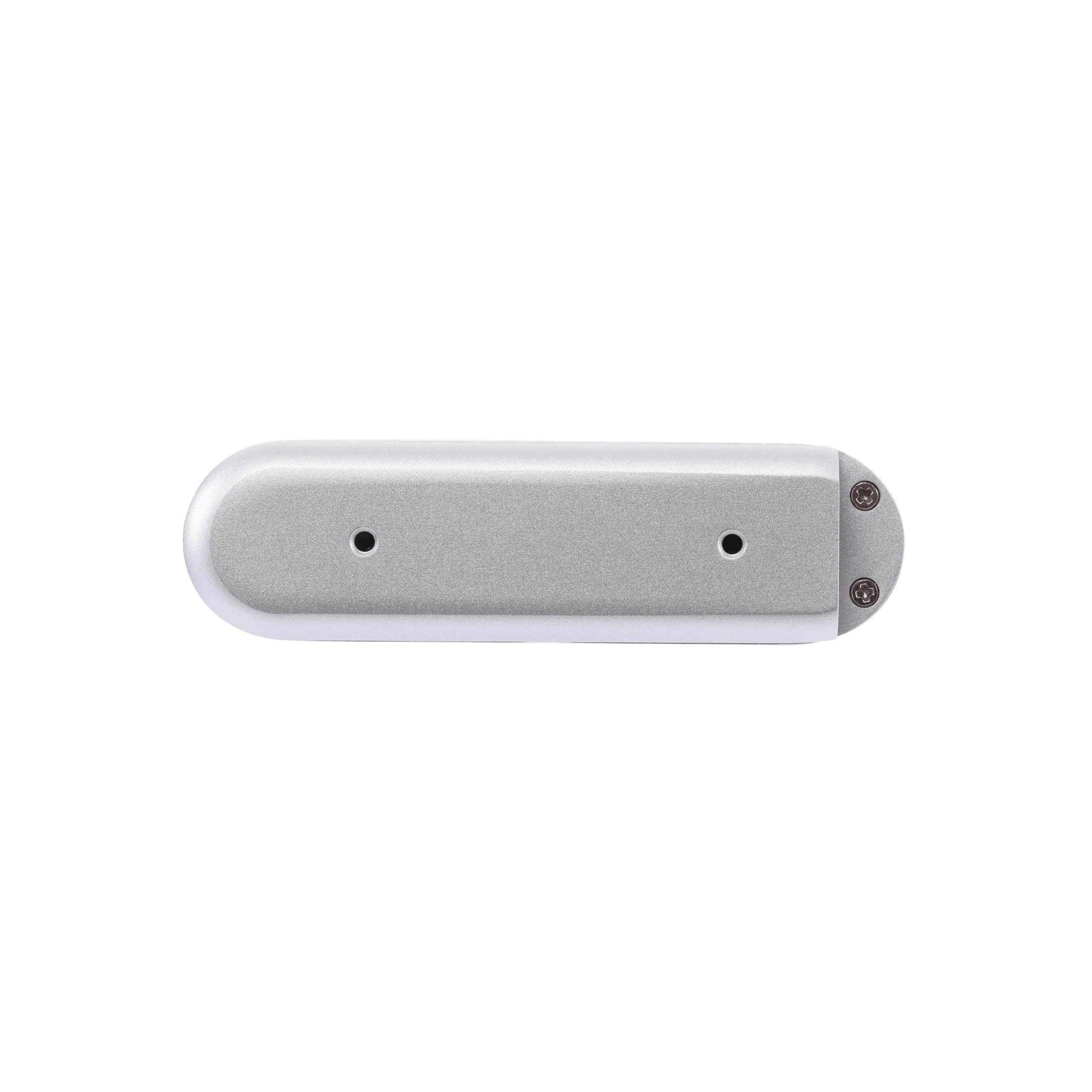

Orbbec GeminiE
The Gemini E camera module is designed based on Orbbec's technology to obtain the depth image and color image of the object. This small camera will give you the high performance you need for any depth-sensing project. Gemini E is a great camera for Robotic applications.
Technical Specs
| Product Name | Gemini E |
|---|---|
| Range | 0.2m - 2.5m |
| Dimensions | 89.82 × 25.10 × 25.10 mm |
| Technology | Active Stereo IR |
| Depth FoV | H79° V62° D91° ±3° |
| RGB FoV | H84.3° V53.6° D92.2° ±3° |
| Depth Resolution Framerate | Up to 1024 x 768 @10 fps |
| RGB Resolution Framerate | Up to 1920 x 1080 @30 fps |
| Precision | 1% @1m |
| Power Input | USB Type-C |
| Operating Systems | Windows/Linux/Android |
| Power Consumption | Average ≤ 2.3W |
| SDK | Orbbec SDK |
| Data Transfer | USB2.0 |
| Temperature | 10℃-40℃ |
$259.28
Orbbec GeminiE—
$259.28
Description
The Gemini E camera module is designed based on Orbbec's technology to obtain the depth image and color image of the object. This small camera will give you the high performance you need for any depth-sensing project. Gemini E is a great camera for Robotic applications.
Technical Specs
| Product Name | Gemini E |
|---|---|
| Range | 0.2m - 2.5m |
| Dimensions | 89.82 × 25.10 × 25.10 mm |
| Technology | Active Stereo IR |
| Depth FoV | H79° V62° D91° ±3° |
| RGB FoV | H84.3° V53.6° D92.2° ±3° |
| Depth Resolution Framerate | Up to 1024 x 768 @10 fps |
| RGB Resolution Framerate | Up to 1920 x 1080 @30 fps |
| Precision | 1% @1m |
| Power Input | USB Type-C |
| Operating Systems | Windows/Linux/Android |
| Power Consumption | Average ≤ 2.3W |
| SDK | Orbbec SDK |
| Data Transfer | USB2.0 |
| Temperature | 10℃-40℃ |
