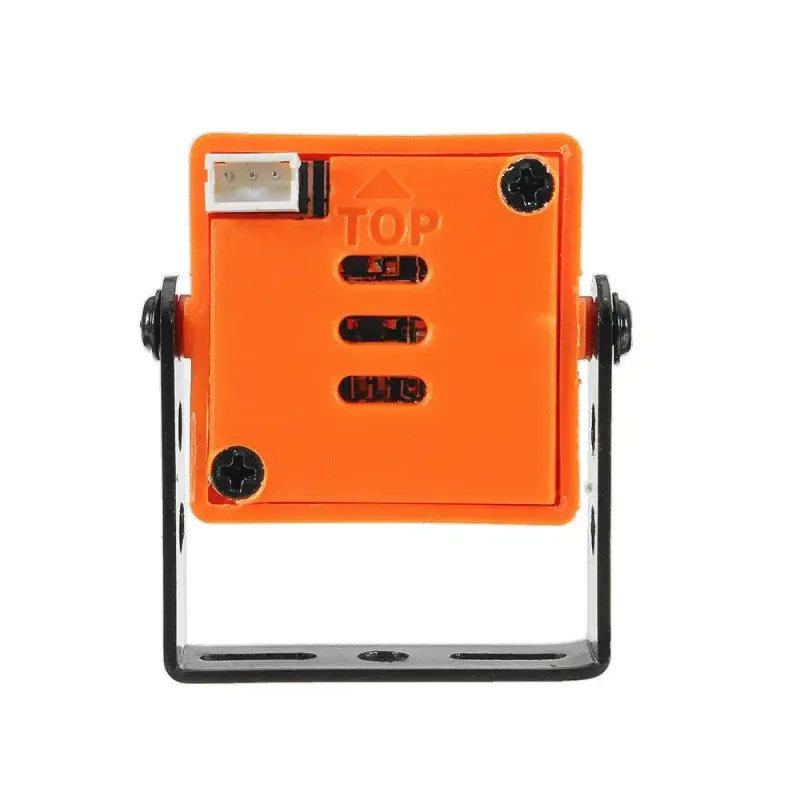

1200TVL CMOS Camera with 2.8mm Lens FPV Camera for RC Drone Multi-Copter High Definition Camera Module

1200TVL Mini FPV Camera 2.8mm CMOS Lens 120° PAL for Micro Racer

This 1200TVL Mini FPV Camera is made for micro racing quadcopters and other remote control projects that need a video feed that is wide and quick to respond.
It has a PAL format and a 2.8mm lens, and it gives you clear analog output with little delay.
In India, it is a great choice for racers and hobbyists because it works well with a wide range of voltages and stays stable at low power.



Specifications:

• 1200TVL horizontal resolution for clear analog video
• 2.8mm lens with 120°–130° wide-angle view
• PAL video output with 1MP processing capability
• Electronic exposure + auto gamma correction
• Adjustable AGC up to 55dB
• Supports DC 5V–12V input
• Lightweight (9.5g) and compact (25mm × 25mm)
• Works in –20°C to 60°C
• Low current draw (70mA)



Technical Specs:

Parameter	Description
Image Sensor	IR Blocked/CMOS
Lens	2.8mm (120°–130°)
Horizontal Resolution	1200TVL
Video Format	PAL/NTSC
Operating Voltage	5V–12V (tested up to 13V)
Working Current	70mA (Low Power)
Gamma Correction	0.45 / 1.0
Electronic Shutter	1/50 – 1/100000 sec
Dimensions	25mm × 25mm
Weight	9.5g
Operating Temperature	-20°C to 60°C
Country of Origin	China



Package Content:

• 1 × Mini FPV Camera
• 1 x Connecting Cable & Accessory.
