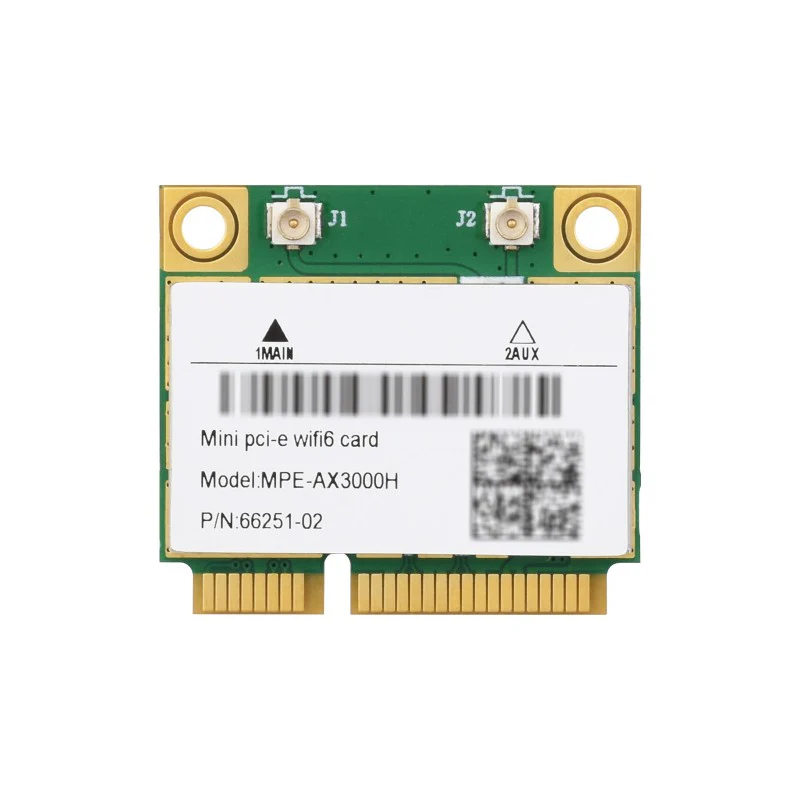

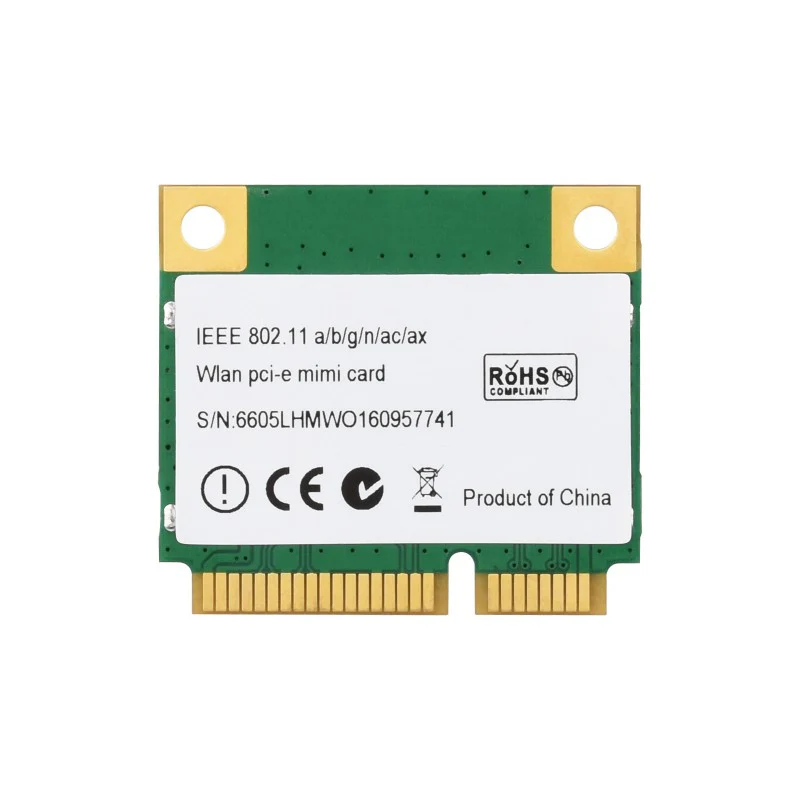

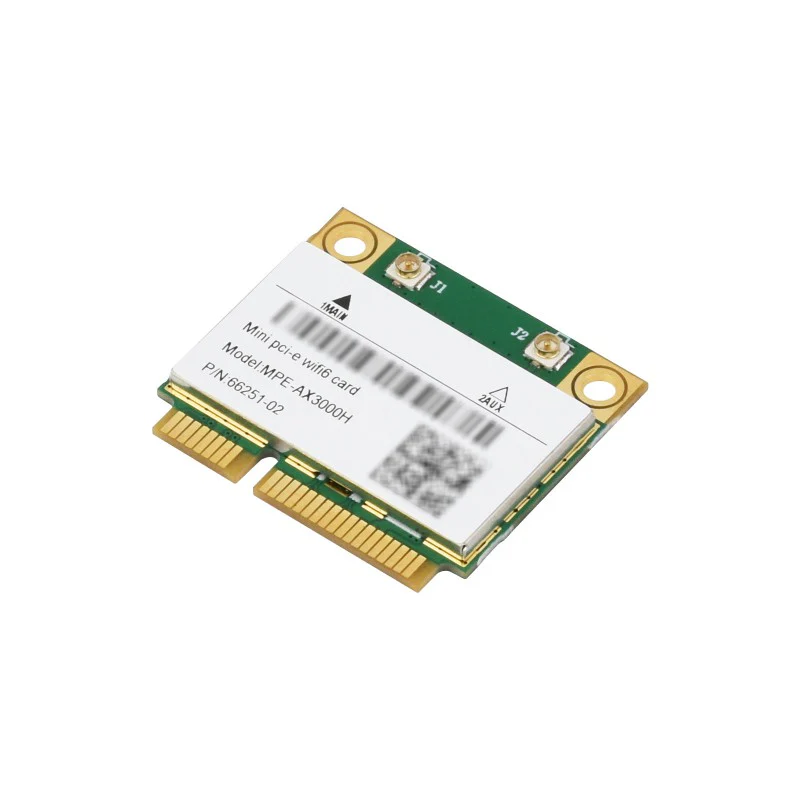

Wireless MINIPCIE AX200 NIC, Gigabit Dual-Band Wi-Fi 6

Wi-Fi 6 Wireless MiniPCIe AX200 NIC

Dual-Band | Bluetooth | 5.2 Wi-Fi 6



Features at a glance

- Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance and compatibility than the previous generation 802.11AC, with lower power consumption and longer service life

- Supports 2.4G / 5GHz dual band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz band

- Supports Bluetooth 5.2 standard, longer transmission distance and better stability

- Adopts MiniPCIe interface

- Adopts the new generation of MU-MIMO wireless technology, provides better network quality, faster Network speed (more than three times), and higher transmission and download efficiency

- Supports Linux, Windows 10/11, etc.



Parameters Comparison

Specification	AX210	AX200	RTL8852BE
Wi-Fi Version	Wi-Fi 6E	Wi-Fi 6	Wi-Fi 6
Wi-Fi Band	2.4 GHz / 5 GHz / 6 GHz	2.4 GHz / 5 GHz	2.4 GHz / 5 GHz
Wi-Fi Rate	574 Mbps / 2400 Mbps / 2400 Mbps	574 Mbps / 2400 Mbps	574 Mbps / 1200 Mbps
Interface	MiniPCIe	MiniPCIe	MiniPCIe
Bluetooth Version	5.3	5.2	5.2
Technical Support	MU-MIMO	MU-MIMO	MU-MIMO
Antenna Connector	IPEX-4	IPEX-4	IPEX-4
System Support	Linux, Windows 10/11	Linux, Windows 10/11	Linux, Windows 10/11
Dimensions	29.9 × 26.8 × 3.24 mm	29.9 × 26.8 × 3.24 mm	29.9 × 26.8 × 3.24 mm



AX200 High Performance Wi-Fi 6

Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance and compatibility than the previous generation 802.11AC, lower power consumption and longer service life



Dual-band Wi-Fi

Supports 2.4G / 5GHz dual band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz band



Bluetooth 5.2, More Stable Connection

Signal transmission is stable without lag, can be connected to Bluetooth devices such as mobile phones, computers, gamepads, etc. for wireless connection and transmission



Supports MU-MIMO Technology

Adopts the new generation of MU-MIMO wireless technology, compared with the traditional SU-MIMO mode, it provides better network quality, faster network speed (more than three times), and higher transmission and download efficiency



Interface Introduction



Access to Antenna Via IPEX Connector



Outline Dimensions



Resources & Services

Wiki: www.waveshare.com/wiki/Wireless-MINIPCIE-AX200

Note: This product may not be compatible with certain laptop models. Please check your device specifications before purchase.



Package Content

Weight: 0.052 kg

Wireless-MINIPCIE-AX200 × 1

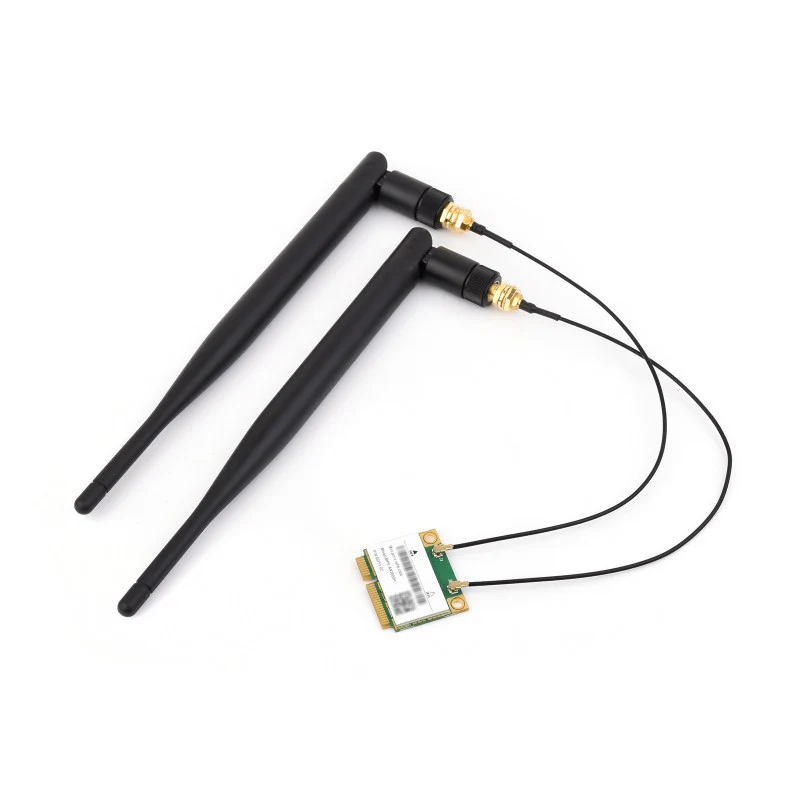

IPEX 1 to SMA cable × 2
6DB antenna × 2
Screwdriver × 1

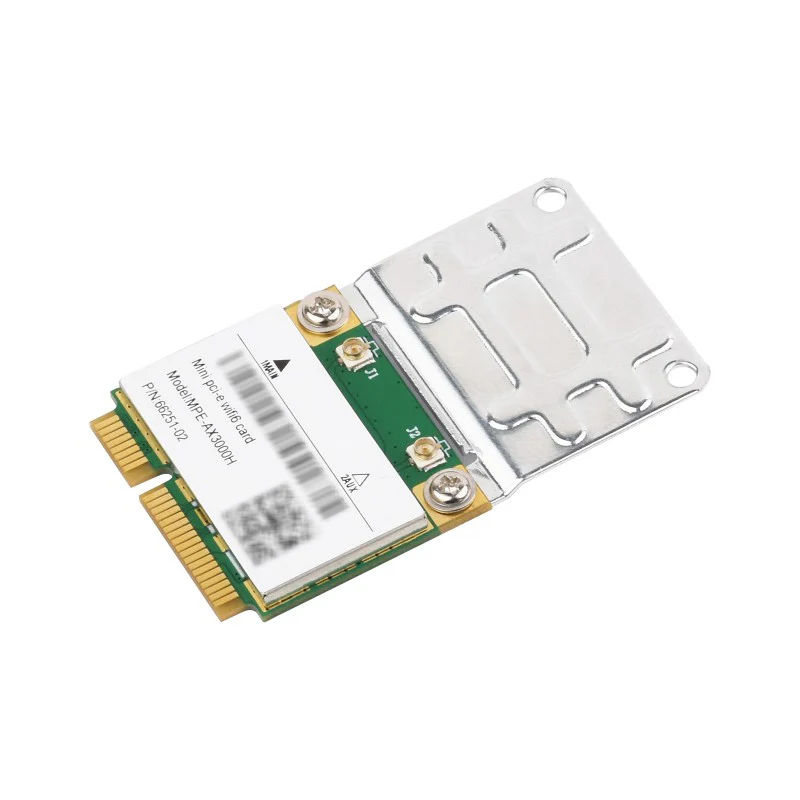

MINIPCIe mounting bracket × 1
Screws pack × 1
