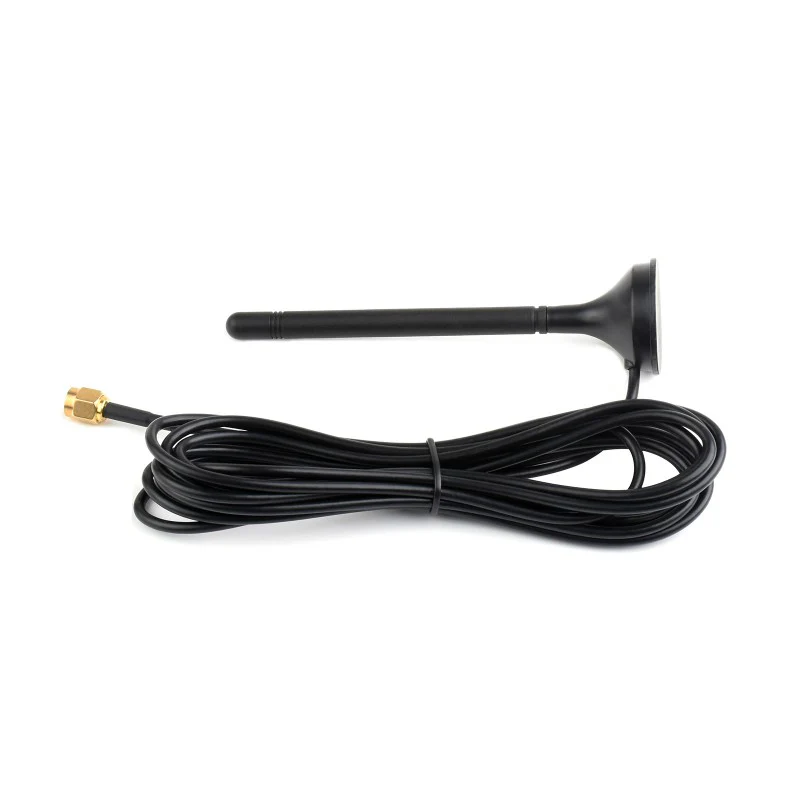

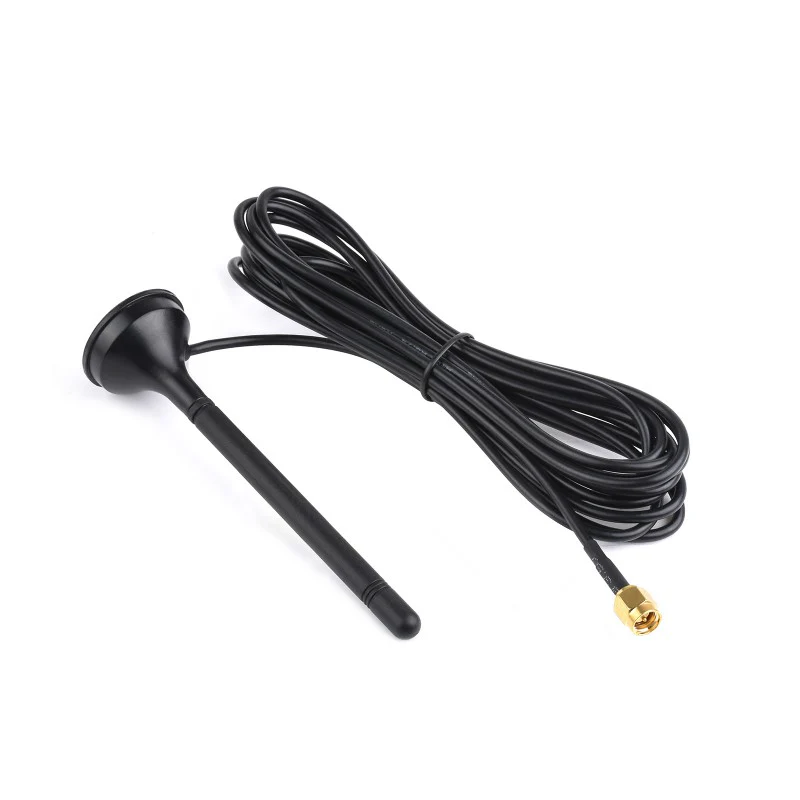

LPWA Magnet Mount Outdoor Antenna
LPWA Outdoor Waterproof Antenna
High Gain, Outdoor Waterproof, With Magnetic Base
Version Options
433/470M version |
868/915M version |
Specifications
| NETWORK SUPPORT | 4G/3G/2G/LPWA | GAIN | 5dBi |
|---|---|---|---|
| FREQUENCY RANGE | 315~500MHz 690~2700MHz |
CONNECTOR | SMA male connector |
| POWER INPUT | 10W MAX | OUTPUT IMPEDANCE | 50Ω |
| SWR | ≤2.0 | POLARIZATION | Vertical |
| ANTENNA HEIGHT | 433/470M version: ~15cm 868/915M version: ~11cm |
CABLE LENGTH | 3m |
| COLOR | Black | WATERPROOF | IP65 |
Design Details
Exchangeable antenna design |
Magnetic base, firm attaching |
Application Examples
Connect to USB-TO-LoRa-LF |
Connect to USB-TO-LoRa-HF |
for reference only, please refer to the part list for detailed package content
Outline Dimensions
Select Frequency
From $0.64
Original: $2.12
-70%LPWA Magnet Mount Outdoor Antenna—
$2.12
$0.64
Description
LPWA Outdoor Waterproof Antenna
High Gain, Outdoor Waterproof, With Magnetic Base
Version Options
|
433/470M version |
868/915M version |
Specifications
| NETWORK SUPPORT | 4G/3G/2G/LPWA | GAIN | 5dBi |
|---|---|---|---|
| FREQUENCY RANGE | 315~500MHz 690~2700MHz |
CONNECTOR | SMA male connector |
| POWER INPUT | 10W MAX | OUTPUT IMPEDANCE | 50Ω |
| SWR | ≤2.0 | POLARIZATION | Vertical |
| ANTENNA HEIGHT | 433/470M version: ~15cm 868/915M version: ~11cm |
CABLE LENGTH | 3m |
| COLOR | Black | WATERPROOF | IP65 |
Design Details
|
Exchangeable antenna design |
Magnetic base, firm attaching |
Application Examples
|
Connect to USB-TO-LoRa-LF |
Connect to USB-TO-LoRa-HF |
for reference only, please refer to the part list for detailed package content
Outline Dimensions
