Industrial USB To RS232 Serial Adapter Cable
USB To RS232
DB9 Male / Female Serial Adapter Cable
Industrial USB To RS232 Serial Adapter Cable, Adopts Original FT232RL Chip, Provides Stable Communication, Ideal Choice For Industrial Control Equipments And/Or Applications With High Communication Requirement
Version Options

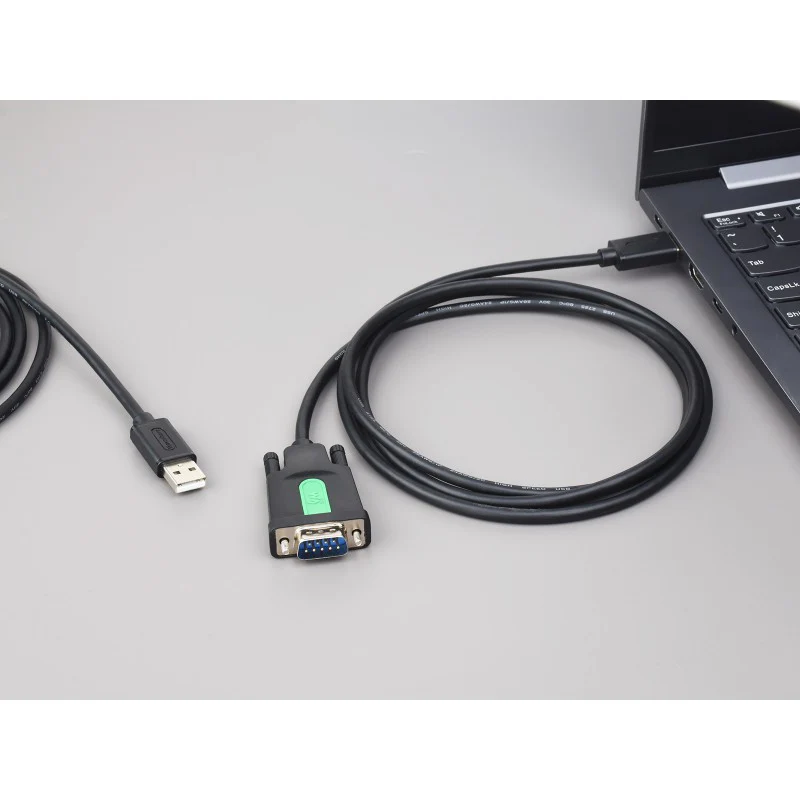

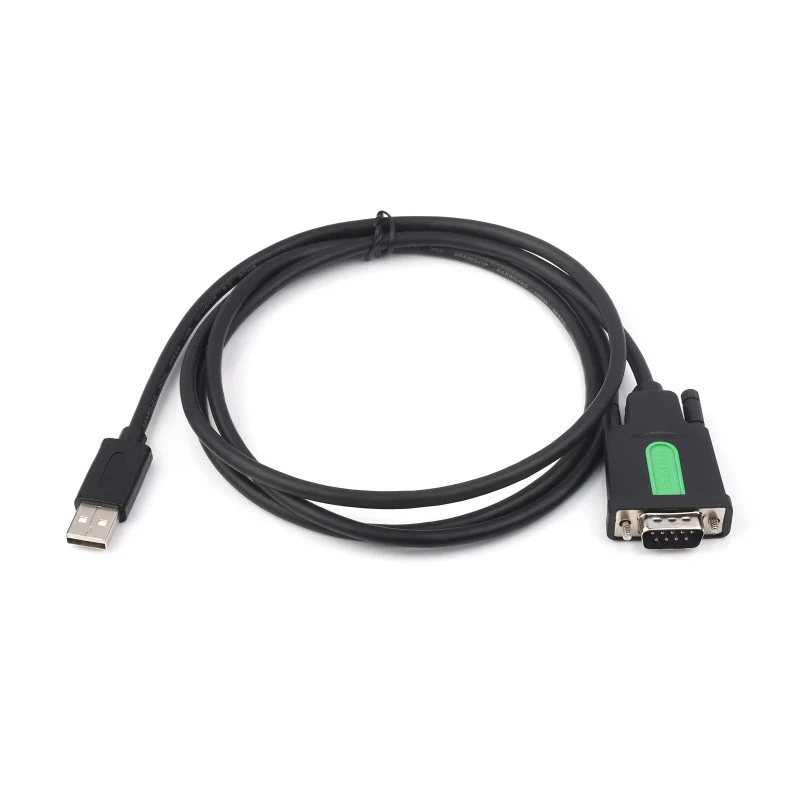

USB-TO-RS232-Male-Cable |

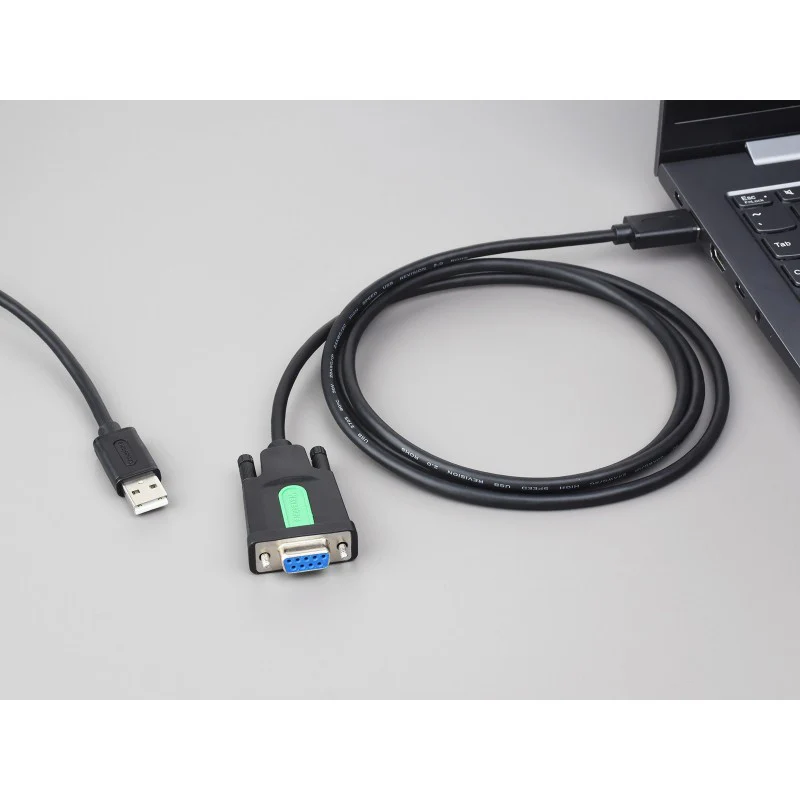

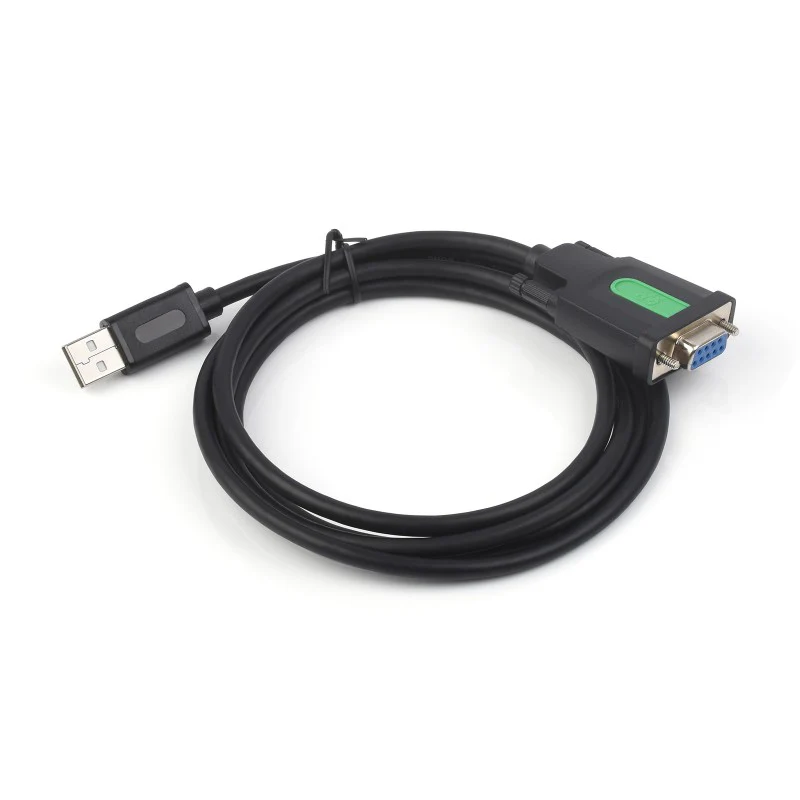

USB-TO-RS232-Female-Cable |
Interface Definition
Specifications
| PRODUCT TYPE | USB to RS232 DB9 serial adapter cable |
|---|---|
| CHIP | FTDI original FT232RL chip |
| HOST INTERFACE | USB Type-A Interface |
| DATA RATE | 300bps ~ 921600bps |
| DEVICE INTERFACE | USB-TO-RS232-Male-Cable: RS232 DB9 male port USB-TO-RS232-Female-Cable: RS232 DB9 female port |
| CABLE SPECIFICATION | Black, PVC sheath, total length 1.5m |
Industrial Grade Original Chip
Adopts Original FT232RL Chip Scheme
Multi-OS Compatible
Compatible With OS Including Mac OS, Linux, Windows 11 / 10 / 8.1 / 8 / 7 / XP...
Strong Anti-Interference, More Stable Communication
Built-In Thick Oxygen-Free Copper Core, With Multi-Layer Shielding, More Anti-Interference And Stable For Industrial Application
Note: for reference only, the actual internal structure may vary.
Wide Range Of Applications
Suitable For Communication Applications Between Computers Or Industrial Hosts And Various RS232 Serial Port Devices
Outline Dimensions
* Note: The above dimensions are measured manually, there is an error of about 1mm
Resources
Wiki: www.waveshare.com/wiki/USB-TO-RS232-Male-Cable
Package Contents:
Weight: 0.078 kg
USB-TO-RS232-Male-Cable x1 (choose this option)
USB-TO-RS232-Female-Cable x1 (choose this option)
Select Style
From $3.65
Original: $12.17
-70%Industrial USB To RS232 Serial Adapter Cable—
$12.17
$3.65
