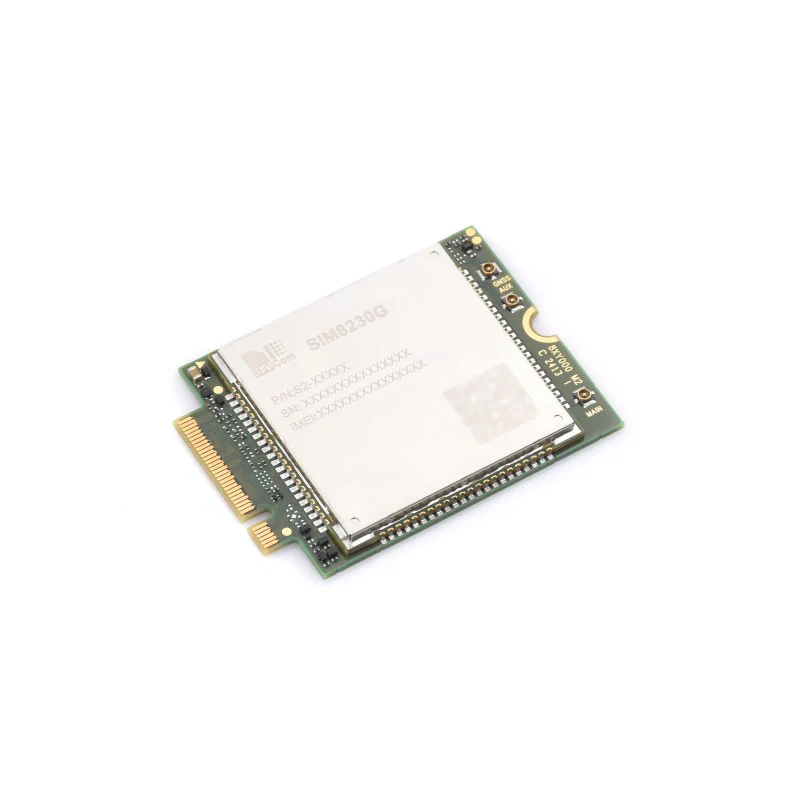

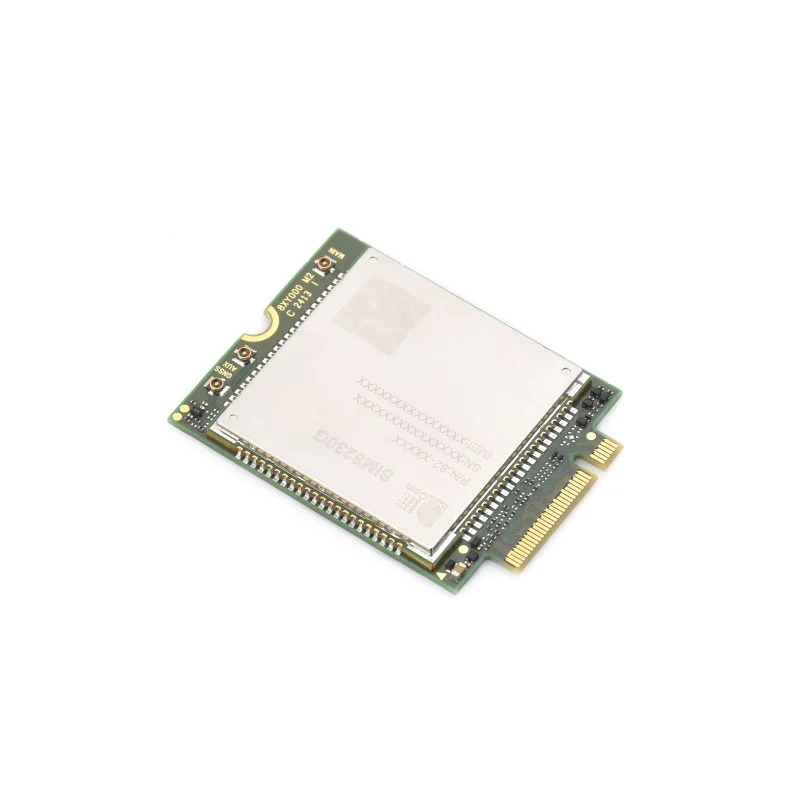

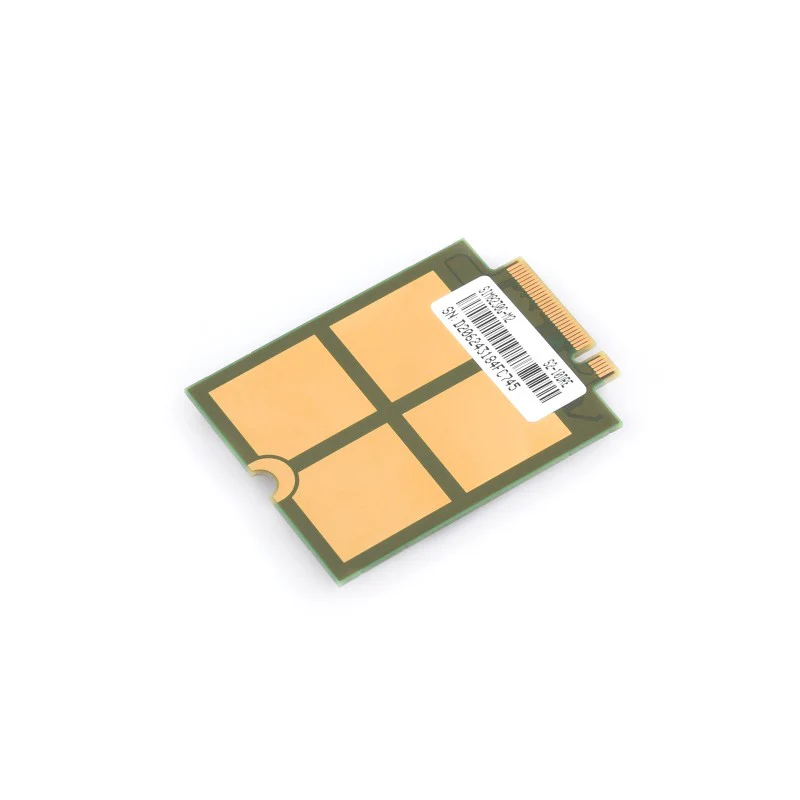

SIM8230G-M2 SIMCom Original RedCap Module Based On Qualcomm Snapdragon X35

SIM8230G-M2

SIMCom RedCap Module Based on Qualcomm Snapdragon X35

Adopts 3GPP 5G Release 17 Technology

The SIM8230G-M2 is a multi-band 5G NR / LTE-FDD / LTE-TDD module, supports 5G Standalone (SA) mode with a download speed up to 220Mbps. This module features strong expandability with abundant interfaces including USB2.0 and GPIO, etc. The module supports multiple network protocols, and provides much flexibility and ease of integration for customer's applications.

The SIM8230G-M2 adopts M.2 form factor, and AT commands are compatible with the SIM7600 / SIM8200 / SIM8260 series modules. This also minimizes the investments of customers and enables a short time-to-market.

It is designed for applications that need efficient and reliable data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.



Features

Standard M.2 B Key interface

Low-power and lightweight 5G RedCap module

AT commands of the SIM8230G-M2 are compatible with SIM7600 / SIM8200 / SIM8260 series modules



Specifications

	SIM8262E-M2	SIM8262A-M2	SIM8260G-M2	SIM8230G-M2
5G Standard	3GPP R16	3GPP R16	3GPP R16	3GPP R17
Chip	Qualcomm Snapdragon X62			Qualcomm Snapdragon X35
FREQUENCY BAND
Sub-6G	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78
LTE-FDD	B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B71
LTE-TDD	B38, B39, B40, B41, B42, B43	B41, B46, B48	B34, B38, B39, B40, B41, B42, B43, B46, B48	B34, B38, B39, B40, B41, B42, B43, B48
WCDMA	B1, B5, B8	B2, B4, B5	B1, B2, B4, B5, B8, B19	-
GNSS	GPS, GLONASS, Beidou, Galileo, QZSS			GPS, GLONASS, Beidou, Galileo, NavIC
DATA RATE
Sub-6G	2.4 Gbps / 500 Mbps	2.4 Gbps / 500 Mbps	3.47 Gbps / 460 Mbps	220 Mbps / 100 Mbps
LTE	1 Gbps / 200 Mbps	1 Gbps / 200 Mbps	1.6 Gbps / 200 Mbps	200 Mbps / 50 Mbps
HSPA+	42 Mbps / 5.76 Mbps	42 Mbps / 5.76 Mbps	42 Mbps / 5.76 Mbps	-
Applicable Regions	Except Americas	Americas	Global
Application Examples	CPE, Smart Gateway, Live Streaming, Remote Medical Treatment, Intelligent Security



	SIM8262E-M2	SIM8262A-M2	SIM8260G-M2	SIM8230G-M2
SOFTWARE FUNCTIONS
Operating Systems	Windows / Linux / Android
Communication Protocols	TCP/IP, IPv4, IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
Dial-Up	RNDIS, NDIS, PPP, MBIM	RNDIS, NDIS, PPP, MBIM	RNDIS, NDIS, PPP, MBIM	RNDIS, ECM, PPP
SMS	Supports MT, MO, CB, Text, PDU
Firmware Upgrade	Supports firmware upgrade via USB port
HARDWARE SPECIFICATIONS
SIM Card	1.8 V / 2.95 V
Antenna	For 3G / 4G / 5G / GNSS
IPEX-4 Connectors	6 × IPEX-4	4 × IPEX-4	4 × IPEX-4	3 × IPEX-4
Power Supply	3.135 V ~ 4.4 V	3.135 V ~ 4.4 V	3.135 V ~ 4.4 V	3.4 V ~ 4.4 V
Form Factor	M.2
Dimensions	42.0 × 30.0 × 2.3 mm	42.0 × 30.0 × 2.3 mm	52.0 × 30.0 × 2.3 mm	42.0 × 31.4 × 3.4 mm
Operating Temperature	-30 ℃ ~ +70 ℃



Compatible with Multiple Expansion Modules

Dongle Modules

USB TO M.2 B KEY

USB 3.2 Gen1 5G DONGLE



HATs

5G HAT (with case)

PCIe TO 4G/5G M.2 USB3.2 HAT+

5G for Jetson Nano



Resources & Services

Wiki: www.waveshare.com/wiki/SIM8230G-M2



Package Content

Weight: 0.009 kg

This is an M.2 module without antenna or base board.

SIM8230G-M2 x1
