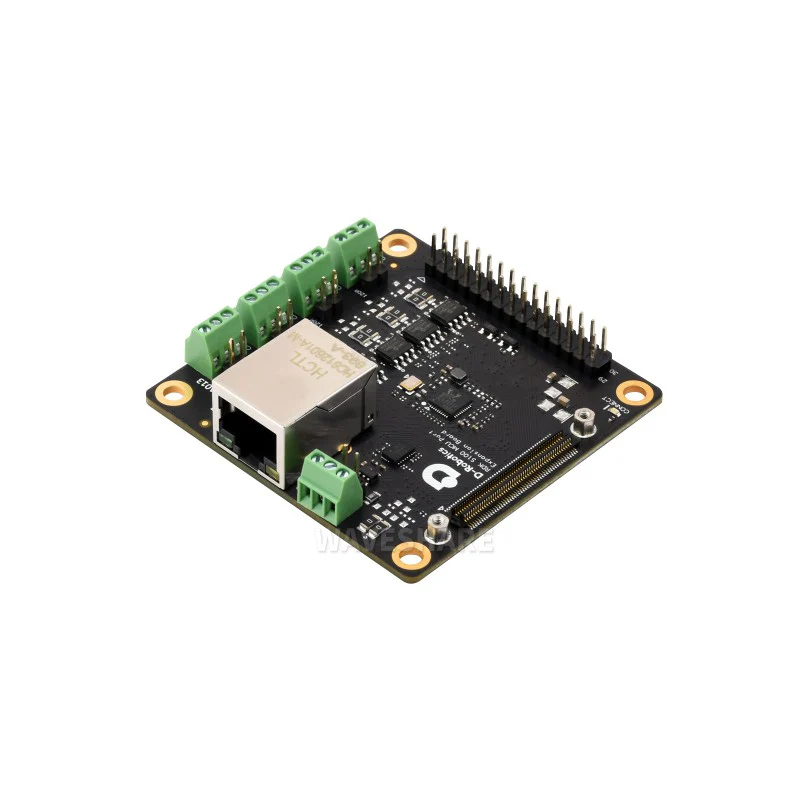

RDK S100 MCU Port Expansion Board

RDK S100 MCU Port Expansion Board

Gigabit Ethernet Port | CAN Port | 30PIN header | IMU

The RDK S100 MCU Port Expansion Board is specifically designed for the RDK S100 development kit. It adapts the core interfaces of the main control MCU Domain, allowing users to easily connect various peripherals and accelerating the testing and development process.



Specifications

100PIN Connector	For connecting the RDK S100 development board
CAN Interface	Onboard 5 × CAN screw terminals
Ethernet Port	Onboard 1 × Gigabit Ethernet port
30PIN Header	Adapting 7 × ADC, 2 × I2C, and 2 × SPI interfaces
IMU	Onboard BMI088 3-axis sensor for attitude and motion data acquisition
Operating Temperature	0℃ ~ 45℃ (suitable for most industrial environments)
Outline Dimensions	70 × 70 × 17 (mm)

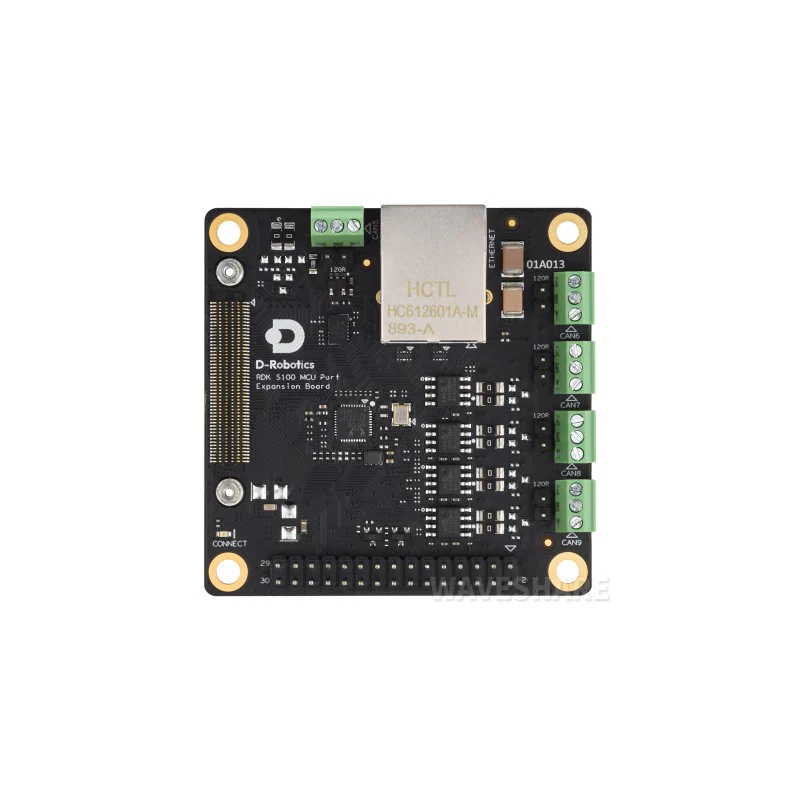

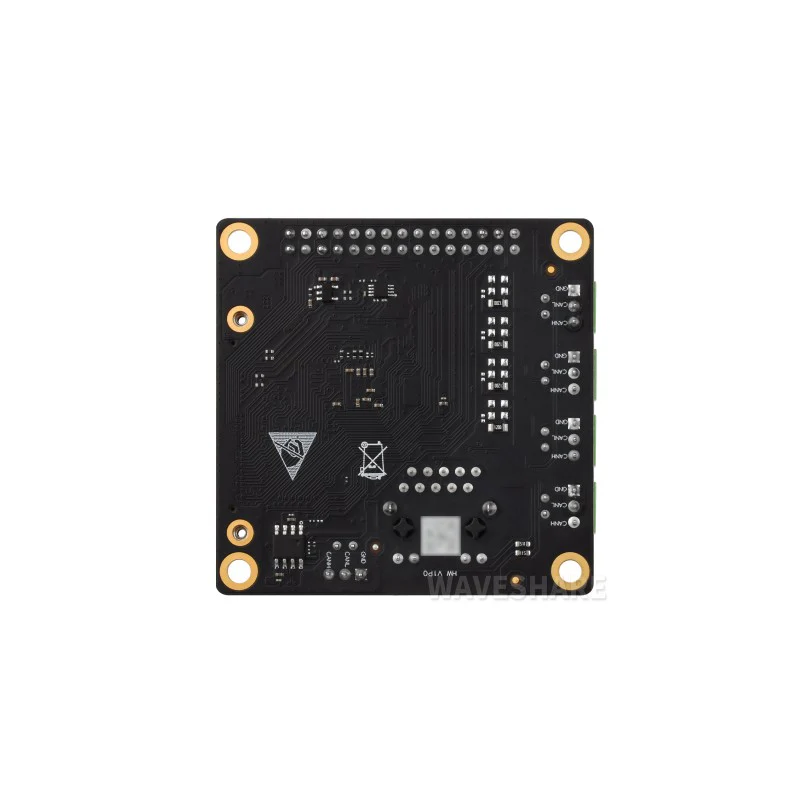

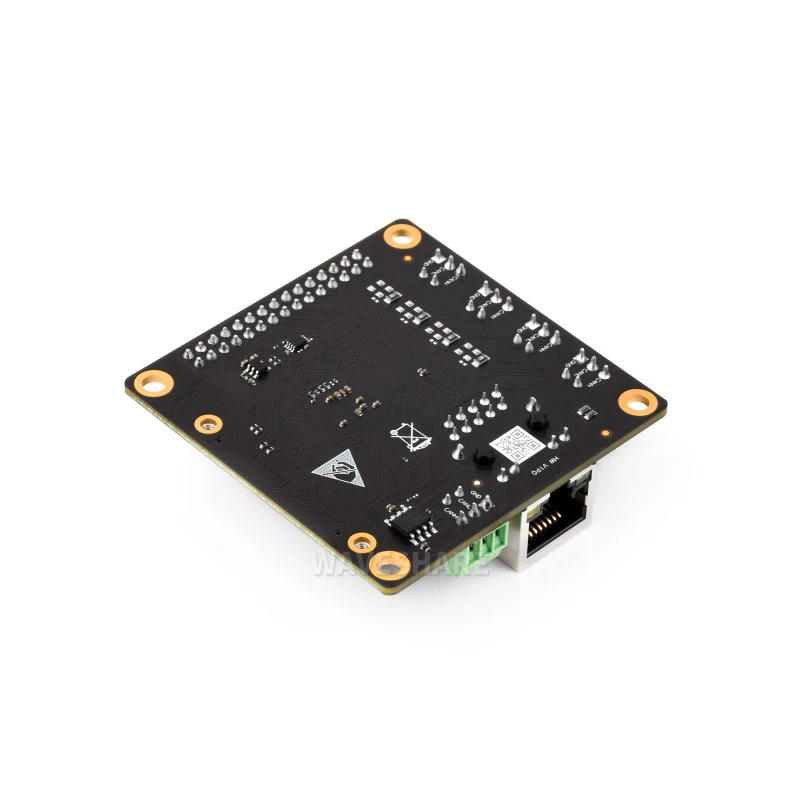

What's On Board

1. MCU expansion board 100PIN connector
for connecting to the RDK S100 development board

2. CAN screw terminal × 5

3. RJ45 Gigabit Ethernet port

4. 30PIN header



Outline Dimensions



Resources

Wiki: www.waveshare.com/wiki/RDK-S100-MCU-Port-Expansion-Board



Package Content

Weight: 0.06 kg

RDK S100 MCU Port Expansion Board x1
Screws pack x1

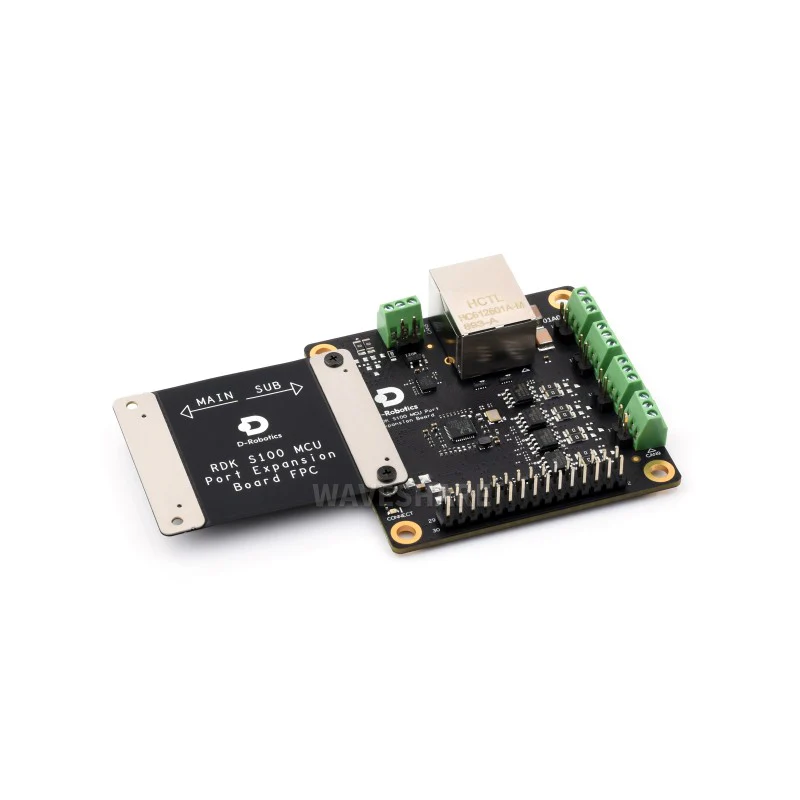

RDK S100 MCU Port Expansion Board FPC x1
