OV9281 1MP Mono USB Camera (A), Supports 120FPS High Frame Rate Recording

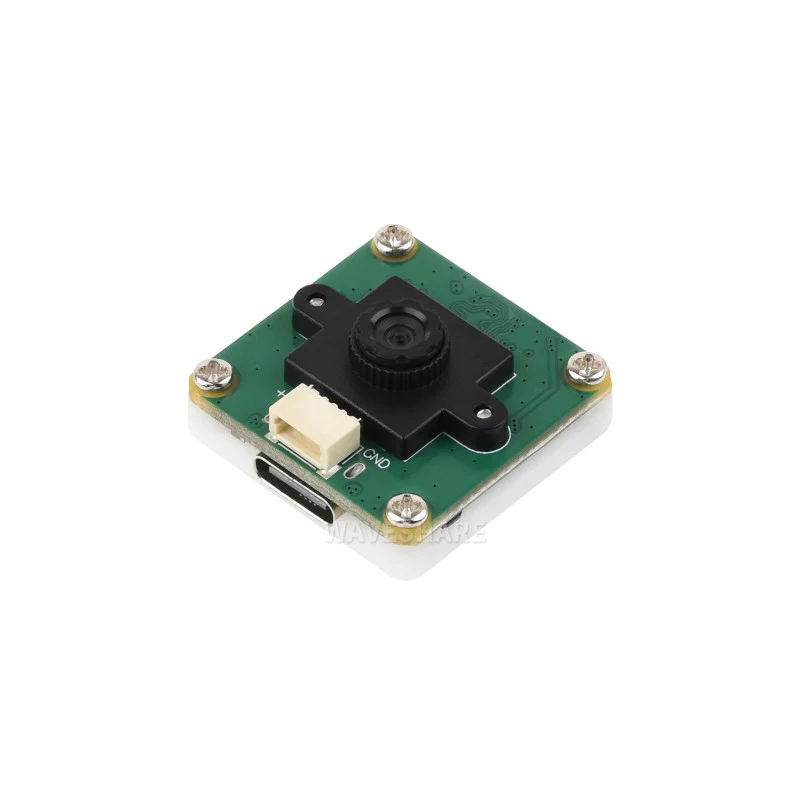

OV9281 1MP Mono USB Camera

1MP | Global Shutter | 120° FOV | 120 FPS Support



Specifications

Pixels	1MP (Mono)
Sensor	OV9281
Interface	USB2.0 Type-C
Sensor Size	1/4 inch
Aperture (F)	2.2
Focal Length (EFL)	1.65mm
Field of View (FOV)	120°
Distortion	<10%
Focusing	Fixed-focus
Mount	M12
Construction	Without IR Filter
Image Format Support	MJPG, YVY2
Static Image Resolution	1280 × 720
Video Recording	120 FPS @ 1280 × 720 120 FPS @ 800 × 600 120 FPS @ 640 × 480
Dynamic Range	52dB
SNR	46dB
Operating Voltage	5V ± 5%
Operating Temperature	0°C ~ 50°C
Module Size	25.00 × 25.00 (mm)



Connecting with USB cable

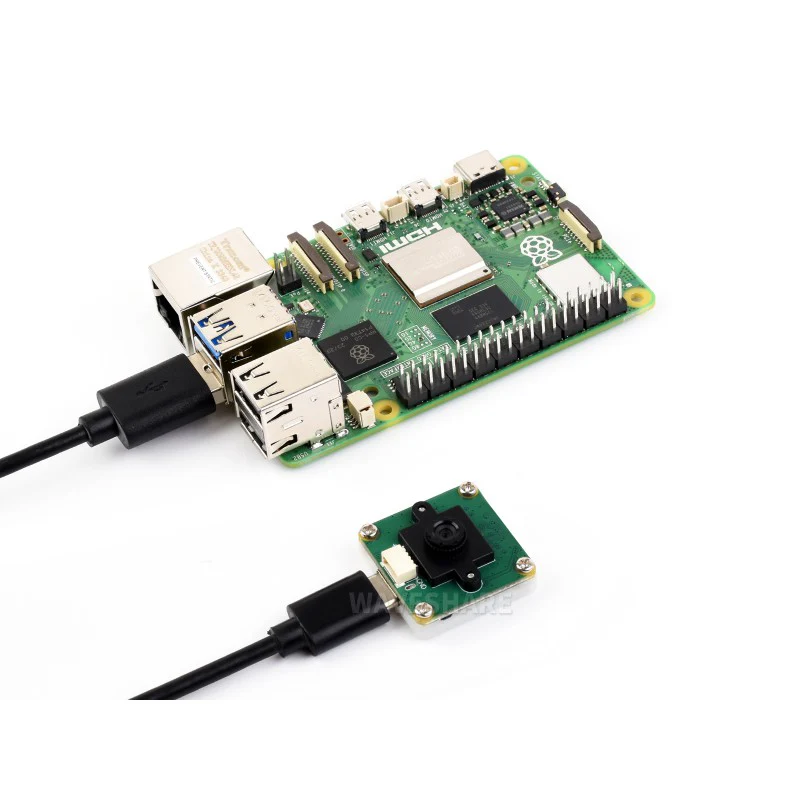

Connecting to Raspberry Pi 5

Connecting to Jetson Orin kit

Connecting to RDK X5 Development Board

* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are not included



Global Shutter, More Clear Imaging

the global shutter eliminates Jello-Effect while shooting fast moving objects
more suitable for high frame rate capturing



High Frame Rate Recording

Supports 120 FPS high frame rate recording to capture every dynamic scene detail



Pinout Definition



Onboard Two Types of Connectors

Connecting via USB Type-C port

Connecting via 1.0mm pitch 4PIN connector



Outline Dimensions



Resources

Wiki: www.waveshare.com/wiki/OV9281_1MP_USB_Camera_(A)



Package Content

Weight: 0.018 kg

OV9281 1MP USB Camera (A) x1
SH1.0 4PIN dual plug cable x1
