IMX462 2MP IR-CUT Camera, 90° DFOV, Starlight Camera Sensor, Fixed-Focus, Compatible With Raspberry Pi

IMX462 Starlight Camera

2MP | IR-CUT  | 90° DFOV 

Compatible with Raspberry Pi series boards



Specifications

Specification	Details
Sensor	IMX462
CMOS Size	1/2.8 inch
Pixels	2MP (1920 × 1080)
Aperture	F2
Focal Length	3.95mm
Diagonal Field of View	90°
Camera Type	Color
Focusing	Fixed focus
Distortion	< 5%
Shutter	Rolling Shutter



Starlight Camera

Capable of Capturing Clear Images Even in Low Light Conditions



 Built-in IR-CUT

Onboard switch and GPIO pad for switching or GPIO software control of IR-CUT function



Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect



Works with IR fill light for night vision imaging

Note: The IR fill light needs to be purchased separately. It is recommended to use an 850nm fill light.

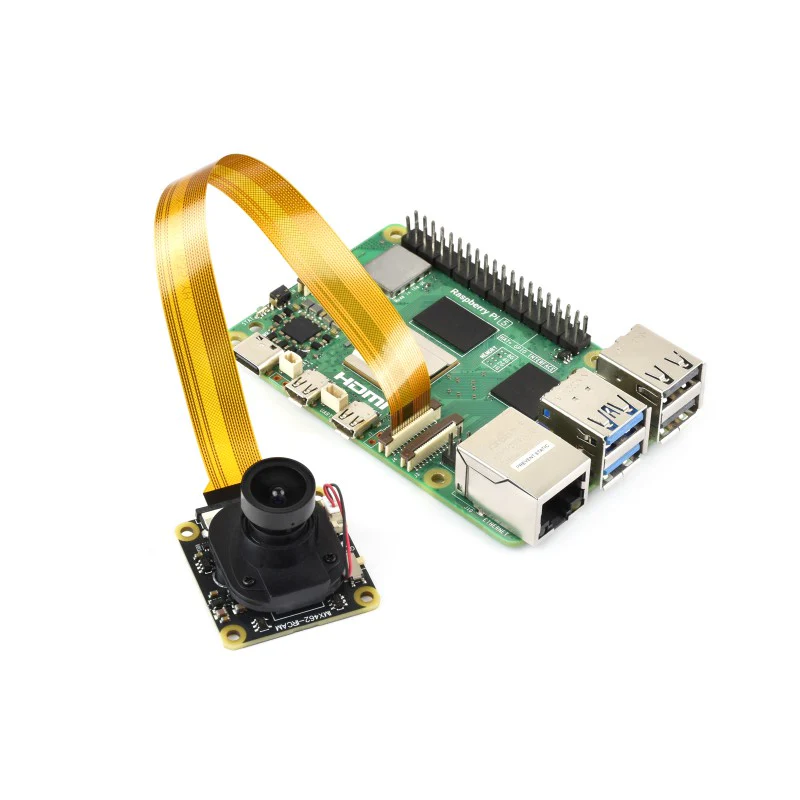

Working with Raspberry Pi

Direct Connect to Raspberry Pi Different Variants Including 5 / 4B / 3B+ / 3A+ / 3B / 2B / B+ / A+, Supports Connecting to Zero / Zero 2 W series

for reference only, the Raspberry Pi 5 and Raspberry Pi 2W are NOT included.



Outline Dimensions



Resources & Services

Wiki: www.waveshare.com/wiki/IMX462_IR-CUT_Camera_(A)



Package Content

 Weight: 0.012 kg

IMX462 IR-CUT Camera (A) x1
