IMX378 12MP USB Camera (A), Supports 30 FPS Output, Distortion-Free

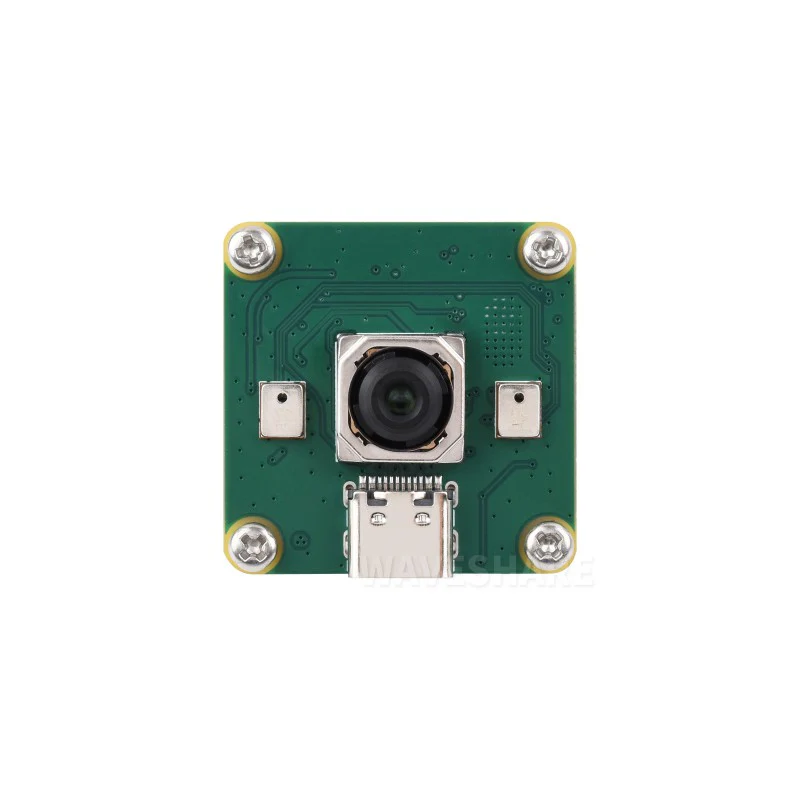

IMX378 12MP USB camera module

12MP | USB Type-C port | 79.8° FOV | Dual Microphones



Specifications

Pixels	12MP
Sensor	IMX378
Interface	USB2.0 Type-C
Sensor Size	1/2.3 inch
Aperture (F)	1.79
Focal Length (EFL)	4.7mm
Field of View (FOV)	79.8°
Distortion	<0.39%
Focusing	Auto-focus
Image Format Support	MJPG, YVY2
Static Image Resolution	3840 × 3032
Video Recording	30 FPS 3840 × 3032 30 FPS 3840 × 2160 30 FPS 2592 × 1944
Audio	Onboard dual microphones
Operating Voltage	5V ± 5%
Operating Temperature	0°C ~ 50°C
Module Size	30.00 × 30.00 (mm)



Connecting with USB cable

Connecting to Raspberry Pi 5

Connecting to Jetson Orin kit

Connecting to RDK X5 Development Board

* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are not included



12MP High Resolution

Supports 30 FPS output, suitable for capturing details



Distortion-Free

Equipped with a distortion-free lens with a distortion rate of less than 0.39%, delivering undistorted imaging and more accurate reproduction of real-world scenes

* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.



Pinout Definition



Onboard Two Types of Connectors

Connecting via USB Type-C port

Connecting via 1.0mm pitch 4PIN connector



Outline Dimensions



Resources

Wiki: www.waveshare.com/wiki/IMX378_12MP_USB_Camera_(A)



Package Content

Weight: 0.02 kg

IMX378 12MP USB Camera (A) x1
SH1.0 4PIN dual plug cable x1
