IMX335 5MP USB Camera (C), 2K Video Recording, Wide Dynamic Range

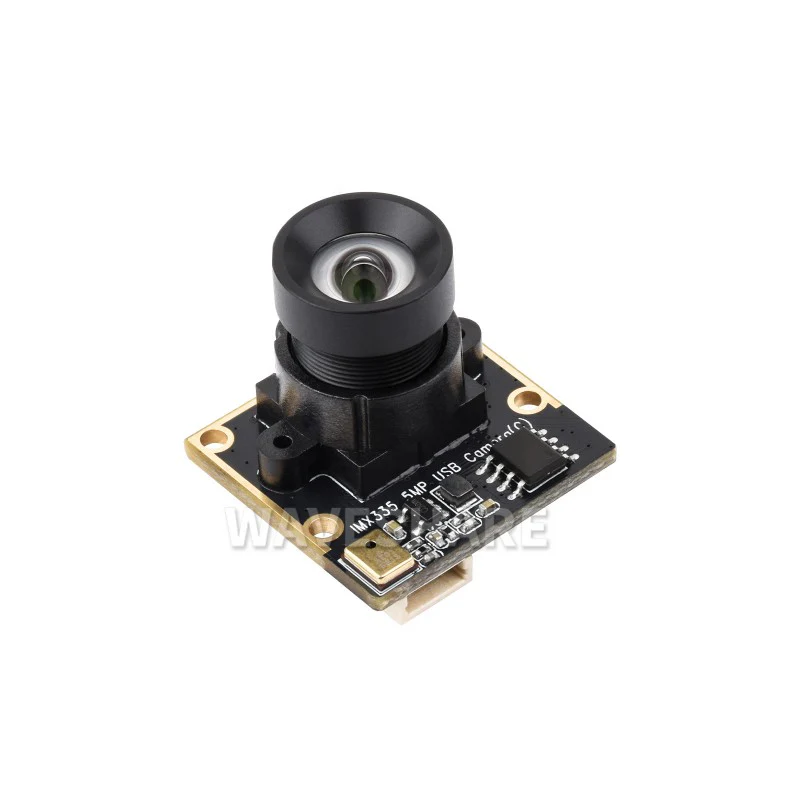

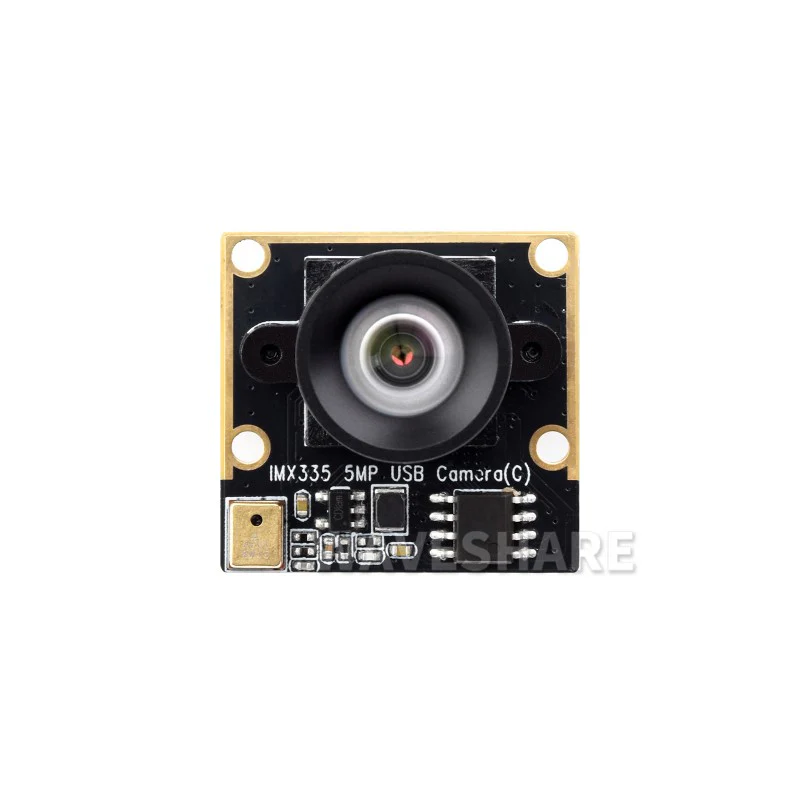

5MP USB Camera Module

IMX335 Sensor  |  USB2.0 Port  |  91.7° Distortion-Free Lens



Specifications

Pixels	5MP
Sensor	IMX335
Interface	USB 2.0
Sensor Size	1/2.8 inch
Aperture (F)	2.4
Focal Length (EFL)	3.25mm
Field of View (FOV)	91.7°
Distortion	<-1.22%
Focusing	Fixed-focus
Mount	M12
Construction	3G2P + IR Filter (650nm)
Image Format Support	MJPG, YVY2
Static Image Resolution	2592 × 1944
Video Recording	30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720
Dynamic Range	71.6dB@8xgain
SNR	36dB
Operating Voltage	5V ± 5%
Operating Temperature	-10°C~60°C
Module Size	25.00 × 24.30 (mm)

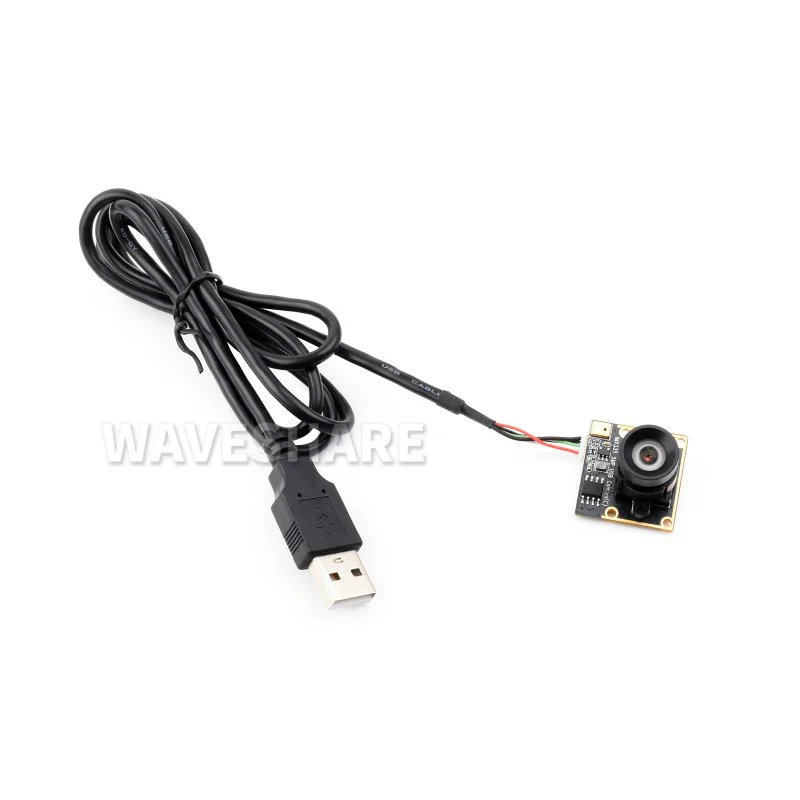

Connecting with USB cable

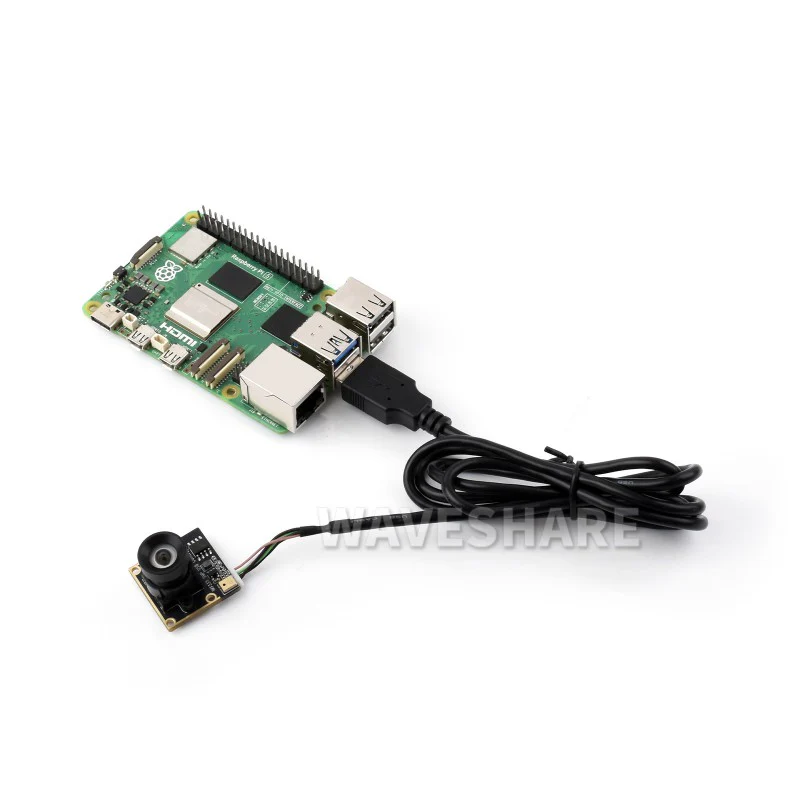

Connecting to Raspberry Pi 5

Connecting to Jetson Orin kit

Connecting to RDK X5 Development Board

* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are not included



5MP High Resolution

Supports 30 FPS output, suitable for capturing details



Better Low-Light Sensitivity

Provides a better imaging effect in low light condition



Wide Dynamic Range

supports wide dynamic range (WDR) technology for maintaining image details and quality in high contrast scenes

* The above pictures are the simulated effect for demonstrating the expected performance of IMX335 camera under various conditions, for reference only, please refer to actual effect.



Distortion-Free

Equipped with a distortion-free lens with a distortion rate of less than -1.22%, delivering undistorted imaging and more accurate reproduction of real-world scenes

* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.

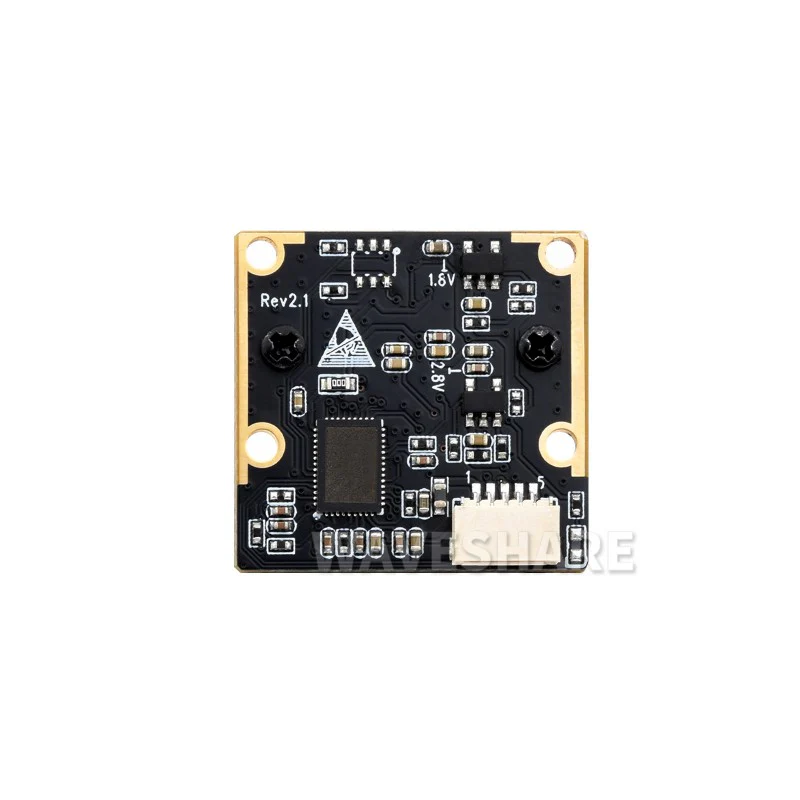

Pinout Definition



Outline Dimensions



Resources

Wiki: www.waveshare.com/wiki/IMX335_5MP_USB_Camera_(C)



Package Content

Weight: 0.021 kg

IMX335 5MP USB Camera (C) x1
