Gigabit / 2.5G Dual Ethernet Base Board For Raspberry Pi CM5

Dual Ethernet Base Board for CM5

Designed for Raspberry Pi Compute Module 5



Specifications

CM5 SOCKET	Suitable for all variants of Compute Module 5
NETWORKING	Ethernet	1000M Ethernet RJ45 port
	Ethernet	2500M Ethernet RJ45 port
CONNECTOR	GPIO	Raspberry Pi 40PIN GPIO Header
USB	USB 3.2	USB 3.2 Gen1 ×1
	USB 2.0	USB 2.0 ×2
MIPI	Interface	4-lane MIPI interface ×2 (22PIN 0.5mm FFC connector)
VIDEO	HDMI	HDMI port ×2, supports dual 4K display output
M.2	Expansion	M.2 M KEY (PCIe Gen2 / Gen3 ×1)
STORAGE	TF Card	TF card socket for Compute Module 5 Lite (without eMMC) variants
FAN HEADER	Cooling	5V 4PIN JST-SH PWM fan connector
OTHERS	Components	Onboard EEPROM and encryption chip
POWER INPUT	Voltage Range	7V ~ 36V wide voltage range
DIMENSIONS	Base Board	109.0 × 91.5 (mm)
	Enclosure	114.6 × 91.5 × 32.9 (mm)



Connecting with Compute Module 5

Standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO header
suitable for Compute Module 5 Lite / eMMC series module

* for reference only, please refer to the package content for detailed part list



Supports Connecting to M.2 NVMe Drive

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

* for reference only, please refer to the package content for detailed part list



Applicable M.2 Drive Sizes



NVMe Drive Slot Support

* Only supports the NVMe Protocol Solid State Drives.



More Rich Interfaces

Features multiple interfaces including ETH / MIPI / HDMI / Micro SD / USB / M.2 B KEY / M KEY , for easy to use

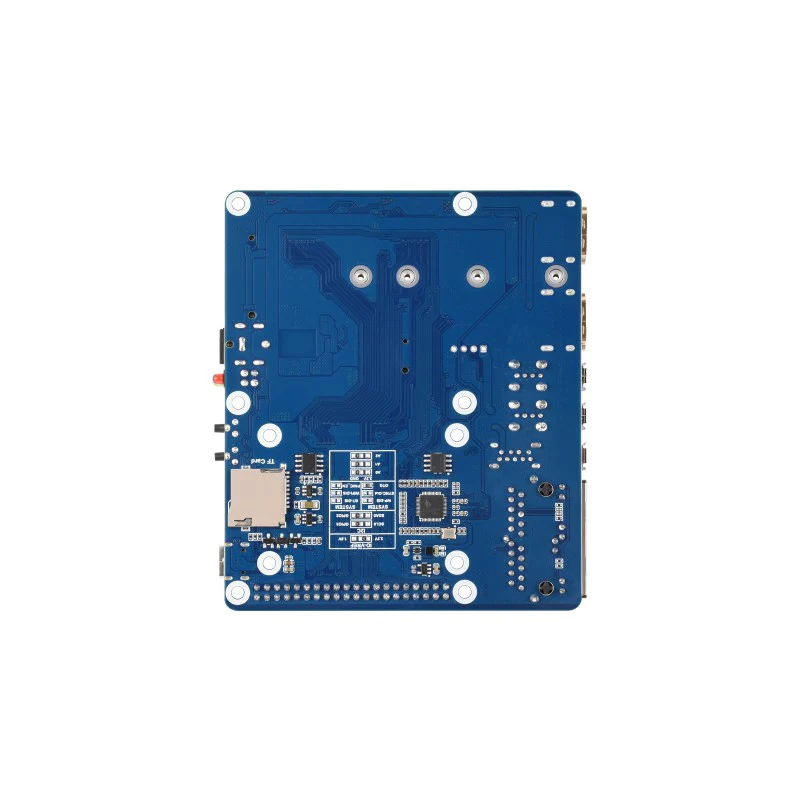

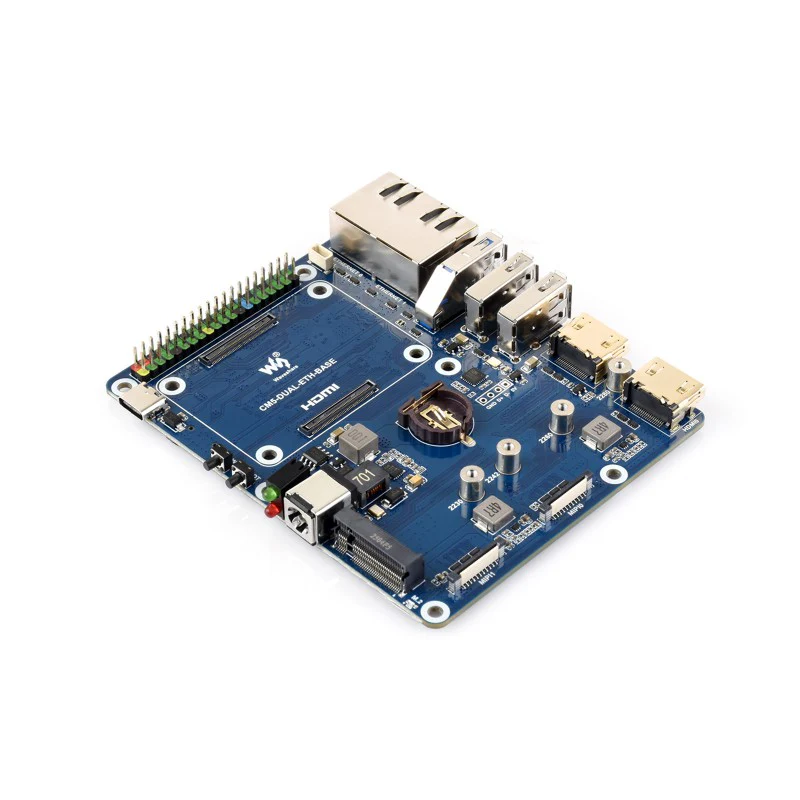

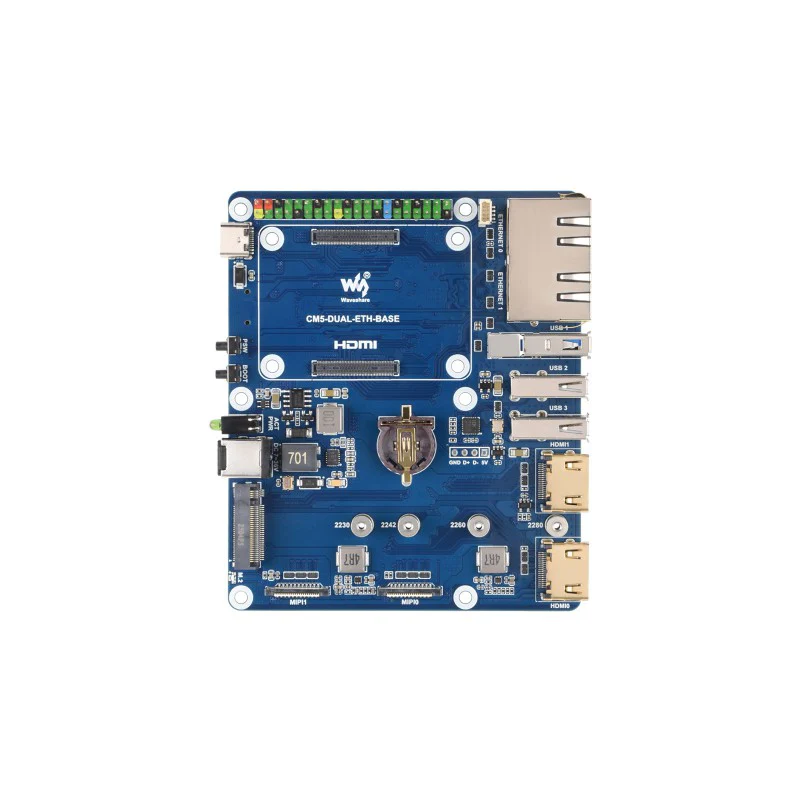

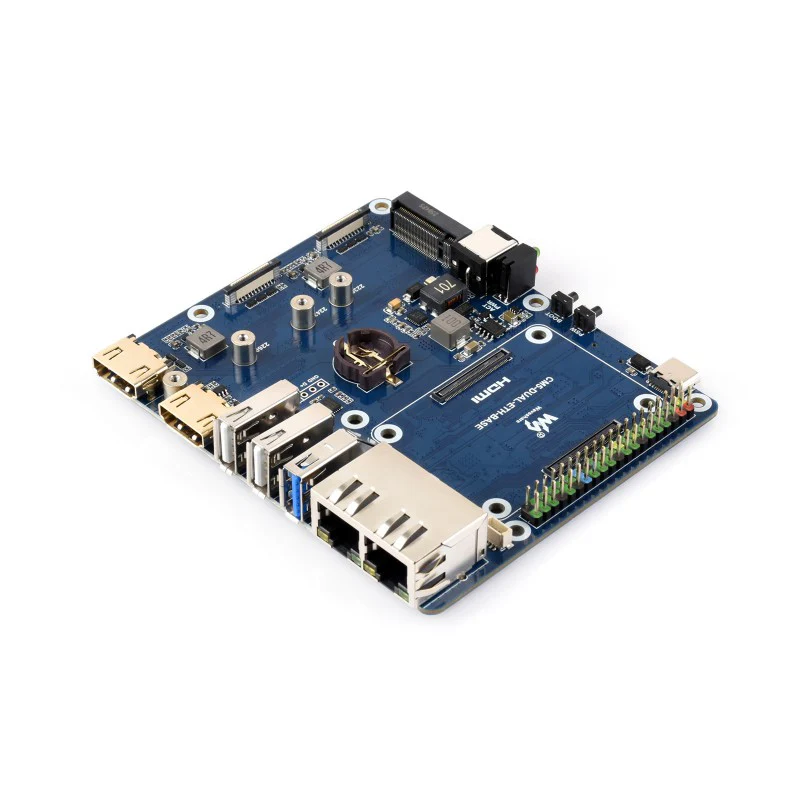

What's On Board



Application Example

Suitable for Raspberry Pi applications in remote communications or other industrial situations

* for reference only, the display and camera module are not included, please purchase separately if needed



Outline Dimensions



Resources & Services

WIKI: www.waveshare.com/wiki/CM5-DUAL-ETH-BASE



Package Content

Weight: 0.08 kg

CM5-DUAL-ETH-BASE x1
Screws pack x1
