ESP32-S3 2.06inch AMOLED Touch Watch Development Board, 32-bit LX7 Dual-core Processor, 410×502 Pixels

ESP32-S3 2.06inch AMOLED Watch Development Board

Embedded with CO5300 Display Driver and FT3168 Capacitive Touch Chip



Features

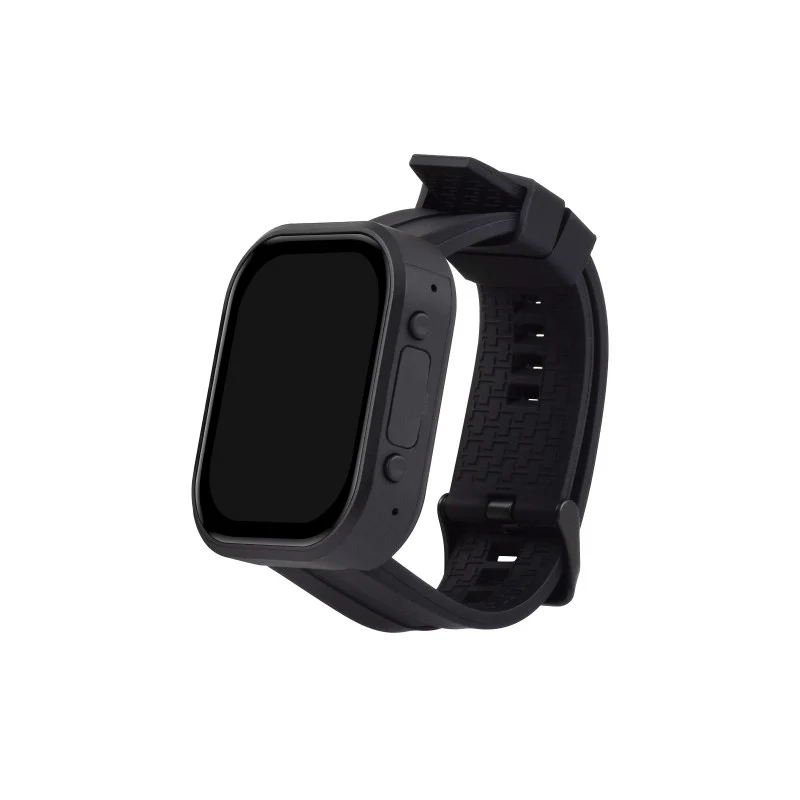

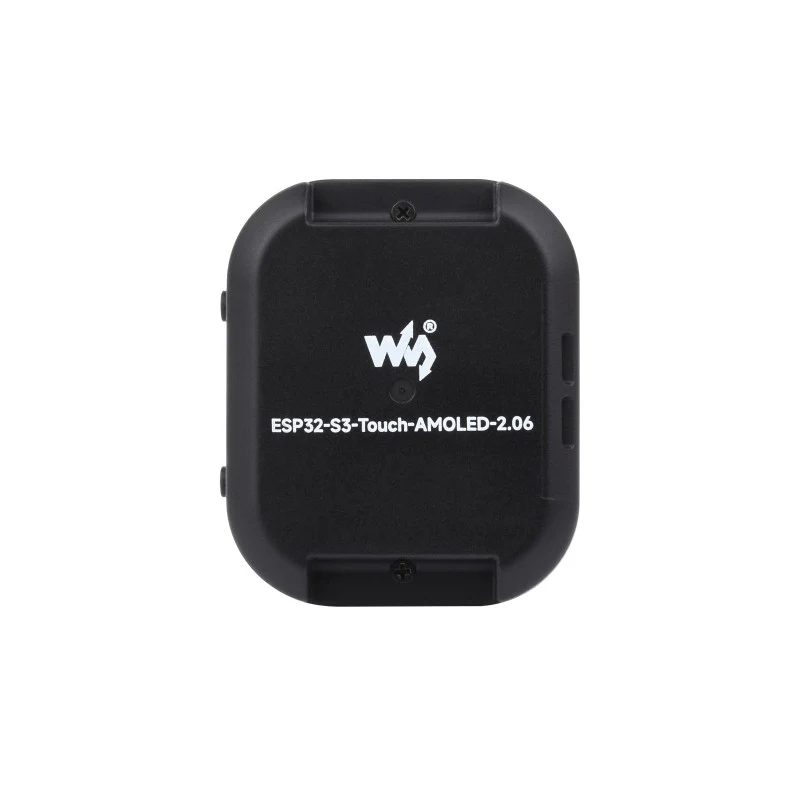

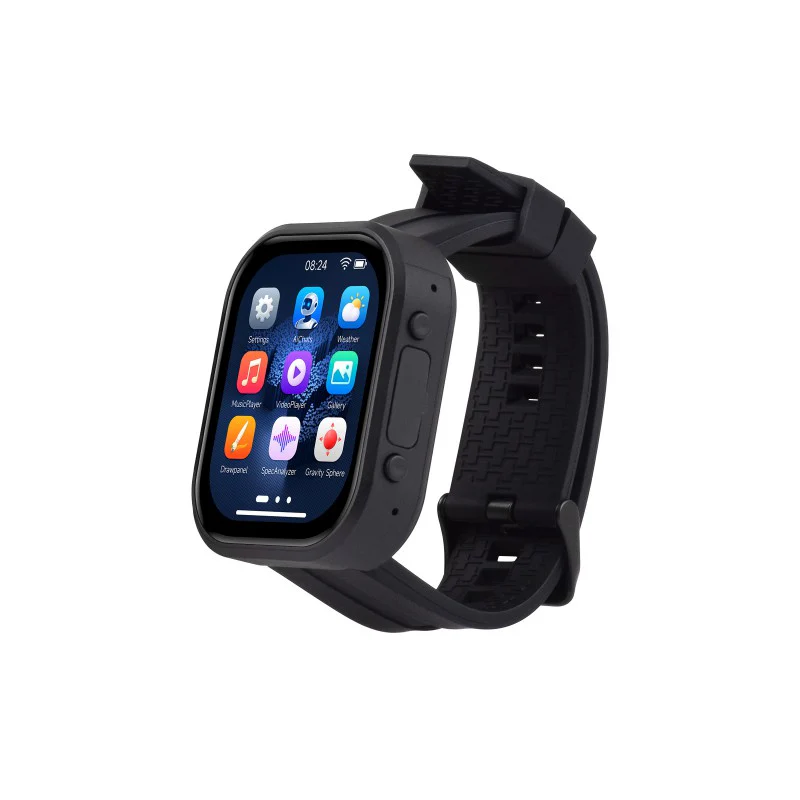

The ESP32-S3-Touch-AMOLED-2.06 is a high-performance, wearable watch-style development board designed by Waveshare. Based on the ESP32-S3R8 microcontroller, it integrates a 2.06inch AMOLED capacitive touch display, 6-axis IMU, RTC chip, audio codec chip, power management IC, and so on. Comes with a custom-designed case with a smartwatch-like appearance, making it ideal for prototyping and functional verification of wearable applications.

Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

Built-in 512KB SRAM and 384KB ROM, with onboard 8MB PSRAM and external 32MB Flash memory

Type-C connector for improved device compatibility and ease of use

Onboard 2.06-inch AMOLED capacitive touch display, 410 × 502 resolution, 16.7M colors

Built-in CO5300 display driver and FT3168 capacitive touch chip using QSPI and I2C communication

Onboard QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope) for motion detection and step counting

Onboard PCF85063 RTC chip, powered via AXP2101 with lithium battery backup

Onboard programmable PWR and BOOT buttons for custom function development

Onboard 3.7V MX1.25 lithium battery recharge/discharge header

Reserved pads for 1× I2C, 1× UART, and 1× USB interface for peripherals and debugging

Onboard TF card slot for extended storage and high-speed data transfer

Uses AXP2101 power management IC supporting multi-voltage outputs, battery charging, and power optimization

AMOLED display offers high contrast, wide viewing angle, rich colors, fast response, and low power consumption



AMOLED Parameters

Display Panel	AMOLED	Display Size	2.06 inch
Resolution	410 × 502 pixels	Display Colors	16.7M
Brightness	600 cd/㎡	Contrast Ratio	100000:1
Communication Interface	QSPI	Driver IC	CO5300
Touch	Supported	Touch IC	FT3168



Small Size, Touch More Possibilities

Suitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function. Supports connecting to a battery for independent operation



Adopts AMOLED Screen

The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images



178° Wide Viewing Angle

Excellent Display Performance, 16.7M color, wide viewing angle



Onboard Audio Codec

Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit. Meet daily audio application scenarios



Supports Offline Voice Recognition and AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.



Supports ESP-IDF, Arduino

Comprehensive SDK, dev resources, tutorials to help you easily get started



Wi-Fi and BLE 5 Support

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh



Wearable Design

Detachable watch straps for easy replacement and convenient matching with different styles



What's On Board



Pin Definition



Outline Dimensions



Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-S3-Touch-AMOLED-2.06



Package Content

Weight: 0.119 kg

ESP32-S3-Touch-AMOLED-2.06 x1
Watch straps ×1
MX1.25 Lithium battery ×1
