ESP32-P4-Pico High-Performance Development Board, Based On ESP32-P4

ESP32-P4-Pico Development Board

High-performance Development Board Based On ESP32-P4

Rich Human-machine Interfaces



Development Board Introduction

This product is a multimedia development board based on ESP32-P4. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART and TWAI, etc. Additionally, it supports USB OTG 2.0 HS, and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs, enabling a wider range of application adaptability.

The ESP32-P4 adopts a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-Pico meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.



Key Features

High-performance MCU with RISC-V 32-bit dual-core and single-core processors

Memory architecture: 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM

Powerful image and voice processing capability with JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, and H.264 encoder

32 MB PSRAM in chip package with onboard 32 MB NOR Flash

Integrated peripherals: MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 TF card slot, microphone interface, and speaker header

Dual 2×20 GPIO headers with 27 remaining programmable GPIOs

Security features: Secure Boot, Flash Encryption, cryptographic accelerators, TRNG, hardware access protection, access permission management, and privilege separation



Kit Selection



Kit Connection Examples



DSI Capacitive Touch Display

Optical Bonding Toughened Glass Panel, With 178° Wide Viewing Angle. Supports 10-Point Touch, provides a clear image and an excellent visual experience

Model	10.1-DSI-TOUCH-A
Resolution	800 × 1280 (H × V)
Communication Interface	MIPI-DSI (2-lane)
Brightness	400 cd/m² (supports customization for 1000 cd/m² high-brightness version)
Touch Chip	GT9271
Outline Dimension	147.0 × 239.0 mm
Display Area	135.36 × 216.58 mm
Pixel Size	0.1692 (H) × 0.1692 (V) mm
Contrast Ratio	800:1
Operating Temperature	0 °C ~ 60 °C

* the 10.1inch DSI LCD is only included in the ESP32-P4-Pico-KIT-B.



Raspberry Pi Camera (B)

5MP | Manual Focus

Compatible with Raspberry Pi series boards

Sensor	OV5647	CMOS Size	1/4 inch
Pixels	5 MP	Aperture	F2.0
Focal Length	6 mm	Field of View	60.6°
Night Vision Function	Not Supported	Focusing	Manual Focus

* Please refer to the package content for detailed part list.



Highly Integrated and Powerful Performance

Adopts ESP32-P4 Module, onboard 32MB Nor Flash



What's On Board

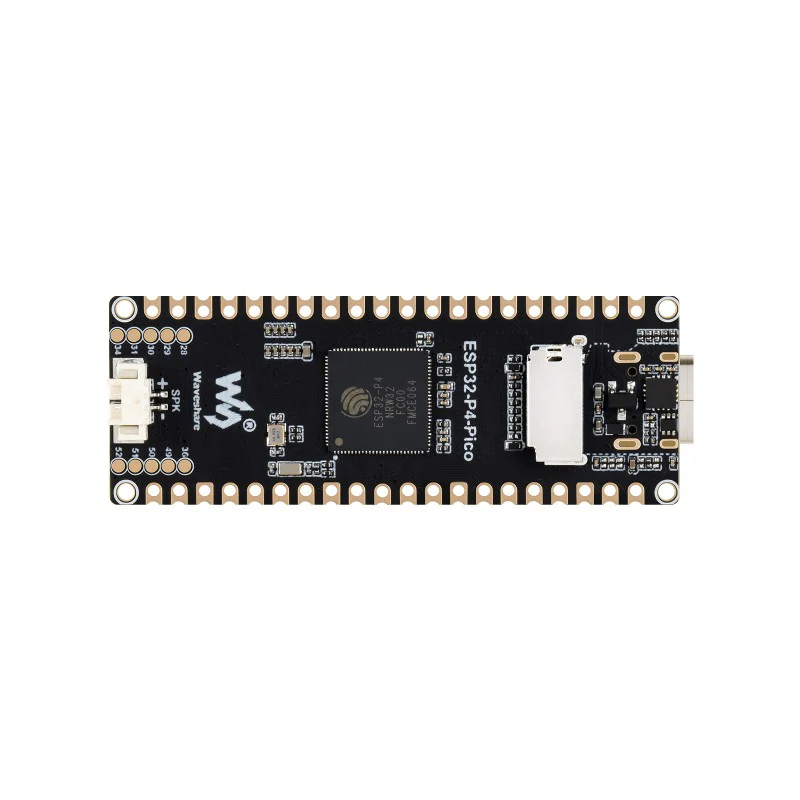

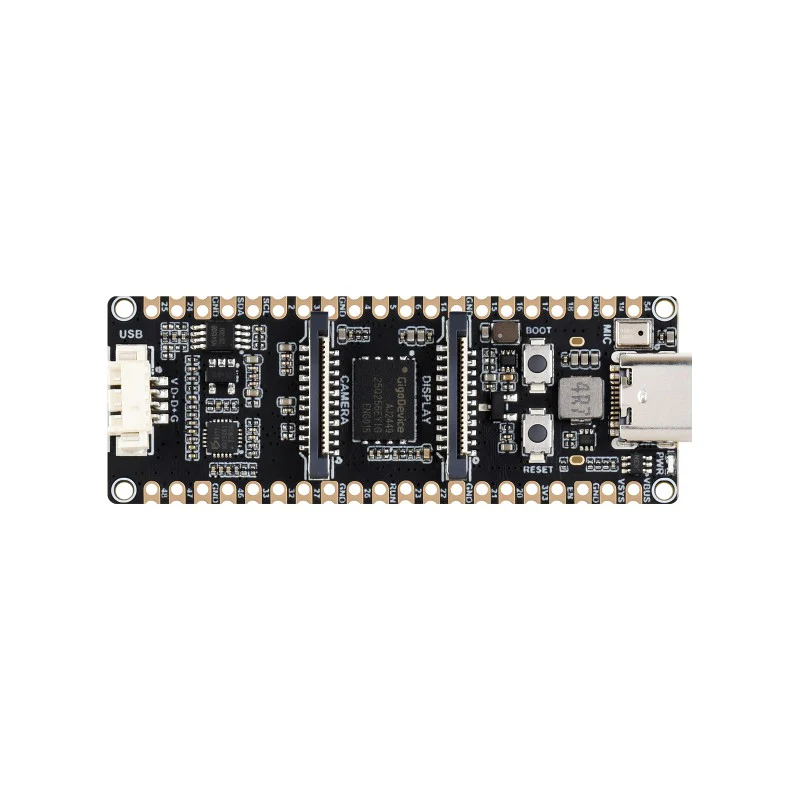

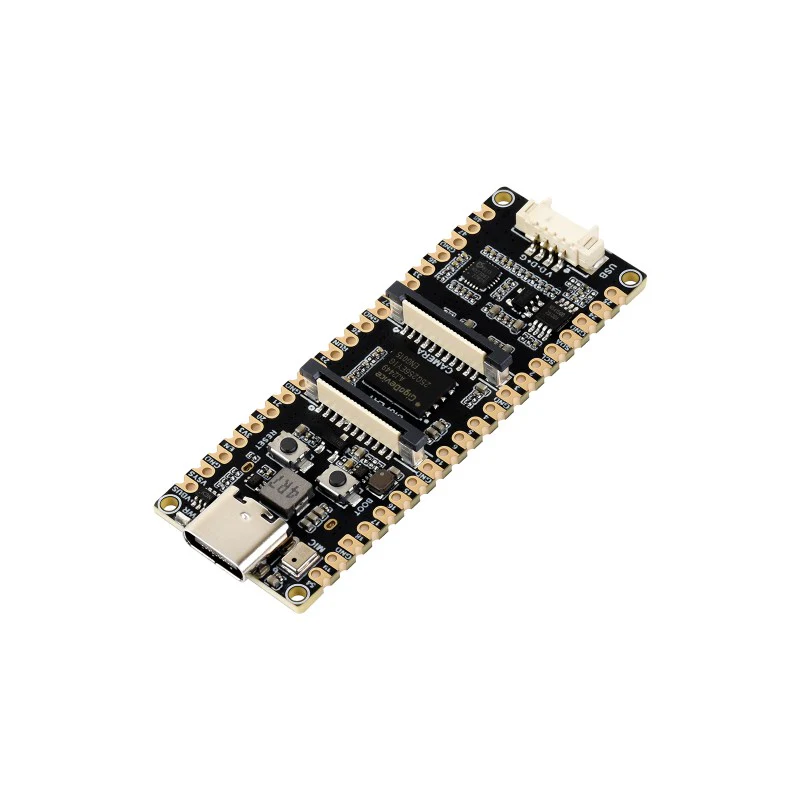

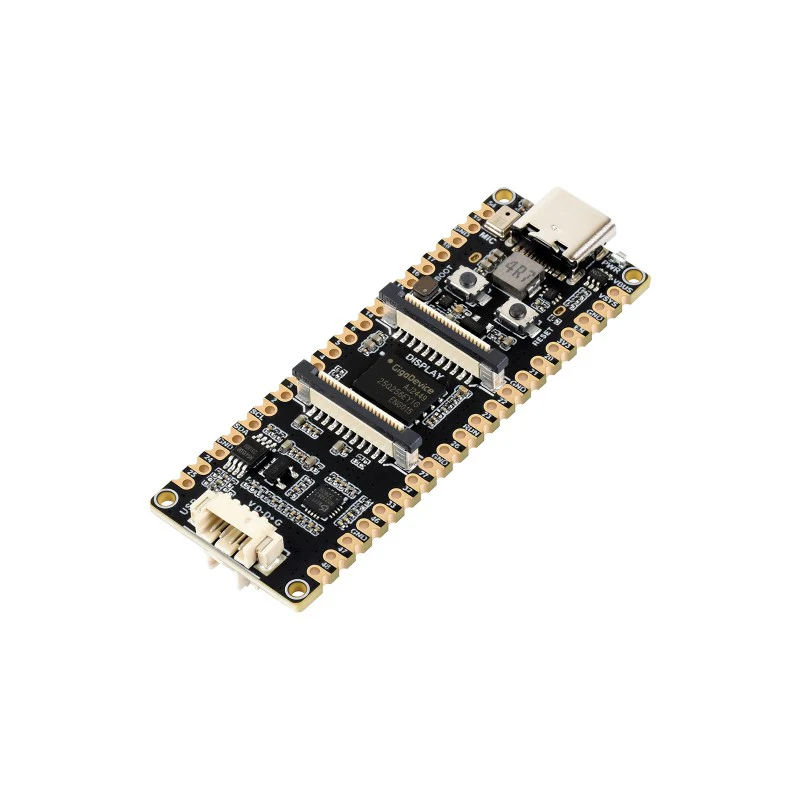

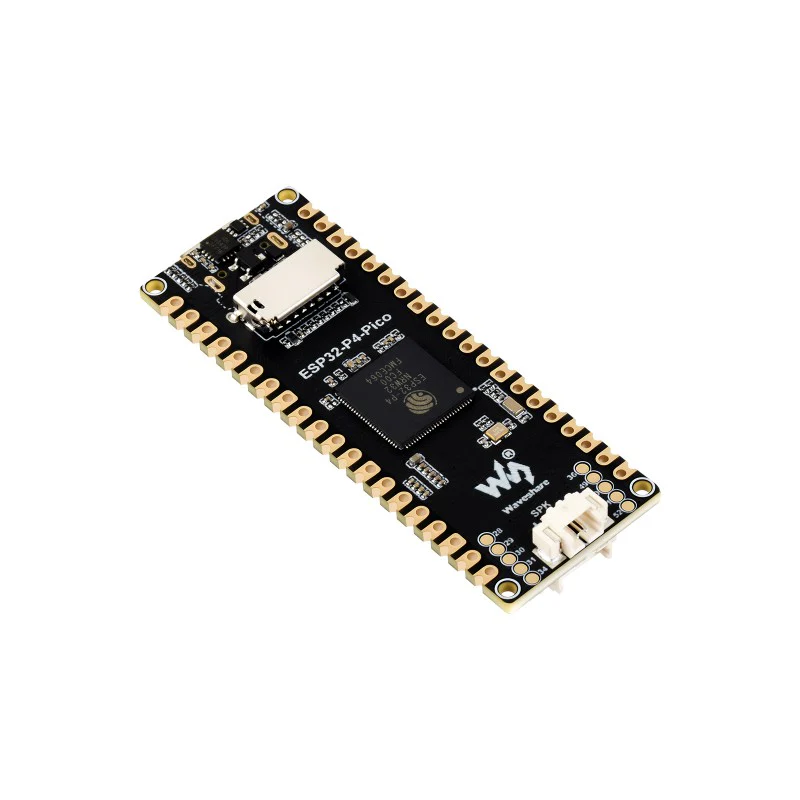

1. ESP32-P4NRW32 ESP32-P4 chip, with 32MB PSRAM

2. 32MB NOR Flash

3. Display Interface MIPI-DSI (2-lane), supports 5 / 7 / 8 / 10.1 inch DSI screens

4. Camera Interface MIPI-CSI (2-lane), supports OV5647 camera, etc.

5. USB Type-C Port For power supply, program burning and debugging

6. Onboard Microphone

7. Speaker Header MX1.25 2P connector, supports 8Ω 2W speaker

8. 4PIN USB Header USB OTG 2.0 High Speed interface

9. BOOT Button Press it when powering on or resetting to enter download mode

10. RST Button

11. Power Supply Indicator

12. TF Card Slot SDIO 3.0 interface protocol



Pin Definition



Outline Dimensions



Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-P4-Pico



Package Content

Weight: 0.012 kg

ESP32-P4-Pico

ESP32-P4-Pico x1
20PIN header x2

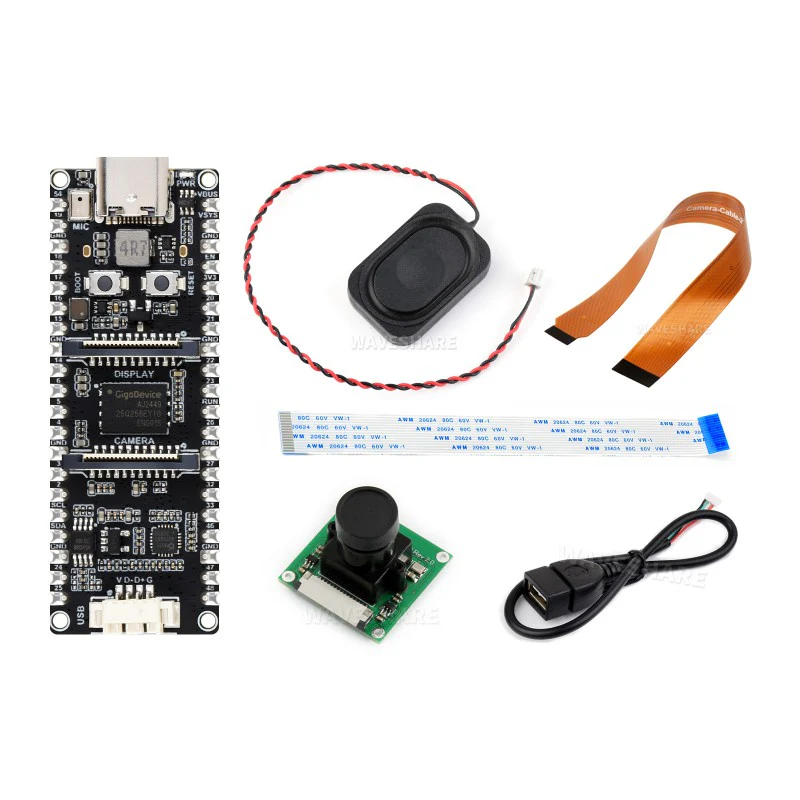

ESP32-P4-Pico-KIT-A

ESP32-P4-Pico-M x1
8Ω 2W speaker x1
Pi5-Camera-Cable-200mm x1
FFC 15PIN cable x1
RPi Camera (B) x1
MX1.25 4PIN to USB cable x1

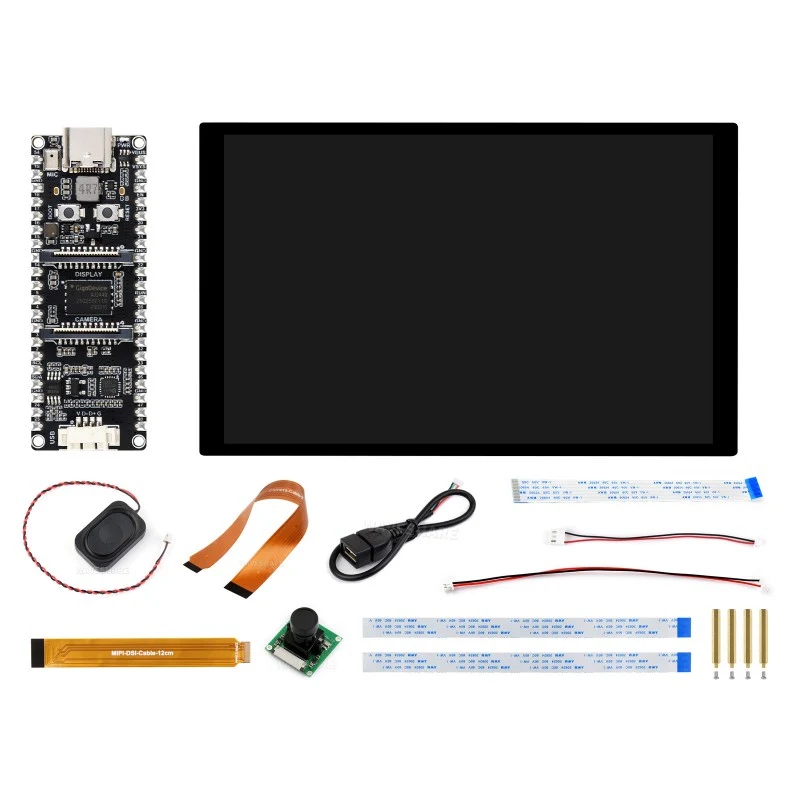

ESP32-P4-Pico-KIT-B

ESP32-P4-Pico-M x1
10.1-DSI-TOUCH-A x1
8Ω 2W speaker x1
Pi5-Camera-Cable-200mm x1
FFC 15PIN cable x1
RPi Camera (B) x1
MX1.25 4PIN to USB cable x1
MIPI-DSI-Cable-12cm x1
MX1.25 2PIN to 2.54 3PIN cable x1
FFC 22PIN cable ~200mm x2
MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
Standoffs x1
