D-Robotics RDK X5 MD Carrier Board For RDK X5 Module, Suitable For All Variants Of RDK X5 MD Module

D-Robotics RDK X5 MD Carrier Board

Specifically Designed for D-Robotics RDK X5 MD Module

The RDK X5 Carrier Board is a companion board for RDK X5 MD Module, provides rich interfaces including USB 3.0, Ethernet, HDMI, MIPI CSI, MIPI DSI and 40PIN header, etc, facilitates functional verification and development of the module.



Specifications

RDK X5 SOCKET	Suitable for all variants of RDK X5 Module
NETWORK	Ethernet	Gigabit Ethernet RJ45 port
USB	Host	USB 3.0 Host port ×4
	Device / Debug	Micro USB 2.0 Device port ×1 Micro USB 2.0 UART debug port ×1
CONNECTORS	GPIO	40PIN GPIO header 10PIN function control IO
DISPLAY	Interface	MIPI DSI interface (15PIN 1.0mm FPC connector) HDMI port ×1
CAMERA	Interface	MIPI CSI (4-lane) interface ×2
RTC	Battery Header	Onboard RTC battery header
STORAGE	TF Card	TF card slot for RDK X5 MD Lite (without eMMC) variants
FAN CONNECTOR	Cooling	12V fan connector, supports speed control and speed measurement
OTHER RESOURCES	Interfaces	CAN interface, power switch, PoE module header
POWER INPUT	Voltage	5V 5A
DIMENSION	Size	99 × 79 mm



Specifically Designed for RDK X5 Module

Easily expand multiple interfaces, making development more convenient

* for reference only, the RDK X5 Module is NOT included.

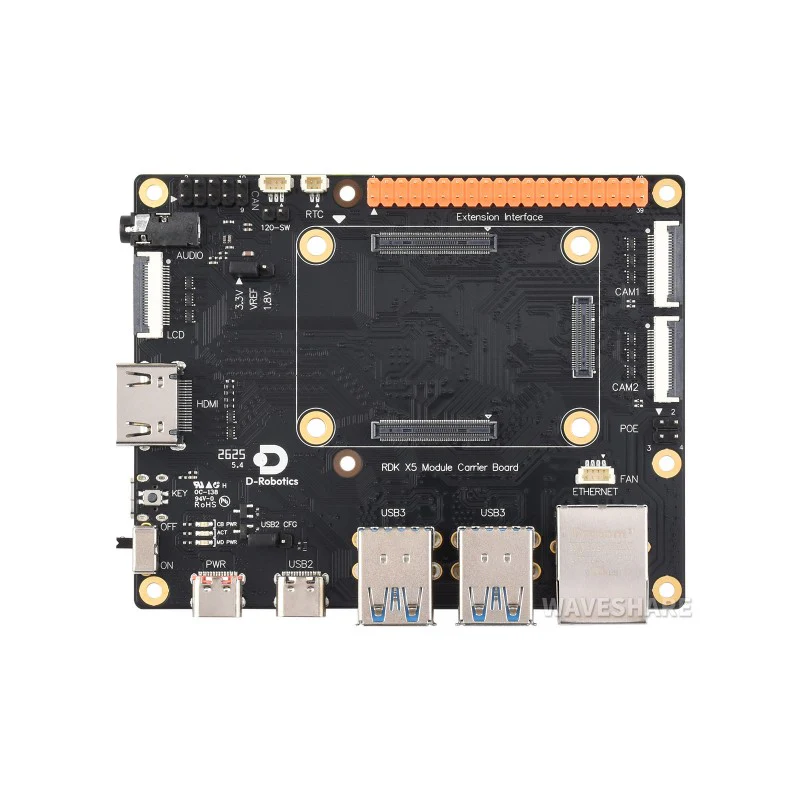

What's On Board

1. Type-C 5V Power Port	13. RTC Battery Header
2. USB 2.0 Configuration Pin	14. CAN Terminal Resistor Selection
3. USB 2.0 Device Port	15. CAN Bus Header
4. USB3.0 Host Port ×2	16. Function Control IO Header
5. USB3.0 Host Port ×2	17. Audio Jack
6. Gigabit Ethernet Port	18. I/O Level Selection
7. Fan Connector	19. MIPI-DSI Interface
8. PoE Module Header	20. TF Card Slot
9. CAM2 Interface MIPI-CSI (4-lane)	21. HDMI Port
10. CAM1 Interface MIPI-CSI (4-lane)	22. Debug Port (USB to UART)
11. 40 PIN Header	23. Sleep Button
12. RDK X5 Module Socket	24. Power Switch

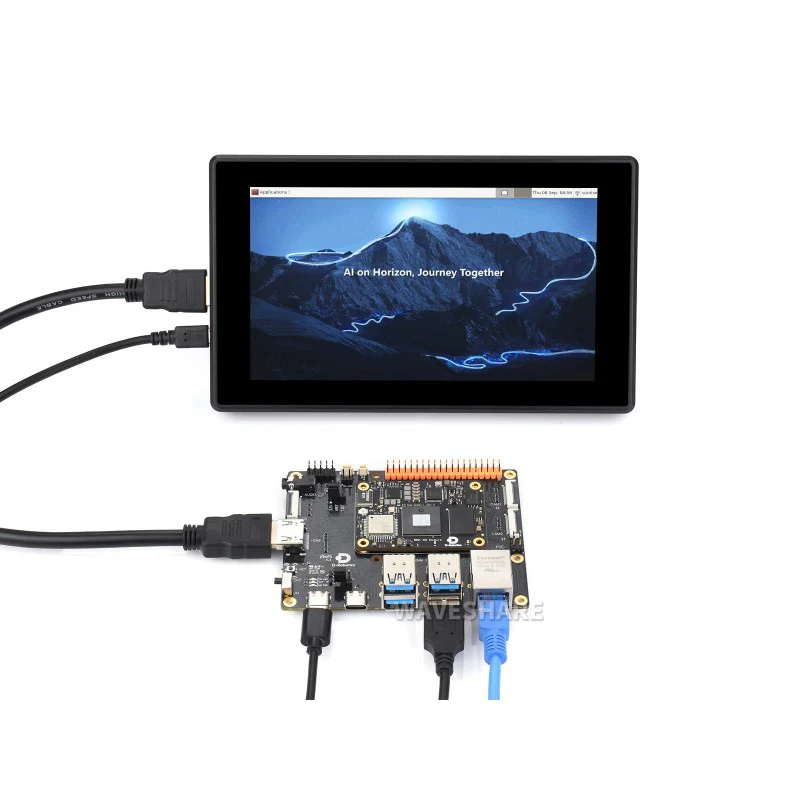

Supports Connecting with Multiple Devices

More convenient for users to verify and develop module functions

* for reference only, please refer to the package content for detailed part list.

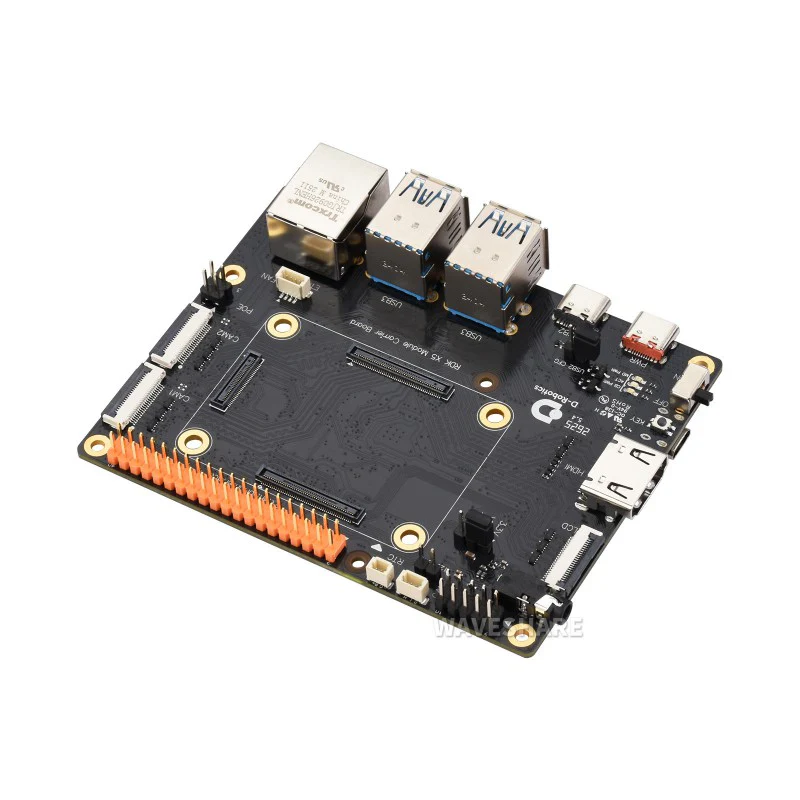

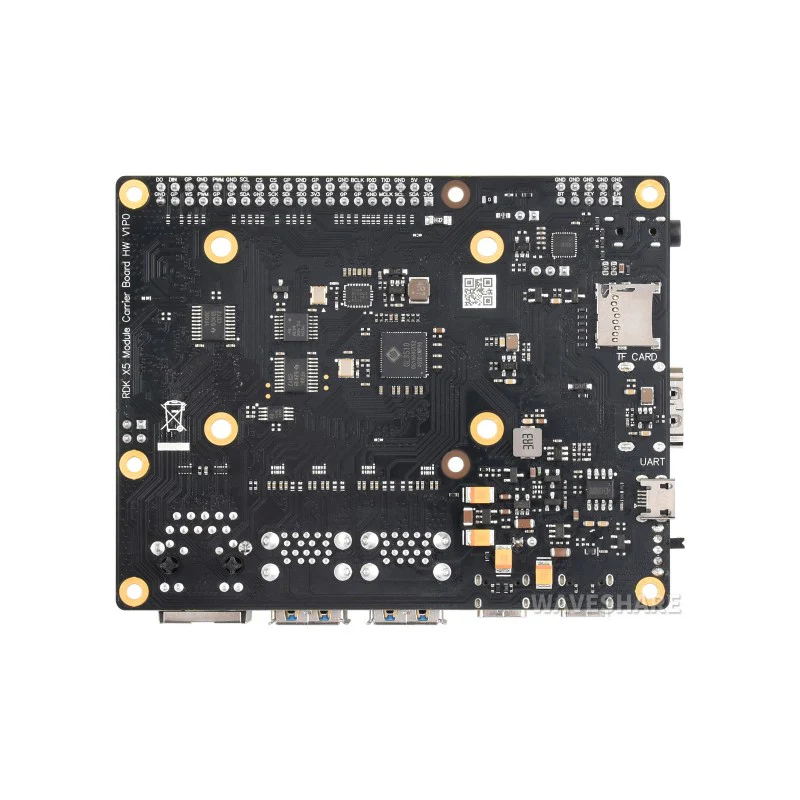

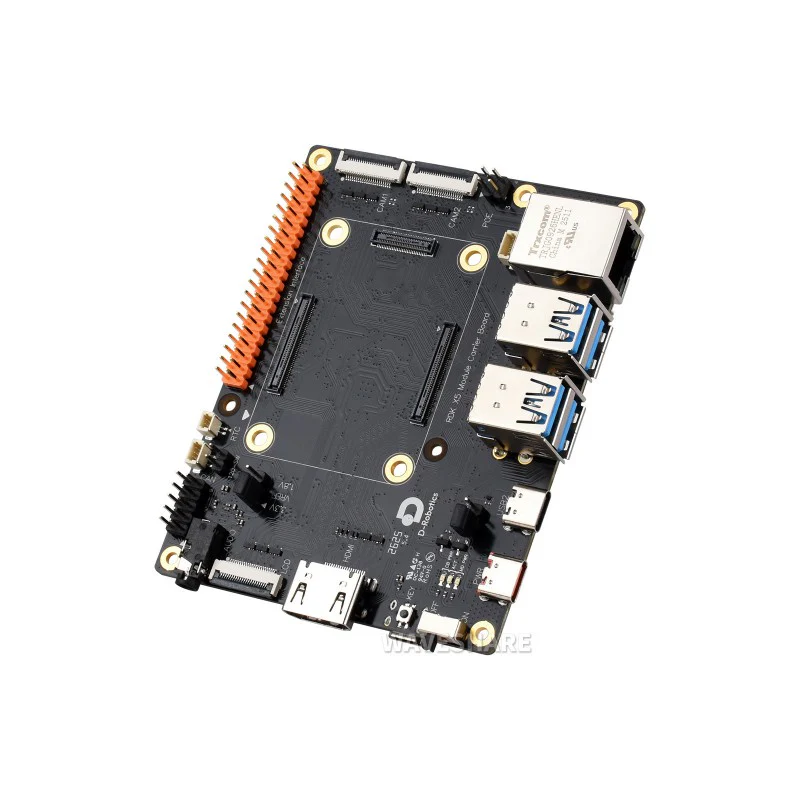

Product Show



Outline Dimensions



Resources & Services

Wiki: www.waveshare.com/wiki/RDK_X5_MD_Carrier_Board



Package Content

Weight: 0.142 kg

RDK X5 MD Carrier Board x1
