RDK S100 Camera Expansion Board

RDK S100 Camera Expansion Board

Onboard MIPI + GMSL interfaces, Suitable For RDK S100 Development Kit

This module is specifically designed for the RDK S100 development board, and converts the camera interface into two MIPI interfaces and one GMSL interface. Supports connecting to MIPI visual cameras and GMSL industrial cameras. It is suitable for various visual development scenarios and offers a plug-and-play hardware expansion solution for image acquisition, object detection, and other algorithm verification tasks, accelerating the deployment of robotic vision systems.



Specifications

Deserializer	Maxim MAX96712
MIPI Interface	2 × 22PIN MIPI CSI-2
GMSL Connector	Fakra-Mini 4-in-1
External Power Supply	12V DC (only required when power from main board is insufficient)
Board Supported	RDK S100 Development Kit

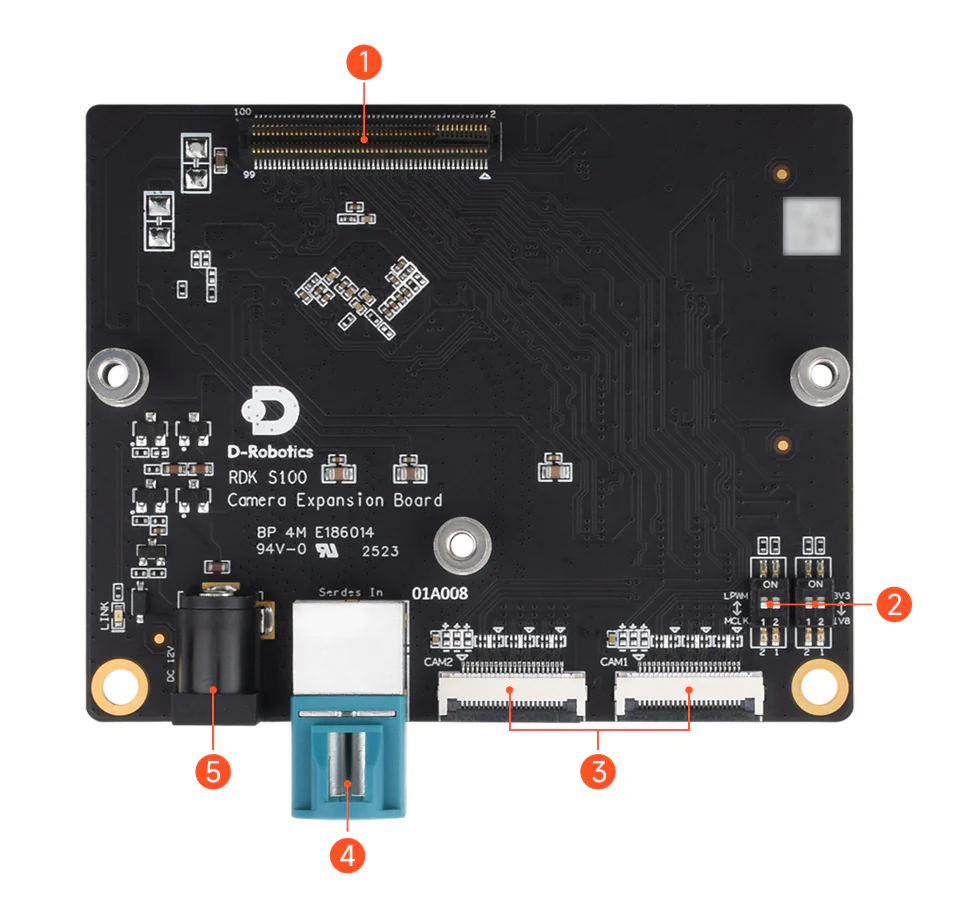

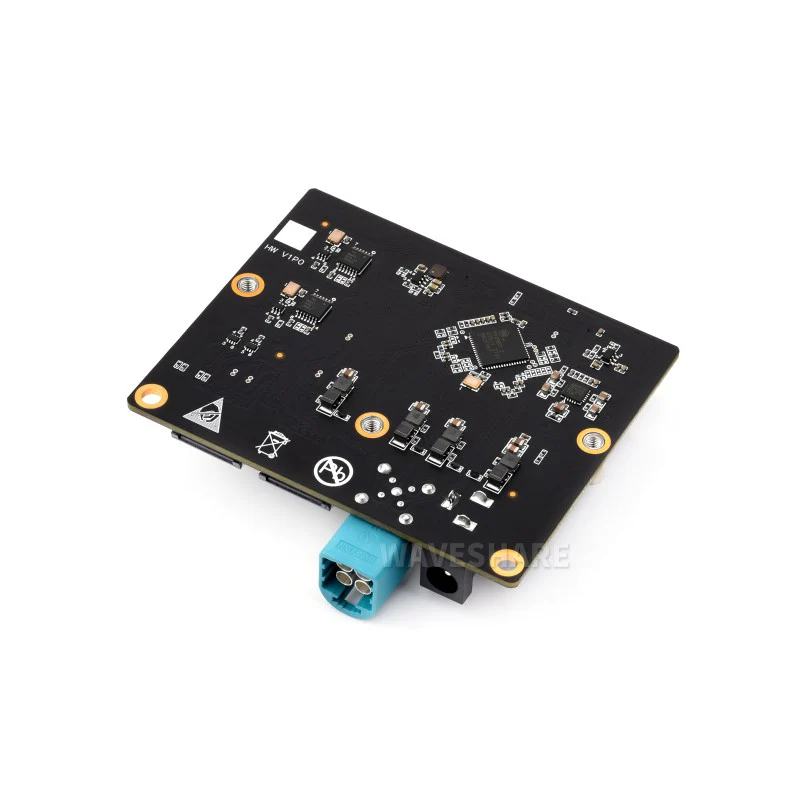

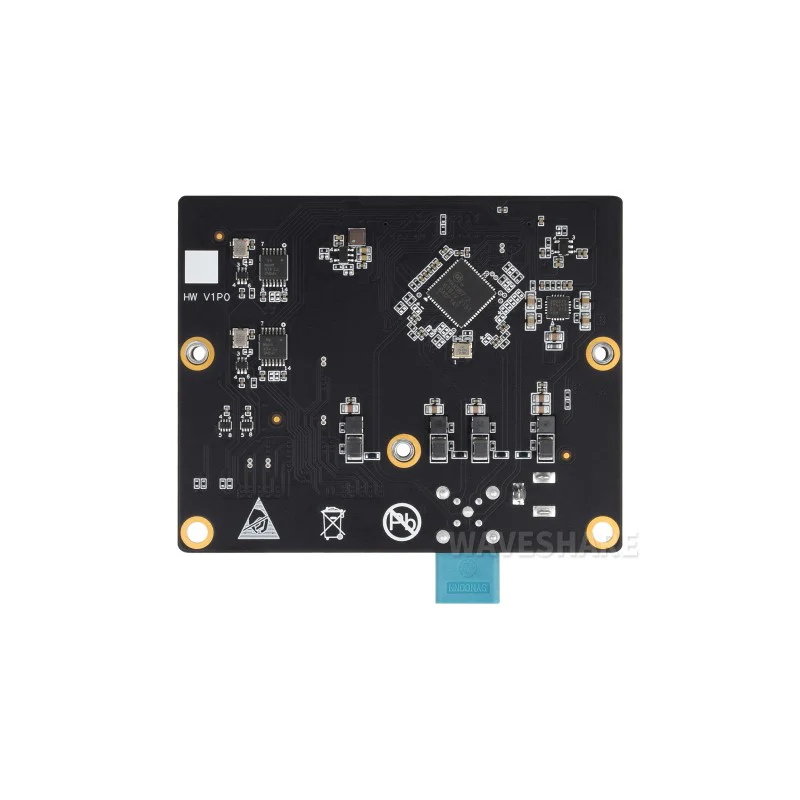

What's On Board

1. Camera Expansion Board 100PIN Connector	For connecting to the RDK S100 Development Board
2. DIP Switches	For switching the logic level of the MIPI cameras
3. 2 × 22PIN MIPI CSI Connector	Supports dual MIPI camera input
4. Fakra-Mini 4-in-1 Port	For multi-camera connectivity
5. External Power Supply DC Jack	Provides independent power input for connected cameras



Outline Dimensions



Resources

Wiki: www.waveshare.com/wiki/RDK-S100-Camera-Expansion-Board



Package Content

Weight: 0.059 kg

RDK S100 Camera Expansion Board x1
