0.71inch Double Eye Round LCD Display Module, 160x160 Resolution

0.71inch Double Eye LCD Module

IPS Panel, 160×160 Resolution, Embedded GC9D01 Driver, Using SPI Bus

Size 0.71"	Resolution 160×160	Display Color 65K colors
Display Panel IPS	Interface SPI	Driver GC9D01



Features at a glance

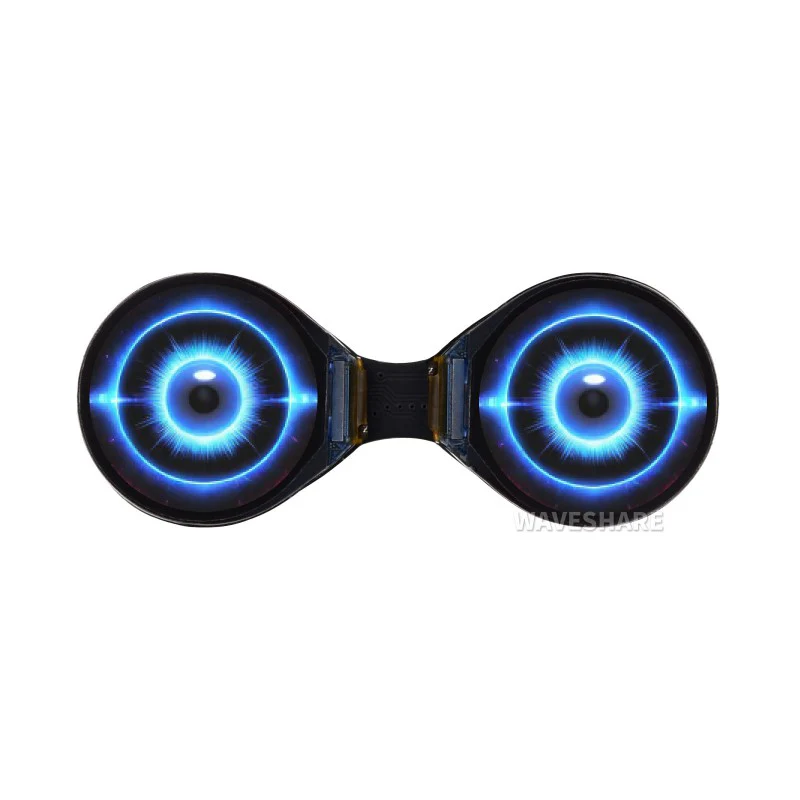

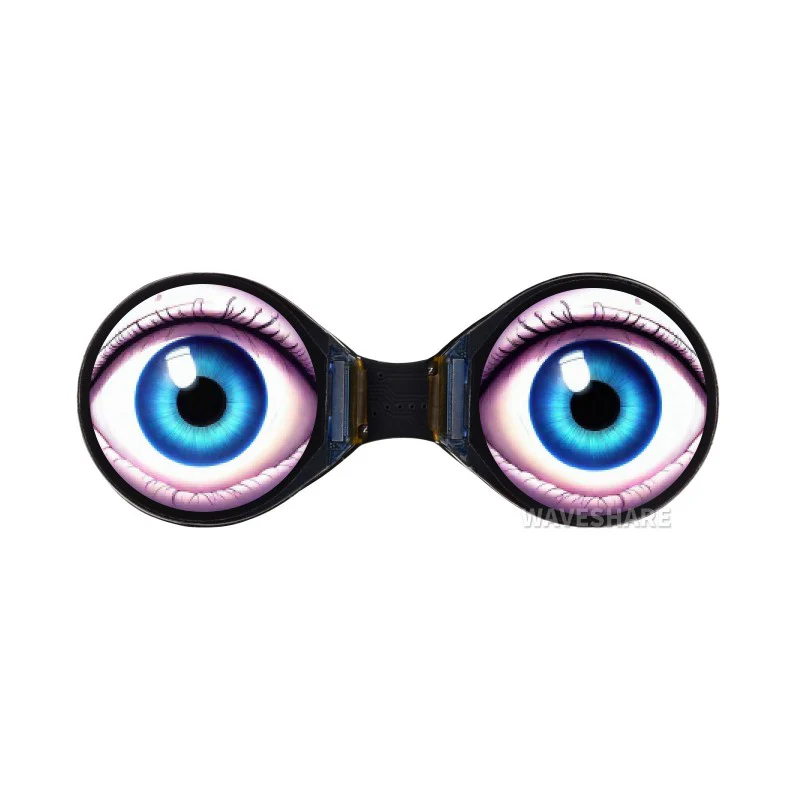

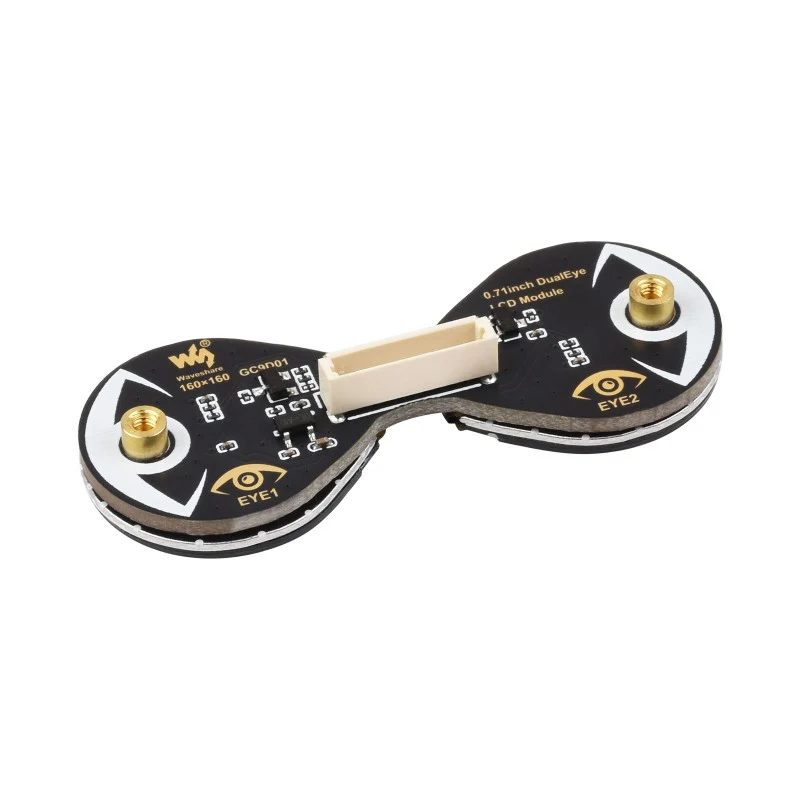

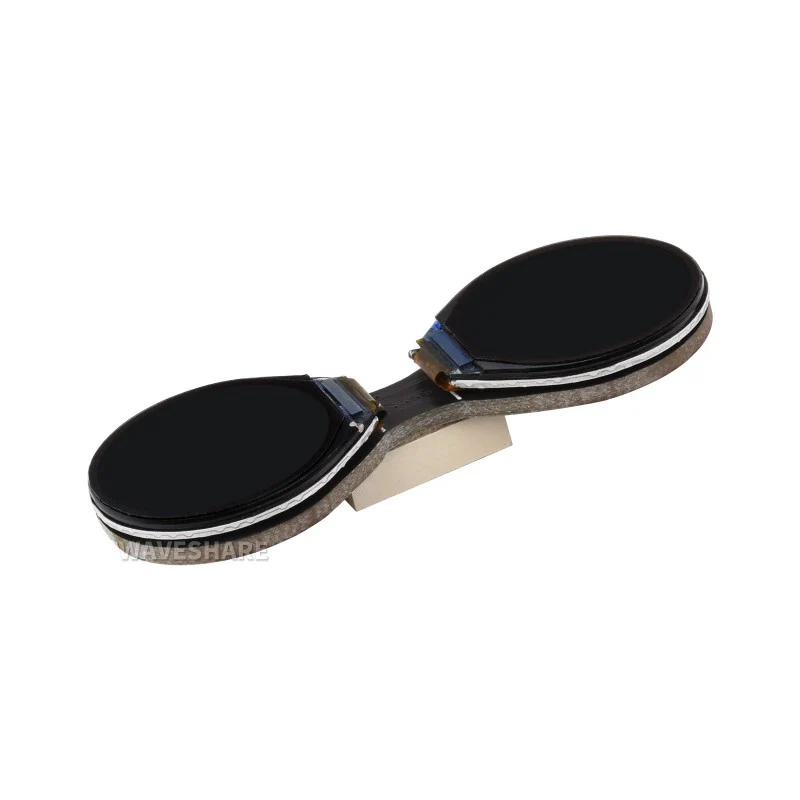

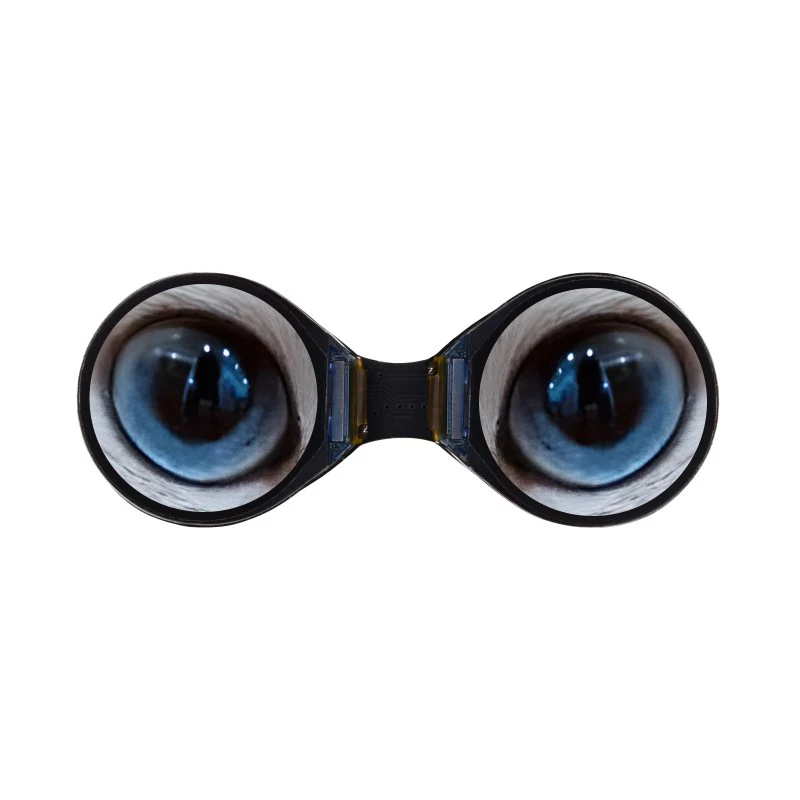

The double eye LCD module consists of two 0.71inch round LCD displays, IPS panel, wide viewing angle

160×160 resolution, 65K colors, clear and colorful displaying effect

SPI interface, minimizes required IO pins, supports controller boards like ESP32 / Arduino



Specifications

Specification	Details
Operating Voltage	3.3V / 5V
Resolution	160 × 160 pixels
Communication Interface	SPI
Display Size	18 × 18 mm
Display Panel	IPS
Pixel Pitch	37.5 × 112.5 μm
Driver	GC9D01
Module Dimensions	20.00 × 51.00 mm



Controlled via SPI Bus

Supports Controller Boards like ESP32 / Arduino



Outline Dimensions



Resources

Wiki: www.waveshare.com/wiki/0.71inch_DualEye_LCD_Module



Package Content

Weight: 0.011 kg

0.71inch DualEye LCD Module x1
SH1.0 11PIN cable x1
Convex lens (2pcs) x1
