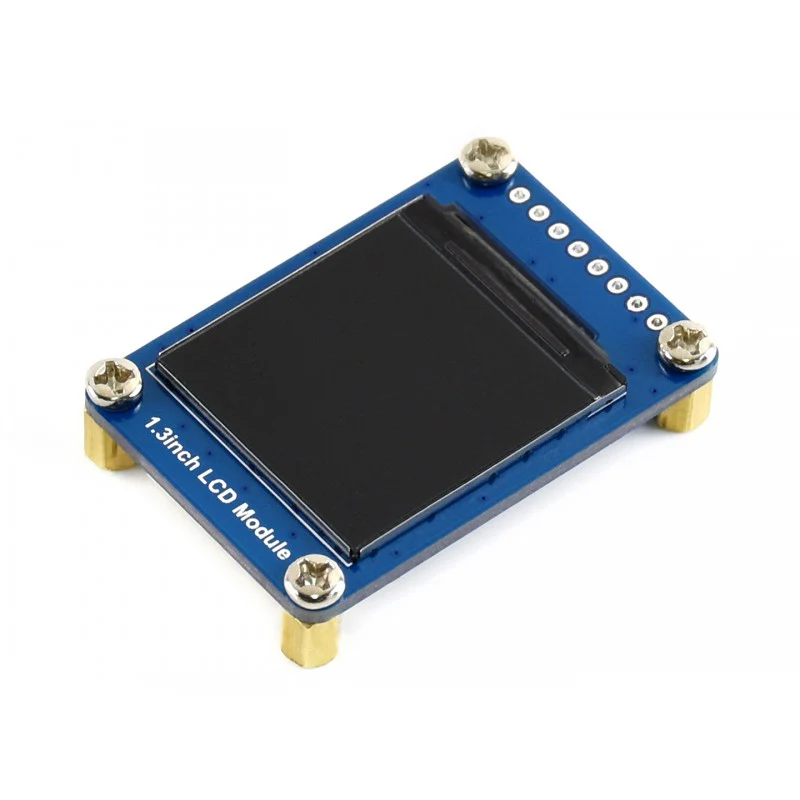

Waveshare 240x240 1.3inch IPS HD LCD display Module
1.3inch LCD Display Module, IPS Screen, 240x240 HD Resolution, SPI Interface
This is a general LCD display Module, IPS screen, 1.3inch diagonal, 240x240 HD resolution, with embedded controller, communicating via SPI interface.
Features:
- SPI interface, requires minimum GPIO for controlling
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications:
- Driver: ST7789
- Interface: SPI
- Display color: RGB, 65K color
- Resolution: 240x240
- Backlight: LED
- Operating voltage: 3.3V/5V
Interface
- VCC - 3.3V / 5V power input
- GND - Ground
- DIN - SPI MOSI pin
- CLK - SPI SCK pin
- CS - SPI chip selection, low active
- DC - Data/Command selection (high for data, low for command)
- RST - External reset, low active
- BL - Backlight
Outline Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/1.3inch_LCD_Module
