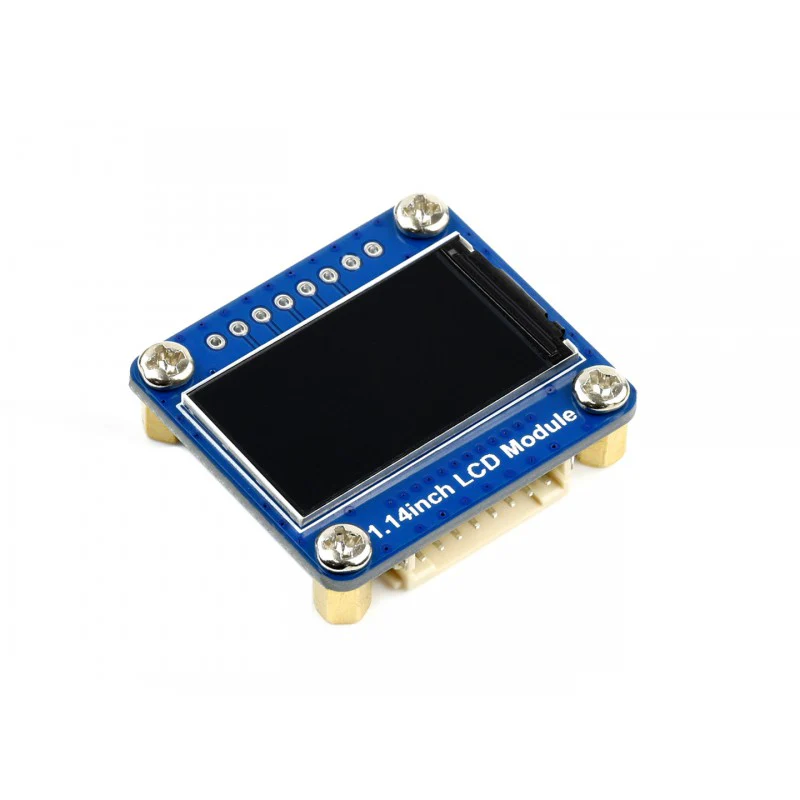

Waveshare 240×135, General 1.14inch LCD Display Module, IPS, 65K RGB

1.14inch LCD Display Module, IPS Screen, 65K RGB Colors, 240×135 Resolution, SPI Interface

Embedded ST7789 Driver, Using SPI Bus

Features:

• 240×135 resolution, 65K RGB colors, clear and colorful displaying effect
• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
• Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications:

• Operating voltage: 3.3V / 5V
• Interface: 3-wire SPI, 4-wire SPI
• Display Panel: IPS
• Driver: ST7789
• Resolution: 240 × 135 pixels
• Display Size: 24.91 × 14.86mm
• Pixel Size: 0.1101 × 0.1035mm
• Dimensions: 35.00 × 32.00mm

Interface

• VCC - 3.3V / 5V power input
• GND - Ground
• DIN - SPI MOSI pin
• CLK - SPI SCK pin
• CS - SPI chip selection, low active
• DC - Data/Command selection (high for data, low for command)
• RST - External reset, low active
• BL - Backlight

Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Arduino/STM32

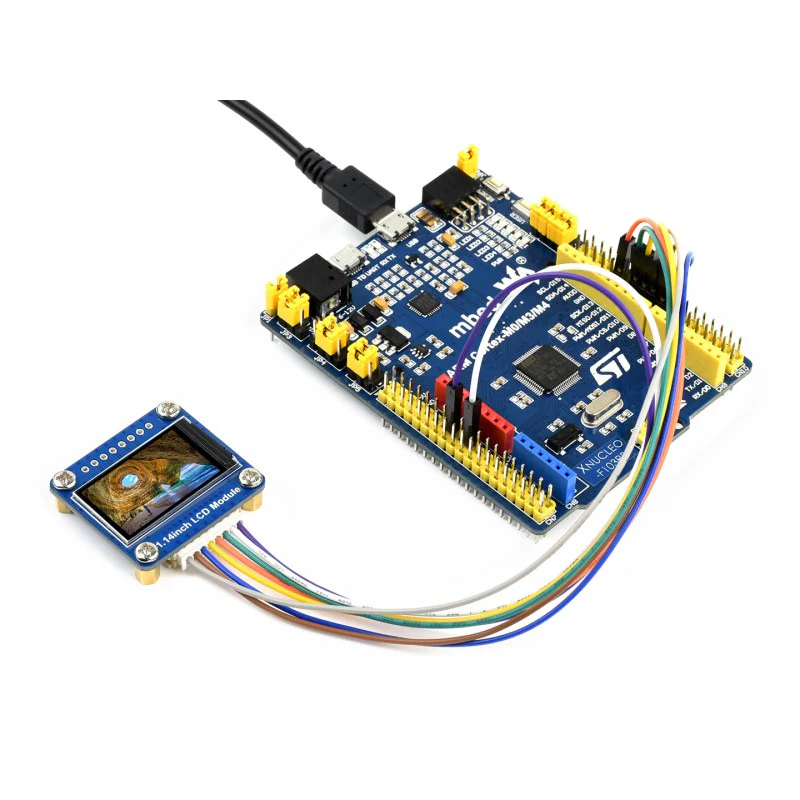

Hardware Connection
