Waveshare 1.51 inch Transparent OLED 128×64 Resolution SPI or I2C Interfaces

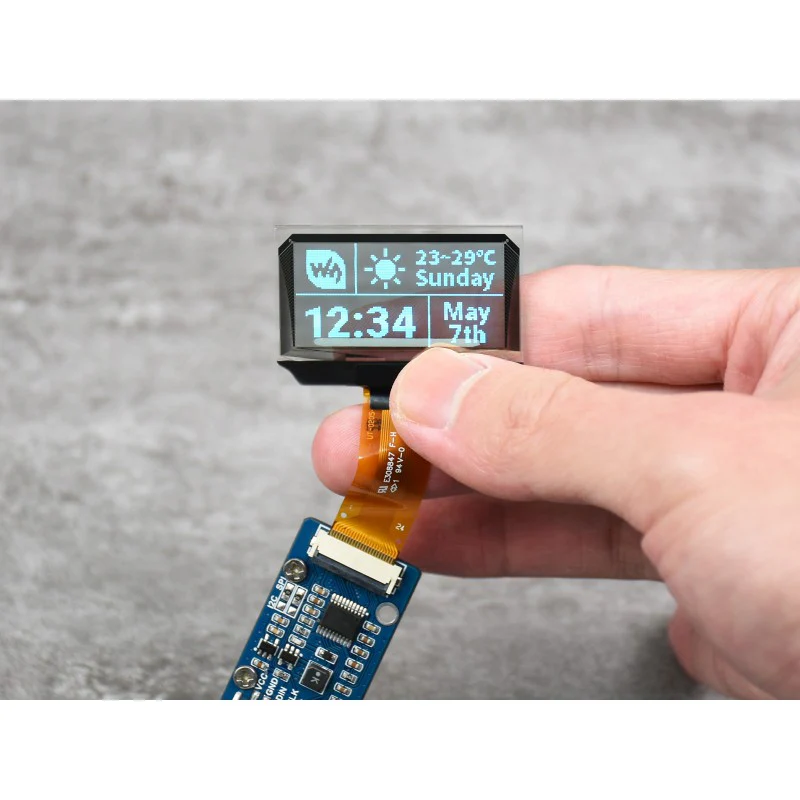

1.51inch Transparent OLED, 128×64 Resolution, SPI/I2C Interfaces, Light Blue Color Display
Embedded Independent Driver Chip, Using SPI/I2C Interfaces
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Features:
- OLED transparent module, full viewing angle
- Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications:
- Operating voltage: 3.3V / 5V
- Pixel Pitch: 0.274 × 0.274mm
- Interface: 4-wire SPI / I2C

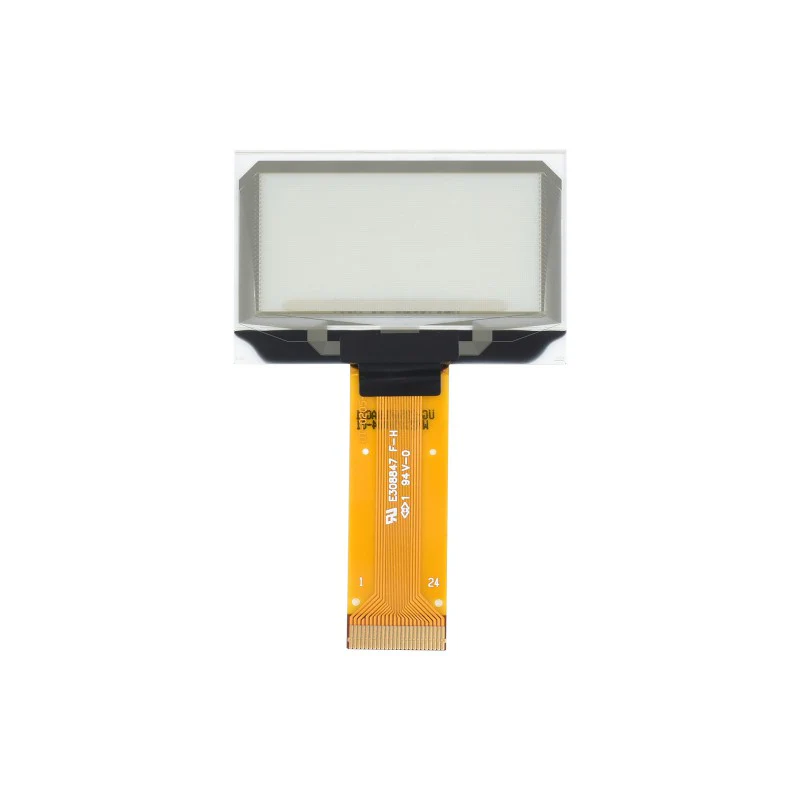

- Display Panel: OLED
- Driver: Embedded driver
- Resolution: 128 × 64 pixels
- Module Size: 42.04 × 27.22mm
- Display Size: 35.05 × 15.32 mm
- Pixel Size: 0.254 × 0.254 mm

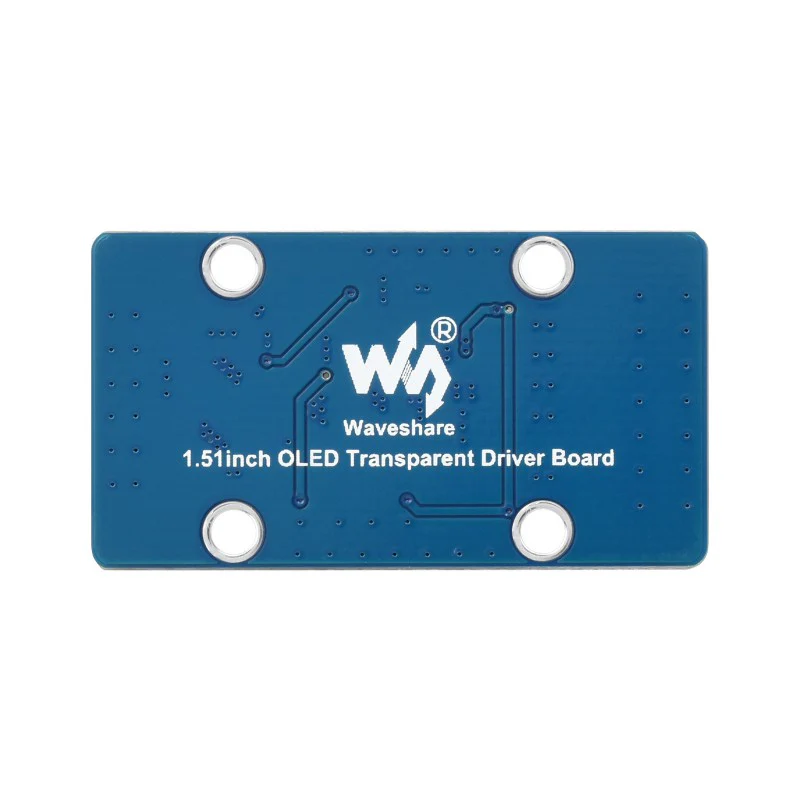

- Driver Board Size: 41 × 22.5 mm
SPI And I2C Control Interface Switching
Supports Controller Boards Like Raspberry Pi/Arduino/STM32
- VCC - 3.3V / 5V power input
- GND - Ground
- DIN - Data Input / SPI MOSI pin
- CLK - Clock / SPI SCK pin
- CS - SPI chip selection, low active
- DC - Data/Command selection (high for data, low for command)
- RST - External reset, low active
Outline Dimensions
Wiki: www.waveshare.com/wiki/1.51inch_Transparent_OLED
