1.69inch LCD Display Module - 240×280 IPS 262K Colors
1.69inch LCD Display Module
Embedded ST7789V2 Driver Chip, Using SPI Interface
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Size
1.69" |
Resolution
240×280 |
Display Color
262K |
Interface
SPI |
Display Panel
IPS |
Driver
ST7789V2 |
Features At A Glance

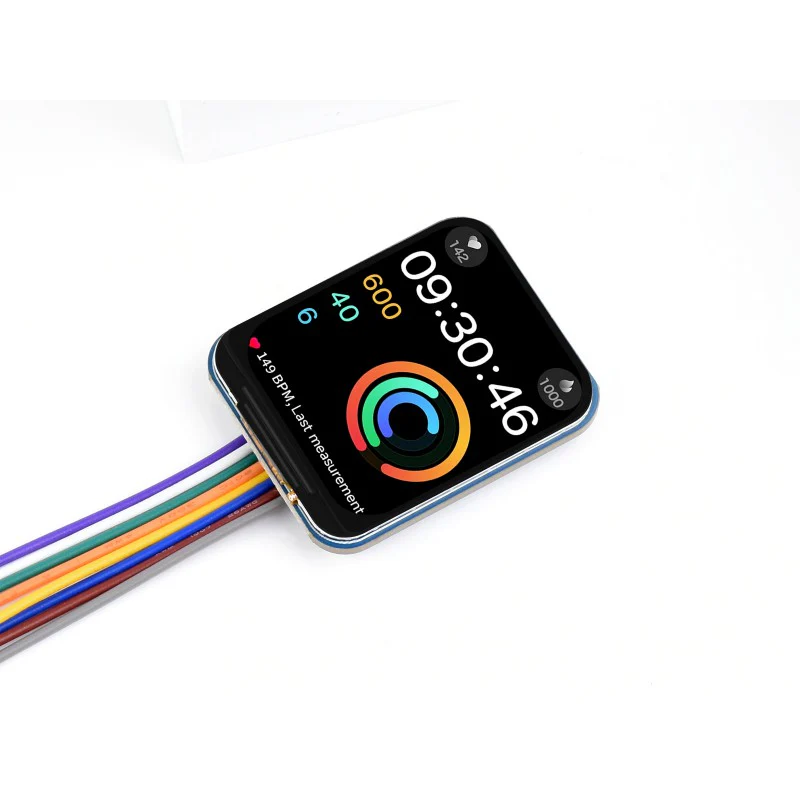

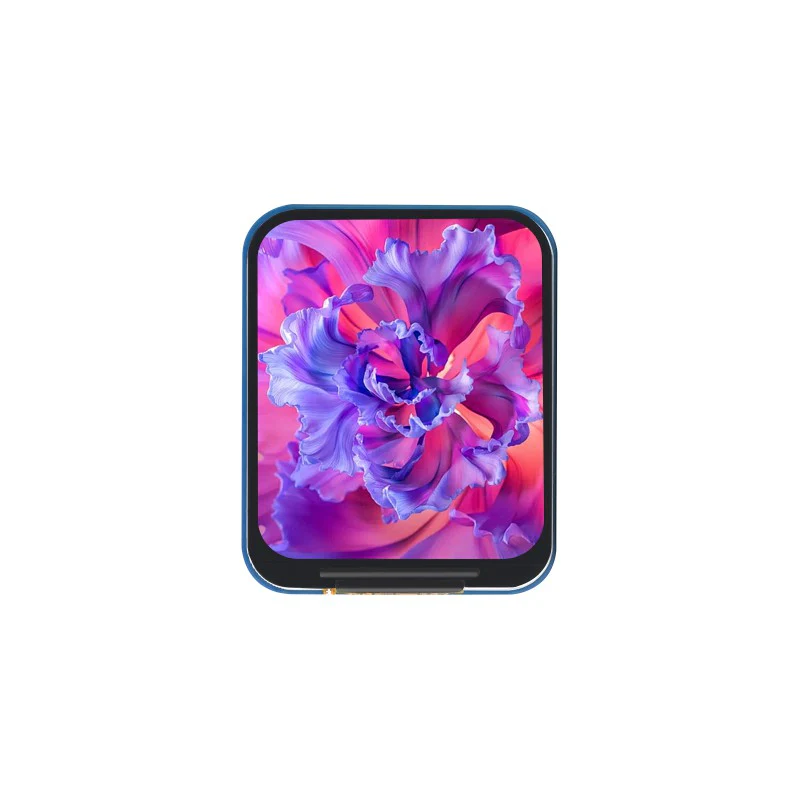

- 240×280 resolution, 262K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
| OPERATING VOLTAGE | 3.3V / 5V | RESOLUTION | 240 × 280 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 27.97 × 32.63mm |
| DISPLAY PANEL | IPS | PIXEL SIZE | 0.11655 × 0.11655mm |
| DRIVER | ST7789V2 | MODULE SIZE | 31.50 × 39.00mm |

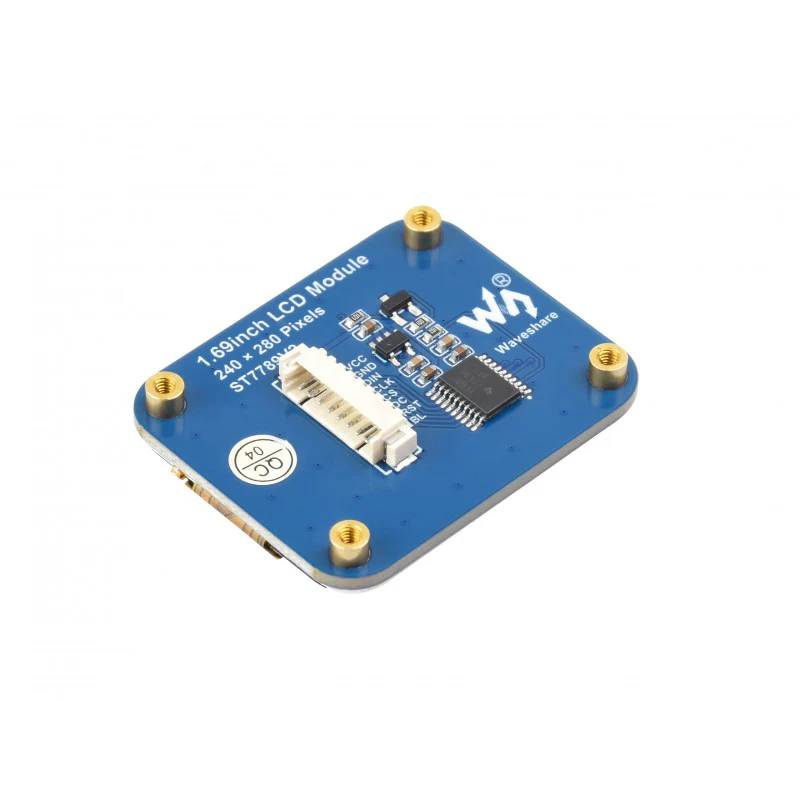

Onboard Voltage Translator
Compatible With 3.3V / 5V Power Input

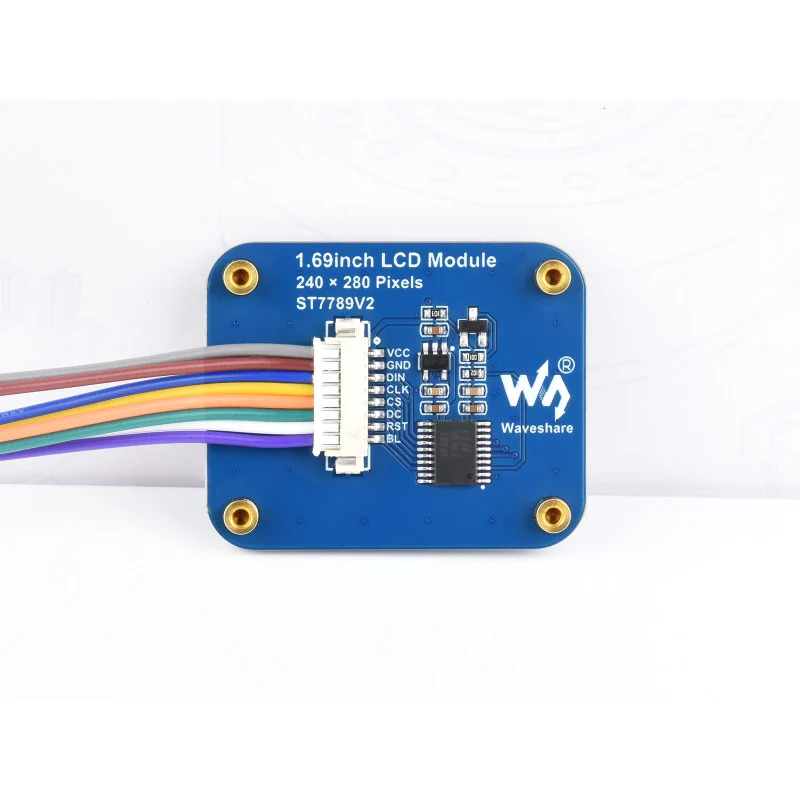

Onboard SPI Control Interface
For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

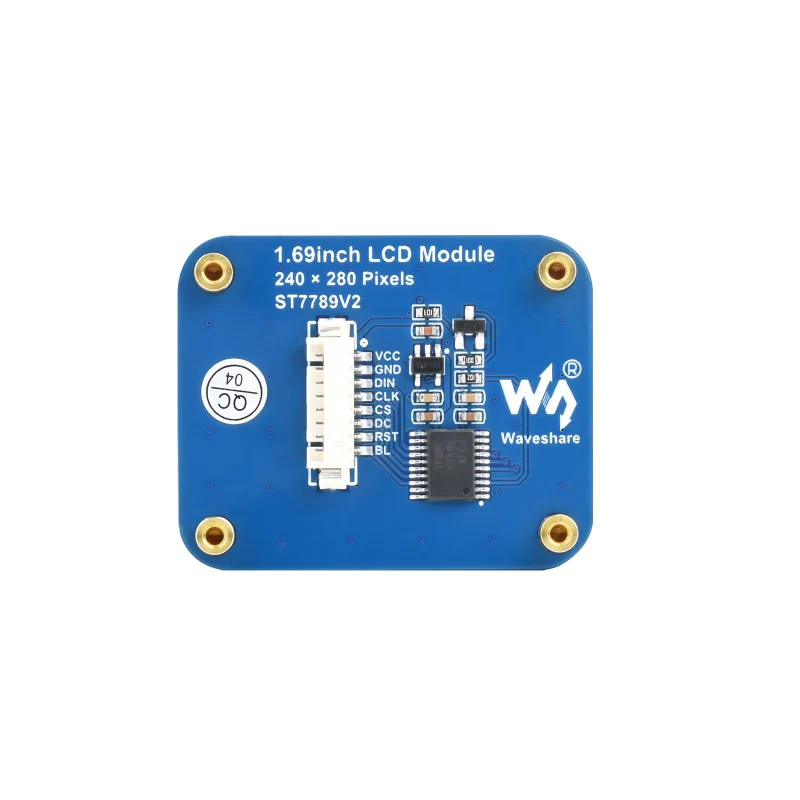

| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Hardware Connection
Connecting with Raspberry Pi
Connecting with Arduino board
Connecting with STM32
Dimensions
Resources
Wiki: www.waveshare.com/wiki/1.69inch_LCD_Module
Packing List
- 1.69inch LCD Module x1
- GH1.25 20cm 8Pin cable x1
