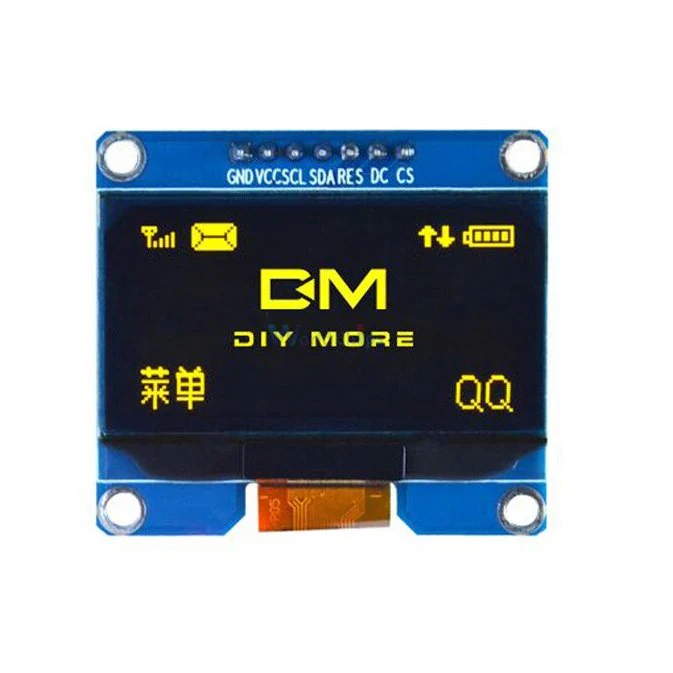

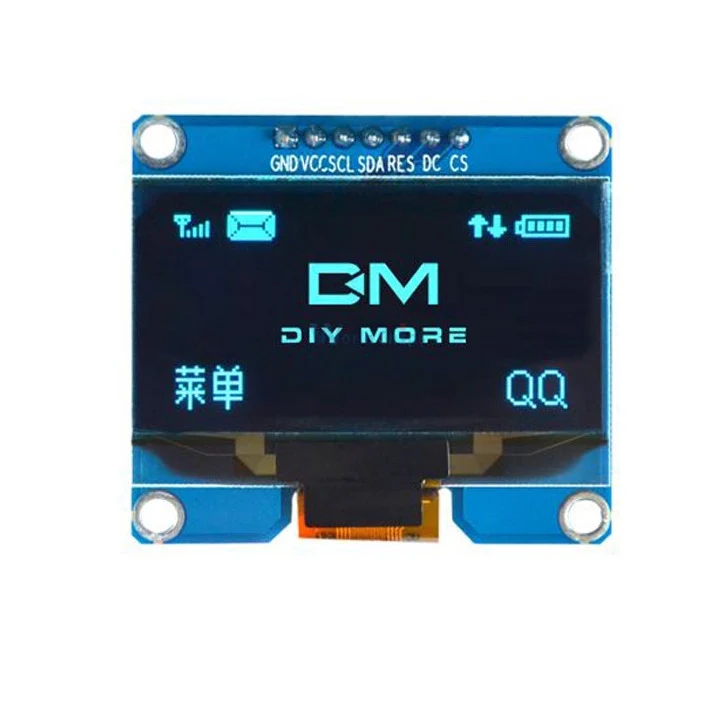

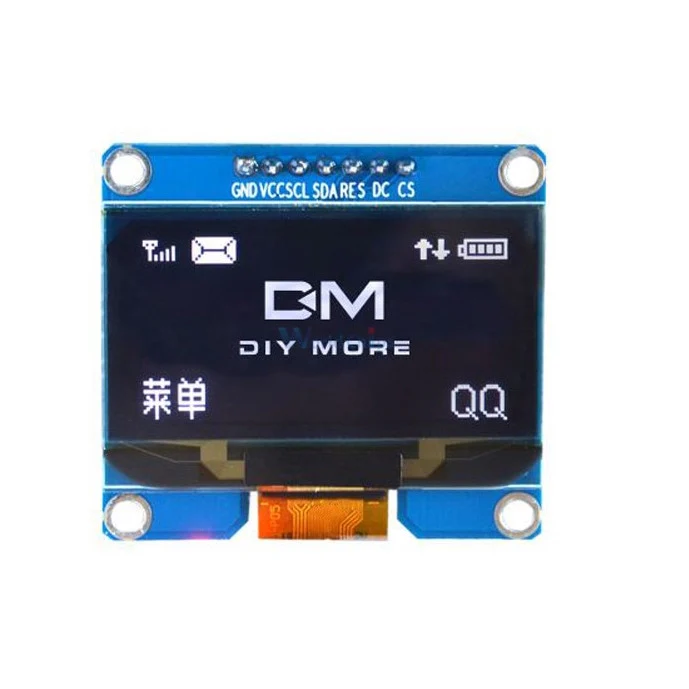

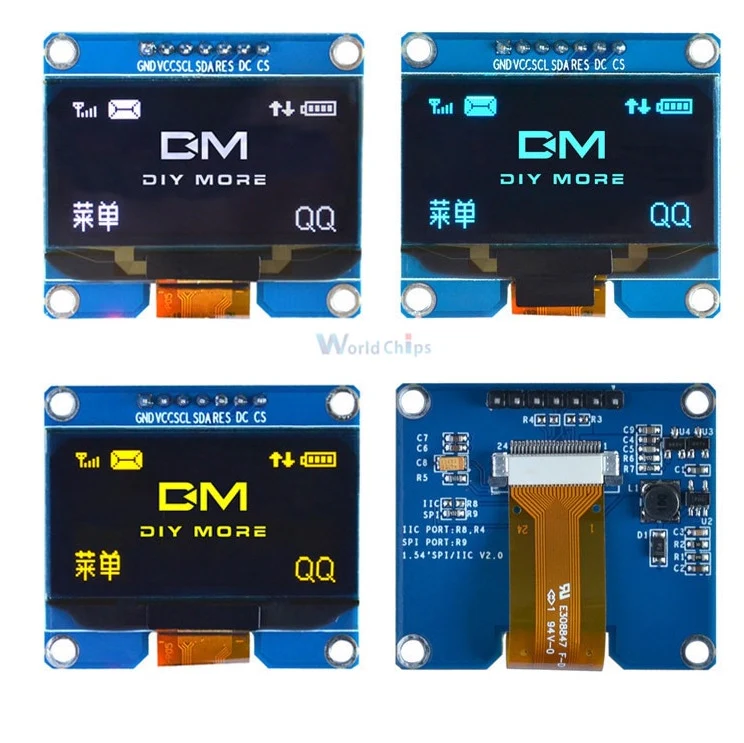

1.54" OLED Display Module (128 X 64)
This is a dot matrix 128x64 COG graphic type OLED module. The size of the active area is 1.54” diagonal with module dimension 42.04 x 27.22 mm.
This 1.54 inches OLED module has built-in IC SPD0301, and boasts high contrast ratio 10,000 : 1, operating in 7 Pin SPI format.
Product Introduction:
- Size: 1.54 inch
- Resolution: 128 X 64
- Display Color: Yellow/ Blue/ White
- Driving IC: SPD0301; compatible with SSD1309
- Voltage: 3.3V - 5V
SPI Interface Definition:
- Pin 1 - GND (power ground)
- Pin 2 - VCC (power positive)
- Pin 3 - CLK / SCL (clock)
- Pin 4 - MOSI / SDA (data)
- Pin 5 - RES (reset)
- Pin 6 - DC (data/command)
- Pin 7 - CS (chip selection, if not used, it can be directly connected with ground)
Package includes: 1x 1.54inch OLED Display Module SPI Interface 3.3-5V SSD1309 (Yellow/ Blue/ White)
Original: $10.58
-70%$10.58
$3.17
Description
This is a dot matrix 128x64 COG graphic type OLED module. The size of the active area is 1.54” diagonal with module dimension 42.04 x 27.22 mm.
This 1.54 inches OLED module has built-in IC SPD0301, and boasts high contrast ratio 10,000 : 1, operating in 7 Pin SPI format.
Product Introduction:
- Size: 1.54 inch
- Resolution: 128 X 64
- Display Color: Yellow/ Blue/ White
- Driving IC: SPD0301; compatible with SSD1309
- Voltage: 3.3V - 5V
SPI Interface Definition:
- Pin 1 - GND (power ground)
- Pin 2 - VCC (power positive)
- Pin 3 - CLK / SCL (clock)
- Pin 4 - MOSI / SDA (data)
- Pin 5 - RES (reset)
- Pin 6 - DC (data/command)
- Pin 7 - CS (chip selection, if not used, it can be directly connected with ground)
Package includes: 1x 1.54inch OLED Display Module SPI Interface 3.3-5V SSD1309 (Yellow/ Blue/ White)
