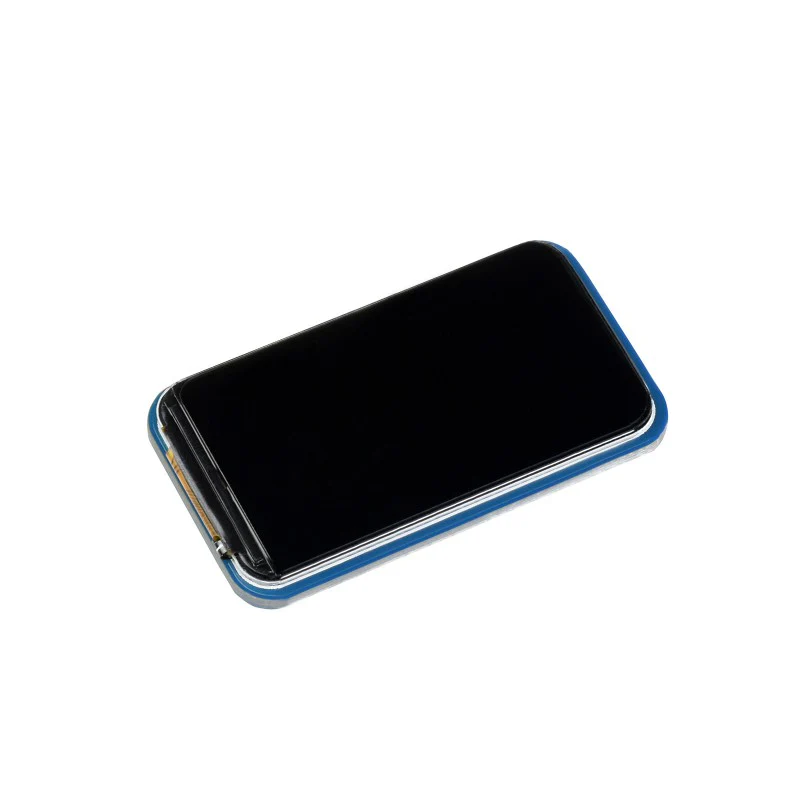

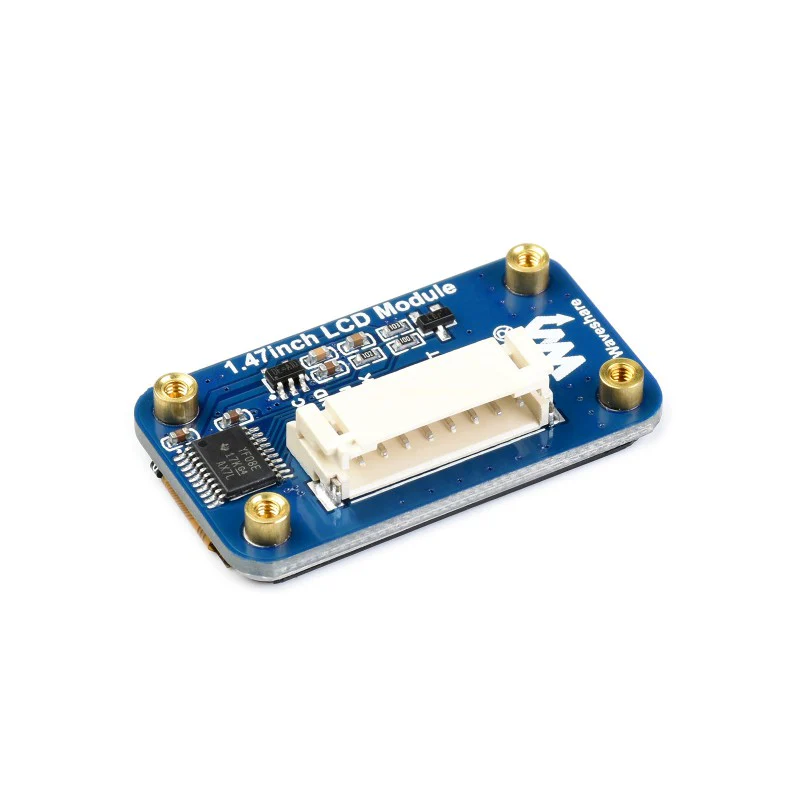

1.47inch LCD Display Module with 172x320 - Rounded Corners
1.47inch LCD Display Module, Rounded Corners, 172×320 Resolution, SPI Interface
Embedded ST7789V3 Driver, Using SPI Bus
Size
1.47" |
Resolution
172×320 |
Display Color
262K RGB |
Interface
SPI |
Driver
ST7789V3 |
Features:
- 172×320 resolution, 262K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Resources
Wiki: www.waveshare.com/wiki/1.47inch_LCD_Module
Specifications
| OPERATING VOLTAGE | 3.3V / 5V | RESOLUTION | 172 × 320 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 17.39 × 32.35mm |
| DISPLAY PANEL | IPS | PIXEL PITCH | 0.0337 × 0.1011mm |
| DRIVER | ST7789V3 | DIMENSIONS | 22.0 × 38.5mm |
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Arduino/STM32

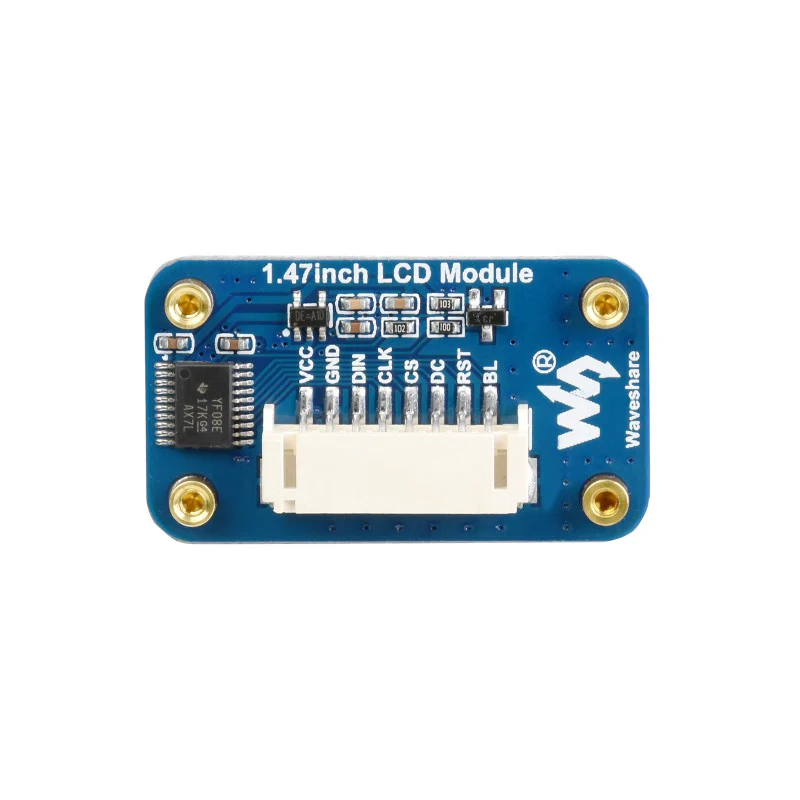

Hardware Connection

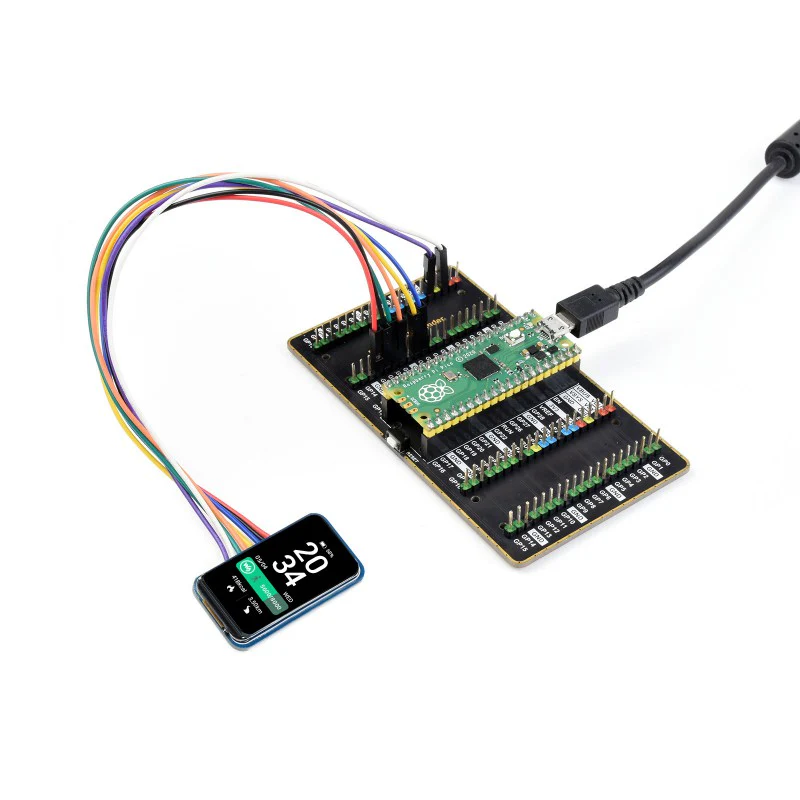

Connecting With Raspberry Pi
Connecting With Arduino Board

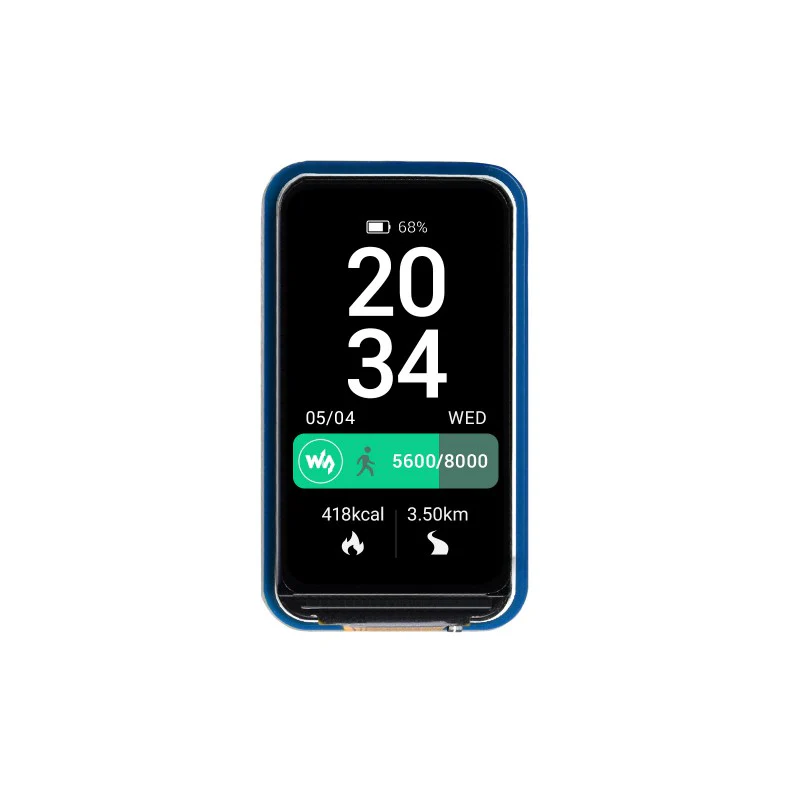

Usage Example
Dimensions
Package Contents
- Weight: 0.012 kg
- 1.47inch LCD Module x1
- PH2.0 8PIN cable x1
$11.64
