1.28 inch Round LCD with RP2040 MCU Board
1.28inch Round LCD, Accelerometer And Gyroscope Sensor
Based on Raspberry Pi RP2040
RP2040-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.
Salient Features:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
- Lithium battery recharge/discharge header, suitable for mobile devices
- All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Resources
Wiki: www.waveshare.com/wiki/RP2040-LCD-1.28
C/C++, MicroPython Support
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
30 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

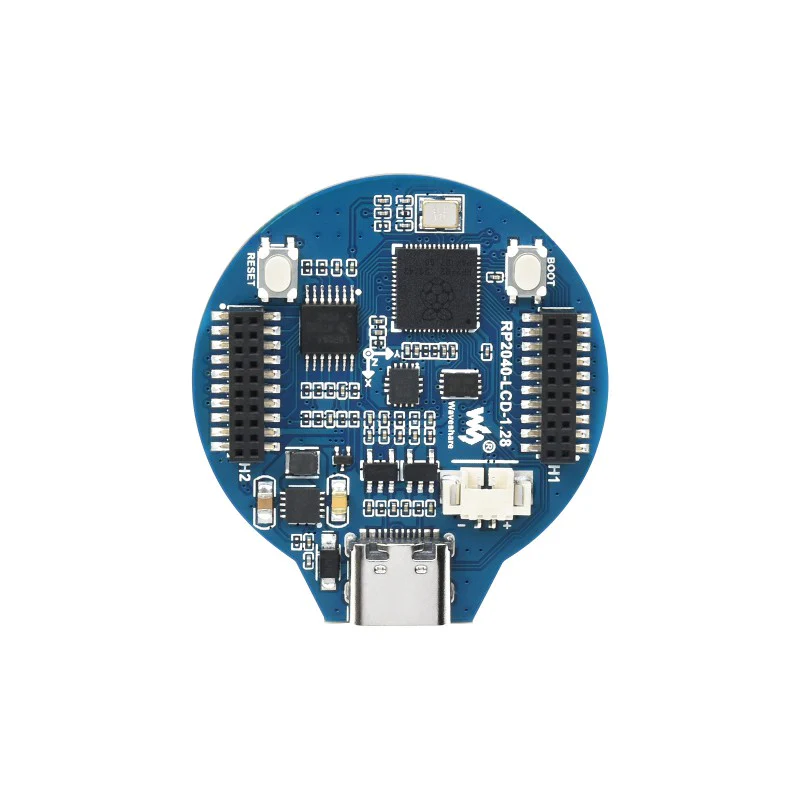

What's On Board
-
USB Type-C connector
USB 1.1 with device and host support -
ETA6096
high efficiency Lithium battery recharge manager -
Battery Header
MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time -
QMI8658C
IMU, includes a 3-axis gyroscope and a 3-axis accelerometer -
1.27mm pitch headers
Adapting all GPIO and Debug pins -
W25Q16JVUXIQ
2MB NOR-Flash -
RP2040
Dual-core processor, up to 133MHz operating frequency - RESET Button
-
BOOT Button
press it when resetting to enter download mode
Dimensions
$21.70
1.28 inch Round LCD with RP2040 MCU Board—
$21.70
Description
1.28inch Round LCD, Accelerometer And Gyroscope Sensor
Based on Raspberry Pi RP2040
RP2040-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.
Salient Features:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
- Lithium battery recharge/discharge header, suitable for mobile devices
- All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Resources
Wiki: www.waveshare.com/wiki/RP2040-LCD-1.28
C/C++, MicroPython Support
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
30 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration
What's On Board
-
USB Type-C connector
USB 1.1 with device and host support -
ETA6096
high efficiency Lithium battery recharge manager -
Battery Header
MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time -
QMI8658C
IMU, includes a 3-axis gyroscope and a 3-axis accelerometer -
1.27mm pitch headers
Adapting all GPIO and Debug pins -
W25Q16JVUXIQ
2MB NOR-Flash -
RP2040
Dual-core processor, up to 133MHz operating frequency - RESET Button
-
BOOT Button
press it when resetting to enter download mode
