0.85inch LCD Display Module, IPS Panel, 128×128 Resolution

0.85inch LCD Display Module

Embedded GC9107 Driver, Using SPI Bus

Comes with examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series

Size 0.85"

Resolution 128×128

Display Color 65K RGB

Interface SPI



Features at a glance

128×128 resolution, 65K RGB colors, clear and colorful displaying effect

SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series

Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)



Specifications

Specification	Details
Operating Voltage	3.3V
Resolution	128 × 128 pixels
Communication Interface	4-wire SPI
Display Size	15.21 × 15.21 mm
Display Panel	IPS
Pixel Pitch	39.6 × 118.8 µm
Driver	GC9107
Dimensions	19.0 × 22.5 mm



Controlled via SPI Bus

supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series



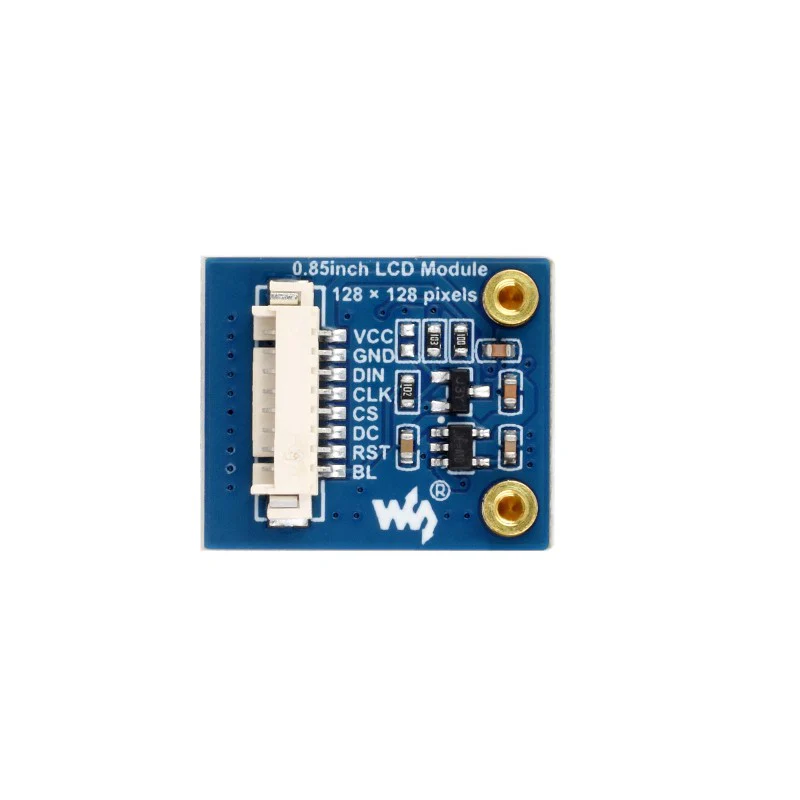

Hardware Connection

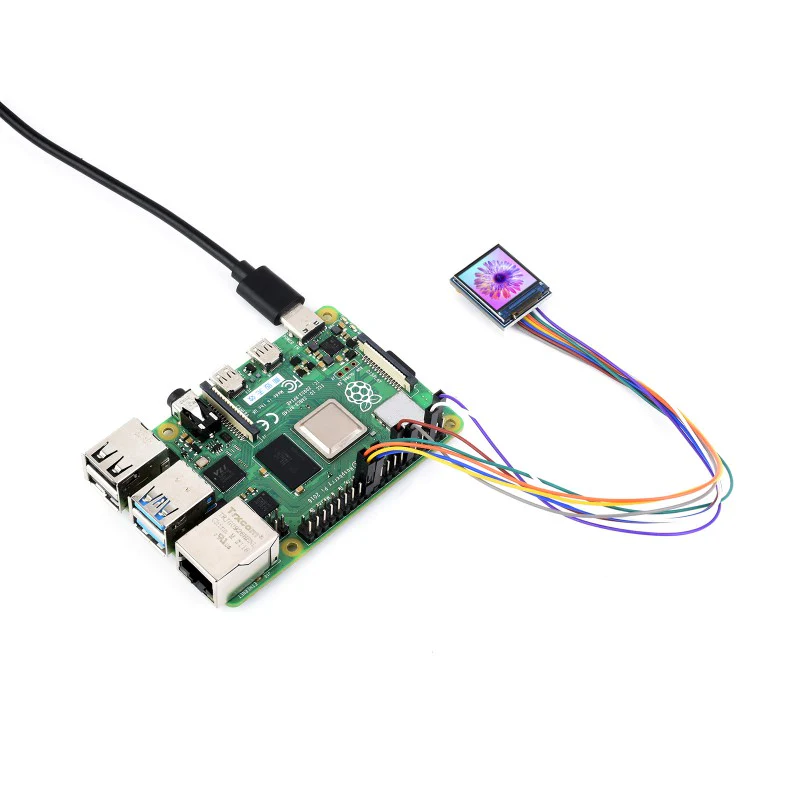

connecting with Raspberry Pi



connecting with Arduino board



connecting with STM32



Usage Example

* For reference only, please refer to the Package Content for the detailed part list.



Product Show



Outline Dimensions



Resources

Wiki: www.waveshare.com/wiki/0.85inch_LCD_Module



Package Content

Weight: 0.013 kg

0.85inch LCD Module x1
MX1.25 8PIN cable x1
