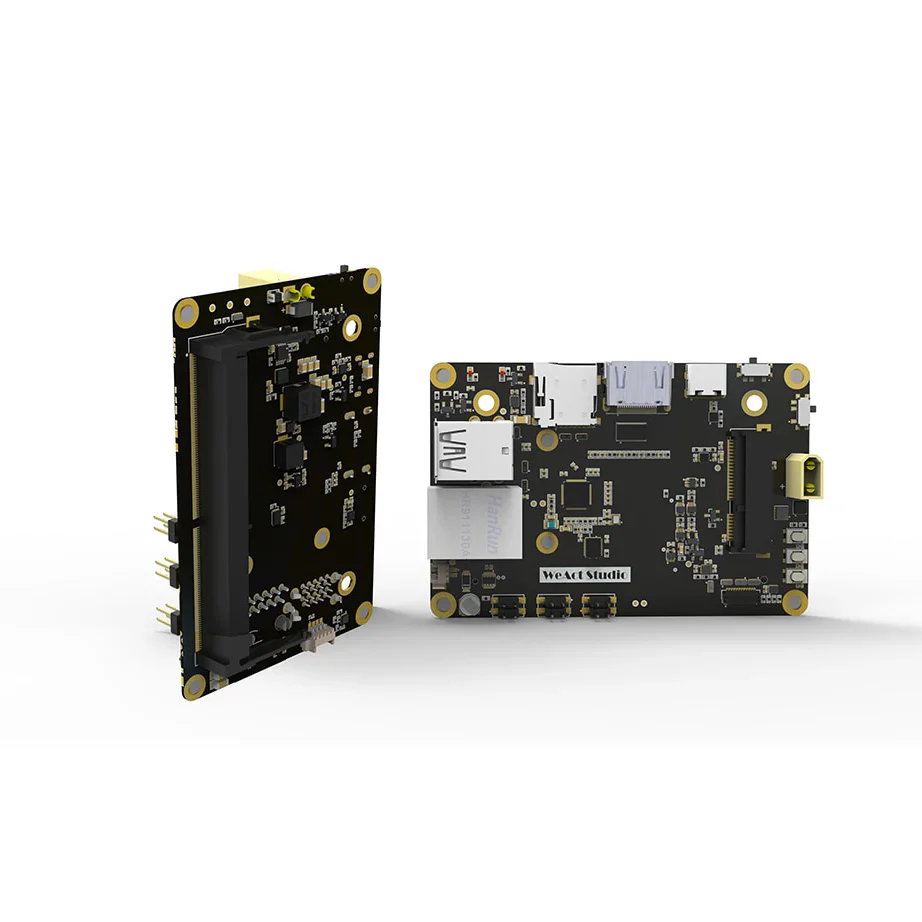

WeAct Jetson NANO / Xavier NX / TX2 NX Compact Carrier Board
The carrier board from WeAct Studio meets the requirements set by the Xavier NX, TX2 NX and Nano modules, including wide voltage input range, a variety of interfaces, low power consumption, power protection and a host of other features.
- Suitable for NVIDIA Jetson Nano, Xavier NX and TX2 NX Modules
- Input Voltage: 7V ~ 26V
- Maximum Power Consumption: 25W
- Operating Temperature: 0℃ ~ 70 ℃
- Size: 90mm X 60mm X 24mm
- Weight: 58g
- Interfaces: USB3.0 x2, USB2.0 x2, USB_OTG x1, MicroSD x1, MiniPCIE x1, HDMI x1, CAN x1 (Xavier NX, TX2 NX), MIPI CSI x2, Giga Ethernet x1, 3.3V UART x2, 3v3 GPIO x2
- Additional Functions:
- Supports Auto Boot/ Sleep/ Shutdown on Long Press
- Supports OPP / OVP / OCP Protection
- Supports Peripheral power protection / full interface ESD protection
- Discharge circuit
- Supports Onboard PCIe Wireless Wifi / 4G Network Card
- User Manual at https://github.com/WeActTC/Nano_TX2-Xavier_NX-CB
$49.21
Original: $164.04
-70%WeAct Jetson NANO / Xavier NX / TX2 NX Compact Carrier Board—
$164.04
$49.21
Description
The carrier board from WeAct Studio meets the requirements set by the Xavier NX, TX2 NX and Nano modules, including wide voltage input range, a variety of interfaces, low power consumption, power protection and a host of other features.
- Suitable for NVIDIA Jetson Nano, Xavier NX and TX2 NX Modules
- Input Voltage: 7V ~ 26V
- Maximum Power Consumption: 25W
- Operating Temperature: 0℃ ~ 70 ℃
- Size: 90mm X 60mm X 24mm
- Weight: 58g
- Interfaces: USB3.0 x2, USB2.0 x2, USB_OTG x1, MicroSD x1, MiniPCIE x1, HDMI x1, CAN x1 (Xavier NX, TX2 NX), MIPI CSI x2, Giga Ethernet x1, 3.3V UART x2, 3v3 GPIO x2
- Additional Functions:
- Supports Auto Boot/ Sleep/ Shutdown on Long Press
- Supports OPP / OVP / OCP Protection
- Supports Peripheral power protection / full interface ESD protection
- Discharge circuit
- Supports Onboard PCIe Wireless Wifi / 4G Network Card
- User Manual at https://github.com/WeActTC/Nano_TX2-Xavier_NX-CB
