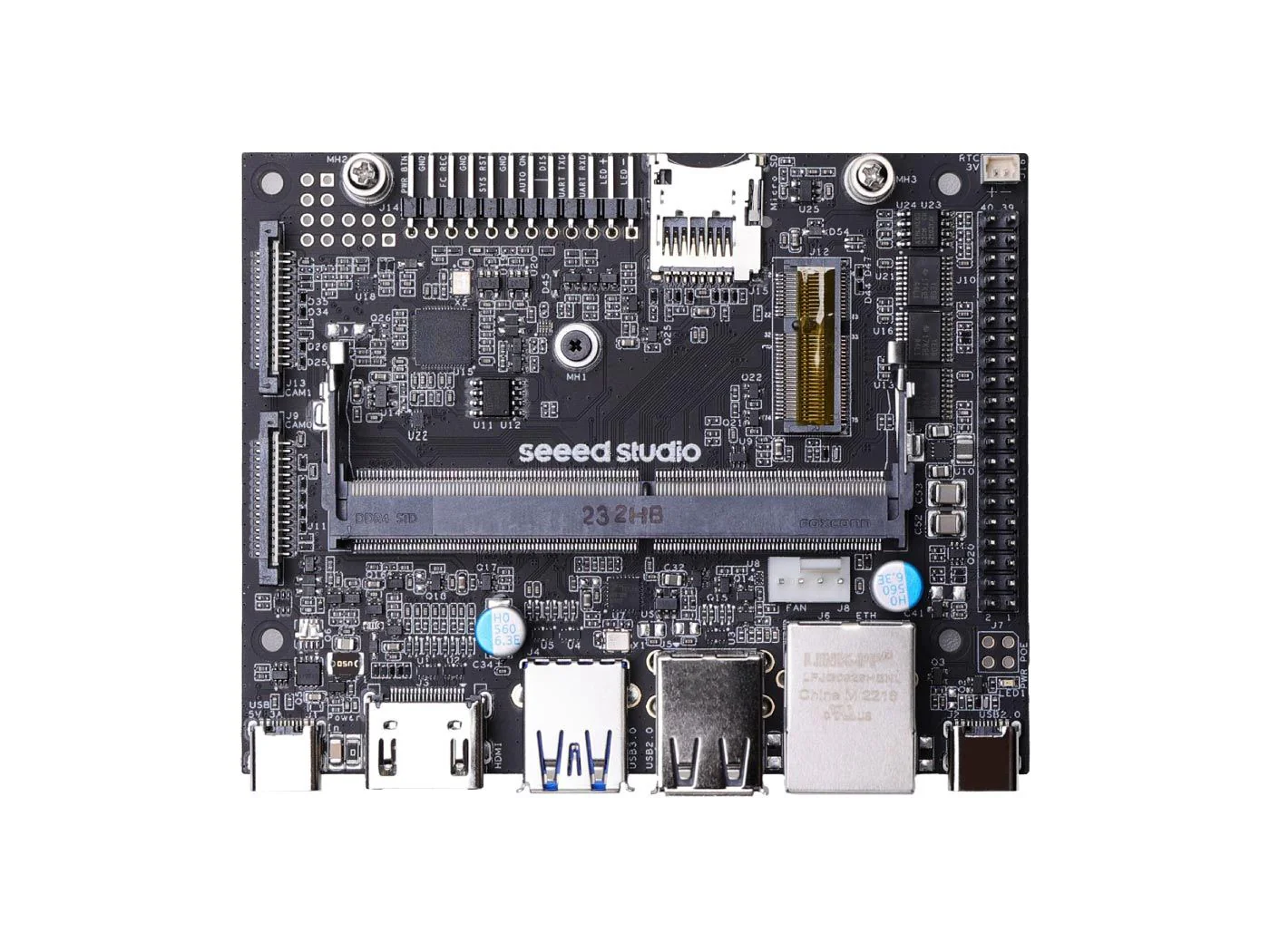

J101 Jetson Nano Carrier Board
The J101 carrier board is a cost-effective and interface-rich NVIDIA Jetson Nano compatible carrier board. It included HDMI2.0, 2x USB 2.0, 1x USB 3.0, micro SD card slot, 2 xCSI, M.2 key E WIFI / BT, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces. It has nearly the same functional design and exactly the same size as the carrier board of NVIDIA® Jetson Nano™ B01.
If you are looking for a fully assembled Jetson Nano Developer Kit (B01), click here!

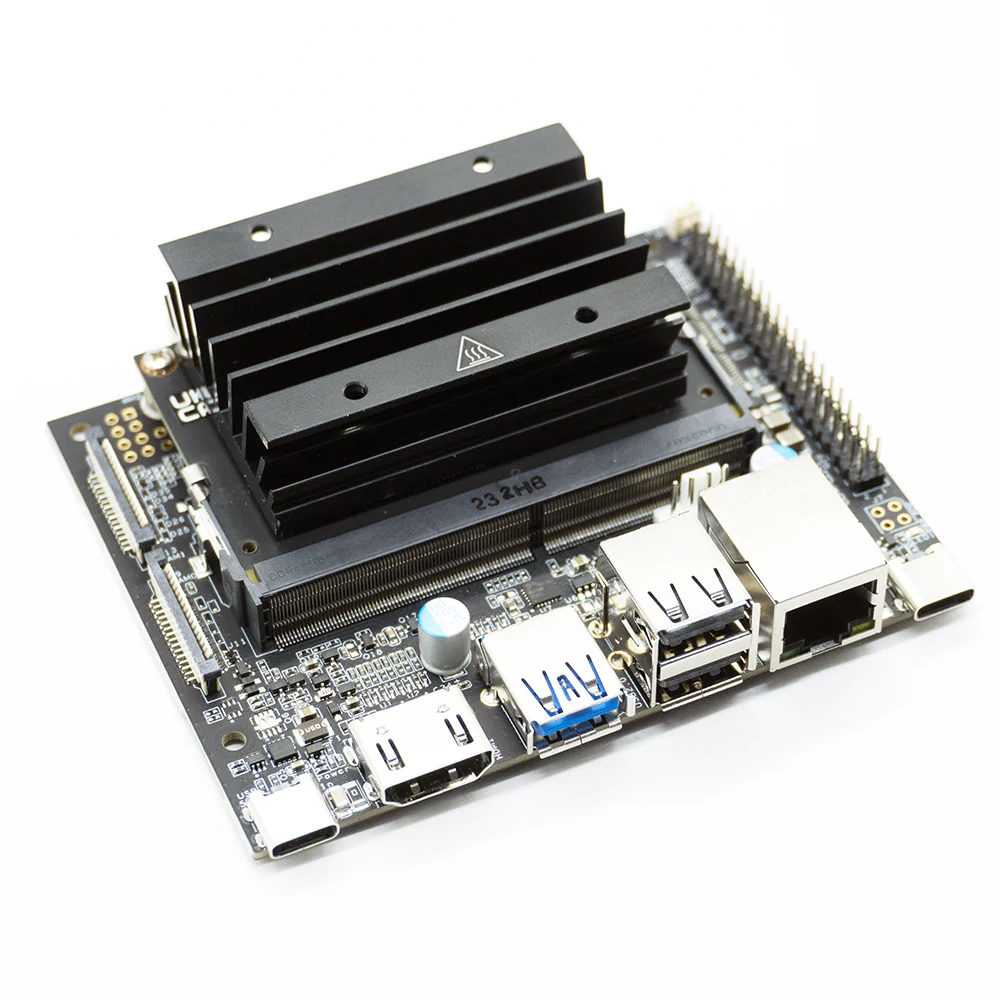

Jetson Nano Module and Heatsink are not included. For reference only.
Features
- Perfectly suited: Design for Jetson Nano Module (260-pin SODIMM).
- Dev Kit carrier board alternative: 1:1 matches the size and nearly the same functional design as the carrier board of Nvidia’s official Nano Developer kit.
- Expandable storage: SD card slot for storage expansion of Nano module (16GB eMMC).
- Rich peripherals: Higher performance stability consists of USB 3.0, USB 2.0 ports, M.2 key E for WIFI, RTC, Raspberry Pi GPIO 40-pin, and so on.
- Super cost-effective: Suitable for the good start and quick evaluation of AI applications.
- Comes in 3D Printed Case as an option.
- Comprehensive certificates: FCC, CE, RoHS, KC.
Functionality
Working with NVIDIA Jetson Nano module, powered by NVIDIA Maxwell with 128 NVIDIA CUDA® cores, it's ready to bring the power of modern AI to everyone: makers, learners, and embedded developers.
With the NVIDIA Jetson Nano module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for running multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing.
Edge AI Applications
Working with Jetson Nano module, reComputer J101 is ready to bring modern AI power to real-world applications such as image recognition, object detection, pose estimation, video processing, and many more. Check out the following application example with tutorials!
-
Pedestrian detection by Edge Impulse
-
Hard hat detection and build custom PPE detection
-
Pose Estimation with alwaysAI
-
Visual anomaly detection using NVIDIA Deepstream IoT
-
Retail store items detection
-
Wildfire detection
-
Animal detection
Find in the Jetson Community Resources page tools and tutorials the community has created to power your development experience, and check out the Community Projects page to inspire your next project!
Specifications:
- Module Compatibility: Jetson Nano series

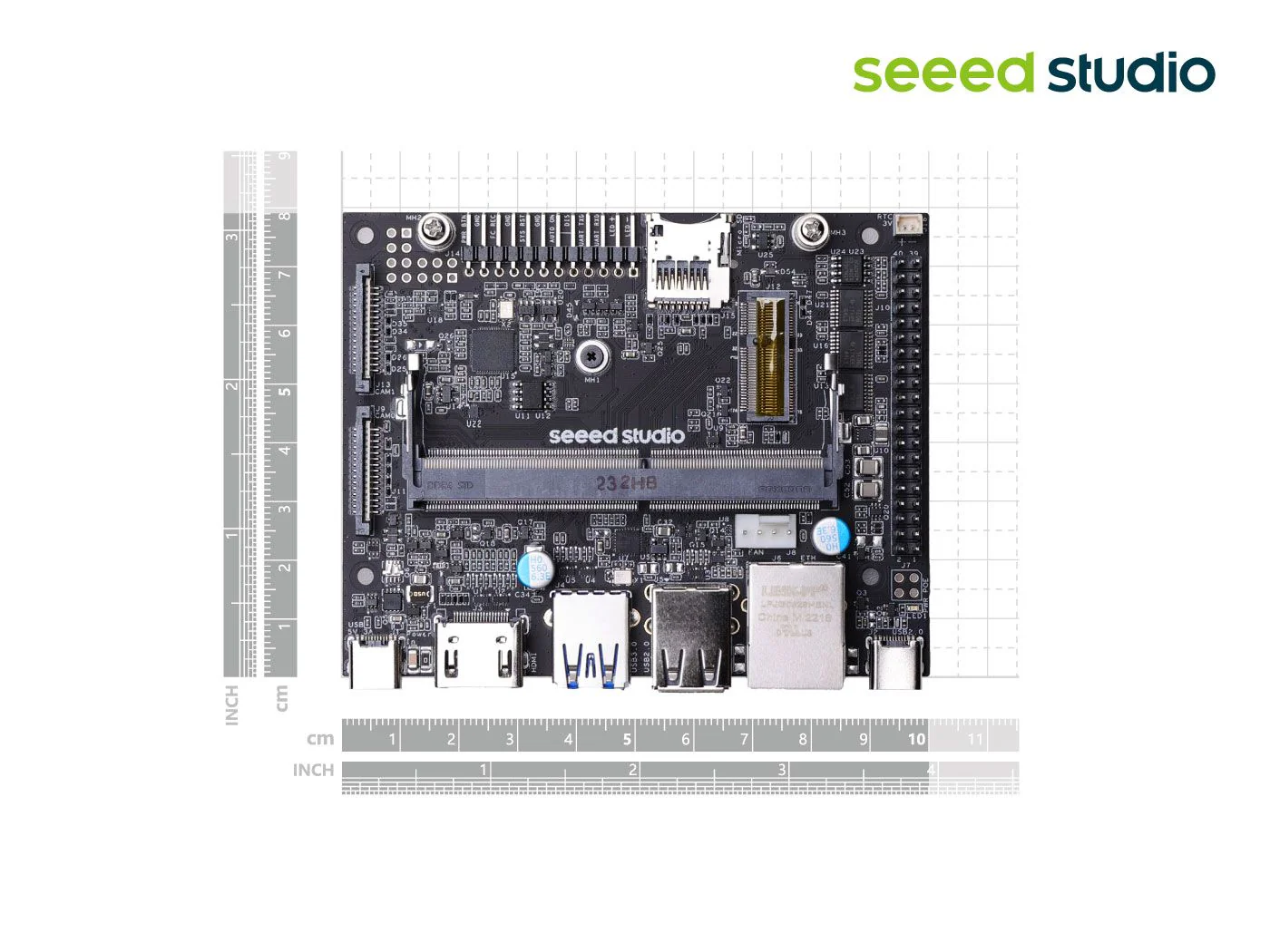

- PCB Size / Overall Size: 100mm X 80mm
- Display: 1x HDMI and 1x DP
- CSI Camera: 2
- Ethernet: 1x Gigabit Ethernet (10/100/1000M)
- USB: 1x USB Type-C (Power In); 1x USB 3.0 Type-A (5 Gbps); 2x USB 2.0 Type-A; 1x USB Type-C (Device mode)
- Micro SD card: 1x Micro SD card slot (48MHz CLK Frequency)
- M.2 Key E
- FAN: 1x fan connector
- Multifunctional Port: 1x 40-Pin, 1x 12-Pin
- RTC: RTC 2-pin, RTC socket(reserved)
- Power supply: 5V/3A(USB Type C)
Comparison with NVIDIA Nano series Dev kits carrier board:
Original: $88.37
-70%$88.37
$26.51
