Environment Sensors Module for Jetson Nano

Environment Sensors Module Designed For Jetson Nano, I2C Bus, With 1.3inch OLED Display

This environment sensors module gives Jetson Nano Developer Kit the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation

Features

• Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light.
• Onboard BME280 sensor, for measuring temperature, humidity, and air pressure.
• Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer.
• Onboard Si1145 sensor, for measuring IR/UV rays.
• Onboard SGP40 sensor, for detecting ambient VOC.
• Onboard 1.3inch OLED display, for displaying environment data in real time.
• I2C bus, allows reading and displaying data by just using two wires.
• Comes with development resources and user manual (python examples).

Parameter

TSL25911FN DIGITAL AMBIENT LIGHT SENSOR
I2C address	0x29
Effective range	0~88000Lux
BME280 TEMPERATURE, HUMIDITY, AND AIR PRESSURE SENSOR
I2C address	0x76
Temperature detection	-40 ~ 85℃ (0.01℃ resolution, ±1℃ accuracy)
Humidity detection	0~100%RH (0.008%RH resolution, ±3%RH accuracy, 1s response time, ≤2%RH delay)
Air pressure detection	300~1100hPa (0.18Pa resolution, ±1hPa accuracy)
ICM20948 MOTION SENSOR (9-DOF: 3-AXIS ACCELEROMETER, 3-AXIS GYROSCROPE, 3-AXIS MAGNETOMETER)
I2C address	0x68
Accelerometer resolution	16-bit
Accelerometer range (configurable)	±2, ±4, ±8, ±16g
WCDMA	B1, B3, B5, B8
Gyroscope resolution	16-bit
Gyroscope range (configurable)	±250, ±500, ±1000, ±2000°/sec
Magnetometer resolution	16-bit
Magnetometer range	±4900µT
SI1145 IR/UV SENSOR
I2C address	0x60
Response wavelength	280nm - 950nm
SGP40 VOC SENSOR
I2C address	0x59
Measuring range	0 ~ 1,000 ppm ethanol equivalent
Limit condition	< 0.05 ppm ethanol equivalent OR < 10 % preset concentration point (the larger one should prevail)
Response time	< 10 s (tau 63 %)
Start time	< 60 s
On-chip humidity compensation support
OLED DISPLAY
I2C address	0x3C
Driver IC	SH1106
Resolution	128x64
Display color	blue

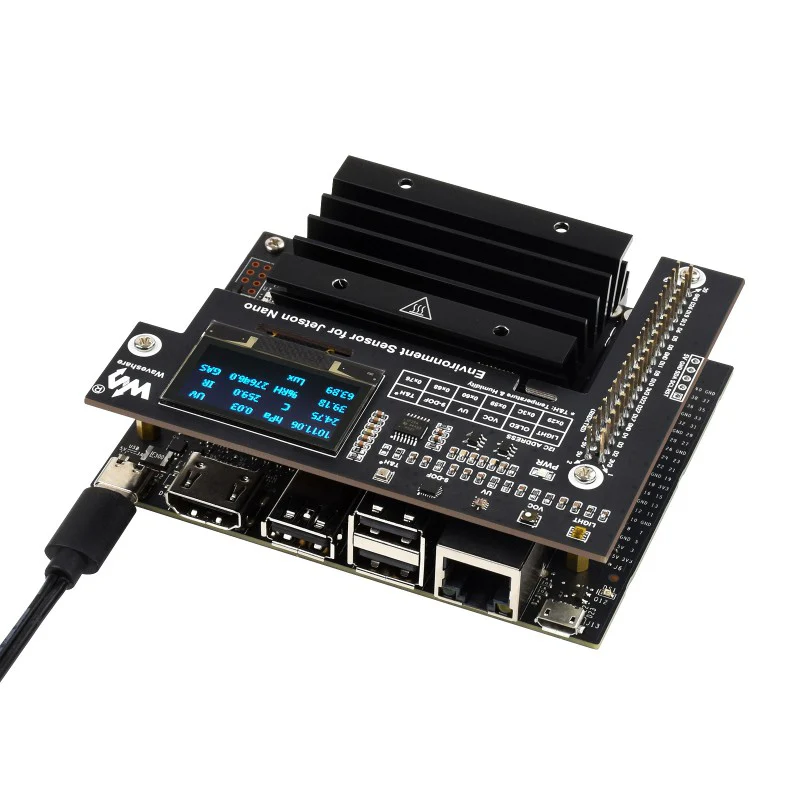

Tailored For Jetson Nano



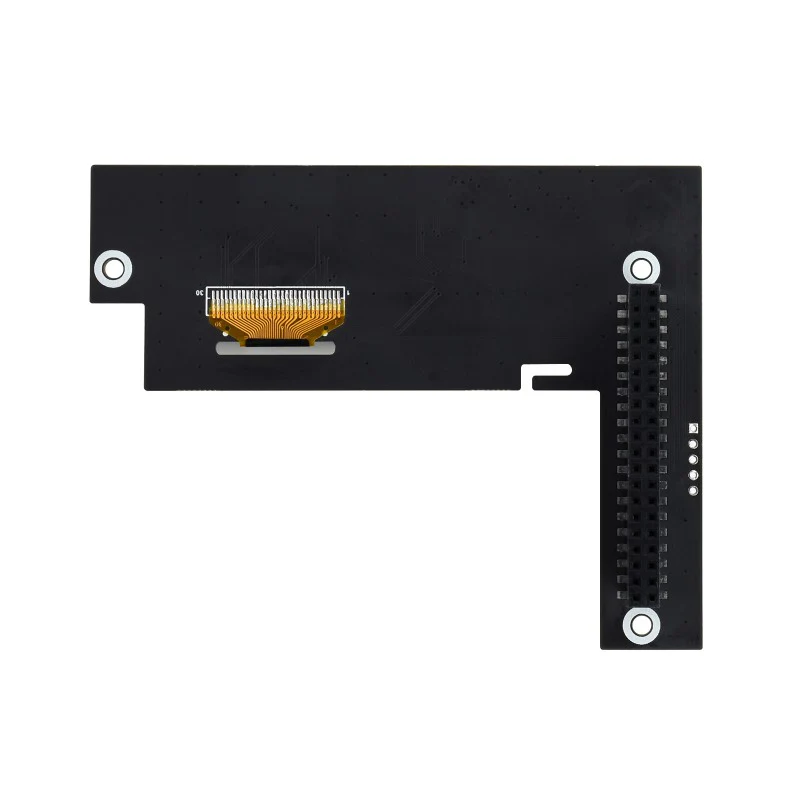

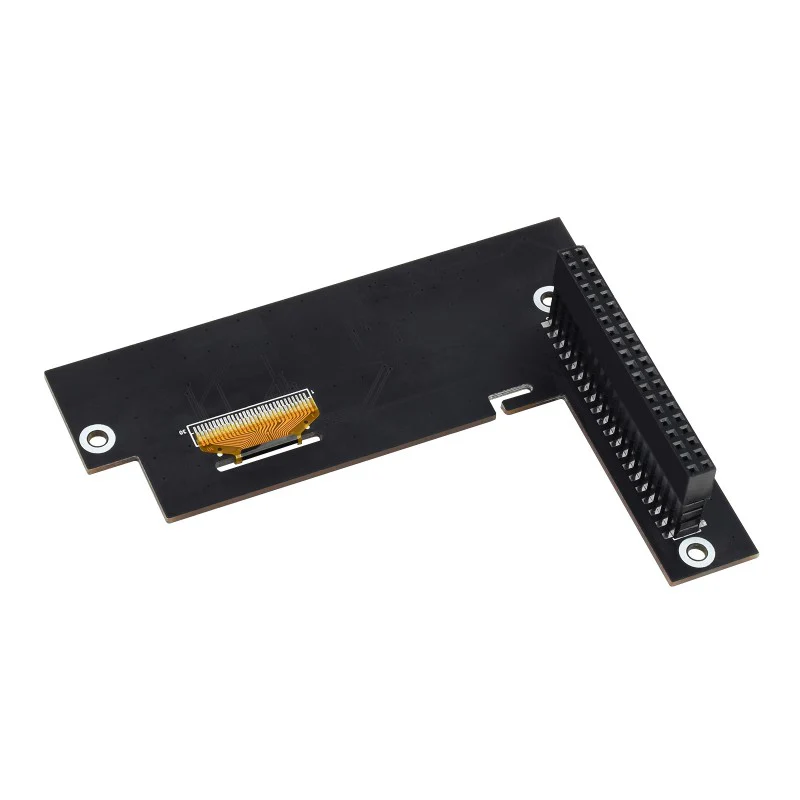

What's On Board

Outline Dimensions

Resources

Wiki: Environment_Sensor_for_Jetson_Nano
