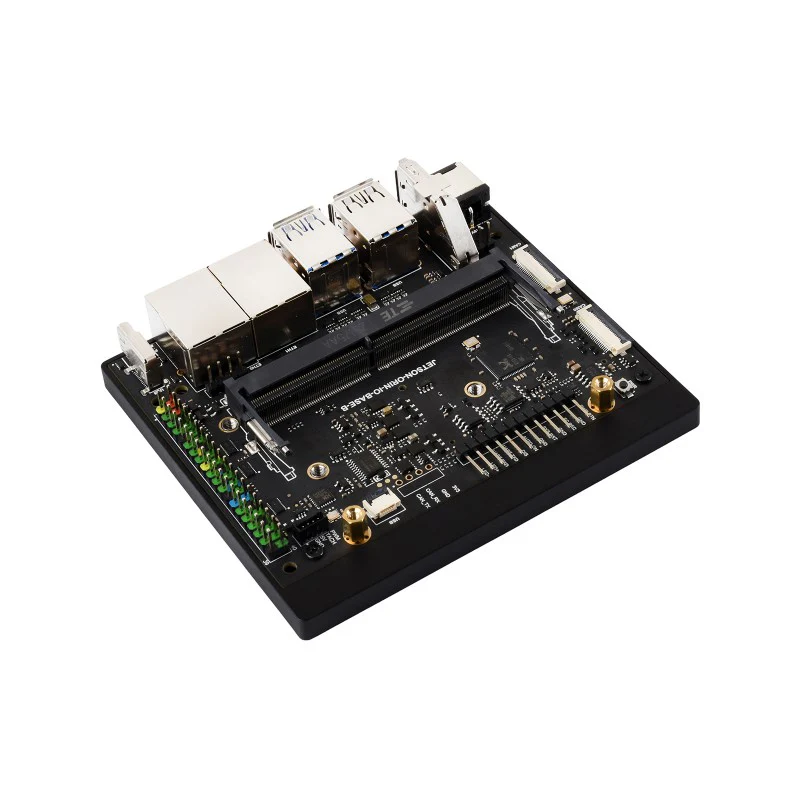

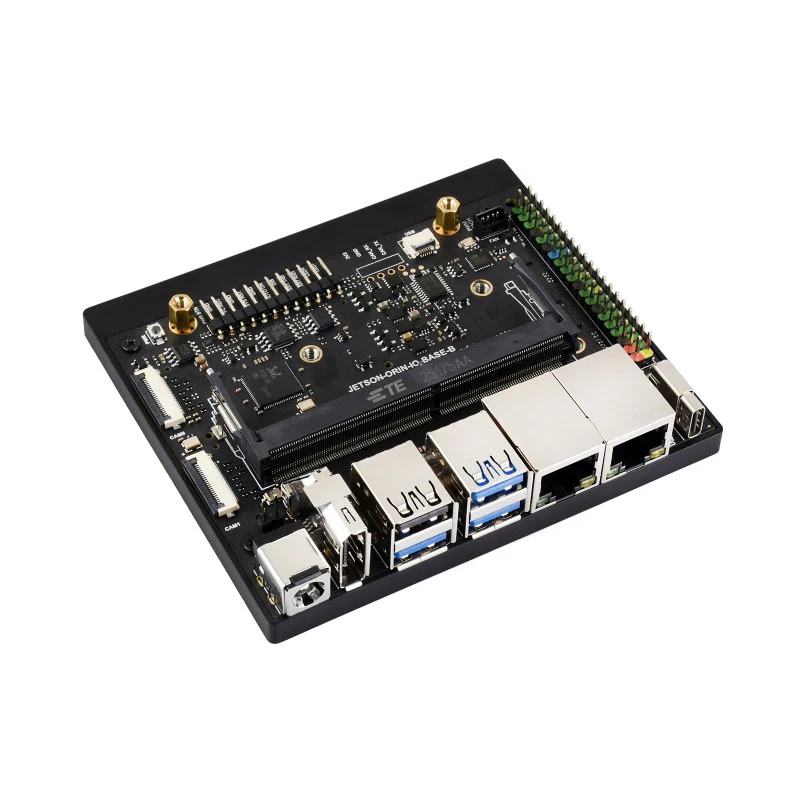

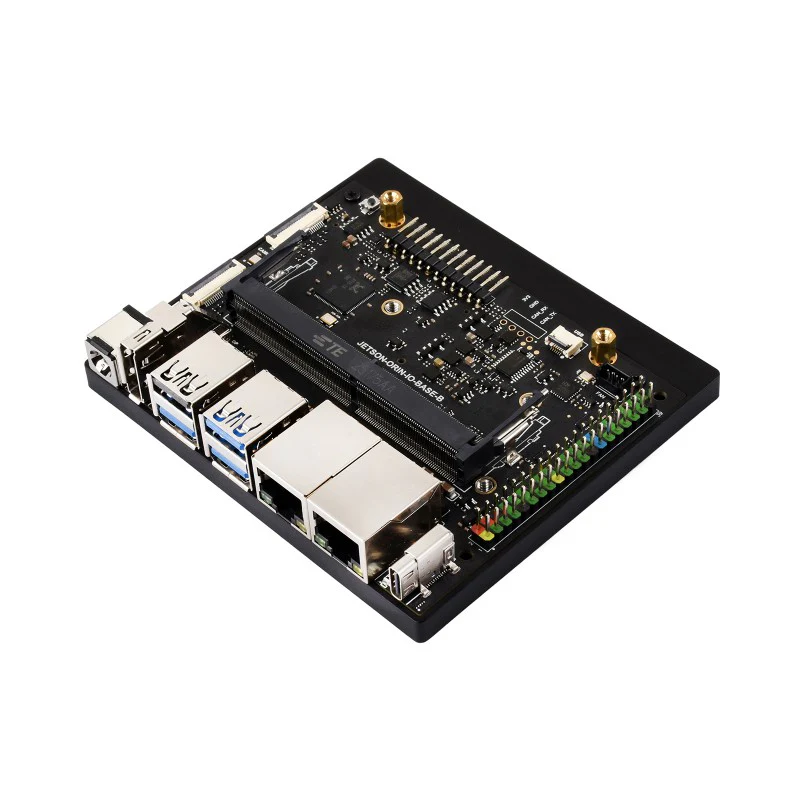

Waveshare Jetson Orin Nano / NX Super Dual Ethernet Base Board
JETSON-ORIN-IO-BASE-B
Waveshare Jetson Orin Nano / NX Base Board
Based on the Jetson Orin Nano and Jetson Orin NX modules, onboard dual Ethernet ports
Compatible With Orin Module
Supports connecting to N-VIDIA Jetson Orin Nano module and Jetson Orin NX module
Connect To CSI Camera
2× 4-Lane CSI Camera Ports For AI Applications Such As Face Recognition,
Road Sign Recognition And License Plate Recognition
* Note: the adapter cable is required for connecting the camera.
7× USB Ports
4 × Type-A + 1 × Type-C + 2 × USB2.0 FFC connectors
Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps,
Type-C port can be used for system burning, and Onboard 2 × USB 2.0 FFC connectors
4K High Definition Output
Supports DP High-Definition Port
Color-Coded 40PIN GPIO Header
Color-Coded Header Pins To Differentiate IO Resources Such As
I2C, SPI, I2S, UART, GPIO, Etc.
Flexible Storage And Wireless Expansion

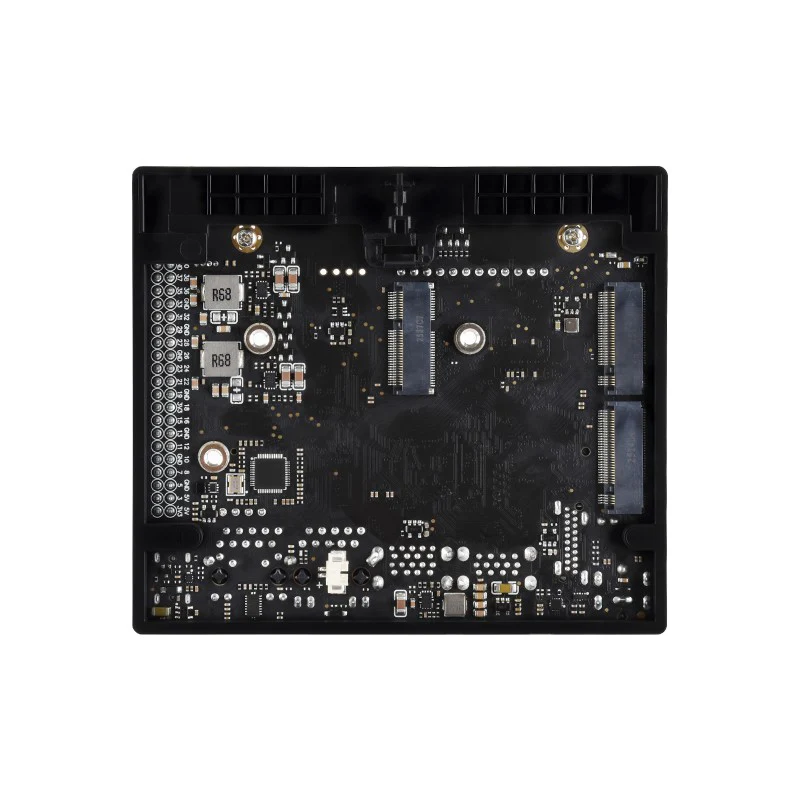

Onboard 2× M.2 Key M Ports For Easy Connecting Solid State Drives And 1× M.2 Key E
Interface For Connecting Wireless NIC, Which Can Reduce Cable Connection
* for reference only, the Solid State Drive and wireless network card are NOT included.

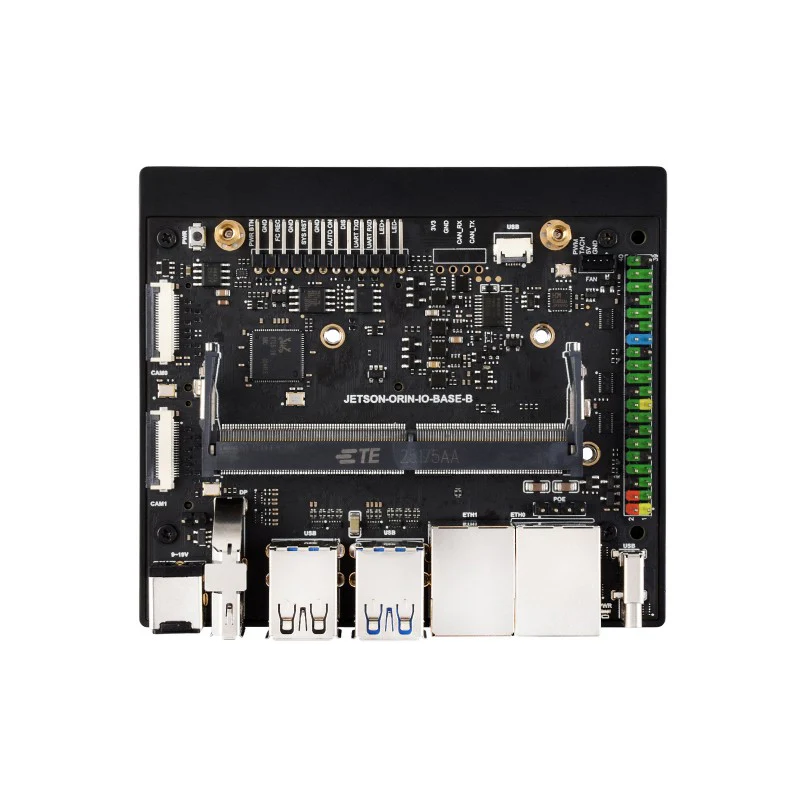

Onboard Resources
|
1. 260PIN DO-DIMM socket for connecting Jetson Orin Nano / NX module 2. 12PIN header Adapting pins for power button, reset button, debug serial port, force recovery setting, auto power-up enable and power indicator functions 3. Power button 4. 2 × 22PIN CSI camera interfaces 5. 2 × MIPI CSI 4-lane camera interfaces 6. DC power jack Supports wide range 9V ~ 19V power supply, compatible with 5.5 × 2.5mm male plug 7. DisplayPort port Supports 4K display |
8. 4 × USB Type-A ports – 3 × USB 3.2 Gen2 ports, up to 10Gbps data transmission – 1 × USB 2.0 port, supports 480Mbps data transmission 9. RJ45 2.5G Ethernet port 10. RJ45 Gigabit Ethernet port 11. USB Type-C port for system burning and data communication 12. 40PIN header 13. 4PIN PWM fan header |
|
14. M.2 Key E for connecting wireless NIC 15. 2 × M.2 Key M for connecting NVMe solid-state drives |
16. RTC backup battery header PH1.25 2P |
Outline Dimensions
Resources & Services
Package Content
Weight: 0.093 kg
JETSON-ORIN-IO-BASE-B x1
Screws pack x1
