ORICO NVME M.2 NGFF SSD Enclosure

ORICO NVME M.2 NGFF SSD Enclosures with 5Gbps, 10Gbps and 20Gbps Transfer Speeds

NOTE: M.2 SSD is NOT included.

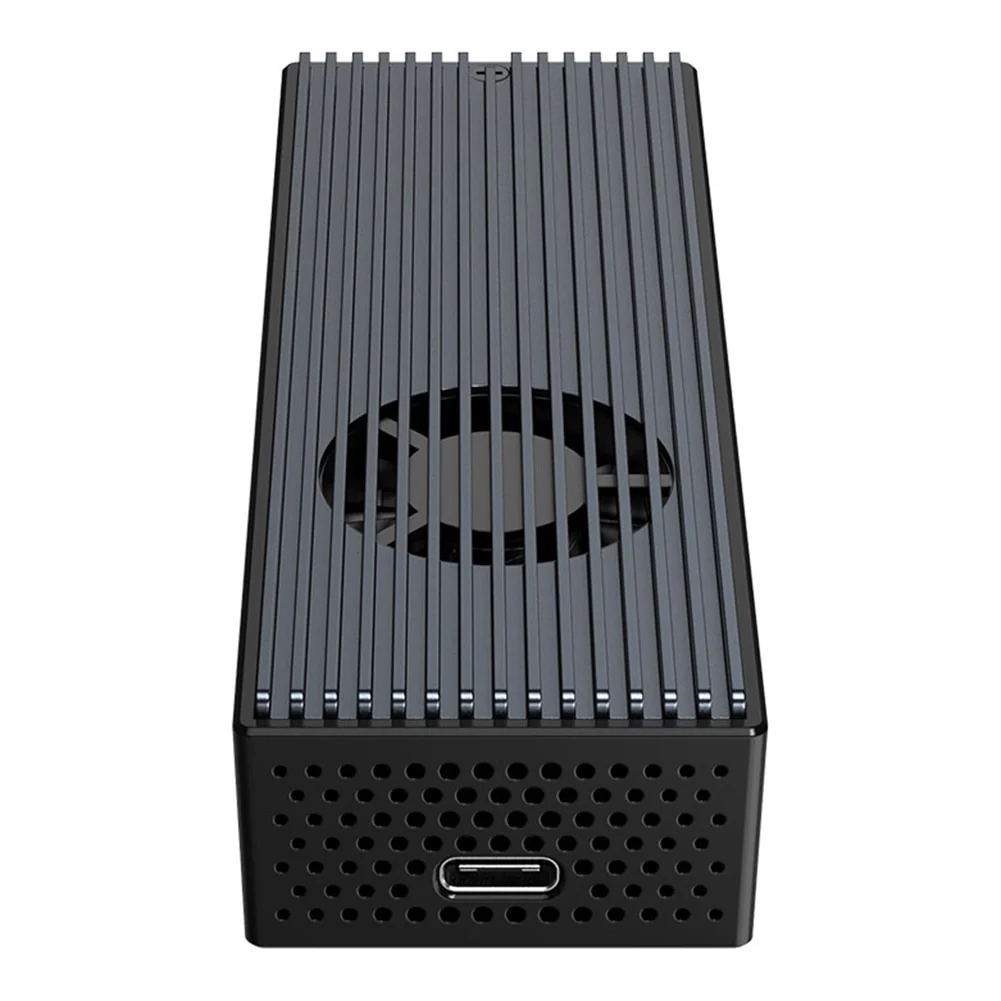

Variant 1. M2PVC3-G20 USB3.2 M.2 SSD Enclosure NVMe 20GPS

• Silent cooling fan speeds up to assist in hard drive cooling
• ASM2364 control chip allows transmission rate to reach 20Gbps
• USB3.2 GEN2*2 Type-C external interface, which can support up to 2000MB/S.
• Compatible with 4 different specifications of M.2 NVME SSD solid state drives: 2230, 2242, 2260, and 2280
• Model: M2PVC3-G20
• Colour: Black
• Material: Aluminum Alloy + ABS
• Output Interface: USB3.2 GEN2 X 2 Type-C
• Transmission Rate: 20Gbps
• Data Cable:
• USB Type-C To Type-C: 15cm/5.91"
• USB Type-A To Type-C: 15cm/5.91"
• Support Capacity: Up To 2TB
• Installation Method: Fixed With Lock Screw
• Support System: for Windows/Mac OS/Linux
• Product Size: 115 X 39.5 X 22.5mm/4.53 X 1.56 X 0.89"

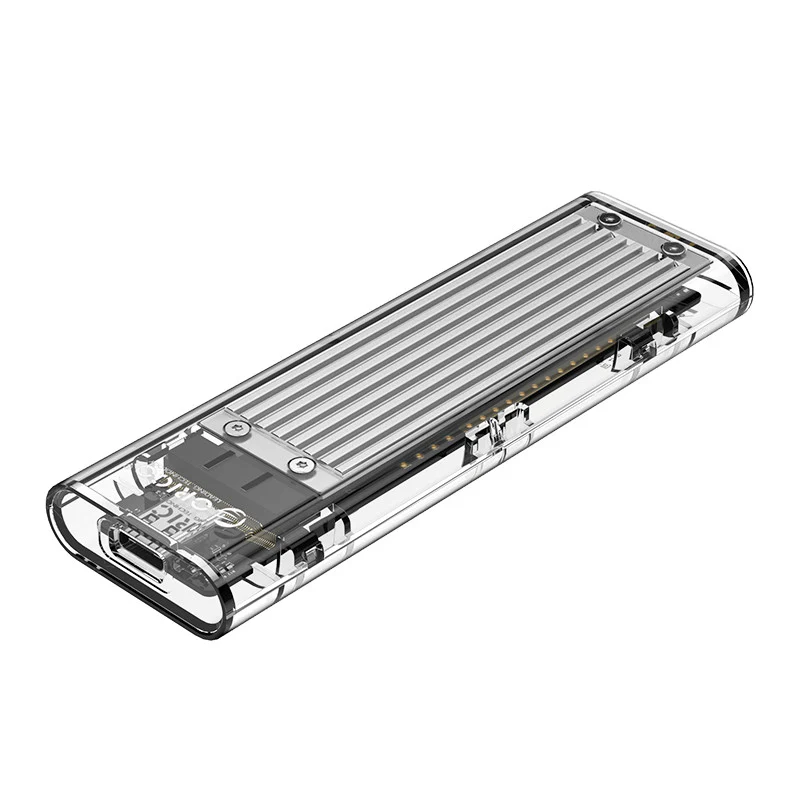

Variant 2. TCM2M-C3 M.2 DUAL NVMe + NGFF SSD Enclosure (10Gbps)

• Supports NGFF and NVMe protocols
• Compatible with 4 different specifications of M.2 NVME or NGFF solid state drives: 2230, 2242, 2260, and 2280

• Model: TCM2M-C3
• Colour: Transparent
• Material: Aluminum Alloy + PC
• Output Interface: USB3.1 GEN2 Type-C
• Transmission Rate: 10Gbps
• Support Capacity: Up To 2TB

• Installation Method: Fixed With Lock Screw
• Support System: for Windows/Mac OS/Linux
• Product Size: 108mm X 34mm X 11.5mm

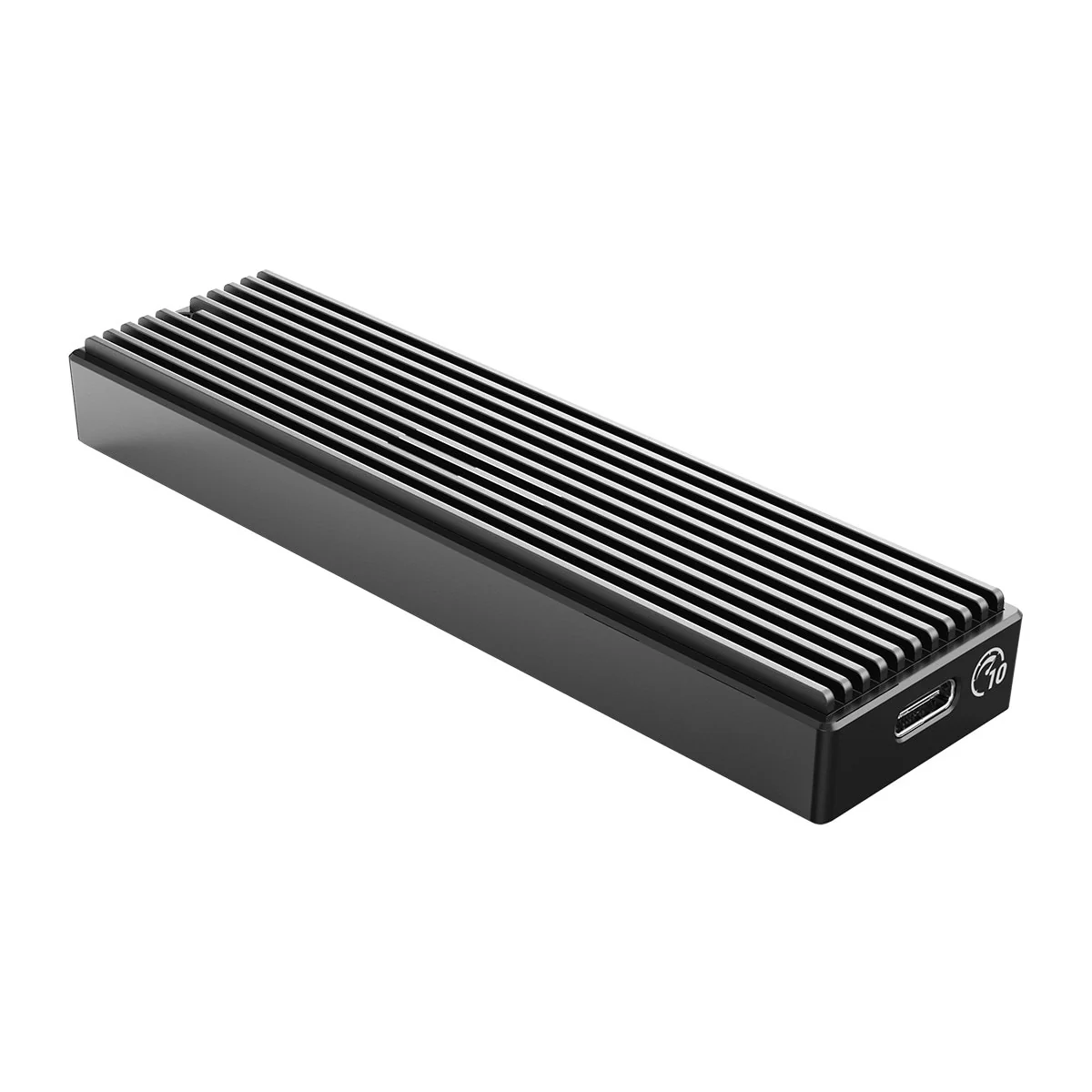

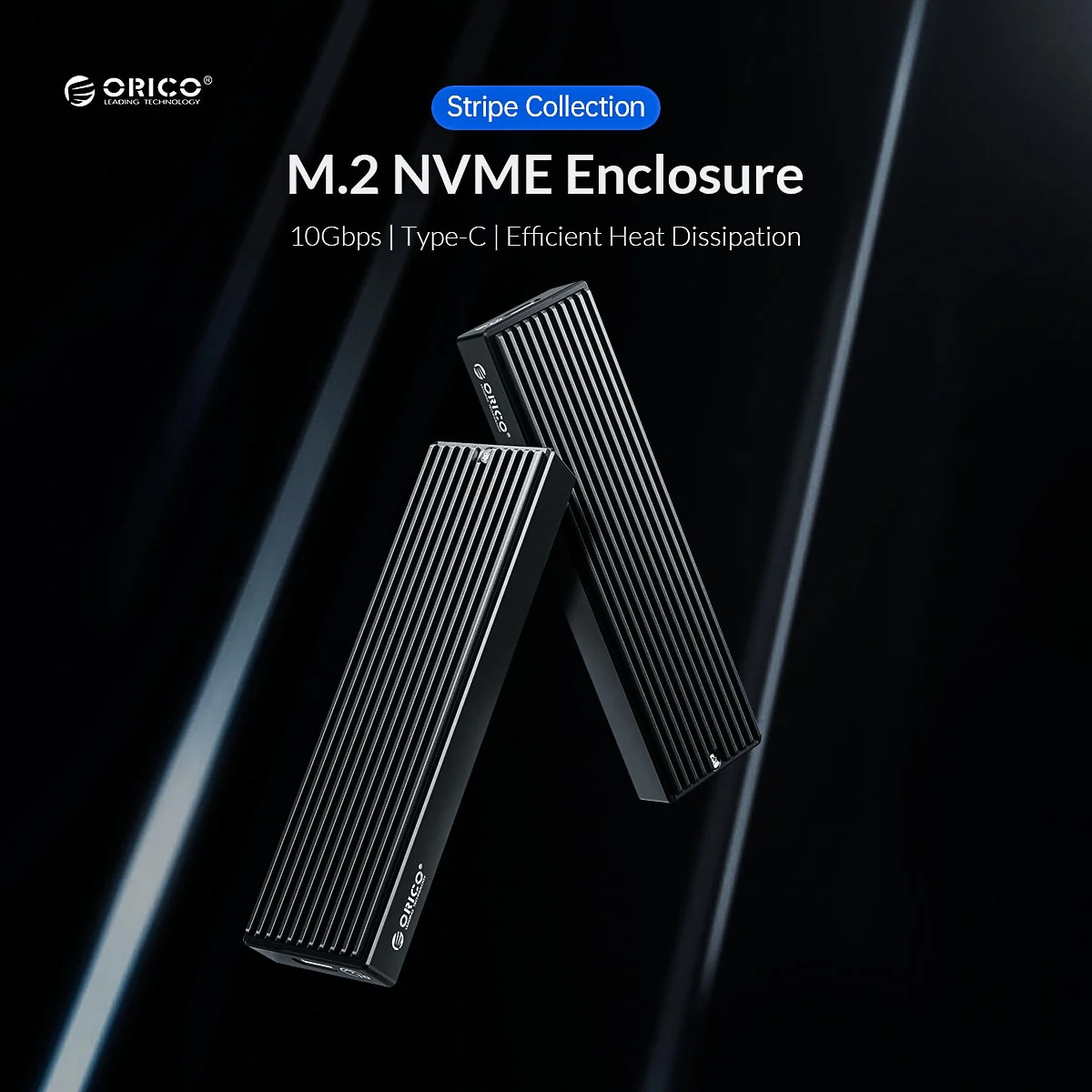

Variant 3. M2PV-C3 M.2 NVMe SSD Enclosure (10Gbps)

• Supports M.2 NVMe protocols
• Compatible with 4 different specifications of M.2 NVME or NGFF solid state drives: 2230, 2242, 2260, and 2280

• Model: M2PV-C3
• Colour: Black
• Material: Aluminum Alloy + PC
• Output Interface: USB3.1 GEN2 Type-C
• Transmission Rate: 10Gbps
• Support Capacity: Up To 2TB

• Installation Method: Fixed With Lock Screw
• Support System: for Windows/Mac OS/Linux
• Product Size: 108mm X 29mm X 13.5mm
• Package Content: SSD Enclosure, Screwdriver, Silicone Thermal Pad, Data Cable, User Manual & Thanks Card.

Variant 4. M2PF-C3 M.2 NGFF SSD Enclosure (5Gbps)

• Supports M.2 NGFF protocols
• Compatible with 4 different specifications of M.2 NVME or NGFF solid state drives: 2230, 2242, 2260, and 2280

• Model: M2PF-C3
• Colour: Black
• Material: Aluminum Alloy + PC
• Output Interface: USB3.1 GEN1 Type-C
• Transmission Rate: 5Gbps
• Compatible with M.2 B-KEY (SATA)
• Support Capacity: Up To 2TB

• Installation Method: Fixed With Lock Screw
• Support System: for Windows/Mac OS/Linux
• Product Size: 108mm X 29.5mm X 13.5mm
