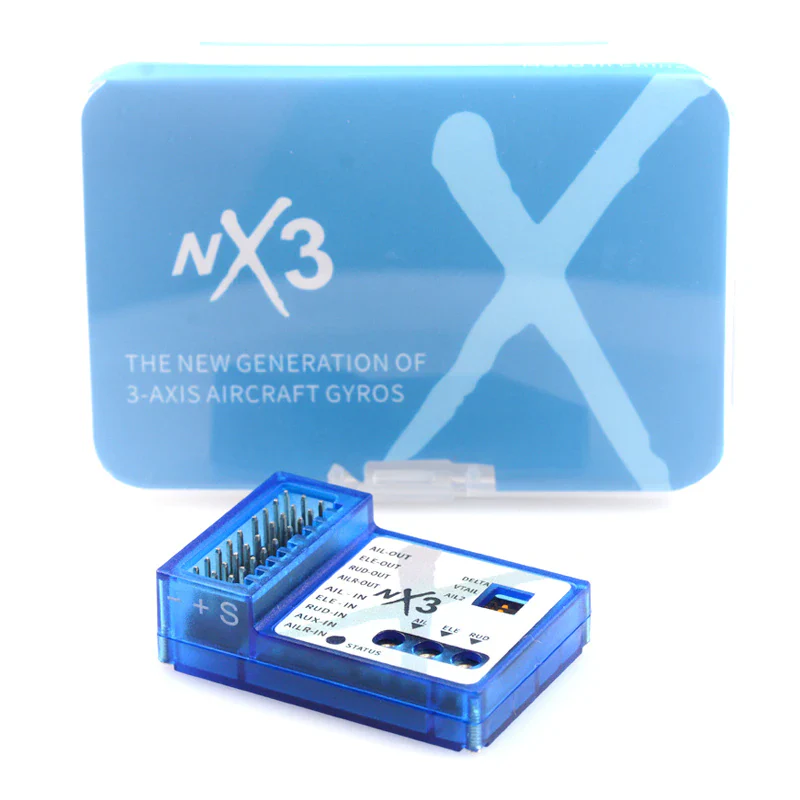

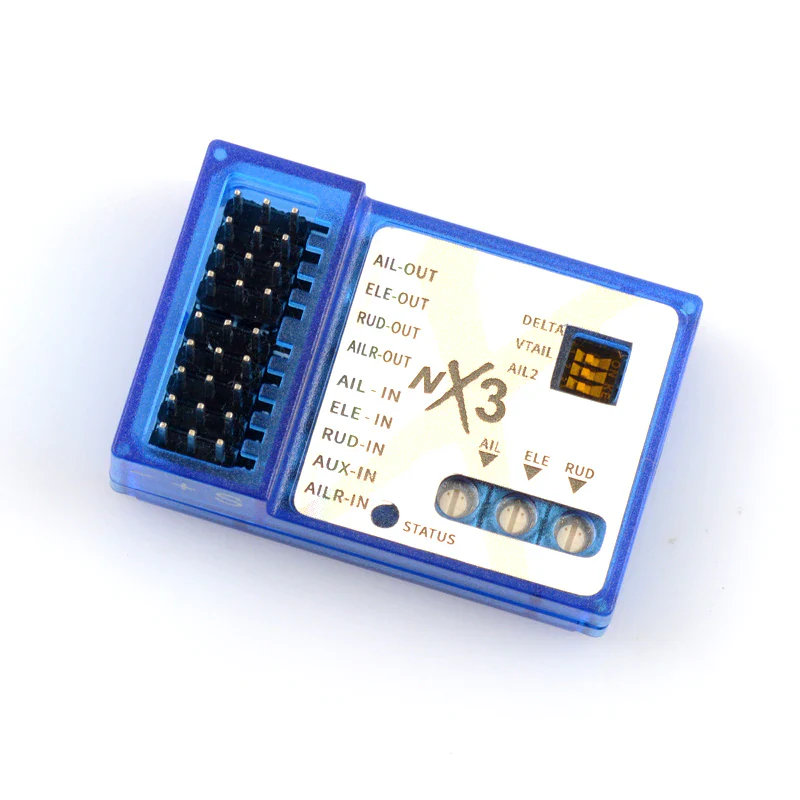

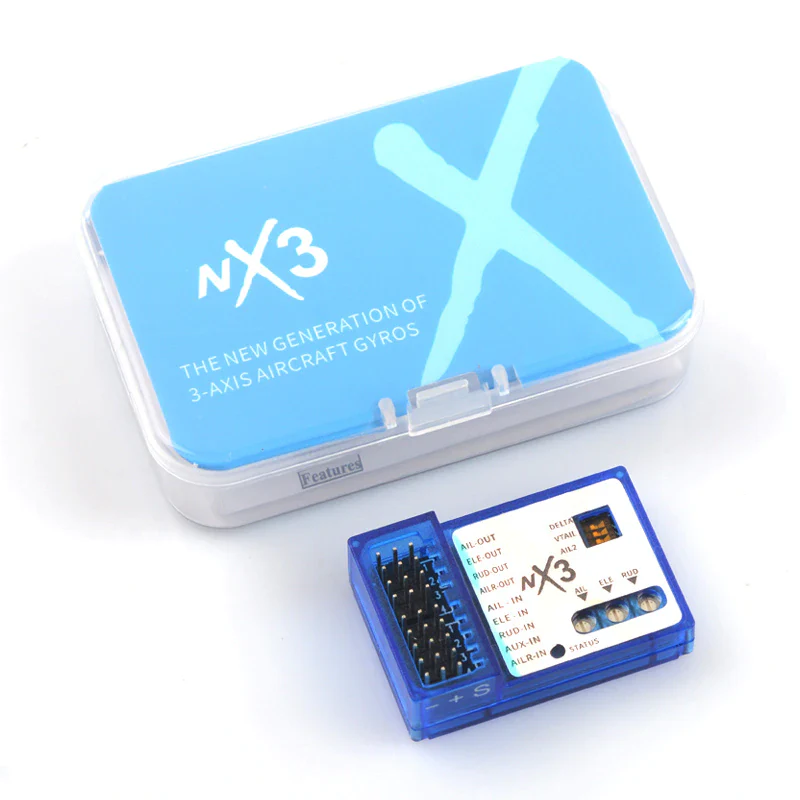

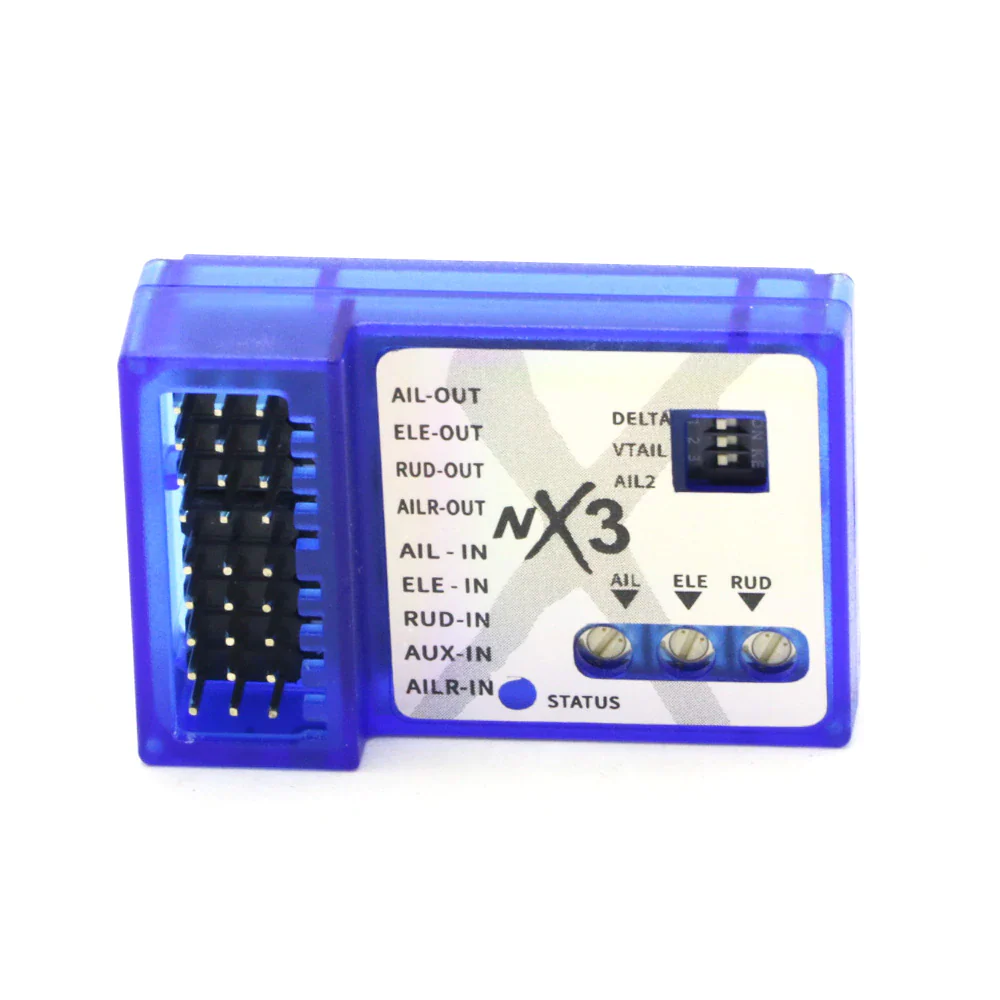

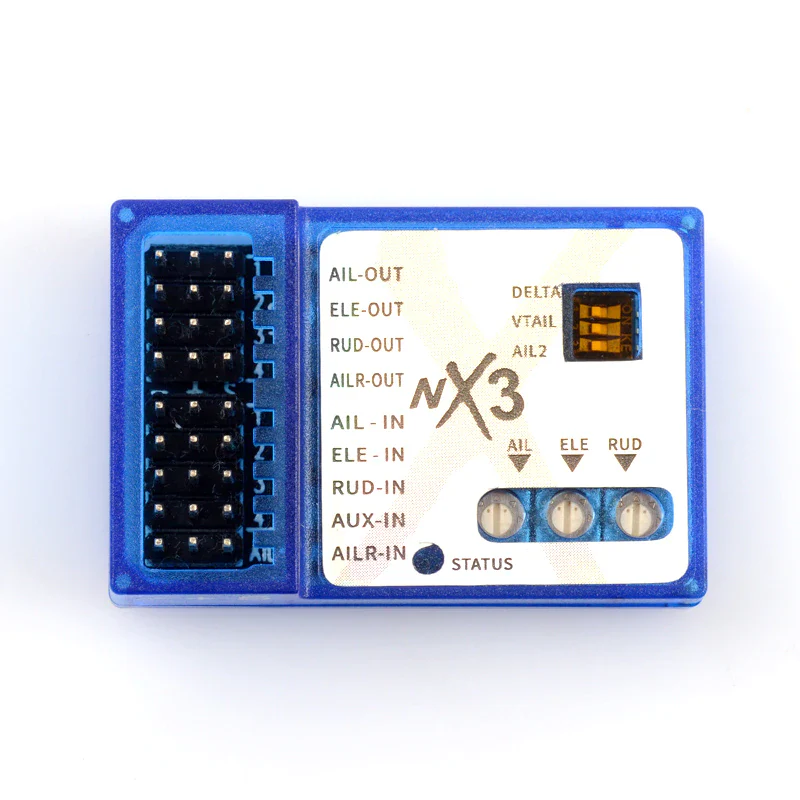

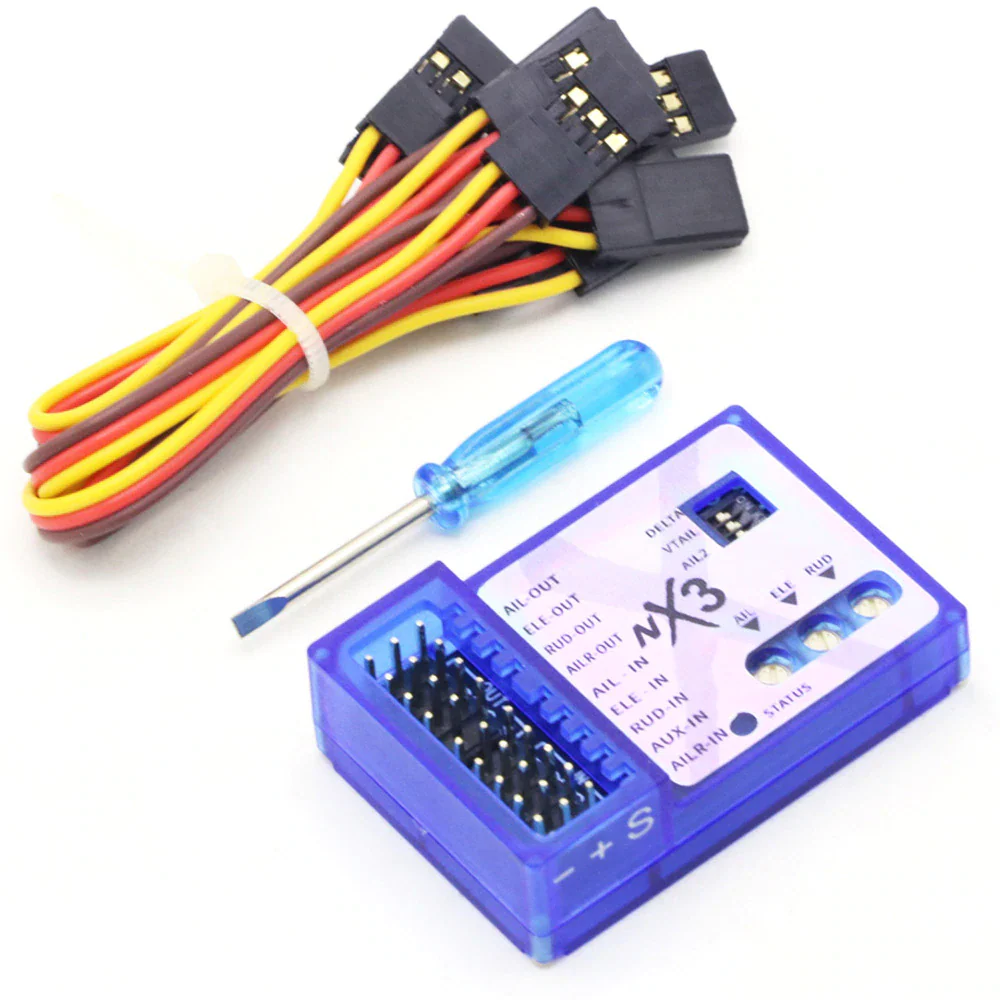

NX3 3D Flight Controller / Gyroscope Balancer for fixed wing aircrafts and RC Planes
The NX3 3D flight controller features a micro design, small size, supports single aileron model, V-tail model, delta wing model and dual aileron (flaperons) aircraft - Can also be used for 2 - axis on jets using 2 servos for ailerons and a servo on the elevator or if the jet uses 2 servos only, one serving the left aileron and elevator, and the other servo serving the right aileron and elevator, it can be set to a delta wing.
Features:
Humanized design, independent potentiometer adjust for different axis sensitivity
Optional - Three-mode switched from controller,
1 - normal stability mode,
2- gyro off mode,
3- calibration.
Specifications
Input voltage: DC5 - 6V, directly connected to the ESC's BEC power supply can be use.
Operating Current: 18mA
Working temperature: -20 Celsius to 85 Celsius
Dimensions: 25 × 40mm
Net Weight: 6.5g
Resources
Datasheet
Tutorial
Description
The NX3 3D flight controller features a micro design, small size, supports single aileron model, V-tail model, delta wing model and dual aileron (flaperons) aircraft - Can also be used for 2 - axis on jets using 2 servos for ailerons and a servo on the elevator or if the jet uses 2 servos only, one serving the left aileron and elevator, and the other servo serving the right aileron and elevator, it can be set to a delta wing.
Features:
Humanized design, independent potentiometer adjust for different axis sensitivity
Optional - Three-mode switched from controller,
1 - normal stability mode,
2- gyro off mode,
3- calibration.
Specifications
Input voltage: DC5 - 6V, directly connected to the ESC's BEC power supply can be use.
Operating Current: 18mA
Working temperature: -20 Celsius to 85 Celsius
Dimensions: 25 × 40mm
Net Weight: 6.5g
